Power Transmission High Torque Planetary Gear Reduction
Piece
Negotiable
Product information
High-quality Power Transmission High Torque Planetary Gear Reduction supplied by Guangdong Starshine Drive Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Input Power:
0.75-7.5kw
Output Speed:
190-950
Production Capacity:
8000PCS/Month
HS Code:
8483409090
Color:
Blue
Specification:
CE, SGS
Origin:
China
Layout:
Coaxial
Specifications
Input Power:
0.75-7.5kw
Output Speed:
190-950
Production Capacity:
8000PCS/Month
HS Code:
8483409090
Color:
Blue
Specification:
CE, SGS
Origin:
China
Layout:
Coaxial
Trade Term:
FOB, EXW, CFR, CIF, FCA
Port Of Loading:
FOSHAN, SHENZHEN, GUANGZHOU
Mounting:
Foot-Mounting
Model NO.:
JWB-X series
Payment Term:
LC, T/T
Gear Shape:
Planetary Conedisk Friction Type
Type:
Planetary Gear Reducer
Trademark:
Starshine Drive
Step:
Stepless
Installation:
Vertical or Horizotal Type
Transport Package:
Wooden Case/ Polywood/Carton
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2010-01-01
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T
Preferred Trade Term:
FOB, EXW, CFR, CIF, FCA
Port Of Loading:
FOSHAN, SHENZHEN, GUANGZHOU
Certificates:
CCC Authentication 1/2, CCC Authentication 2/2, CE Certificate, Certificate of Design Patent, Certificate of Invention Patent, Certificate of Utility Model Patent, CQC Authentication, High-teach Company Certificate 2019, Intellectual Property, ISO Certificate, New And High-tech Product- NCJ Series, New And High-tech Product-XGK Series, TUV Certificate
Product descriptions from the supplier

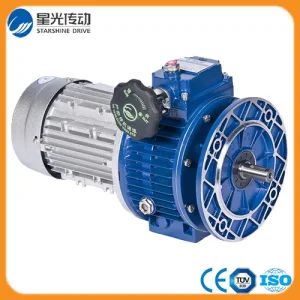

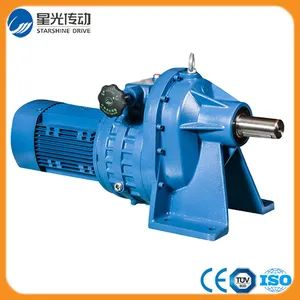

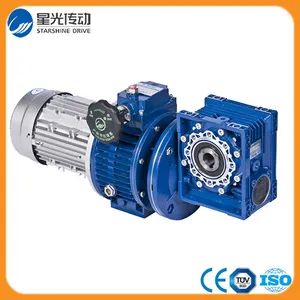

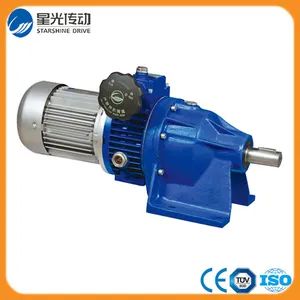

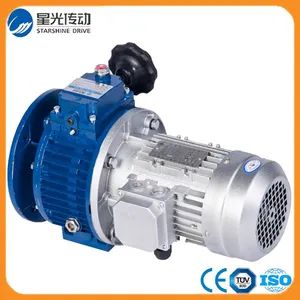

JWB Series Speed Variator
1. Features:
Guangdong Starshine Drive Co.,Ltd,the predecessor was a state-owned military mould enterprise, was established in 1965. Starshine specializes in the complete power transmission solution for high-end equipment manufacturing industries based on the aim of "Platform Product, Application Design and Professional Service".
Starshine have a strong technical force with over 350 employees at present, including over 30 engineering technicians, 30 quality inspectors, covering an area of 80000 square meters and kinds of advanced processing machines and testing equipments. We have a good foundation for the industry application development and service of high-end speed reducers & variators owning to the provincial engineering technology research center,the lab of gear speed reducers, and the base of modern R&D.
Our Team
Quality Control
Quality:Insist on Improvement,Strive for Excellence With the development of equipment manufacturing indurstry,customer never satirsfy with the current quality of our products,on the contrary,wcreate the value of quality.
Quality policy:to enhance the overall level in the field of power transmission
Quality View:Continuous Improvement , pursuit of excellence
Quality Philosophy:Quality creates value
3. Incoming Quality Control
To establish the AQL acceptable level of incoming material control, to provide the material for the whole inspection, sampling, immunity. On the acceptance of qualified products to warehousing, substandard goods to take return, check, rework, rework inspection; responsible for tracking bad, to monitor the supplier to take corrective
measures to prevent recurrence.
4. Process Quality Control
The manufacturing site of the first examination, inspection and final inspection, sampling according to the requirements of some projects, judging the quality change trend;
found abnormal phenomenon of manufacturing, and supervise the production department to improve, eliminate the abnormal phenomenon or state.
5. FQC(Final QC)
After the manufacturing department will complete the product, stand in the customer's position on the finished product quality verification, in order to ensure the quality of
customer expectations and needs.
6. OQC(Outgoing QC)
After the product sample inspection to determine the qualified, allowing storage, but when the finished product from the warehouse before the formal delivery of the goods, there is a check, this is called the shipment inspection.Check content:In the warehouse storage and transfer status to confirm, while confirming the delivery of the
product is a product inspection to determine the qualified products.
7. Certification.
Packing
Delivery
1. Features:
JWB-X type
- Sizes: ≥04
- Powerup to 1.5kWor more
- Cases in RAL 5010 blue cast iron
- Shafts: case hardened and tempered steel.
- Internal components: heat-treated steel
- Output speed with 4 pole(1400r/min)motors: 2-10r/min;4.7-23.5r/min;15-75r/min;20-100r/min, 28-140r/min, 30-150r/min;40-200r/min;60-300r/min;80-400r/min;100-500r/min;190-950r/min.
- Output Torque value max 1002Nm
- Silent, vibration-free running
- Bidirectional rotation
- Control handwheel positionable on either side
- Slipping speed to max load at 5%
- Regulation sensibility: 0,5 rpm
- Painted with blueepoxy-polyester powder
JWB-X B type
- Sizes:01,02,03 and 04
- Power up to 1.5kWor less
- Cases in die-cast aluminium alloy
- Shafts: case hardened and tempered steel.
- Internal components: heat-treated steel
- Output speed with 4 pole(1400r/min)motors: 2r/min-20r/min;4.7r/min-23.5r/min;6.5-32.5r/min, 8-40r/min, 9-45r/min, 13-65r/min, 15r/min-75r/min;18-90r/min, 25-125r/min, 28r/min-140r/min;40r/min-200r/min;60r/min-300r/min;80r/min-400r/min;100r/min-500r/min;190r/min-950r/min.
- Output Torque value max 795Nm
- Silent, vibration-free running
- Bidirectional rotation
- Control hand wheel positionable on either side
- Slipping speed to max load at 5%
- Regulation sensibility: 0,5 rpm
- Painted withblueepoxy-polyester powder
2. Technical parameters
| Type | Output Torque | Output Shaft Dia. | Output Speed Range | 2rpm-950rpm | |
| SWB01 | 2.6-1.6N.m | φ11 | Applicable Motor Power | 0.18kW-7.5kW | |
| SWB02 | 258-1.8N.m | φ14,φ24,φ28,φ32 | |||
| SWB03 | 426-4N.m | φ24,φ28,φ38 | Input Options | With Inline AC Motor | |
| SWB04 | 795-8N.m | φ28,φ38,φ42 | With IEC Motor | ||
| SWB05 | 535-16N.m | φ38,φ48,φ55 | With Input Shaft | ||
| SWB06 | 1002-40N.m | φ42,φ55,φ70 | With Input Flange | ||
