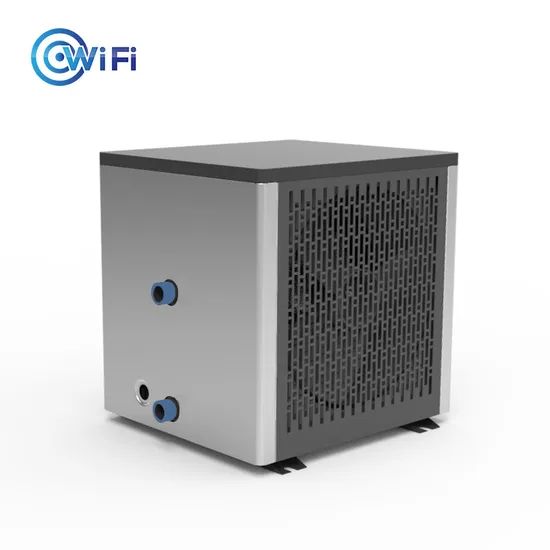

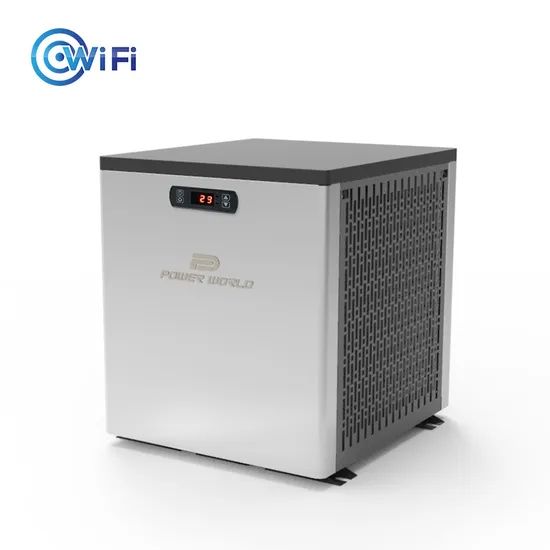

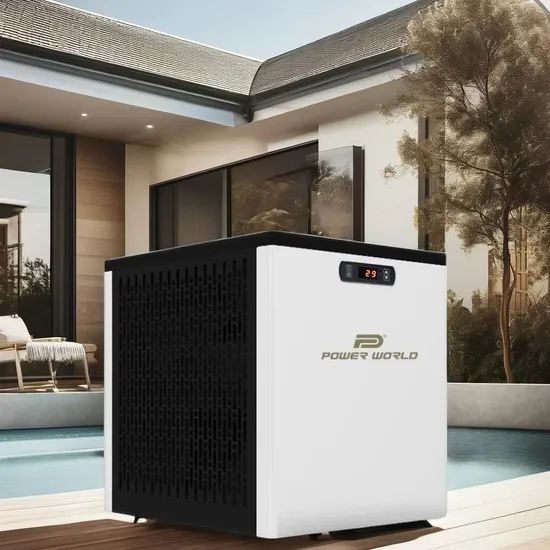

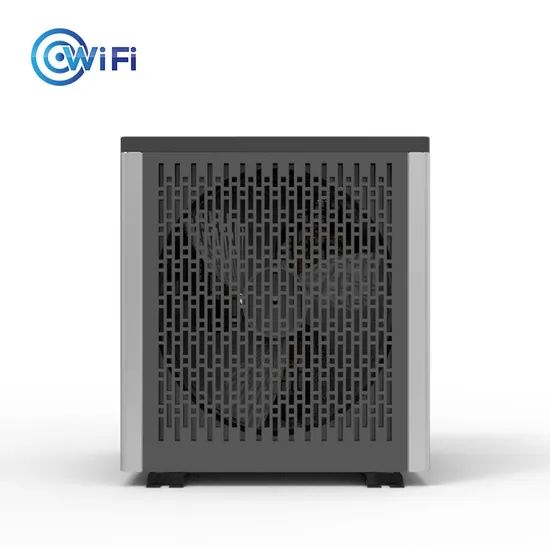

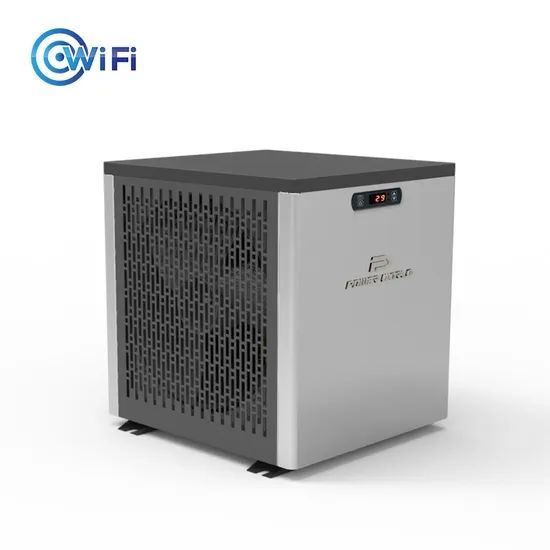

Power World Solar Mini Swimming Heat Pump Water Heaters





SUPER SILENCE

Thanks to patented silent-design,Min Pro Pool Heat Pump makes a quieter swimming environment and friendly neighborhood for you.
The sound level is only 45dB.



SIMPLE INSTALLATION & OPERATION

Easy plug & play and press & heat controller bring more comfortable and convenient experience to end user.

INTELLIGENT DEFROSTING

Equipped with four-way valve,Min Pro Pool Heat Pump can automatically defrost efficiently and quickly when ambient temperature is low,perfectly adapting to the needs of different temperature and areas.This also ensures the wide application range from 5 to 43ºC

Product Parameters

Model	PW005-KZXYC-F	PW008-KZXYC-F	PW012-KZXYC-F	PW015-KZXYC-F
Advised pool volume (m3)	5~15	10~20	12~22	15~25
Operating air temperature (ºC)	-5 ~43
Performance Condition: Air 27°C, Water 26°C, Humidity 80%
Heating capacity (kW)	2.8	3.5	4.5	5.5
Heating Capacity(Btu)	9520	11900	15300	18700
Consumed power (kW)	0.56	0.65	0.83	1.02
COP	5.0	5.4	5.4	5.4
Performance Condition: Air 15°C, Water 26°C, Humidity 70%
Heating capacity (kW)	2.0	2.5	3.3	3.9
Heating Capacity(Btu)	6800	8500	11050	13328
Consumed power (kW)	0.53	0.63	0.81	0.98
COP	3.8	4.0	4.0	4.0
Performance Condition: Air 35ºC,Water 28ºC, Humidity 80%
Cooling capacity (kW)	1.5	2.0	2.6	3.3
Sound pressure at 1m dB(A)	45	46	47	48
Sound pressure at 10m dB(A)	28	30	31	32
Heat exchanger	Spiral titanium tube in PVC
Casing	Metal Casing
Power supply	220 ~240V/1 Ph/50Hz
Water Connection (mm)	Φ32
Rated input current at air 15ºC(A)	2.42	2.88	3.50	4.30
Advised water flux (m³/h)	1.0-1.5	1.5-2.0	1.7-2.2	2.0-2.5
Water Pressure Drop (max) kPa	2	2	4	4
Net weight/Gross weight(kg)	25/27	26/28	33/36	34/37
Carton size(mm)	394*444*435mm		498*499*500mm
Package size(mm)(carton)	420*510*485		555*576*542
Package size(mm)(Polywood)	437*510*475		572*576*545
Loading quantity (20GP/40GP/40HQ)	208/416/520		144/288/288
Refrigerant consumption(g)	200g	265g	320g	380g
Refrigerant	R32
Compressor	Gree
Four-way valve	Sanhua
Expansion valve	Sanhua
Operating water temperature (ºC) heating	9 ~43
Operating water temperature (ºC) cooling	9 ~35



PowerWorld Machinery EquipmentCo., Ltd. was established in 2004. It is a high-tech enterprise focusing on the research, development, production and sales of air source heat pump products. The headquarters has locatedinShenzhen, a well-developed trade city, and the factory is located in Dongguan, a prosperous manufacturing industry, and has branches in all places. Power World hasstrong technology and R&D strength,and witha complete heat pump industry chain.Theproducts involve swimming pool heat pumps, residential heating and cooling heat pumps, domestic hot water heat pumps, food drying heat pumps, industrial and commercial high temperature hot water solutions, industrial and agricultural heat pump dryers, etc. Among them, the export volume ofEVI inverterheat pumps has always been among the best, ranking first in China for many years.More than 60 exporting country such like Sweden, Czech, Poland, Germany, France, Spain, Slovenia, South Africa, India, Vietnam, Thailand,Our heat pump products have the advantages of safety, high efficiency, environmental protection, low energy consumption, etc., have participated in the projects of replacing traditional boilers recommended by the national government for many times, and have been awarded the honorary title of high-tech enterprise.



Power World hasa reasonable talent structure, with a number of senior engineers as the main technical backbone, and more than 500 experienced production personnel. In order to develop heat pump products that are truly suitable for market needs, the company specially hires domestic and foreign experts in the heat pump industry as consultants to closely follow the heat pump technology and industry development characteristics. Power Worldis committed to technology research and development and has so far obtained more than 80 product patents,and our products are I S O 9 0 0 1/ I S O 1 4 0 0 1, C E, C C C and E R P certified. From 2007 to 2008,Power Worldwas invited by the national CCTV, Guangdong Satellite TV and other authoritative television media to accept interviews. In the fierce market competition, Power Worldhas not changed its original aspiration, only to repay customers with the best quality and service!

Q1: Are you heat pump supplier of trading company or manufacturer?
A1: We are R&D and manufacturer factory. With 300,000 sq meters modern factory in Shenzhen City & Dongguan City. with OEM service provided, MOQ> 20 Units.

Q2: How long is your Heat Pump delivery time?
A2: Generally it is 1-5 working days if the goods are in stock. or it is 15-25 working days if the goods are not in stock, it is
according to quantity.

Q3: Do you also provide other kind of heat pump?
A3: ASHP of EVI(8KW-132KW) | SWIM POOL(2KW-150KW) I Domestic heat pump(80L-300L tank size),etc.

Q4: Wonder if you accept small orders?
A4: Do not worry. Feel free to contact us .in order to get more orders and give our clients more convener ,we accept small order.

Q5: Can you send products to my country?
A5: Sure, we can. If you do not have your own ship forwarder, we can help you.

Q6: Can you do OEM for me?
A6: We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make samples for you ASAP.

Q7: What's your payment terms?
A7: By T/T,LC AT SIGHT,30% deposit in advance, balance 70% before shipment.

Q8: How can I place the order?
A8: First sign the PI,pay deposit,then we will arrange the production.After finished production need you pay balance. Finally we will ship the Goods.

Q9 When can I get the quotation?
A9: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation.Please call us or tell us in your mail, so that we could regard your inquiry priority.

If you are interested in this product,please fill in the below and send us,we will reply you and also send you the latest product catalog and latest quotation within 1 hour!
