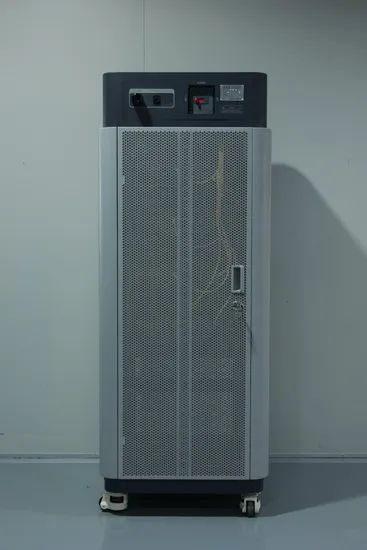

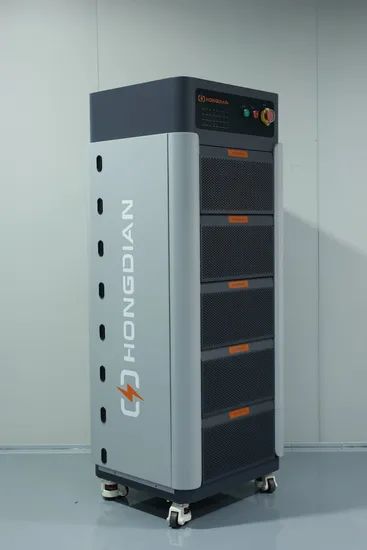

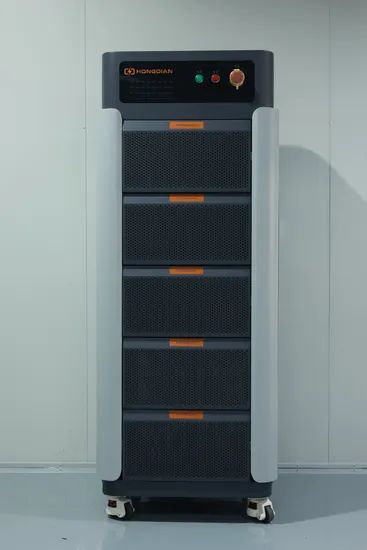

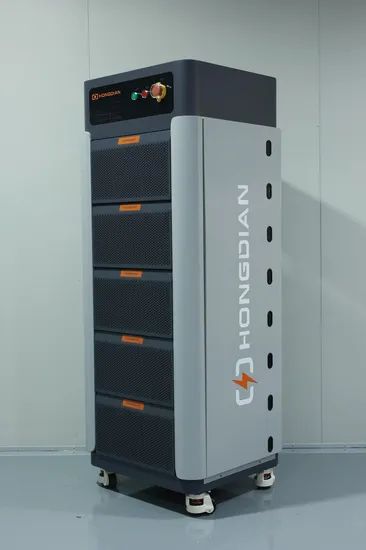

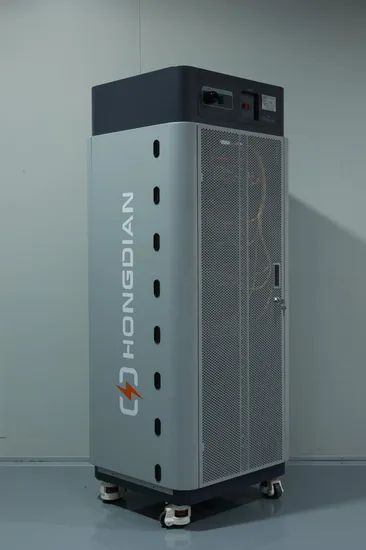

Precision Battery Capacity Grading System for EV/Ess Applications Battery Tester
1 Piece
$6,582Product information
High-quality Precision Battery Capacity Grading System for EV/Ess Applications Battery Tester supplied by Shenzhen Hongda New Energy Co., Ltd.. Bulk wholesale pricing is $6,582 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Charging Voltage Range:
0V~60V
Current Range:
0~60A
Warranty:
1-Year
Production Capacity::
1000pieces/Year
After Sales Service:
12 Months Warranty & Life-Time Sale Service
Specification:
686(W)× 730(D)× 1960(H)mm
Failure Rate:
<0.01
Input Power Supply:
AC380V
Specifications
Charging Voltage Range:
0V~60V
Current Range:
0~60A
Warranty:
1-Year
Production Capacity::
1000pieces/Year
After Sales Service:
12 Months Warranty & Life-Time Sale Service
Specification:
686(W)× 730(D)× 1960(H)mm
Failure Rate:
<0.01
Input Power Supply:
AC380V
Test Region:
All
Customized:
Customized
Origin:
Dongguan China
Trade Term:
FOB, EXW
Type:
Finished Batteries Tester
Model NO.:
HD-60V60A-08CH
Trademark:
HongDa
Application:
Lithium-ion Battery
Port Of Loading:
SHENZHEN
Port::
Shenzhen, China
Payment Terms::
T/T
Payment Term:
T/T, Western Union
Transport Package:
Wooden Box
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2024-03-06
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
T/T, Western Union
Preferred Trade Term:
FOB, EXW
Port Of Loading:
SHENZHEN
Certificates:
ISO 14001, ISO 9001
Product descriptions from the supplier
Product Description
Product Description
This system can provide CC mode, CV mode, CCCV mode, Pulse mode, CP mode, CR mode, DCIR mode, and HPPC etc. Through the work step editor, they can be edited to work in a combined work mode and can be quickly switched on the user's requirements. Through these basic functions, the test system can carry out battery performance testing, rate charge and discharge testing, capacity testing, cycle life testing, DC internal resistance testing, reliability testing, energy efficiency testing, simulated road condition testing, etc. When the same device works with multiple channels, the channels are completely independent of each other; when there is a need to expand the current, the channels can be connected in parallel.
Product Parameters
AC Input Parameters
| Item | Technical Parameters |
| Wiring Method | AC380V Three-Phase Five-Wire System |
| Input Power Supply | AC380V |
| Power Factor | ≥99%(full load) |
| THDi | ≤5%(full load) |
| Maximum feedback efficiency | ≥92%(full load) |
DC output parameters
| Item | Technical Parameters |
| Voltage range | Charging Voltage: 0V ~ 100V(customized) Discharging Voltage: 1V ~ 100V(customized) |
| Voltage Accuracy | ±0.05%FS |
| Voltage Resolution | 1mV |
| Current Range | 0 ~ 60A (customized) |
| Current Accuracy | ±0.05%FS |
| Current Resolution | 1mA |
| Current Response Time | 10ms(10%FS ~ 90%FS) |
| Charge/Discharge Conversion Time | 20ms(-90%FS ~ 90%FS) |
| Channel Control Mode | All channels can be independently controlled. |
| Auxiliary channels | Each channel is equipped with an auxiliary temperature channel. |
Step Function Features / Function Features of Operation Steps
| Item | Technical Parameters |
| Minimum Data Logging Time | 10ms |
| Editable Number of Steps | 2000 |
| Number of Step Cycles | 65535 |
| Step Cycle Nesting | 5 |
| Charge and Discharge Modes | Idle, Pause, Constant Current Charge (CC), Constant Voltage Charge (CV), Constant Resistance Charge (CR), Constant Current Constant Voltage Charge (CCCV), Constant Power Charge (CP), Constant Current Discharge (DC), Constant Power Discharge (DP), Constant Resistance Discharge (DR), Direct Current Internal Resistance Test (DCIR) |
| Termination Criteria | Voltage, Current, Capacity, Energy, Time, Power, Cycle Count, BMS Parameters, Custom Advanced Parameters (Supporting Single or Multiple Logic AND/OR Combinations) |
| Execution Action Types | Jump, Pause, Protect, Next Step |
| Importing DBC Files | Supports File Editing, Saving, and Importing |
| Direct Current Internal Resistance Testing (DCIR) | Supports DCIR (Direct Current Internal Resistance) test steps, hardware real-time calculation, and supports two types of tests: (V1-V2)/(I1-I2) and (V1-V2)/I. |
| Data Export Methods | Export data in Excel and CSV formats. |
Protection Functions
| Item | Technical Parameters |
| AC-Side Protection | AC Grid Voltage Over/Under Voltage Protection, Surge Protection, Anti-Islanding Protection, Over/Under Frequency Protection, Hardware Overtemperature Protection, Self-Test Protection, etc. |
| DC-Side Protection | Bus Over/Under Voltage Protection, Hardware Overtemperature Protection, Battery Channel Line Reverse Connection Protection, etc. |
| Battery-Side Comprehensive Protection | Battery pack total voltage upper/lower limit protection, battery cell voltage upper/lower limit protection, battery temperature upper/lower limit protection, battery charge/discharge current upper limit protection, battery capacity upper/lower limit protection, BMS communication loss protection, network disconnection protection, etc. |
| Ingress Protection (IP) Rating | IP22 |
| Operating Temperature Range | 0ºC~ 45ºC |
| Cooling Method | Forced Air Cooling |
| Sound Level | ≤75dB |
Packaging & Shipping
1.Standard exported package: Internal anti-collision protection, external export wooden box packaging.
2.Shipping by Fedex, by air, by sea according to customers' requirements to find the most suitable way,
3.Responsible for the damage during the shipping process will change the damage part for you for free.
4.Supply with the suitable voltage input and source plug according to your country requirements.
Our Advantages
1.BMS free docking development
2. Accuracy 0.05%
3. Charge and discharge efficiency 92%
4. Avant-garde voltage protection below 60v, without a protection board, our software can predict 7 volts in advance
5. Our chassis appearance design is exquisite, small, in line with the optimal solution to heat dissipation effect, while using Delta fan, IGBT Infineon, the best configuration to ensure heat dissipation effect
Company Profile
Shenzhen Hongda New Energy Co., LTD., founded in 2014, is a supplier of new energy (energy storage) detection equipment and detection technology integrating research and development, production and sales. The company's "Hongdian" brand is committed to the research and development, production and sales of energy storage, power lithium battery pack aging detection equipment.
Over the years, the company's steady growth, office, production environment reached 6000 square meters. The company has energy saving feedback technology, battery management and control, battery system integration and other technologies. The company mainly serves energy storage, power and other lithium PACK manufacturers.
With the development of business, the company's products are constantly enriched, including energy storage, power lithium battery pack aging detection equipment, high voltage, high current, high power battery testing equipment, power battery pack, energy storage power station, mobile base station standby power supply and other new energy projects aging detection equipment.
Over the years, the company's steady growth, office, production environment reached 6000 square meters. The company has energy saving feedback technology, battery management and control, battery system integration and other technologies. The company mainly serves energy storage, power and other lithium PACK manufacturers.
With the development of business, the company's products are constantly enriched, including energy storage, power lithium battery pack aging detection equipment, high voltage, high current, high power battery testing equipment, power battery pack, energy storage power station, mobile base station standby power supply and other new energy projects aging detection equipment.
