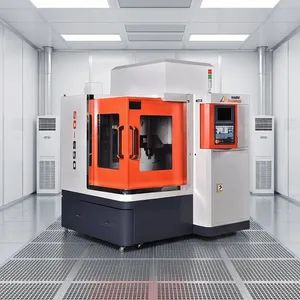

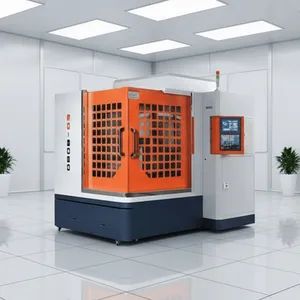

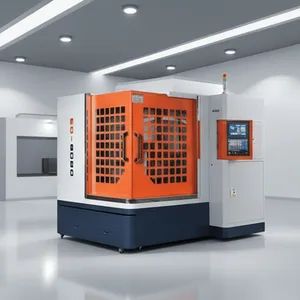

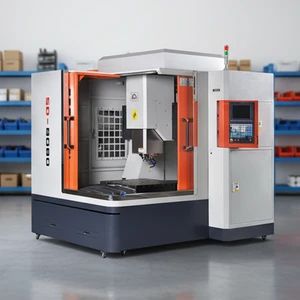

Precision CNC Metal Engraving and Milling Machine with Imported Lk8080 Guide
Piece
Negotiable
Product information
High-quality Precision CNC Metal Engraving and Milling Machine with Imported Lk8080 Guide supplied by Suzhou Longkai Electromechanical Technology Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Warranty:
12 Months
Production Capacity:
20PC/Month
Specification:
650
HS Code:
8401200000
Feeding Height:
>300mm
Certification:
CE
Origin:
China
Customized:
Customized
Specifications
Warranty:
12 Months
Production Capacity:
20PC/Month
Specification:
650
HS Code:
8401200000
Feeding Height:
>300mm
Certification:
CE
Origin:
China
Customized:
Customized
Trade Term:
FOB, CFR, CIF
Payment Term:
LC, T/T, Western Union, Money Gram
Trademark:
Longkai
Condition:
New
Transport Package:
Wooden Package
Port Of Loading:
shanghai
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2019-05-12
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, Western Union, Money Gram
Preferred Trade Term:
FOB, CFR, CIF
Port Of Loading:
shanghai
Certificates:
Business license, CE, Computer software copyright, Patent certificate 1, Patent certificate 2, Science and technology inspection report, SGS TEST REPORT, Software copyright
Product descriptions from the supplier
High accuracy engraving and milling metal CNC machine LK8080
1. Technical features
The imported control system and its matching servo driver and motor are used to realize three axis linkage. It is suitable for the parts with proper batch, which are complex, many processes, high precision requirements, need various types of ordinary machine tools, various cutting tools and tooling, and can be processed after many times of clamping and adjustment. Main processing special-shaped parts, plates, sets, plate parts. It is widely used in electronic, mechanical, automotive, aircraft, aerospace, ship, national defense and other fields of products.
Mechanical structure
Structure of the whole machine: The main parts of the fuselage are cast with high quality cast iron, the internal ribs are strengthened, all of them are tempered, and the finite element analysis is carried out by the special design software, which has the characteristics of high strength, good stability and not easy to deform, which ensures the rigidity of the whole machine and the stability of the environment for long-term use.
Spindle: Ronghua motorized spindle has the advantages of compact structure, light weight, small inertia, small vibration, low noise, fast response, etc. the high-speed bearing technology is adopted for the motorized spindle bearing, which is wear-resistant and heat-resistant, and its service life is several times that of the traditional bearing.
Transmission parts: Using Taiwan TPI precision bearing and Taiwan Yintai high quality precision ball screw. The pre stretching process is adopted for the installation of the ball screw. The rigidity of the transmission parts is improved, and the elongation of the ball screw caused by the thermal stress effect during the operation of the ball screw is eliminated, so as to improve the maintenance of the accuracy in the long-term use of the machine tool.
Guide rail: The three axis adopts 4 rows of circular arc contact type and 45°contact angle steel ball row design, with high rigidity, four directions of equal load design, good walking smoothness, low noise and other characteristics. It has the ability of automatic centering, suitable for high-speed application, can maintain accuracy for a long time, has the characteristics of interchangeability, high positioning accuracy, good repeatability, in line with international standards.
System: Equipped with high-performance imported CNC system, to ensure the stability of machine control, but also to ensure the CNC processing function and auxiliary function required by users.
Drive: X, y, Z axis are imported motor, with good control characteristics, large torque, good tracking accuracy, fast response, good stability, etc.
Lubrication: The guide rail and ball screw adopt centralized automatic lubrication system, which can inject oil to each lubricating part regularly and quantitatively, ensure the uniform lubrication of each moving surface, effectively reduce the friction resistance, improve the motion accuracy, and ensure the service life of the guide rail and ball screw.
Machine tool protection: The machine tool adopts fully enclosed protection to ensure the personal safety of workers in the process of processing, and make the coolant and iron chips in the process of processing be safely and fully recovered to ensure the cleanliness of the workplace. The guide rail of the machine tool is protected by the stainless steel telescopic shield of Taiwan Yinxing, which has the characteristics of good protection performance and long service life, which can effectively prevent iron chips and coolant from entering the machine tool and damage the guide rail and screw rod. The electric control box adopts fully sealed design, and the heat exchanger is used for heat dissipation, which ensures the cleanness of the electric control box and the service life of the electrical components.
Quality assurance: When the fuselage is assembled, each process is controlled according to the national standard tolerance, which effectively reduces the overall deviation caused by the accumulated error. After the completion of the system assembly, 72 hours of copying machine operation, monitoring noise, vibration, rapid movement, tool change and other indicators. Advanced instruments such as laser interferometer, ball bar instrument, dynamic balance instrument and three coordinate measuring instrument are used to test the machine tool, and the parts are tested for trial machining, heavy cutting and rigid tapping, so as to ensure that all performances meet the requirements of the factory with high quality.
The safety design of the machine tool conforms to the relevant provisions of GB 1560-2004 general technical conditions for safety protection of metal cutting machine tools, and its geometric accuracy standard conforms to the relevant provisions of GB / t24109-2009 CNC engraving and milling machine and JB / t8771.4-1998 inspection conditions Part 4: positioning accuracy and re positioning accuracy test of linear and rotary lines.
High accuracy engraving and milling metal CNC machine LK8080
2.Main technical indicators
| CNC engraving and milling machine parameters | ||||||
| project | unit | LK-650 | LK-660 | LK-760 | LK-8080 | LK-1080 |
| X-axis travel | mm | 500 | 600 | 600 | 800 | 800 |
| Y-axis travel | mm | 600 | 600 | 700 | 800 | 1000 |
| Z-axis travel | mm | 260 | 260 | 350 | 400 | 400 |
| Spindle nose to table | mm | 50-310 | 50-310 | 30-290 | 70-470 | 70-470 |
| Three-axis guide width | X/Y:30 Z:25 | X/Y:30 Z:25 | X/Y/Z:30 | X/Y/Z:MSA35 | X/Y/Z:MSA35 | |
| Table size | mm | 500*600 | 600*600 | 600*700 | 800*800 | 800*1000 |
| T-slot | mm | 6*16*90 | 6*16*90 | 6*16*90 | 7*18*100 | 9*18*100 |
| Max load capability | kg | 300 | 300 | 300 | 400 | 400 |
| Standard spindle | Motorized spindle | Motorized spindle | Motorized spindle | Motorized spindle | Motorized spindle | |
| Spindle speed | rpm | 3000-24000 | 3000-24000 | 3000-24000 | 3000-24000 | 3000-24000 |
| Spindle power | 5.5 | 5.5 | ||||
| Spindle taper | ER25-32 | ER25-32 | ER25-32 | ER25-32 | ER25-32 | |
| Maximum cutting feed rate (X/Y/Z) |
m/min | 8 | 8 | 8 | 8 | 8 |
| Rapid speed(X/Y/Z) | m/min | X/Y/Z:15 | X/Y/Z:15 | X/Y/Z:15 | X/Y/:18 Z:15 | X/Y/:18 Z:15 |
| Ball screw diameter/pitch | mm | X/Y/Z:32/5 | X/Y/Z:32/5 | X/Y/Z:32/5 | X/Y:40/6 Z:32/5 | X/Y:40/6 Z:32/5 |
| Positioning accuracy | mm | ±0.005/300 | ±0.005/300 | ±0.005/300 | ±0.005/300 | ±0.005/300 |
| Repeatability | mm | ±0.003 | ±0.003 | ±0.003 | ±0.003 | ±0.003 |
| Air pressure | kgf/cm² | 6 | 6 | 6 | 6 | 6 |
| Net weight of machine | kg | 3200 | 3400 | 3600 | 4800 | 5300 |
| Area | mm² | 1950*1895 | 1950*1895 | 1950*1895 | 2450*2150 | 2750*2150 |
| Machine height | mm | 2355 | 2355 | 2355 | 2673 | 2673 |
3.Configuration list
| Serial number |
Standard accessries | Specification details | Manufacturer | Origin |
| 1 | Triaxial angular contact ball bearing | Outer diameter: 62, inner diameter: 25 | TPI | Taiwan, China |
| 2 | Triaxial ball screw (C3 class) | X,Y,Z:R40-5T5-FDDC-C3 class | Shangyin / Yintai | Taiwan, China |
| 3 | Triaxial linear guide (P class) | MSA35 PII | Shangyin / Yintai | Taiwan, China |
| 4 | Motorized spindle | ER25-32 3000-24000rpm | Ronghua | Chinese Mainland |
| 5 | Triaxial telescopic cover | Y-axis stainless steel, z-axis organ board | Hongzhen | Chinese Mainland |
| 6 | Centralized automatic lubrication system | BE2202F-210X | Shengxiang | Taiwan, China |
| 7 | CNC system | 21A system | Xindai | Taiwan, China |
| 8 | Triaxial motor and drive system | AC servo 1300W | Yaskawa | Japan |
| 9 | Spindle cooling system | Independent oil cooler | Ruike | Guangdong,China |
| 10 | Lighting device | LED work light | Laizhen | Shanghai, China |
| 11 | Tool detection | JS-68RG | Jingsen | Changzhou,China |
| 12 | Frequency converter | VFD075B43A | Sifang | Guangdong,China |
| 13 | Contactor | Shilin | Taiwan, China |
|
| 14 | Miniature circuit breaker | Imported | Japan | |
| 15 | Total power supply | AC380V,12KW | ||
| 16 | Anchor bolt socket + anchor bolt + nut | n/a | Chinese Mainland | |
| 17 | Tool Box | Open spanner 24/27, open spanner 32/34, wrench ER32, high precision ER32,barrel clamp Φ4. Φ5. Φ6. Φ8. Φ10. Φ12. Φ14. Φ16. Φ18. Φ20 | Chinese Mainland |
4.Select configuration
| No. | Name | No. | Name |
| 1 | Fanaco control system | 5 | 12000rpm directly connected BT40 spindle |
| 2 | 12 BT30 hat shaped tool magazine | 6 | CNC indexing plate (4th axis) |
| 3 | BT30 motorized spindle | 7 | Oil mist recovery system |
| 4 | 12000rpm main shaft directly connected with BT30 |
5.Attached accessories
| No. | Name | No. | Name |
| 1 | Packing list | 3 | Mechanical operation manual |
| 2 | Accuracy check list | 4 |
