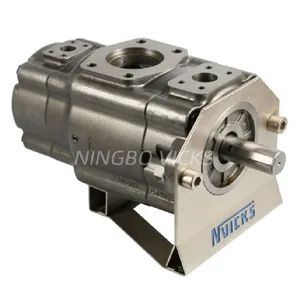

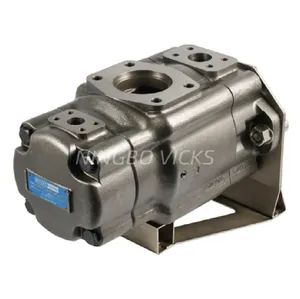

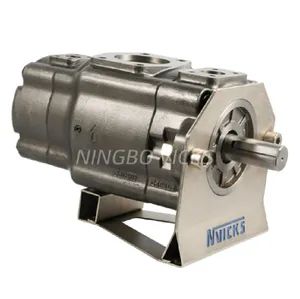

Precision Industrial Servo Vane Pumps Albert Abt Series
1-9 Piece
$85910-49 Piece
$85550 Piece
$839Product information
High-quality Precision Industrial Servo Vane Pumps Albert Abt Series supplied by Ningbo Vicks Hydraulic Co., Ltd.. Bulk wholesale pricing ranges from $839 to $859 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Flow:
100.5ml/R
Production Capacity:
20000PCS
Displacement:
24.9ml/R
Max Speed:
3000rpm
Max Pressure:
32MPa
Package Gross Weight:
40.000kg
Min Speed:
50rpm
Lead Time:
7 days (1 - 100 Pieces)To be negotiated ( > 100 Pieces)
Specifications
Flow:
100.5ml/R
Production Capacity:
20000PCS
Displacement:
24.9ml/R
Max Speed:
3000rpm
Max Pressure:
32MPa
Package Gross Weight:
40.000kg
Min Speed:
50rpm
Lead Time:
7 days (1 - 100 Pieces)To be negotiated ( > 100 Pieces)
Package Size:
80.00cm * 60.00cm * 40.00cm
HS Code:
8413603290
Model NO.:
ABT21T-6-6
Certification:
CE, ISO, RoHS
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Acting Form:
Double-Acting
Trade Term:
FOB, CIF, CFR, EXW
Name:
Hydraulic Vane Pump
Item:
Industrial Vane Pump
Specification:
Iron Casting
Payment Term:
LC, T/T, D/P, Western Union
Application:
Machinery Equipment
Seal Type:
NBR or Fkn
Origin:
Ningbo
Port Of Loading:
Ningbo Port
Performance:
No Leak
Trademark:
Nvicks
Function:
Same as Denison Eaton
Payment Methods:
Support payments in USD
Type:
Vane Pump
Transport Package:
Wooden Carton
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2007-11-20
Annual Revenue Amount:
Not specified
Numbers Of Employees:
281
Preferred Payment Term:
LC, T/T, D/P, Western Union
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Ningbo Port
Certificates:
CE
Product descriptions from the supplier
Our business acts as the official distribution channel for Taiwan Delta and Austrian KEBA industrial products. We maintain strategic alliances with Phase servo motors, Yunshen servo motors, Haitain drives, and Sumitomo pumps.
Ningbo Vicks follows a strategy rooted in absorption, innovation, and advancement, guided by principles of excellence, efficiency, minimal resource use, and reliability. The company has established itself as a globally recognized leader in hydraulic pump technology and a trusted provider of integrated servo energy-saving solutions.
High pressure servo vane pump Albert hydraulic pump
ABT Series ServoPump
The ABT Series Servo Pump is a high-efficiency servo hydraulic oil pump. Jointly engineered by Ningbo Vicks Hydraulic Co., Ltd., American Albert Fluid Power Co., Ltd., and Zhejiang University’s Mechanical Control Engineering Research Institute. Key parts originate from the United States. The company holds exclusive patents for hydraulic solutions used in rubber and plastic processing, shoe manufacturing, forging, pressing, bending, and shearing equipment.
Main Features
1.Dowel pin type vane kits designation can make the pump with small resistance, low electric, and with more energy saving.
External leak detection and volume regulation effectively reduce oil temperature. By monitoring hydraulic component leakage rates, intelligent oil flow adjustment is achieved, resulting in minimal pressure pulsation under high pressure and low speed conditions, thereby enhancing the precision of injected products.
By integrating high-pressure oil with a vice spring design, the pump operates smoothly at low speeds and adapts seamlessly to various shift conditions—including low-to-high speed transitions, pressure variations, and directional changes—fully meeting the demands of the servo hydraulic system's operational modes.
4. Double action and right-left rotation structure designation make the pump work more steadily, servo hydraulic system response more quickly.
Advanced pressure and velocity design with dual cutting edge configuration expands operational speed range significantly, enhances resistance to contaminants, and extends service duration.
6. Low noise structure designation and wide range of flow, can be customized according to different requirements.
7. Use the cartridge kit installation structure, repairing only needs to change the cartridge kit, more convenient for repairing and with more lower cost.
8. Double pump uses one inlet port and two outlet ports, the structure is more compact with small installation space.
9. There are four directions each at inlet and outlet port, installation is more flexible.
Model available:
Single pumps: ABT1T, ABT2T, ABT3
Double pumps: ABT11T, ABT22T, ABT21T,
Machine servo vane pump Albert Hydraulic Vane Pump High pressure
Model Designation
| ABT2T | -80 | -2 | R | 2 | -C | 1 |
| Series | Flow code | Shaft type | Rotation | Outlet Position | Design No. | Sealing level |
| ABT1T | 6, 10, 16, 20, 25, 32, 40, 50, 55, 64 | -1 -2 keyed shaft |
Viewed from shaft end of pump R- right hand for clockwise L- left hand for counter clockwise |
Viewed from shaft end of pump 00- opposite inlet port 01- inline with inlet 02- 90 CCW from inlet 03- 90 CW from inlet |
C | 1- S1 NBR 2- S2 HBNR |
| ABT2T | 64, 80, 100, 110, 125, 140. 160 | -2 keyed shaft |
||||
| ABT3T | 160, 180, 190, 200 | -1 keyed shaft |
Technical data
Other products may you like it
| DENISON T6 T7 | VICKERS V VQ | SERVO SYSTEM | Check the PLC |
 |
 |
 |
 |
Application as below, widely used for injection machine, shoe machines etc
| Part of servo system | Assembled servo system | Servo system for machine |
 |
 |
 |
Our production equipments
Our honors
Some Exhibitions we took part in, more fairs will be hold~
Q&A
Q1, are you supplier or manufacturer?
A1: we are manufacturer in Ningbo, Zhejiang Province, China
Q2, shall I get 1 pcs sample for a try.
A2: Yes, of couse. You can.
Q3: how many days for mass production.
A3, actually, production time is between 15 to 25 days. Additionally, items will be arranged according to the manufacturing sequence. Should you require urgent delivery, please let me know ahead of time. We can expedite the order immediately.
Q4: Is it can be replaced with original ones?
A4: Absolutely, yes. It is 100% similar with original one.
Q4, It is good with package.
A4: Yes. nice package which goods is no damaged when you received.
Our services
