Precision Machining Lathe with High-Torque Spindle for Heavy Loading
1 Piece
$50,0001 Piece
$30,000Product information
High-quality Precision Machining Lathe with High-Torque Spindle for Heavy Loading supplied by Xuetai Technology (Tianjin) Co., Ltd. Bulk wholesale pricing ranges from $30,000 to $50,000 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Processing Precision:
0.05~0.06(mm)
Production Capacity::
2000
Voltage:
220V/380V Optional
Specification:
3500*1800*1800
HS Code:
8458110090
After Sales Service:
Available
Model NO.:
BL-S205
Numerical Control:
CNC/MNC
Specifications
Processing Precision:
0.05~0.06(mm)
Production Capacity::
2000
Voltage:
220V/380V Optional
Specification:
3500*1800*1800
HS Code:
8458110090
After Sales Service:
Available
Model NO.:
BL-S205
Numerical Control:
CNC/MNC
Origin:
China
Trade Term:
FOB, CIF, CIP, EXW
Certification:
GS, CE, ISO 9001
Performance Classification:
High-End CNC Machine Tools
Payment Terms::
L/C, T/T, D/P, Western Union, Paypal, Money Gram
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram
Process Usage:
Metal-Cutting CNC Machine Tools
Warranty:
One Year
Control Method:
Open-Loop Control
Transport Package:
Plywood Case
Movement Method:
Point to Point Control
Machine Test Report:
Provided
Video Factory Inspection:
Provided
Product Name:
Slant Bed CNC Lathe / CNC Turning Center S Precise
Port Of Loading:
Tianjin Port
Port::
Tianjin, China
Application:
Wood
Trademark:
XUETAI
Color:
as Specified by The Customer
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2009-11-06
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram
Preferred Trade Term:
FOB, CIF, CIP, EXW
Port Of Loading:
Tianjin Port
Certificates:
ISO 9000, ISO 9001
Product descriptions from the supplier
Product Description
Product Description

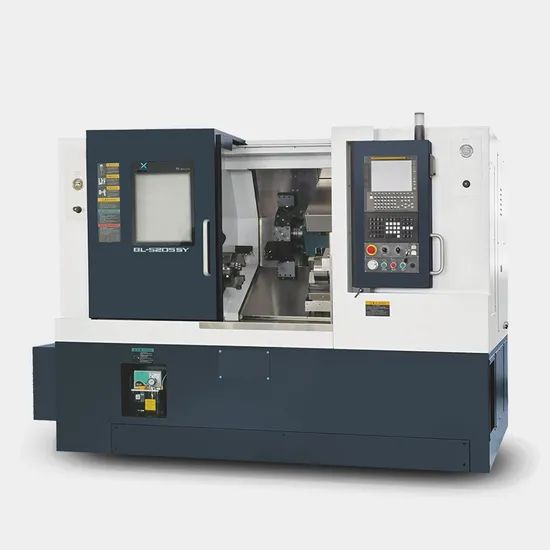

CNC Lathe Machine/CNC lathe/CNC Turning Center(BL-S205 Series)
Machine key Features

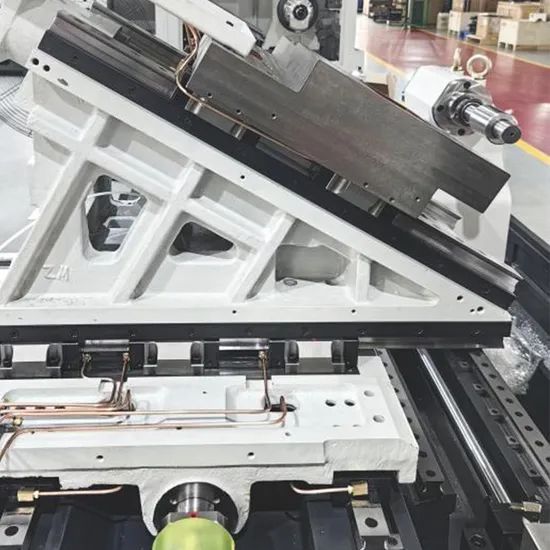

- Adopt similar structure as JAPAN MAZAK, bed adopt flat bed, slide board adopt 30°slant design, high rigidity, good machining flexibility
- Adopt JAPAN technology, designed by JAPAN engineer, most parts adopt GERMANY/JAPAN/TAIWAN brand
- Adopt modularization design, has strong extended function, easy for various especial configuration choice, such as tool setter, parts catcher, robot etc
- Adopt HT300 resin sand cast iron, after aging treatment and FEA analysis, small distortion, good torsional strength, good heat stability
- Base adopt multilayer strengthening rib, ensure bed's strength and stability
- Frame adopt oil-coolant separation design, adopt independent coolant tank
- Adopt high precision integral spindle unit, spindle motor adopt high performance servo motor, big output torque,high speed,wide adjustment range

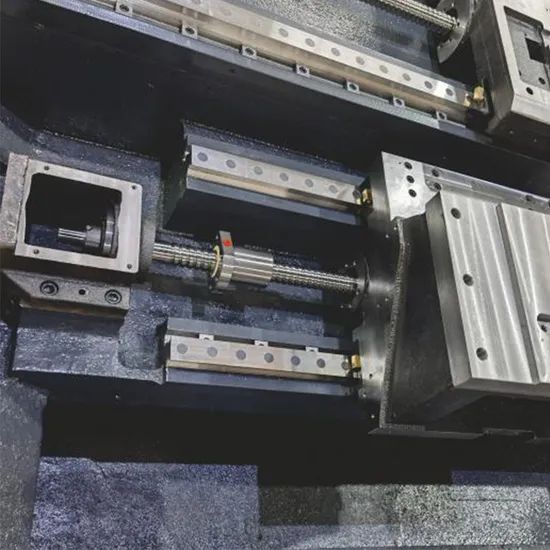

- Adopt high precision pre-stretched ball screw(double nuts), coupled with motor directly by linkager,high transmission rigidity, can realize μ class precise turning.
- Adopt high precision ROLLER type linear guideway, high rigidity, good accuracy holding, suitable for heavy loading and precise machining

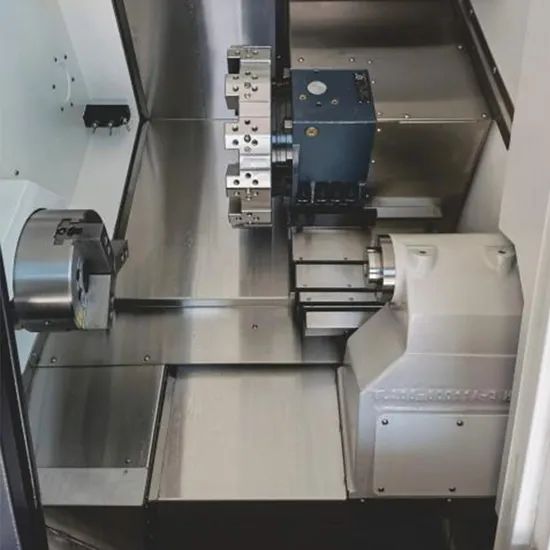

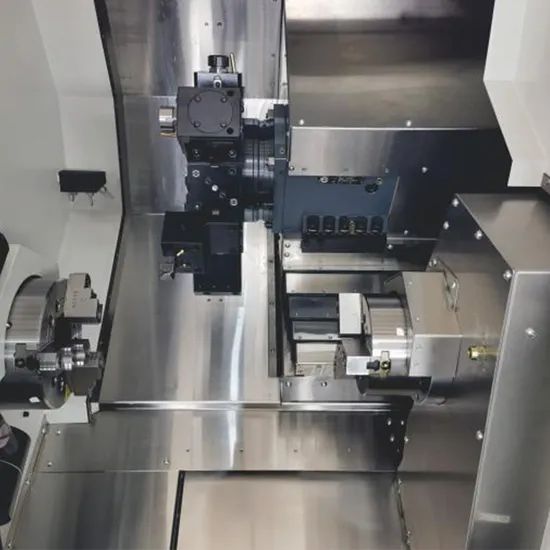

- Adopt Hydraulic-servo tool turret/powered tool turret,fast tool changing, good repeatability,high efficiency

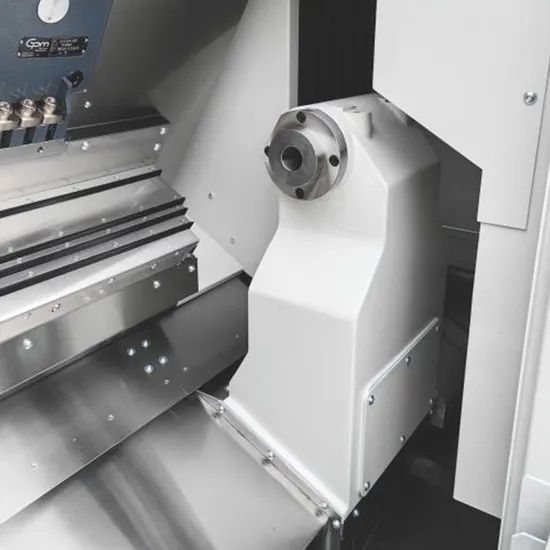

- S205 adopt especial structure programmable tailstock, tailstock quill not move, whole tailstock body driven by hydraulic cylinder on linear guideway
- S205S/205SM/205SY adopt high precision electro-spindle as Sub-spindle
- Can mount right-setting or back-setting chip conveyor, strong chip conveying capacity
- S205: 8T/12T hydraulic-servo tool turret+tailstock
Machine Details:
Machine Parameters
| Item | Specification | Unit | BL-S205 |
| Сараcity | Max. swing dia.over bed | mm | φ550 |
| Max. swing dia.over slide | mm | φ290 | |
| Мах. turing length | mm | 530 | |
| Мах. turing dia. | mm | φ380 | |
| Spindle | Spindle Transmission type | / | Machanical spindle, belt drive |
| Spindle bore | mm | φ66 | |
| Spindle end type | / | A2-6 | |
| Spindle speed | rpm | 4500 | |
| Spindle Max. bar through dia. | mm | φ51 | |
| Spindle motor power | kw | 11/15 (FANUC): 11 SIEMENS | |
| Spindle chuck size | " | 8" | |
| Spindle C axes division accuracy | Deg | / | |
| Sub-spindle | Sub-Spindle Transmission type | / | / |
| Sub-Spindle bore | mm | / | |
| Sub-Spindle end type | / | / | |
| Sub-Spindle rated/max. speed | rpm | / | |
| Sub-Spindle Max. bar through dia. | mm | / | |
| Sub-Spindle motor power | kw | / | |
| Sub-Spindle chuck size | " | / | |
| Sub-Spindle rapid moving speed | m/min | / | |
| Sub-spindle travel | mm | / | |
| X/Z axes | X/Y/Z axes linear guideway type | / | ROLLER type |
| X axes travel | mm | 190+10 | |
| Y axes travel | mm | / | |
| Z axes travel | mm | 550 | |
| X/Z axes rapid moving speed | m/min | 30 | |
| Y axes rapid moving speed | m/min | / | |
| Tool turret | Tool turret type | / | Hydraulic-servo tool turret |
| Tool turret brand | / | Own-made/SAUTER | |
| Tool qty | / | 8T (opt:12T) | |
| Vicinal tool changing time | s | 0.2 | |
| Farthest tool changing time | s | 0.5 | |
| Turning tool holder size | mm | 25x25(Own-made 8T,SAUTER 8T/12T):20x20(Own-made 12T) | |
| Boaring bar holder size | mm | φ40(Own-made 8T,SAUTER 8T/12T): φ32(Own-made 12T) | |
| Live tool driven motor | kw | / | |
| Live tool driven motor torque | N.m | / | |
| Live tool max. speed | mm | / | |
| Tailstock | Tailstock movement Distance | mm | 470 |
| Tailstock rapid movr speed | m/min | Servo tailstock:30; Hydraulic tailstock:10 | |
| Tailstock quill taper | / | MT4# | |
| X/Z axes | Fx-circle finish turning accuracy | / | IT6 |
| Finish turning roughness | mm | Ra0.4~1.6 | |
| Finish turning roundness | mm | ≤0.003 | |
| Positioning accuracy (X/Z) | mm | 0.005/0.008 | |
| Repeat positioning accuracy (X/Z) | mm | 0.002/0.004 | |
| Others | Coolant pump power | w | 480 |
| Coolant pump flow | m³/h | 2.5 | |
| Overall size | mm | 3500*1800*1800 (exclude/include chip conveyor) | |
| N.W. | kg | 4000 |
| Item | Brand |
| CNC controller | GERMANY-SIEMENS/JAPAN-FANUC |
| Servo driver&motor | GERMANY-SIEMENS/JAPAN-FANUC |
| Spindle bearing | JAPAN-NSK/NTN |
| Tool turret | Own-made/GERMANY-SAUTER |
| Ball screw | TAIWAN-PMI/HIWIN |
| Ball screw bearing | JAPAN-NSK |
| Linear guideway | TAIWAN PMI/HIWIN |
| Lubrication system | TAIWAN-ISHAN |
| Rotary oil cylinder&chuck | TAIWAN-AUTOGRIP |
| Hydraulic parts | TAIWAN/JAPAN |
| Coolant pump | Joint-venture |
| Tri-color indication lamp | KOREA-QLIGHT |
| Working lamp | JAPAN-NIKKI |
| Breaker | FRANCE-SCHNEIDER |
| AC contactor | FRANCE-SCHNEIDER |
| Relay | JAPAN-OMRON |
| DC switch power supply | FRANCE-SCHNEIDER |
| Terminal block | GERMANY-WEIDMULLER |
| Synchronous belt | USA-GATES |
| Synchronous belt wheel | TAIWAN-PTP |
| Nuts | TAIWAN-YINSH |
| Shaft coulping | GERMANY-KTR/JAPAN-NBK |
| Scrapping plate Extensible cover | JAPAN-LOCOSO |
| Chip conveyor&chip bucket | TAIWAN-WANHE |
Standard configuration:
-SIEMENS/FANUC CNC controller
-Hydraulic chuck
Optional configuration:
-Automatic chip conveyor
-Tool setting probe
