Precision PCBA Diagnostic Tool Ca 09d with USB C Interface and MP4 Video Recording
1-19 Piece
$28820 Piece
$251Product information
High-quality Precision PCBA Diagnostic Tool Ca 09d with USB C Interface and MP4 Video Recording supplied by Jinan Azure International Trade Co., Ltd.. Bulk wholesale pricing ranges from $251 to $288 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Specification:
21*21*27mm
Resolution:
256X192 Pixels
Frame Rate:
25Hz
Type:
3D Video Measuring System
Production Capacity:
5000
Humidity:
95% Relative Humidity
Trademark:
Azure
Transport Package:
Box
Specifications
Specification:
21*21*27mm
Resolution:
256X192 Pixels
Frame Rate:
25Hz
Type:
3D Video Measuring System
Production Capacity:
5000
Humidity:
95% Relative Humidity
Trademark:
Azure
Transport Package:
Box
Model NO.:
CA-09D
Origin:
China
Album:
Display Photo and Video Files Simultaneously
Trade Term:
FOB
Operate Method:
Manual
Payment Term:
To be discussed
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
Not specified
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
Not specified
Preferred Trade Term:
FOB
Port Of Loading:
Not specified
Certificates:
Our factory
Product descriptions from the supplier
Product Description

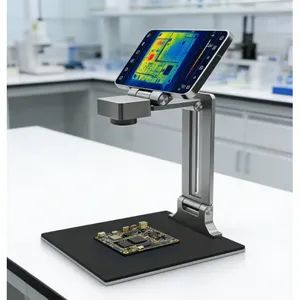

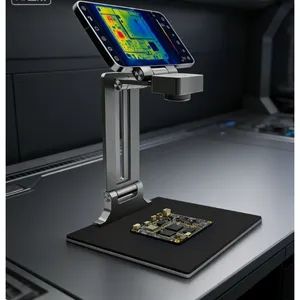

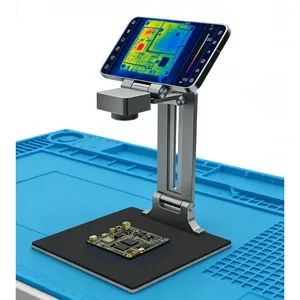

PCBA thermal analysis system
A PCBA thermal inspection tool leverages infrared thermography to support circuit board diagnostics. It enables technicians to rapidly identify issues like unintended current flow or shorting paths, enhancing both research development and problem-solving speed.
• Portable, can be easily folded and carried for work.
• Good compatibility, supports both Windows and Android systems, and takes up little space.
• Supports measurement range of -15°C ~ +600°C (5°F ~ +1112°F).
• The image is clear and devices or pins as small as 0.3mm can be clearly distinguished.
• Supports one-click leakage detection, and can detect current leakage as low as 6mA.

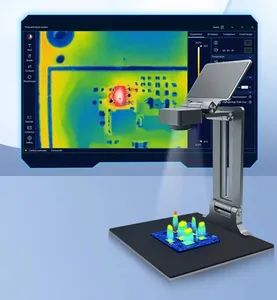

• Supports viewing circuit boards in 3D mode, making small current changes more intuitive.
• Support detailed comparison and detailed inspection of image color changes in different areas.
• Supports comparison of good and bad boards to quickly locate faulty circuit boards.
• Can display the temperature curve in the frame to facilitate viewing of temperature history data.
Parameter | Specification |
Resolution | 256x192 pixels |
Frame rate | 25Hz |
Temperature measurement range | -15°C ~ +600°C (5°F ~ +1112°F) |
Temperature measurement accuracy | ±2 ℃or ±2% of reading,whichever is greater |
Lens field of view | 56°x42° |
Temperature measurement distance | 100mm – 150mm (30mm can be observed with a teleconverter lens). |
Device interface | USB Type C |
Image storage format | JPG |
Video storage format | MP4 |
Input voltage | DC 5V |
Storage temperature range | -20°C ~ 60°C |
Operating ambient temperature | 0°C ~ 50°C |
humidity | 95% relative humidity |
The interface of the standard version of the software is as follows:
Pair your Android device with the thermal imager using a dual-ended USB-C cable, then launch the app to view the interface depicted below:
1 | Set up | Provide the interface of the App and the parameter settings of the infrared thermal camera |
2 | Over-temperature alarm | You can define the high temperature alert level, and whenever the temperature in the video goes above that level, both a sound and visual warning will trigger |
3 | The screen resets | Reset the information on the screen and restore it to the state it was in when it was started |
4 | photograph | Take a photo and store it in an album |
5 | Video | The video is recorded and stored in an album |
6 | photo album | Save photos and videos of the app |
7 | Toggle the color swatches | You can switch different color palettes to change the color scheme of your video |
8 | Regional temperature measurement | Points, lines, and boxes can be added to measure the temperature in different areas |
9 | Temperature tracking | You can track the current highest, lowest, and center point temperature in the screen |
10 | Check in the box | You can highlight the temperature in all current rectangular boxes, and if there are no rectangles in the current screen, a will be automatically added |
11 | Screen lock flip | When the phone or camera is flipped, this function allows you to lock or flip the image |
12 | Quick check on high temperatures | The area with the highest temperature in the screen is displayed |
13 | Infrared thermal imaging image area | Displays footage from an infrared thermal imaging camera |
14 | Temperature color bar area | Use different color bars to display the highest and lowest temperatures in the current screen |
Hardware Requirements
WindowsCPU | Intel i3 or higher |
Windows memory | 2G or higher |
Windowshard disk | 300MB |
Windowsoperating system | Win10 x64 is recommended |
Androidoperating system | Android 7.0 and above |
Main Products
Company Profile
Dedicated to delivering advanced thermal imaging and laser distance technology, our sales group operates in close partnership with two major manufacturing facilities integrating research, development, and production. We offer international clients dependable, cost-effective, and high-performance optical measurement devices along with tailored service packages.
Our key offerings consist of infrared thermography cameras, low-light thermal sensor units, thermal imaging drone navigation systems, laser rangefinders and rangefinder components, all extensively applied in industrial checks, power line assessments, surveillance operations, field measurements, and diverse construction initiatives.
Backed by a well-established supply chain, we deliver tailored solutions in functionality, specifications, and design, including logo, OEM, and ODM options, to suit diverse global markets and usage conditions. We prioritize seamless interaction and sustained collaboration, ensuring fast response times, adaptable ordering, rigorous quality assurance, and expert pre-sale and post-sale guidance. Our goal is to establish ourselves as a trusted ally for businesses across China.
Our Services
Exhibition
Packaging & Shipping
FAQ
Q1. Are you a trading company or a manufacturer?
A: Based in Jinan, China, we operate as a trade firm founded in 2025, backed by two facilities combining research development and production, guaranteeing consistent product quality and reliable delivery.
A: Based in Jinan, China, we operate as a trade firm founded in 2025, backed by two facilities combining research development and production, guaranteeing consistent product quality and reliable delivery.
Q2. What are your main products?
A: Infrared thermal imaging cameras, thermal imaging modules, UAV thermal positioning systems, laser rangefinders, and laser distance modules.
A: Infrared thermal imaging cameras, thermal imaging modules, UAV thermal positioning systems, laser rangefinders, and laser distance modules.
Q3. What applications are your products used for?
A: Industrial inspection, power line inspection, security & surveillance, outdoor measurement, and engineering projects.
A: Industrial inspection, power line inspection, security & surveillance, outdoor measurement, and engineering projects.
Q4. Do you support OEM / ODM customization?
A: Yes. We support OEM and ODM services, including logo, appearance, functions, and parameters, to meet different market needs.
A: Yes. We support OEM and ODM services, including logo, appearance, functions, and parameters, to meet different market needs.
Q5. Can I get samples for testing?
A: Yes. 1–2 samples are available for testing. Sample cost and shipping cost are paid by the customer.
A: Yes. 1–2 samples are available for testing. Sample cost and shipping cost are paid by the customer.
Q6. What is the warranty period?
A: All products come with a 12-month factory warranty from the shipment date.
A: All products come with a 12-month factory warranty from the shipment date.
Q7. What payment methods do you accept?
A: T/T, PayPal, and Western Union.
A: T/T, PayPal, and Western Union.
Q8. Is the packaging suitable for international shipping?
A: Yes. Products are packed with protective film and reinforced foam packaging, suitable for long-distance international transportation.
A: Yes. Products are packed with protective film and reinforced foam packaging, suitable for long-distance international transportation.
Q9. Do you accept distributors or agents?
A: Yes. We welcome distributors and agents worldwide and offer supportive cooperation policies.
A: Yes. We welcome distributors and agents worldwide and offer supportive cooperation policies.
