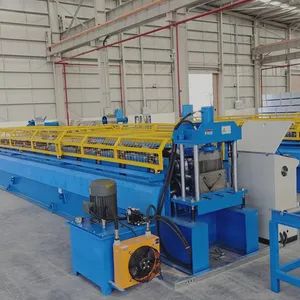

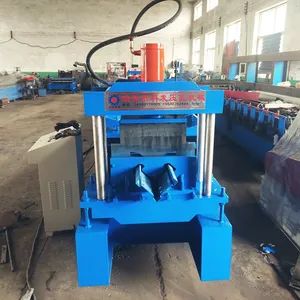

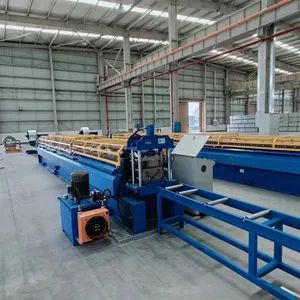

Prefab Concrete House Upright Making Machine
1 Set
$28,0002 Set
$27,000Product information
High-quality Prefab Concrete House Upright Making Machine supplied by Botou Kefa Roll Forming Machine Co., Ltd.. Bulk wholesale pricing ranges from $27,000 to $28,000 per Set with a minimum order of 1 Set. Inquiry for latest prices.
Package Size:
1000.00cm * 250.00cm * 170.00cm
Production Capacity:
200set/Year
Rolling Shaft:
40cr, Tempering to Improve Hardness
Package Gross Weight:
6666.000kg
HS Code:
8455221000
Certification:
CE, ISO, TUV
Origin:
Cangzhou
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Specifications
Package Size:
1000.00cm * 250.00cm * 170.00cm
Production Capacity:
200set/Year
Rolling Shaft:
40cr, Tempering to Improve Hardness
Package Gross Weight:
6666.000kg
HS Code:
8455221000
Certification:
CE, ISO, TUV
Origin:
Cangzhou
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Tile Type:
Colored Steel
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Roller:
Cr12, Chromed, Prevent Abrasionanti Corrosion
Customized:
Customized
Transmission Method:
Electric
Trade Term:
FOB, CIF, CFR,
Main Base:
H Steel Weld
Trademark:
KEFA
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Condition:
New
Controller:
PLC, Auto Count Length and Quantity
Usage:
Roof, Wall, Floor
Transport Package:
Standard Export Package
Payment Methods:
Support payments in USD
Port Of Loading:
Tianjin Port
Model NO.:
container luxury house machine
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2012-11-12
Annual Revenue Amount:
Not specified
Numbers Of Employees:
14
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR,
Port Of Loading:
Tianjin Port
Certificates:
Certificates
Product descriptions from the supplier
Quick Assemble Prefab Container House Making Machines
We can provide whole set of prefab house profile making machines.We can provide whole set of prefab house profile making machines.
We can provide whole set of prefab house profile making machines.We can provide whole set of prefab house profile making machines.
1.Roof tile 2.Moisturizing layer 3.Top frame secondary beam 4.Top frame main beam 5.Ceiling tiles 6.Double-sided rock wool sandwich panel 7.Uprights8.Bottom frame main beam 9.Bottom frame secondary beam 10.Bottom frame main beam 11.50 edge holder 12.Top frame main beam
Advantages of shelf layer panel cold roll forming machine
1.The width be automatic adjusted by PLC.
2.shelf layer panel cold roll forming machine adopts memorial arch frame type,independent roller station make the machine more beautiful and stability.
3.All the rollers are through quench treatment ,CNC machine treatment twice and polished on the surface to guarantee the accuracy and long life.
4.we also offer a different model of cold roll forming machine for shelf layer panels. It features an integrated adjustment mechanism that allows quick size changes for the shelf panels. Instead of replacing spacers individually, users simply rotate the entire screw assembly on the machine to set new dimensions. This approach is significantly faster and more user-friendly compared to traditional spacer replacement systems.
5.The cutting is hydraulic cutting, you can change different blades for different sizes of the shelf.
1.The width be automatic adjusted by PLC.
2.shelf layer panel cold roll forming machine adopts memorial arch frame type,independent roller station make the machine more beautiful and stability.
3.All the rollers are through quench treatment ,CNC machine treatment twice and polished on the surface to guarantee the accuracy and long life.
4.we also offer a different model of cold roll forming machine for shelf layer panels. It features an integrated adjustment mechanism that allows quick size changes for the shelf panels. Instead of replacing spacers individually, users simply rotate the entire screw assembly on the machine to set new dimensions. This approach is significantly faster and more user-friendly compared to traditional spacer replacement systems.
5.The cutting is hydraulic cutting, you can change different blades for different sizes of the shelf.
|
Decoiler :
|
Manual decoiler
|
* Hydraulic decoiler (Optional)
|
|
Forming station :
|
According to your profile drawings
|
* With straighten revise rollers
|
|
Main machine motor brand :
|
Shanghai Lichao (Famouse Brand)
|
* Siemens (Optional)
|
|
Driving system :
|
Chain drive or Gear drive
|
* Gearbox drive (Optional)
|
|
Machine structure:
|
Cantilever type
|
* Forged Iron station (Optional)
|
|
Forming speed :
|
10-20 (M/MIN)
|
* Or according to your profile drawings
|
|
Rolling Shaft:
|
40Cr Steel Material
|
* (Modulation, fine turning, fine grinding)
|
|
Rollers' material :
|
CR12 Steel (Quenching, fine turning and grinding of inner holes and surfaces, Hard chrome)
|
* SKD-11 (Optional)
|
|
Cutting system :
|
Post-cutting
|
* Pre-cutting (Optional)
|
|
Frequency changer brand :
|
Yaskawa
|
* Siemens (Optional)
|
|
PLC brand :
|
Delta,Touch Screen
|
* Siemens (Optional)
|
|
Power supply :
|
380V 50Hz 3ph
|
* Or according to your requirment
|
|
Machine color :
|
Industrial blue
|
* Or according to your requirment
|
|
Runout Table:
|
Roller type,non-power
|
* Motorized,Drop off,auto stack(Optional)
|
Standard Decoiler
The De-Coiler is designed to mount raw material coils onto its bridge structure, secure the coil in place, and store the material in the loop area prior to processing. It ensures stable positioning and seamless unwinding of the sheet coil for the roofing line.
The De-Coiler is designed to mount raw material coils onto its bridge structure, secure the coil in place, and store the material in the loop area prior to processing. It ensures stable positioning and seamless unwinding of the sheet coil for the roofing line.
Entry Guides
1. With several support rollers, to feed the
material more smoothly
2. Fitted with two sets of nylon wheels positioned centrally on the platform, they protect the surface from scratches and enable smoother, faster material conveyance
3. Can be With hand wheels to adjust thefeeding size, more conveniently.
4. Optional With manual cutters to cut feedmaterial more easily
1. With several support rollers, to feed the
material more smoothly
2. Fitted with two sets of nylon wheels positioned centrally on the platform, they protect the surface from scratches and enable smoother, faster material conveyance
3. Can be With hand wheels to adjust thefeeding size, more conveniently.
4. Optional With manual cutters to cut feedmaterial more easily
Roll Forming
Composed of paired shaped rolling dies. As the coil material moves through a series of shaped rollers, it forms into the required contour. 1. Rolling shaft: 40CrSTEEL, undergoes tempering to avoid distortion and enhance hardness, shaft size 75mm 2. Roller: Cr12 steel, coated with chromium.
improve the hardness and prevent abrasionanti corrosion increase service life.
Composed of paired shaped rolling dies. As the coil material moves through a series of shaped rollers, it forms into the required contour. 1. Rolling shaft: 40CrSTEEL, undergoes tempering to avoid distortion and enhance hardness, shaft size 75mm 2. Roller: Cr12 steel, coated with chromium.
improve the hardness and prevent abrasionanti corrosion increase service life.
Hydraulic Cutting
Work type : Hydraulic cutting Drivingmethod : By pillar type cylinder Cuttingdevice structure : Guide pillar type Cutter
material:GB-Cr12, heat-treated cutting length tolerance: +1mm per 3m cutting performance: stable and secure operation oil lines and wiring connections all pipes and cables are labeled with digits or codes making assembly simple even for inexperienced users
Work type : Hydraulic cutting Drivingmethod : By pillar type cylinder Cuttingdevice structure : Guide pillar type Cutter
material:GB-Cr12, heat-treated cutting length tolerance: +1mm per 3m cutting performance: stable and secure operation oil lines and wiring connections all pipes and cables are labeled with digits or codes making assembly simple even for inexperienced users
PLC & CONTROLPANELS
Frequency brand:Delta,PLC brand:DeltaScreen type:Touch screen, also have buttonson the panel Screen language:English/Chinese /Spanish Low pressure electric
part:Schneide brand Encode.Omron brand
Remark:Support multi orders input,ensure themachine can work continuously according to
different request without stop. All the
electrical parts are branded with high qualityit can be fixed easily if damaged
Frequency brand:Delta,PLC brand:DeltaScreen type:Touch screen, also have buttonson the panel Screen language:English/Chinese /Spanish Low pressure electric
part:Schneide brand Encode.Omron brand
Remark:Support multi orders input,ensure themachine can work continuously according to
different request without stop. All the
electrical parts are branded with high qualityit can be fixed easily if damaged
1.How to maintain the machine?
Answer: add mechanical lubrication equipment to chain, bearing and cutting slide every month. Add mechanical lubrication to the case every half a year.2. Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name components.
3.How many workers to operate the machine?
A:Only 1-2 workers.
4. How to visit your company?
a.Fly to Beijing airport: By high speed train From Beijing Nan Station to Cangzhou West Station(1 hour), then we can pick you up .
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou West station(4.5 hours), then we can pick you up.
5. What can you do if the machine broken?
The equipment comes with a 12-month warranty. If any faulty components cannot be fixed, we will provide replacement parts at no cost to you, though you'll be responsible for the shipping fees. Beyond the warranty, we’ll work with you to resolve any issues through discussion, and we offer ongoing technical support throughout the machine’s entire operational life.
6.How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) Please visit company and test machine if convenient.
