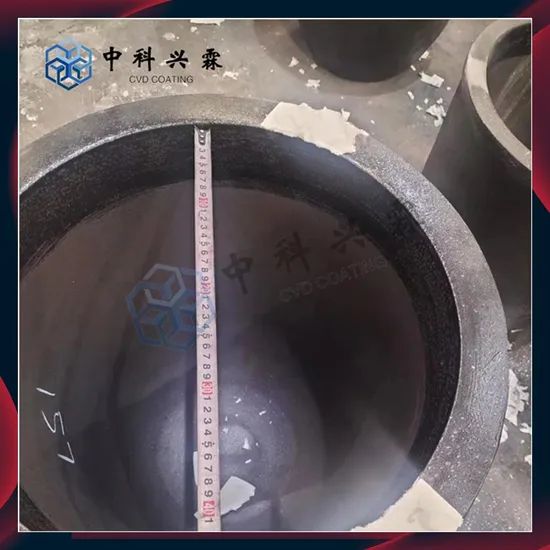

Premium Graphite Crucible with Durable Quartz Sleeve for Melting
1 Piece
$1401 Piece
$1,450Product information
High-quality Premium Graphite Crucible with Durable Quartz Sleeve for Melting supplied by Zhongke Xinglin (Shandong) New Materials Co., Ltd.. Bulk wholesale pricing ranges from $140 to $1,450 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Refractoriness:
1580< Refractoriness< 1770
Production Capacity::
50000/Year
Specification:
520*750/As your request
HS Code:
69039000
Apparent Porosity:
9-12%
Chemical Content:
C: 37-42% Sic: 35-40%
Origin:
China
Manufacturing Technique:
Compression Moulding
Specifications
Refractoriness:
1580< Refractoriness< 1770
Production Capacity::
50000/Year
Specification:
520*750/As your request
HS Code:
69039000
Apparent Porosity:
9-12%
Chemical Content:
C: 37-42% Sic: 35-40%
Origin:
China
Manufacturing Technique:
Compression Moulding
Feature:
Corrosion Resistance, High-Thermal Conductivity, Thermal Shock Resistance
Trade Term:
FOB, EXW, CIF
Payment Terms::
L/C, T/T, D/P
Payment Term:
LC, T/T
Type:
Natural Graphite
Application:
Non-Metal Melting/Induction Furnace
Port::
Qingdao, China
Stock:
Should Be Stocked in The Dry Situation
Transport Package:
Wooden Case
Trademark:
ZHONGKE
Model NO.:
graphite crucible
Port Of Loading:
qingdao
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2016-01-01
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T
Preferred Trade Term:
FOB, EXW, CIF
Port Of Loading:
qingdao
Certificates:
ISO 14001, ISO 9001
Product descriptions from the supplier
Product Description
Product Description
The silicon carbide graphite crucible is made by adding silicon carbide particles of varying content to the raw material of the graphite crucible. For example, the content is 50%, 24%, and other different content. Of course, it can also be based on the different requirements of customers. Custom-made graphite crucibles with varying amounts of silicon carbide.
Silicon carbide crucible is mainly used in metallurgy, casting, machinery, chemical industry and other industrial sectors, is widely used in alloy tool steel smelting and non-ferrous metal and its alloy melting, and has better technical and economic effects.
> Fast heat conduction: because silicon carbide graphite crucible uses high thermal conductivity of graphite and other raw materials, shorten the melting time, save energy; In addition, the use of high thermal conductivity materials, dense tissue, low apparent porosity, fast thermal conductivity.
> Long life: compared with ordinary clay graphite crucible, the life can be extended by 3-5 times.
> Strong heat resistance impact: graphite crucible heat resistance impact function is strong, for hot and cold, not easy to break; Can withstand the thermal impact strength , so any process can be assured.
> Corrosion resistance: strong corrosion resistance to molten soup; The average fine matrix design delays the corrosion degree of the crucible.
> Anti-adhesion: Because graphite is not easy to adhere to the characteristics of molten soup, so the penetration and adhesion of molten soup is less
> Metal pollution is very little: strict control of material composition, to ensure that the graphite crucible is not polluted to metal when dissolving; The material design takes into account the relationship with the metal to be smelted and the characteristics of the process, and introduces little or no harmful impurities.
> Energy conservation and environment protection:Fast heat conduction can save a lot of fuel and reduce exhaust pollution.
> High strength: selection of high-quality materials, high pressure pressing, combined with fair, high temperature strength, scientific product modeling, high pressure capacity. Good anti-cracking function. So it maintains the original physical and chemical properties of natural graphite.
> Oxidation resistance: antioxidant design, and the use of high purity raw materials, protect graphite; High oxidation resistance is 5-10 times of ordinary graphite crucible.
> Less viscous slag: less slag hanging on the inner wall, greatly reduce the thermal resistance and the possibility of expansion and cracking of the crucible, always maintain large capacity.
Physical Properties
| Apparenrt Porosity | 9-12 % |
| Modulus of Rupture | 8-12 Mpa |
| Thermal Expansion Coefficient | 3.0-4.5 (10-6 K-1) |
| Special Electrical Resistance | 3.5-4.5*10-3 Ω.CM (24ºC) |
| 3.0-4.0*10-3 Ω.CM (800ºC) | |
| Thermal Conductivity | 140-150 W/(m*k) (25ºC) |
| 40-50 W/(m*k) (800ºC) |
Chemical Analysis
| C (free C) | 37-42% |
| SiC (silicon carbide) | 35-40% |
> Prefabrication: The crucible prefabrication is braided with all carbon fiber, and the volume density of the crucible prefabrication is 0.4-0.6g/cm3.
> Curing: curing the crucible preform with furfuryl ketone resin.
> Density: Bitumen is repeatedly impregnated with carbonized dense crucible precast until the volume density of the crucible precast reaches 1.3g/cm3-1.4g/cm3.
> Purification: Put the prefabricated crucible into the high temperature furnace after purification, the shape is trimmed to make the carbon crucible blank.
> Silicon immersion: Put the carbon crucible blank into the silicon immersion agent for 12-24h naturally.
> Carbonization: the soaked carbon crucible blank into the carbonization furnace carbonization, carbonization temperature of 900-1000ºC.
> Repeat steps 5 and 6 until the carbon crucible blank density reaches 1.5-1.6g/cm3.
> Forming: grinding and polishing the internal and external surface of the crucible, that is, silicon carbide composite crucible products.
| Number | model | OD | H | ID | BD |
| 1 | 100 | 350 | 440 | 282 | 240 |
| 3 | 110 | 330 | 380 | 260 | 205 |
| 4 | 200A | 420 | 480 | ||
| 5 | 200 | 420 | 500 | 350 | 230 |
| 6 | 203 | 420 | 570 | 364 | 230 |
| 8 | 351 | 430 | 670 | 360 | 230 |
| 9 | 300 | 450 | 500 | 360 | 230 |
| 11 | ZD350H620 | 465 | 620 | 390 | 320 |
| 12 | A350 | 470 | 650 | 390 | 320 |
| 14 | 370 | 530 | 570 | 460 | 300 |
| 15 | 400 | 530 | 750 | 446 | 330 |
| 16 | 450 | 520 | 600 | 440 | 260 |
| 17 | 453 | 520 | 660 | 450 | 310 |
| 18 | 460 | 565 | 600 | 500 | 310 |
| 19 | 463 | 570 | 620 | 500 | 310 |
| 20 | 501 | 520 | 700 | 460 | 310 |
| 21 | 505 | 520 | 780 | 460 | 310 |
| 22 | 508 | 510 | 700 | 430 | 300 |
| 23 | 511 | 550 | 660 | 460 | 320 |
| 24 | 650 | 550 | 800 | 480 | 330 |
| 25 | 700 | 600 | 500 | 550 | 295 |
| 26 | 760 | 615 | 620 | 550 | 295 |
| 27 | 765 | 615 | 640 | 540 | 330 |
| 28 | 790 | 640 | 650 | 550 | 330 |
| 29 | 791 | 645 | 650 | 550 | 315 |
| 30 | 801 | 610 | 675 | 525 | 330 |
| 31 | 802 | 610 | 700 | 525 | 330 |
| 32 | 803 | 610 | 800 | 535 | 330 |
| 33 | 810 | 620 | 830 | 540 | 330 |
| 34 | 820 | 700 | 520 | 597 | 280 |
| 35 | 910 | 710 | 600 | 610 | 300 |
| 36 | 1000 | 715 | 680 | 610 | 300 |
| 37 | 1050 | 715 | 720 | 620 | 300 |
| 38 | 1200 | 715 | 740 | 620 | 300 |
| 39 | 1300 | 715 | 800 | 640 | 440 |
| 41 | 1510 | 740 | 900 | 640 | 360 |
| 42 | 1502 | ||||
| 44 | 1560 | 775 | 750 | 684 | 320 |
| 45 | 1650 | 775 | 810 | 685 | 440 |
| 1800 | 780 | 900 | |||
| 49 | 1950 | 830 | 750 | 735 | 440 |
| 50 | 2001 | 870 | 680 | 765 | 440 |
| 51 | 2095 | 830 | 900 | 745 | 440 |
| 52 | 2096 | 880 | 750 | 780 | 440 |
| 53 | 2250 | 880 | 880 | 780 | 440 |
| 54 | 2300 | 880 | 1000 | 790 | 440 |
| 55 | 2700 | 900 | 1150 | 800 | 440 |
| 56 | 3000 | 1030 | 830 | 920 | 500 |
| 3300 | 970 | 880 | |||
| 57 | 3500 | 1035 | 950 | 925 | 500 |
| 58 | 4000 | 1035 | 1050 | 925 | 500 |
| 60 | 5000 | 1040 | 1320 | 930 | 500 |
| 61 | U700 | 785 | 520 | 420 | |
| 62 | U950 | 837 | 540 | 547 | 460 |
| 63 | U1000 | 980 | 570 | 560 | 480 |
| 64 | U1160 | 950 | 520 | 610 | 520 |
| 65 | U1240 | 840 | 670 | 548 | 460 |
| 66 | U1580 | 842 | 780 | 548 | 463 |
| 67 | U1720 | 975 | 640 | 735 | 640 |
| U2100 | |||||
| 68 | U2110 | 1080 | 700 | 595 | 495 |
| 69 | U2300 | 1280 | 535 | 680 | 580 |
| 71 | U2500 | 1280 | 650 | 680 | 580 |
| 73 | U2690 | 1065 | 785 | 835 | 728 |
| 74 | U2760 | 1290 | 690 | 690 | 580 |
| 75 | U4750 | 1080 | 1250 | 850 | 740 |
| 76 | U5000 | 1340 | 800 | 995 | 874 |
| 77 | U6000 | 1355 | 1040 | 1005 | 880 |
| 78 | IND205 | 330 | 505 | 280 | 320 |
| 79 | IND285 | 410 | 650 | 340 | 392 |
| 80 | IND300 | 400 | 600 | 325 | 390 |
| 81 | IND480 | 480 | 620 | 400 | 480 |
| 82 | IND540 | 420 | 810 | 340 | 410 |
| 83 | IND905 | 650 | 650 | 565 | 650 |
| 84 | IND906 | 625 | 650 | 535 | 625 |
| 85 | IND980 | 615 | 1000 | 480 | 615 |
| 86 | IND900 | 520 | 900 | 428 | 520 |
| 87 | IND990 | 520 | 1100 | 430 | 520 |
| 90 | IND1200 | 630 | 900 | 530 | 630 |
| 91 | IND1250 | 650 | 1100 | 565 | 650 |
| 92 | IND1400 | 710 | 720 | 622 | 710 |
| 94 | IND5600 | 980 | 1700 | 860 | 965 |
| 95 | Z803 | 620 | 800 | 536 | 355 |
| 96 | Z1800 | 780 | 900 | 680 | 440 |
| 97 | Z2300 | 880 | 1000 | 780 | 330 |
Recommended Products
Company Profile
Packaging & Shipping
The smelt soup in the crucible should be cleared out when the furnace stop working, in order to avoid molten soup solidification and will be expanded when fire to reheat, and affect the service life of crucible or even burst.
The graphite crucible should be protected from moisture. The warehouse for storing graphite crucibles should be dry and ventilated, and the temperature should be kept between 5ºC~25ºC, and the relative humidity should be 50-60%. The crucible must not be stored on brick soil or cement floor to avoid moisture.
In order to protect the glaze layer of the crucible, handling crucible must be very careful, to avoid knocking, collision or falling, we can't put the crucible on the ground and rolling to transport. Once the glaze layer of crucible is damaged, it will lead to oxidation and aging of crucible easily in the process of use. The crucible should be handled carefully in a padded cart (or other suitable conveyer).
Our company use rope, rubber, moisture-proof plastic paper, shockproof to pack the crucible, and according to customers' needs, we can customize wooden cases, export packaging cartons, paper tubes, etc., to ensure that the crucible wouldn't be damaged in transit.
