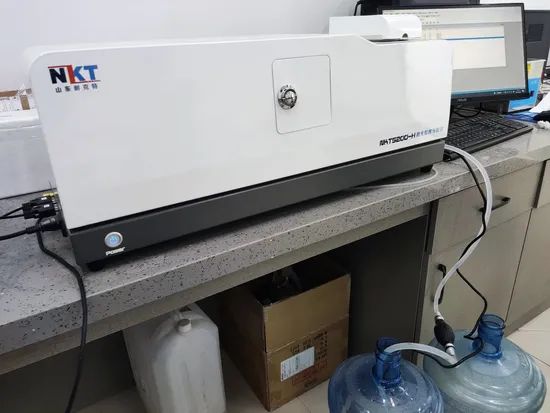

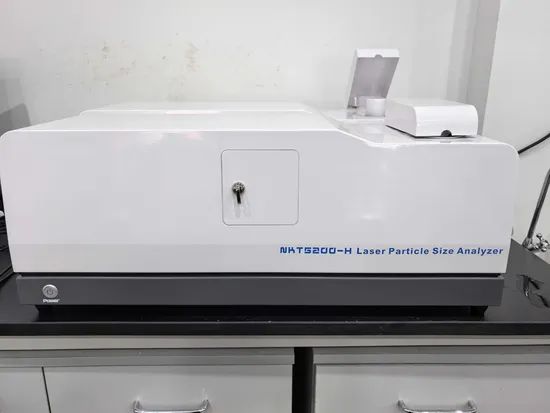

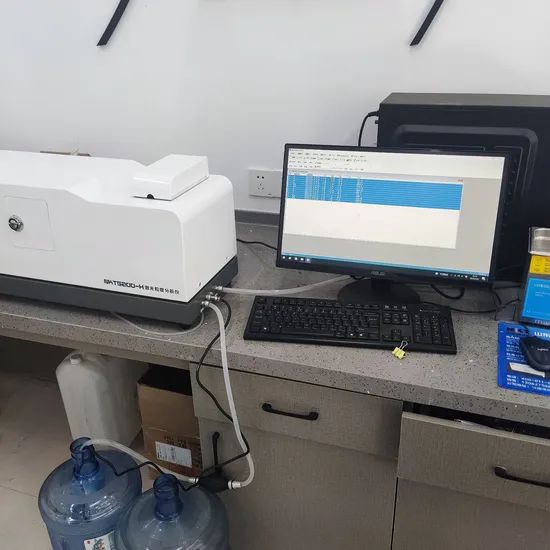

Premium Laser Particle Size Analyzer Designed for Laboratory Use
1 set
$6,500Product information
High-quality Premium Laser Particle Size Analyzer Designed for Laboratory Use supplied by Synotherm Ltd.. Bulk wholesale pricing is $6,500 per set with a minimum order of 1 set. Inquiry for latest prices.
Scanning Speed:
0-3950r/Min.Adjustable
Test Range:
0.1-1000um
Production Capacity:
500 Sets/Year
HS Code:
9031499090
Humidity:
<85%
Power Supply:
AC 220V 50Hz or 60Hz
Laser:
Adopting Imported Ultra-High Stability Semiconduct
Repeatability Error:
Better Than 0.5%
Specifications
Scanning Speed:
0-3950r/Min.Adjustable
Test Range:
0.1-1000um
Production Capacity:
500 Sets/Year
HS Code:
9031499090
Humidity:
<85%
Power Supply:
AC 220V 50Hz or 60Hz
Laser:
Adopting Imported Ultra-High Stability Semiconduct
Repeatability Error:
Better Than 0.5%
Origin:
China
Filtering Method:
Dual Lens Filtering Technology, Fourier Transform
Trade Term:
FOB, EXW, CFR, CIF, CIP
Measurement Principle:
Full Range Laser Diffraction
Payment Term:
LC, T/T, Western Union
Model NO.:
NKT5200-H
Specification:
NKT5200-H
Port Of Loading:
SHENZHEN, SHANGHAI, GUANGZHOU
Trademark:
SYNOTHERM
Measurement Time:
Typical Value<10s, Entire Process<2min
Testing Method:
Wet Testing
Transport Package:
Wooden Case
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2017-05-23
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, Western Union
Preferred Trade Term:
FOB, EXW, CFR, CIF, CIP
Port Of Loading:
SHENZHEN, SHANGHAI, GUANGZHOU
Certificates:
CE CERTIFICATE of MICROWAVE SINTERING FURNANCE, Quality management system certificate
Product descriptions from the supplier
Laser particle size analyzer
NKT5200-H
Product Overview
*Laser Intelligent Management System
*Sharp Fiber Optic Output Semiconductor Laser
*Dual Lens Technology
*Overspeed Acquisition Motherboard
*Sample Window Coating Process
*Dispersant Automatic Filling System
NKT5200-H adopts the most advanced Mie scattering principle and converging light Fourier transform optical path internationally. The use of Fourier transform lens and filtering lens ensures the measurement accuracy of the instrument. The high-density array probe and full range seamless connection testing method ensure the accuracy and repeatability of the test results. The unique wet circulation dispersion system adopts a pipeline residue free design, ensuring no particle deposition during particle testing and no waste liquid accumulation after testing drainage. This not only proves the accuracy of testing different samples, but also ensures the accuracy of the second test, making the test results more authentic and reliable.
Application Field
NKT5200-H laser particle size analyzer is widely used in various metal and non-metallic powders, such as heavy calcium, light calcium, talc, kaolin, graphite, wollastonite, brucite, barite, mica powder, bentonite, diatomaceous earth, clay, silicon dioxide, garnet, zirconium silicate, zirconia, magnesium oxide, zinc oxide, river sediment, lithium battery
materials, catalysts, phosphor, cement, abrasive, medicine, pesticide, food, paint, dye, ceramic raw materials, chemical materials, nanomaterials, paper filler coatings, various lotion, etc
Technical Parameters
Measurement principle: Full range laser diffraction
Execution standards: GB/T19077-2016/ISO13320:2009
Measurement range: 0.1-1000 μ m;
Measurement accuracy: repeatability ≤ ± 0.5%, accuracy ≤ ± 0.5% (using specified NIST traceable standard particles);
Laser:Adopting imported ultra-high stability semiconductor fiber laser light source, wavelength: 635nm, power adjustable up to 20mW;
Detection system:86 channel uniform cross and area compensation multi-directional array
Filtering method:Dual lens filtering technology, Fourier transform lens+filtering lens
Laser intelligent management system: The lifespan of the laser is extended by more than twice, theoretically eliminating the need to replace the laser for life. The lifespan of the laser can reach 40000 hours;
Sample window: Special coating process, with a processing transmittance of 99.7%;
Optical path automatic centering:mechanical center+optical center dual positioning fully automatic centering system
Wet standard circulation volume:120ml-800mL adujustable,effectively saving dispersion medium;
Wet process with built-in online ultrasound,power: ≥ 60W, adjusted through software;
Patent circulation pump shaft ensures no residue in testing;
Dispersant automatic filling system: Built in dispersant automatic filling system;
The speed:0-3950r/min.adjustable
Measurement time:Typical value<10S, entire process<2min
Operation interface:Englishoperation interface, can run on Windows 7/10/11/Xp versions;
Data processing:The fifth generation 16bit 200kps high-speed acquisition motherboard has a maximum of 20000 times per second. The software is equipped with classic Fraunhofer theory and Mie theory algorithms; The volume distribution and quantity distribution can be converted to each other; Particle size distribution table, particle size distribution curve, average particle size, median diameter, specific surface area, etc
Data output:The software has internal printing templates, customizable report templates, and automatic report output. The report supports format conversion such as PDF, BMP, WORLD, EXCEL, TXT, etc;
Fully automatic SOP can be edited freely: Based on the test samples, the testing process can be edited freely. Automatic water intake, automatic dispersion, automatic drainage, and automatic cleaning.
Dimensions: 800mm x 280mm x 335mm
Warranty:oneyears
