Premium Quartz Sand for Enhanced Water Filtration Systems Power 5kw Weight 5000kg HS Code 8521511251 Trademark NEW YUDA Model NO.
1-9 sets
$18,80010-99 sets
$10,000100 sets
$5,600Product information
High-quality Premium Quartz Sand for Enhanced Water Filtration Systems Power 5kw Weight 5000kg HS Code 8521511251 Trademark NEW YUDA Model NO. supplied by New Yuda Environmental Protection Technology Co., Ltd.. Bulk wholesale pricing ranges from $5,600 to $18,800 per sets with a minimum order of 1 sets. Inquiry for latest prices.
Warranty Of Core Components:
1 Year
Production Capacity:
100 Sets Per Month
Capacity:
10t/H-250t/H
Productivity:
10t/H~ 200t/H
Size:
1200*210*230cm/Customized
Package Size:
2000.00cm * 500.00cm * 400.00cm
Package Gross Weight:
3000.000kg
Weight:
5000kg
Specifications
Warranty Of Core Components:
1 Year
Production Capacity:
100 Sets Per Month
Capacity:
10t/H-250t/H
Productivity:
10t/H~ 200t/H
Size:
1200*210*230cm/Customized
Package Size:
2000.00cm * 500.00cm * 400.00cm
Package Gross Weight:
3000.000kg
Weight:
5000kg
Power:
5kw
HS Code:
8521511251
Desalination Rate:
97%
Organic Removal Rate:
98%
Heat Removal Rate:
98%
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Material:
Container, FRP+SS304
Trade Term:
FOB, CIF, EXW, CFR
Origin:
Guangxi, China
Application:
Household, Industrial
Trademark:
NEW YUDA
After Warranty Service:
Online Support
Core Components:
Pressure Vessel, Pump, Motor, PLC
Machinery Test Report:
Provided
Port Of Loading:
Shanghai Port, Qinzhou Port
Payment Term:
Small-amount payment, Western Union, LC, T/T, PayPal, D/P
Specification:
Stainless Steel
Payment Methods:
Support payments in USD
Showroom Location:
Viet Nam, Indonesia, Thailand, Sri Lanka, Malaysia
Transport Package:
Wooden Box+ Container
Model NO.:
XYD-SS-002
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2004-03-04
Annual Revenue Amount:
Not specified
Numbers Of Employees:
44
Preferred Payment Term:
Small-amount payment, Western Union, LC, T/T, PayPal, D/P
Preferred Trade Term:
FOB, CIF, EXW, CFR
Port Of Loading:
Shanghai Port, Qinzhou Port
Certificates:
ISO14001, ISO9001:2015, ISO45001:2018
Product descriptions from the supplier
|
Product name |
Seawater Desalination System |
|
Materials |
Container, FRP+SS304 |
|
Color |
Customized |
|
Size |
1200*220*230CM |
|
MOQ |
1SET |

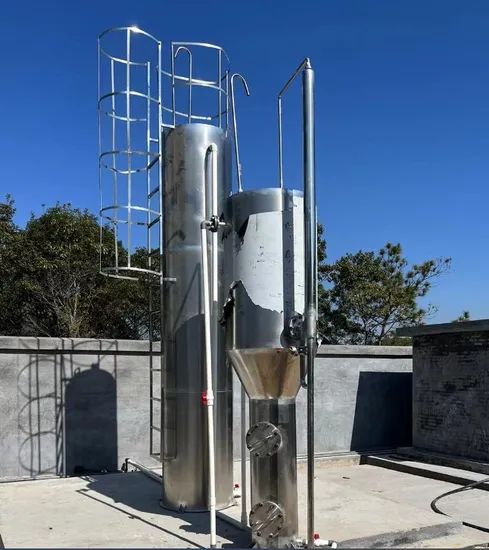

XYD series stainless steel Water purifier is a water purification equipment specially developed by our company for rural drinking Water purification purification. It has 1 invention patent and 50 utility patents to ensure the progressiveness of water purification process and the excellent quality of products.
XYD series stainless steel water purifier is a domestic drinking water purification equipment designed and produced with the core technology of the inner and outer spiral grid coil reactor that has obtained the national invention patent, taking full account of the user's use requirements. It has the characteristics of compact structure, reasonable, simple operation, stable operation, good treatment effect, strong adaptability, etc.
Product Parameters
1. Raw water quality: Raw water turbidity can upto 1500NTU; The quality of other raw water meets the Class I, Class II, and Class III water quality standards in CJ3020-93 "Water Quality Standards for Drinking Water Sources";
2. Effluent water quality: Effluent turbidity ≤ 0.5NTU, and other effluent water quality meets the newly established GB5749-2022 "Hygienic Standards for Drinking Water Quality";
3. Flocculation reaction time: 12-20 minutes;
4. Velocity of steady flow area: 1.38~1.67mm/s;/Liquid surface load in sedimentation area: 5~6m3/m2-h
5. Filtration speed: 6-7 m/h, 7-10 m/h for double-layer combined filter media;
6. Filter pool filter layer height: ≥0.8 meters;
7. Flushing strength: 14~17L/s-m2 (adjustable) with siphon automatic backwashing and manual forced backwashing system;
8. Rinse time: 4~8min (adjustable);
9. Minimum inlet head: 8 meters
Process Flow
XYD series water purifier is made of food-grade SUS304 stainless steel plate, which is an optimized combination of water purification processes such as dosing, mixing, coagulation, sedimentation, sludge thickening, filtration, automatic backwashing, disinfection, etc., and it can conveniently purify surface water such as water from reservoirs, mountain streams, or gullies, and rivers, etc. into drinking water that meets the requirements of "Hygienic Standard for Drinking Water for Daily Use" (GB5749-2006).
The core technology of the water purifier---reaction precipitator
1. Our company's flocculation reaction process is based on the core technology of the inner and outer spiral grid coil reactor, which has obtained a national invention patent. The source water added with coagulants enters the inner and outer spiral grid coil channels, and the water flow is a two-way rotating cross flow of the inner and outer layers. The water flow downward along the spiral channel forms a large number of reaction vortices under the combined action of outward centrifugal force and downward gravity, Greatly improving the collision efficiency of particles in the source water, it can quickly form uniform, dense, and easy to precipitate alum flowers. Compared with traditional flocculation reactors, the flocculation reaction efficiency can be increased by about one time, and the dosage of coagulants can be reduced by 20-30% compared to traditional straight plate grid reactors. It also has the advantage of strong impact load resistance, fully solving the problem of reactor layout for circular purification equipment, Especially suitable for factory scale production.
2. The sedimentation process of our reaction precipitator adopts the design of connecting the flocculation reaction and sedimentation area up and down as a whole, utilizing the patented technology of V-shape water flow guide plate to make the rising water flow rate gradually slow down under the joint action of the top support force of the water flow and the alum sinking in the sedimentation area, a floc suspension layer of 300mm or so is formed between the reaction area and the sedimentation area, and the suspended colloidal particles in the water, flocs, bacteria, germs and other impurities will be intercepted in this floc suspension layer, which greatly improves the separation and sedimentation efficiency of alum. The flocculent suspension layer greatly improves the separation and sedimentation efficiency of the alum, ensuring that when the turbidity of the influent water is <=3000NTU, the effluent from the precipitator is less than 10NTU, which reduces the load of the subsequent filters and greatly improves the processing efficiency of the purification equipment.
A) How could I get a sample?
Sample are available, but please afford sample costs and express fee.
B) Sample lead time?
Existing items: Within 7-10 days.
C) Do you offer OEM service and marked our logo on the products?
Yes, We offer OEM services.
D) What is the delivery time?
Normally, delivery time is 20-30days after order.
E) How to guarantee the quality of your products?
1)We havestrict quality control system, every product has been strictly inspect and stamped QC psssed before shipping out.
2) Strictsampling inspection on products before shipment and intact product packaging ensured.
