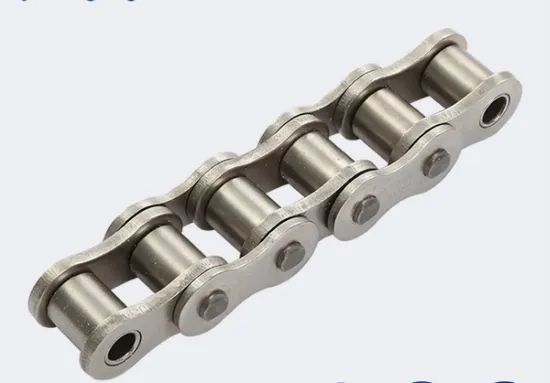

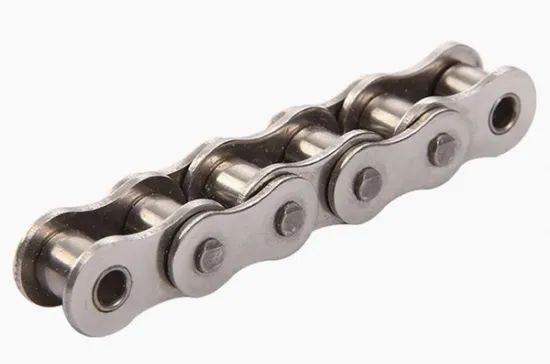

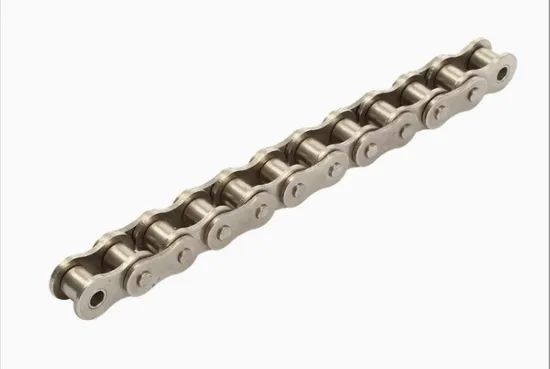

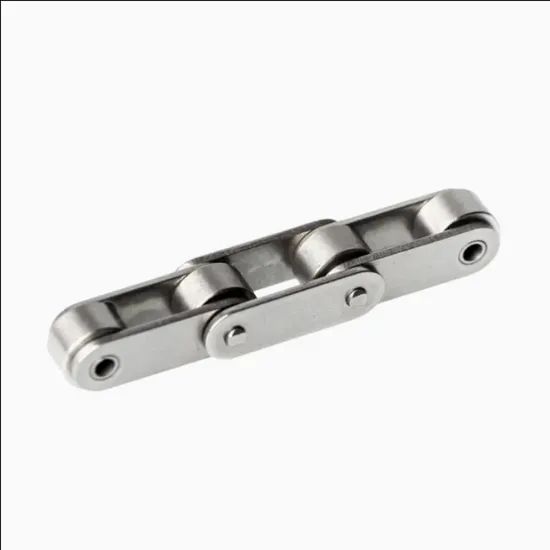

Premium Zinc-Plated Roller Chain with Corrosion Protection Features
1 Meter
$201 Meter
$0.6Product information
High-quality Premium Zinc-Plated Roller Chain with Corrosion Protection Features supplied by Hangzhou Camel Machinery Co., Ltd.. Bulk wholesale pricing ranges from $0.6 to $20 per Meter with a minimum order of 1 Meter. Inquiry for latest prices.
Chain Size:
1/2"*3/32"
Production Capacity:
5000000pieces
HS Code:
73151190
Model NO.:
80ZP
Trade Term:
FOB, CIF, CFR, EXW
Feature:
Fire Resistant, Oil Resistant, Heat Resistant
Origin:
Hangzhou
Surface Treatment:
Heat Treatment
Specifications
Chain Size:
1/2"*3/32"
Production Capacity:
5000000pieces
HS Code:
73151190
Model NO.:
80ZP
Trade Term:
FOB, CIF, CFR, EXW
Feature:
Fire Resistant, Oil Resistant, Heat Resistant
Origin:
Hangzhou
Surface Treatment:
Heat Treatment
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Transport Package:
Sea and Air Freight
Port Of Loading:
Shanghai port, Ningbo port
Specification:
Stainless steel material
Load Capacity:
The Static Tensile Strength Is Increased by 20% to
Wear Resistance:
The Surface Roughness of The Roller Is Controlled
Wear Resistance Optimization:
The Wear Rate Is Reduced by 40%, and The Service L
High Precision Transmission:
Tolerance Classes up to ISO 606 "Precision Class"
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2014-02-11
Annual Revenue Amount:
Not specified
Numbers Of Employees:
10
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Shanghai port, Ningbo port
Certificates:
Our certificate, Our production line
Product descriptions from the supplier
Galvanized chain refers to a chain with a layer of zinc metal protective layer covered on the surface of ordinary metal chains (usually carbon steel or stainless steel base materials) through electroplating or hot-dip galvanizing process. After the zinc layer combines with the base material, a dual physical and electrochemical protection barrier is formed, significantly improving the rust resistance and corrosion resistance of the chain, and is suitable for humid, acidic or alkaline, or outdoor exposed environments.
SFR |
Pitch |
Roller diameter |
Width between inner plates |
Pin diameter |
Pin length |
Innerplate depth |
Plate thickness |
Ultimate tensile strength |
Weight per meter |
|
| SFR Chain No. |
P | m(d)a(1)x | m(b)in(1) | m(d)a(2)x | L max | Lc max | m(h)a(2)x | T max | Q min | q |
| mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | kg/m | |
| *25ZP | 6.350 | 3.30 | 3.18 | 2.31 | 7.90 | 8.40 | 6.00 | 0.80 | 3.50/795 | 0.15 |
| *35ZP | 9.525 | 5.08 | 4.77 | 3.58 | 12.40 | 13.17 | 9.00 | 1.30 | 7.90/1795 | 0.33 |
| 41ZP | 12.700 | 7.77 | 6.25 | 3.58 | 13.75 | 15.00 | 9.91 | 1.30 | 6.67/1516 | 0.41 |
| 40ZP | 12.700 | 7.95 | 7.85 | 3.96 | 16.60 | 17.80 | 12.00 | 1.50 | 14.10/3205 | 0.62 |
| 50ZP | 15.875 | 10.16 | 9.40 | 5.08 | 20.70 | 22.20 | 15.09 | 2.03 | 22.20/5045 | 1.02 |
| 60ZP | 19.050 | 11.91 | 12.57 | 5.94 | 25.90 | 27.70 | 18.00 | 2.42 | 31.80/7227 | 1.50 |
| 80ZP | 25.400 | 15.88 | 15.75 | 7.92 | 32.70 | 35.00 | 24.00 | 3.25 | 56.70/12886 | 2.60 |
| 100ZP | 31.750 | 19.05 | 18.90 | 9.53 | 40.40 | 44.70 | 30.00 | 4.00 | 88.50/20114 | 3.91 |
| 120ZP | 38.100 | 22.23 | 25.22 | 11.10 | 50.30 | 54.30 | 35.70 | 4.80 | 127.00/28864 | 5.62 |
| 140ZP | 44.450 | 25.40 | 25.22 | 12.70 | 54.40 | 59.00 | 41.00 | 5.60 | 172.40/39182 | 7.50 |
| 160ZP | 50.800 | 28.58 | 31.55 | 14.27 | 64.80 | 69.60 | 47.80 | 6.40 | 226.80/51545 | 10.10 |
| 04BZP | 6.000 | 4.00 | 2.80 | 1.85 | 6.80 | 7.80 | 5.00 | 0.60 | 3.00/682 | 0.11 |
| 05BZP | 8.000 | 5.00 | 3.00 | 2.31 | 8.20 | 8.90 | 7.10 | 0.80 | 5.00/1136 | 0.20 |
| #06BZP | 9.525 | 6.35 | 5.72 | 3.28 | 13.15 | 14.10 | 8.20 | 1.30 | 9.00/2045 | 0.41 |
| 08BZP | 12.700 | 8.51 | 7.75 | 4.45 | 16.70 | 18.20 | 11.80 | 1.60 | 18.00/4091 | 0.69 |
| 10BZP | 15.875 | 10.16 | 9.65 | 5.08 | 19.50 | 20.90 | 14.70 | 1.70 | 22.40/5091 | 0.93 |
| 12BZP | 19.050 | 12.07 | 11.68 | 5.72 | 22.50 | 24.20 | 16.00 | 1.85 | 29.00/6591 | 1.15 |
| 16BZP | 25.400 | 15.88 | 17.02 | 8.28 | 36.10 | 37.40 | 21.00 | 4.15/3.1 | 60.00/13636 | 2.71 |
| 20BZP | 31.750 | 19.05 | 19.56 | 10.19 | 41.30 | 45.00 | 26.40 | 4.5/3.5 | 95.00/21591 | 3.70 |
| 24BZP | 38.100 | 25.40 | 25.40 | 14.63 | 53.40 | 57.80 | 33.20 | 6.0/4.8 | 160.0/36364 | 7.10 |
| 28BZP | 44.450 | 27.94 | 30.99 | 15.90 | 65.10 | 69.50 | 36.70 | 7.5/6.0 | 200.0/45455 | 8.50 |
| 32BZP | 50.800 | 29.21 | 30.99 | 17.81 | 66.00 | 71.00 | 42.00 | 7.0/6.0 | 250.0/56818 | 10.25 |
