Pressure Sensor Silicon Semiconductor Strain Gauges Trademark SNC IP Rating IP67 Out-Wire 2 Wire Output Resistance Type Force
50 Piece
$350 Piece
$4Product information
High-quality Pressure Sensor Silicon Semiconductor Strain Gauges Trademark SNC IP Rating IP67 Out-Wire 2 Wire Output Resistance Type Force supplied by Shenzhen Sensor and Control Company Limited. Bulk wholesale pricing ranges from $3 to $4 per Piece with a minimum order of 50 Piece. Inquiry for latest prices.
Operating Temperature:
-30 -- 150 Degree
Package Gross Weight:
1.000kg
Transport Package:
100 PCS / Pack
Production Capacity:
1000 Piece/Pieces Per Week
Resistance Range:
15-1000 Ohm
Out Wire:
2 Wire
Package Size:
20.00cm * 10.00cm * 5.00cm
Ultimate Strain:
5000
Specifications
Operating Temperature:
-30 -- 150 Degree
Package Gross Weight:
1.000kg
Transport Package:
100 PCS / Pack
Production Capacity:
1000 Piece/Pieces Per Week
Resistance Range:
15-1000 Ohm
Out Wire:
2 Wire
Package Size:
20.00cm * 10.00cm * 5.00cm
Ultimate Strain:
5000
HS Code:
8533211000
Output Signal Type:
Analog Type
Model NO.:
BF1000-SC
Gauge Type:
Bar Type, U Type
Description:
Bf1000-Sc
Certification:
CE/RoHS
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Material:
Constantan Foil
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Theory:
Convert Force Into Electrical Signal
Specification:
Custom size
Customized:
Customized
Trade Term:
FOB, CIF, CFR, EXW
Type:
Force Sensor
Port Of Loading:
Fuzhou Port
Origin:
Guangdong, China
Feature:
High Accuracy
Sensitivity:
High Sensitivity
IP Rating:
IP67
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Mechanical Hysteresis:
Low
Backing:
Option (Yes / No)
Output:
Resistance
Trademark:
SNC
Item:
Semiconductor Strain Gauge
Applicaiotn:
Static Measurement of Engineering Structure
Production Process:
Strain Gauge Type Load Cell
Usage:
Strain Measure
Payment Methods:
Support payments in USD
Wires At The End:
Yes
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2014-06-03
Annual Revenue Amount:
Not specified
Numbers Of Employees:
9
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Fuzhou Port
Certificates:
CE, Patent, Rohs
Product descriptions from the supplier
Pressure sensor silicon semiconductor strain gauges
Features:
| Model | SG-15 | SG-30 | SG-60 | SG-120 | SG-350 | SG-600 | SG-1000 |
| Resistance (Ω) nominal value | 15±5% | 30±5% | 60±5% | 120±5% | 350±5% | 600±5% | 1000±5% |
| Strain gauge size | B | B | B | A or B | B | C | C or D |
| Basement size | 0, F2, F3, F4, F5 | 0, F2, F3, F4, F5 | 0, F2, F3, F4, F5 | 0, F2, F3, F4, F5 | 0, F2, F3, F4, F5 | 0, F2, F3, F4, F5 | C:0, F2, F3, F4, F5 |
| D:0, F1, F3 | |||||||
| Sensitive coefficient K of nominal value | 100 | 100 | 120 | A:150 | 150 | 200 | C:200 |
| B:120 | D:150 | ||||||
| Temperature coefficient of resistance %/ | 0.1 | 0.1 | 0.15 | 0.13 | 0.3 | 0.45 | C:0.40 |
| D:0.30 | |||||||
| Temperature sensitivity %/ | -0.12 | -0.12 | -0.18 | A:-0.35 | -0.35 | -0.48 | C:-0.48 |
| B:-0.18 | D:-0.35 | ||||||
| Max. operating current(mA) | 50 | 50 | 50 | A:20 | 30 | 20 | 20 |
| B:50 | |||||||
| Operating temperature | NO basement: -4~+150 With basement: -30~+80 | ||||||
| Ultimate strain(mε) | 5000 | 5000 | 5000 | 5000 | 5000 | 5000 | 5000 |
Semi-conductor Strain Gauge Buying Guide
Semi-conductor strain gauge is certain electric components for load cell and engineering stress analysis .
It has advantage ofhigh sensitivity, low mechanical hysteresis, wide resistance and low transverse effect.
Due to its high performance in analyzing stress distribution and power-electricity conversion, it is widely
used instatic measurement of mechanical, aviation, vessel, bridge and other engineering structures.
Not only can we use it for complicated stress analysis also in nonlinearity compensation of foil load cells.
We provide all kinds of stain gauges including mid and high temperature strain gauges and with or without backing.
Strain Gauge series and semi-conductor strain gauges
Sensor and Control Co., Ltd.was founded in 2006, mainly engaged in Torque Sensor, Load Cell, Pressure Transducer, Strain Gauges and Weighing Indicators. Since establishment, we insist the guidelines of "Customer Oriented, Quality Focused, Professional Service "All products we supply are environment friendly and has passed RoHS test.
Sensorcon, in accordance with the principle of the introduction of advanced professional ultrasonic gas cleaning, clean Room patches, automatic temperature compensation and detection, high and low temperature testing and thermal experiments, laser welding and printing, CAD design, manufacturing and testing sensor test equipment and production technology ,manufacture all varieties of sensors, high precision, stable performance and also has antiseptic, waterproof, anti-explosion, anti-lightning, etc favored deeply by users.
1.How to place an order ?
Please provide us more details of what you want, such as: application, measurement range, output, accuracy, thread type, electric connector and other related parameters.
2.Does SNCoffer any discount ?
Yes, if you buy large QTY, please contact us, we will give you a big discount.
3.What terms of payment are available ?
We accept T/T, L/C, Trade assurance, Western Union, Paypal, etc.
4.When will you arrange the production ?
We will arrange the production immediately after receiving your payment.
5.How do you ensure good product quality ?
We have a complete quality control system, all of our products are fully checked by IQC, OQC departments
before shipping to our clients.
6.Do you have warranty ?
Yes, we provide 1 year warranty for most of our products. Some products we offer 15month to 24 months warranty.

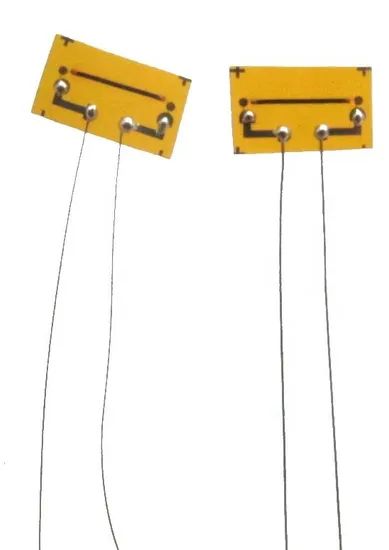

Pressure sensor silicon semiconductor strain gauges

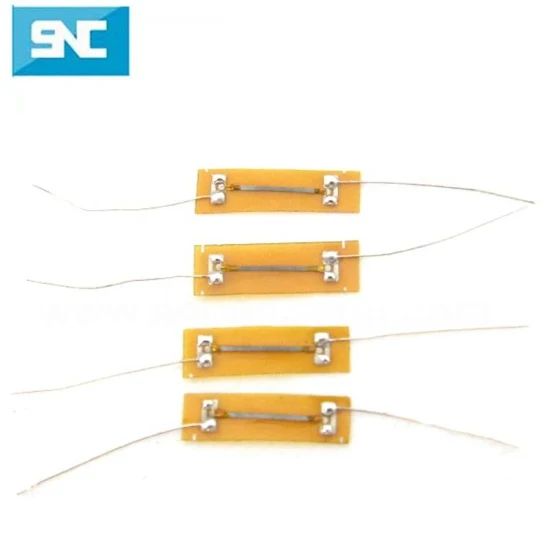

Pressure sensor silicon semiconductor strain gauges

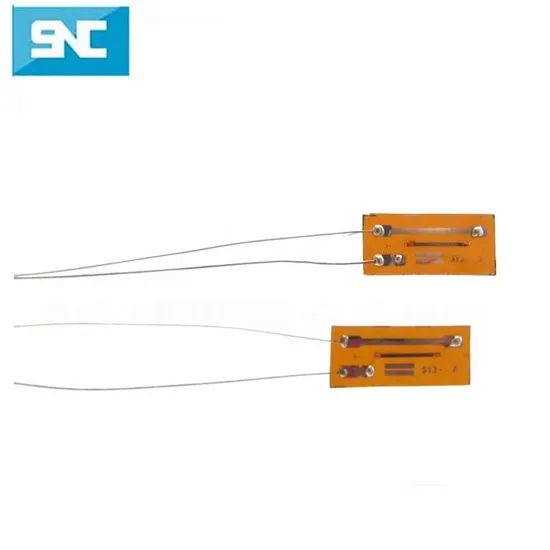

Pressure sensor silicon semiconductor strain gauges
