Production Line Feeding and Screening Equipment Vibrating Feeder
1 Piece
$68,0001 Piece
$6,500Product information
High-quality Production Line Feeding and Screening Equipment Vibrating Feeder supplied by Shijiazhuang Haihui Machinery Co., Ltd.. Bulk wholesale pricing ranges from $6,500 to $68,000 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Feeding Size:
0-900mm
After Sales Service:
1 Year
Size Of Material Trough:
1300-6000mm
Motor Power(Kw):
30kw
Specification:
6.5t
HS Code:
8474209000
Usage:
Building Materials, Chemical Industry, Colliery, Gravel Field, Metallurgy, Mine, Ore-dressing
Color:
Customize
Specifications
Feeding Size:
0-900mm
After Sales Service:
1 Year
Size Of Material Trough:
1300-6000mm
Motor Power(Kw):
30kw
Specification:
6.5t
HS Code:
8474209000
Usage:
Building Materials, Chemical Industry, Colliery, Gravel Field, Metallurgy, Mine, Ore-dressing
Color:
Customize
Trade Term:
FOB, CIF, CFR, EXW
Model NO.:
HG 1360
Origin:
Hebei, China
Transport Package:
International Universal Packaging
Payment Term:
LC, T/T
Spare Parts Supply:
Lifetime Provision
Type:
Motor Vibrating Feeder
Port Of Loading:
Tianjin Port
Trademark:
haihui
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2010-05-31
Annual Revenue Amount:
Not specified
Numbers Of Employees:
41
Preferred Payment Term:
LC, T/T
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Tianjin Port
Certificates:
ISO9001:2015
Product descriptions from the supplier
Product Description

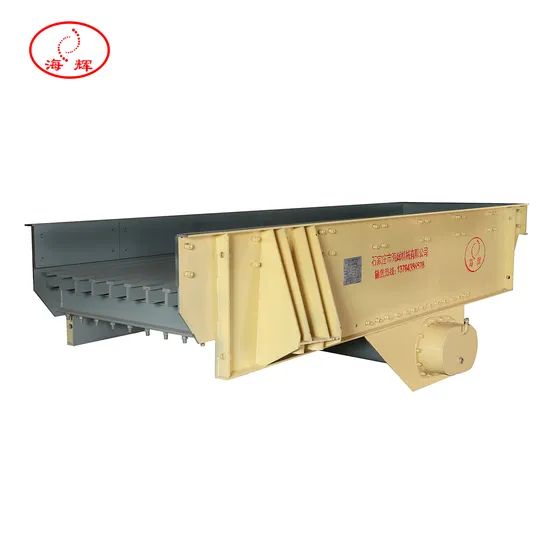

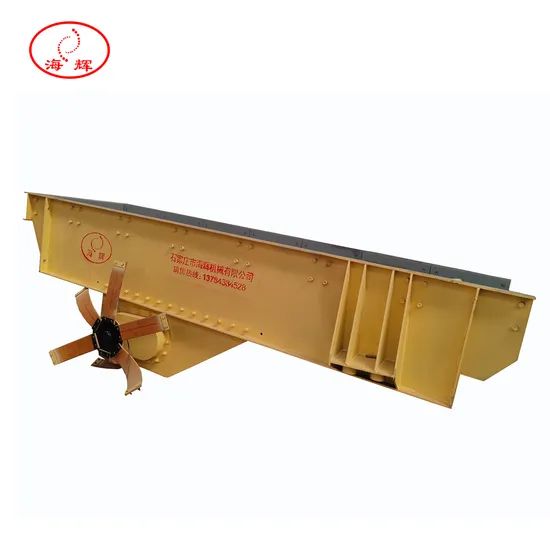

The HG series vibrating feeder is composed of a feeder, exciter, spring support, transmission device, etc. The vibration source of the trough vibration feeding is the exciter, which is composed of two eccentric shafts (active and passive) and a gear pair.
Product features
HG series vibrating feeder works reliably and has a long service life; The excitation force can be adjusted, and the flow rate can be changed and controlled at any time. The adjustment is convenient: the vibrating feeder uses an inertia exciter to generate the drive, with low noise, low power consumption, good adjustment performance, and no material flushing phenomenon. The structure is simple and the operation is reliable. The box body adopts the ring groove cold riveting process to avoid deformation, cracking, and other problems caused by welding. The adjustment and installation are convenient, and the maintenance is easy.
working principle
The active shaft is driven by an electric motor, and then the passive shaft is rotated by the gear meshing on the active shaft. The active and passive shafts rotate in the opposite direction at the same time, and the groove body vibrates, so that the material flows continuously to achieve uniform feeding and coarse screening.
Technical Parameter
Model | Size of material trough (mm) | Maximum feeding particle size (mm) | Installation angle (°) | Feeding capacity (t/h) | Motor power (kw) |
HG1038 | 1000-3800 | 700 | 0-10 | 120-500 | 15 |
HG1142 | 1100-4200 | 800 | 0-10 | 150-600 | 18.5 |
HG1349 | 1300-4900 | 900 | 0-10 | 300-900 | 22 |
HG1360 | 1300-6000 | 900 | 0-10 | 300-900 | 30 |
HG1660 | 1660-6000 | 1200 | 0-10 | 800-1300 | 37 |
HG2060 | 2000-6000 | 1500 | 0-10 | 1600-2400 | 45 |
Company Profile
Shijiazhuang Haihui Machinery Co., Ltd. was established in 2000 and is a modern enterprise specializing in the production of mining crushing equipment and conveying equipment.
Our company mainly produces equipment such as HPZ single cylinder hydraulic cone crusher, HPS single cylinder cone crusher, HPD multi cylinder cone crusher, C-series jaw crusher, HPL vertical shaft impact crusher, maintenance free oil vibrating screen, vibrating feeder, box crusher, etc. Our company also undertakes the design, production, installation and commissioning of various non-standard equipment and automation supporting equipment, and has been selected and matched for national and provincial key projects multiple times.
Our company's engineers are one of the first domestic engineers to manufacture single cylinder cones and have 40 years of experience; In addition, our company also has an excellent management team and technical backbone, which can provide customers with comprehensive services such as planning of preliminary plans, product design, production, equipment installation, and after-sales support. We adhere to the business policy of quality first, customer first, and reputation based, and provide high-quality products to our customers with a strict and perfect quality supervision and production system. We offer timely and thoughtful after-sales service and sincere and satisfactory cooperation.
Our company mainly produces equipment such as HPZ single cylinder hydraulic cone crusher, HPS single cylinder cone crusher, HPD multi cylinder cone crusher, C-series jaw crusher, HPL vertical shaft impact crusher, maintenance free oil vibrating screen, vibrating feeder, box crusher, etc. Our company also undertakes the design, production, installation and commissioning of various non-standard equipment and automation supporting equipment, and has been selected and matched for national and provincial key projects multiple times.
Our company's engineers are one of the first domestic engineers to manufacture single cylinder cones and have 40 years of experience; In addition, our company also has an excellent management team and technical backbone, which can provide customers with comprehensive services such as planning of preliminary plans, product design, production, equipment installation, and after-sales support. We adhere to the business policy of quality first, customer first, and reputation based, and provide high-quality products to our customers with a strict and perfect quality supervision and production system. We offer timely and thoughtful after-sales service and sincere and satisfactory cooperation.
On site case
Technological process
Packaging & Shipping
FAQ
Q: Where is your company located? How to visit there?
A: Our factory is located in Shijiazhuang, Hebei Province, China
Q: Can I have my own customized product?
A: Yes, it is. Your customization requirements for color, language, etc.
Q: Regarding shipment
A: If you have a freight forwarder, we can send the goods to your freight forwarder. If not, Haihui will recommend suitable transportation methods for you, such as air or sea freight.
Q: Regarding equipment after-sales service
A: The whole machine has a one-year warranty (calculated from the date of shipment), excluding vulnerable parts (a detailed list of vulnerable parts will be provided before shipment). We would recommend that you purchase more vulnerable parts.
Q: How to ensure the quality of the product?
A: We have a complete quality control system. Firstly, we will test all purchased components before use; Secondly, we have quality control at every step of the production process; Last but not least, we inspect all performance after complete assembly, including testing the entire machine before packaging.
