Professional Dual-Band Infrared Thermal Camera with Remote Control
1 Set
$100,0001 Set
$50,000Product information
High-quality Professional Dual-Band Infrared Thermal Camera with Remote Control supplied by Hebei Flyir Technology Co., Ltd. Bulk wholesale pricing ranges from $50,000 to $100,000 per Set with a minimum order of 1 Set. Inquiry for latest prices.
Sensor Size:
1/3 inch
Package Gross Weight:
105.000kg
HDMI Format:
1080P
Pixel Pitch:
15μm
Fov:
18.18°X14.58°~0.83°X0.66°
Continuous Zoom:
20X
Netd:
3.7-4.8μm
Focal Length:
30-690mm(F4)
Specifications
Sensor Size:
1/3 inch
Package Gross Weight:
105.000kg
HDMI Format:
1080P
Pixel Pitch:
15μm
Fov:
18.18°X14.58°~0.83°X0.66°
Continuous Zoom:
20X
Netd:
3.7-4.8μm
Focal Length:
30-690mm(F4)
Package Size:
55.00cm * 55.00cm * 99.00cm
Specification:
550mm*550mm*995mm
Resolution:
640×512 Pixels
Horizontal Resolution:
650tvl
Kind:
Autofocus Lens
Transport Package:
Box
Certification:
CCC, ISO9001: 2000
Sensor:
CCD
Type:
CCTV Camera
Origin:
China
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Detector:
Cooled Detector
Trademark:
FLYIR
Model NO.:
FLYIR-690
Trade Term:
FOB, CIF, CFR, EXW
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Payment Methods:
Support payments in USD
Port Of Loading:
Tianjin port
Feature:
Waterproof / Weatherproof, High Definition, Vandal-proof, Auto BLC
Remote Control:
Without Remote Control
Longevitytlife:
for The Next 30, 000 Hours
Effective Distance:
≧30m
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Not specified
Year Established:
2019-12-11
Annual Revenue Amount:
Not specified
Numbers Of Employees:
35
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Tianjin port
Certificates:
ISO14001, ISO45001:2018, ISO9001:2015
Product descriptions from the supplier

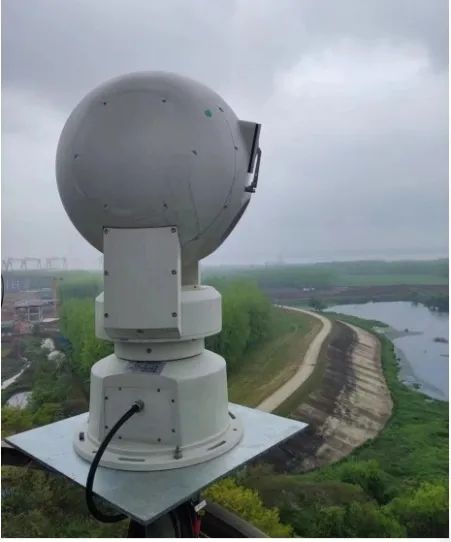

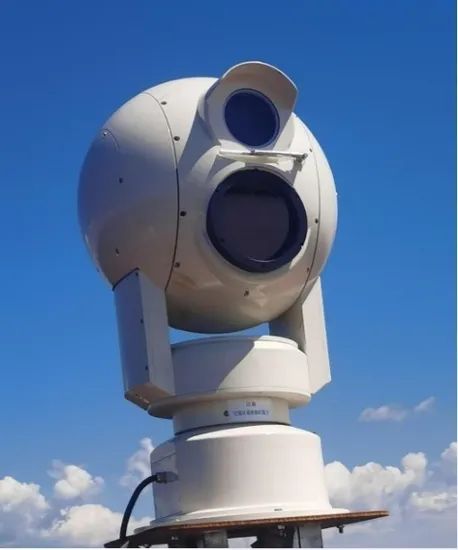

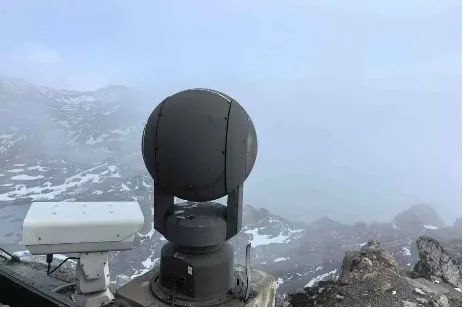

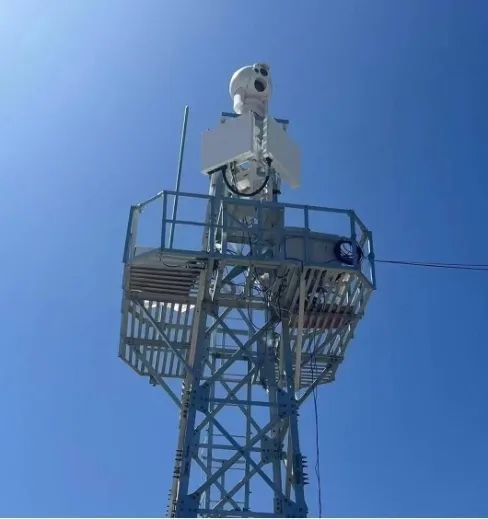

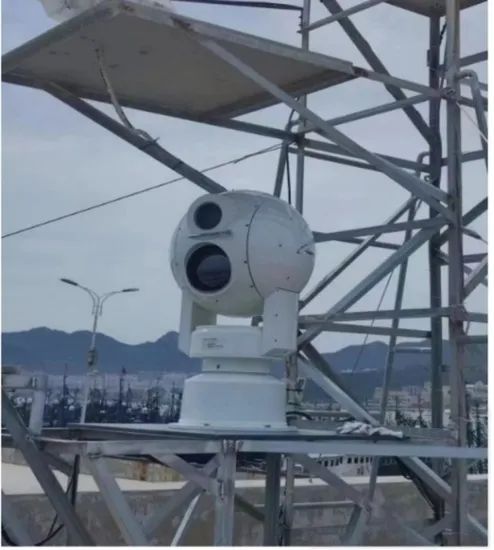

The FLYIR-690 Remote Dual-Spectrum Electro-Optical Reconnaissance Turret integrates advanced technologies such as a long focal-length fog-penetrating lens, high-definition camera, ultra-long-focus continuous zoom infrared lens, cooled high-sensitivity detector, high-precision spherical turret, and embedded AI module. Designed for border/coastal defense, naval vessels, and other extreme environments, this system provides 24/7 all-weather surveillance with intelligent recognition, tracking, high-precision positioning, wind resistance, corrosion resistance, anti-shake, and fog penetration capabilities. It is widely applicable to critical security scenarios including
bases, airports, ports, and nuclear facilities. The turret operates independently for manual/automatic target tracking or integrates with radar systems for rapid target acquisition and feature identification.
1.Lens IR Co-Focusing
Proprietary auto-focus technology ensures image clarity during focal adjustments. Embedded IR modules prevent nighttime focus drift, eliminating repetitive manual calibration..
2.Field Environment Adaptability
Optical system features temperature compensation, fog penetration, heat haze suppression, and anti-shake mechanisms for harsh conditions.
3. Intelligent Heavy-Duty Turret
Precision::High-precision encoder disk with full closed-loop control (positioning accuracy ≤0.005°).0.005;
High Load Capacity:Supports 60kg payload under extreme conditions (high altitude, low pressure, strong winds, freezing).
255-level or stepless speed adjustment (0.005°/s-60°/s).s;
Core components support remote firmware upgrades.
4. Enhanced Durability
Built-in cooling systems (air/thermal dissipation) and optional climate-specific thermal management ensure long-term reliability.
5. Multi-Sensor Integration
Compatible with radar, BeiDou, AIS, and TDOA systems. Combines AI, AR, and IoT technologies for 3D surveillance in anti-terrorism, emergency response, and ground/air security operations.
6. Data Conversion Unit
Supports multi-channel protocols (local, serial, radar) for seamless system interoperability.
7. Optical Axis Calibration
Integrated multi-spectral optical axis adjustment ensures ≤5% image center deviation during zoom transitions (wide-angle to telephoto).
8. Modular Maintenance
Component-based design enables rapid field replacement and repairs.
9. Multi-Layer Protection
Overheat/overcurrent/overvoltage safeguards, IP66-rated waterproofing, and intelligent thermal management ensure stable operation.
| Product Name | Remote Dual-Spectrum Electro-Optical Reconnaissance Turet |
|
| Visible Light System | Sensor Size | 1/1.8"CMOS |
| Focal Length | 10.5~850mm | |
| Aperture | 9-blade near-circular aperture for consistent resolution and reduced glare. | |
| Optical Zoom | 80x | |
| Resolution | 2560*1440(4MP) | |
| Horizontal FOV) | 38.4~0.48 | |
| Minimum Illumination | Color:0.0003Lux ;B/W::0.0001Lux | |
| Video Compression | H.265/H.264/MJPEG | |
| H.265 encoding type | Main Profile | |
| H.264 encoding type | BaseLine Profile/Main Profile/High Profile | |
| Frame Rate | 50/60fps | |
| Bitrate | 32kbps~16Mbps | |
| Audio compression standard | AAC/MP2L2 | |
| Optical Image Stabilization (OIS) | Gyroscope-based OIS mitigates wind-induced vibrations. | |
| The lens is focused | The whole process of the zoom process is the coke, the whole image is clear. Especially suitable for identifying the tracking | |
| Auto-Focus Motor | DC brushless stepper motor (lifetime ≥2 million cycles). | |
| Zoom Speed | Full-range zoom ≤8s | |
| SNR(S/N) | ≥55dB(AGC Off,Weight ON) | |
| exposure compensation | Open / close | |
| Strong light inhibition | Supported | |
| Wide Dynamic | Supported | |
| Day and night conversion | Automatic / manual | |
| white balance | Automatic / manual / tracking / outdoor / outdoor / indoor / outdoor automatic / sodium lamp automatic / sodium lamp | |
| electronic shutter | Support for automatic and manual electronic shutter 1 / 1~1 / 30,000 seconds | |
| exposure | Support for both automatic and manual modes | |
| 2D Noise Reduction | Supported | |
| 3D Noise Reduction | Supported | |
| Image flip | Supported | |
| Focus mode | Automatic / manual / one-time automatic focus | |
| Digital Zoom | 16X | |
| Fog Penetration | Optical + electronic | |
| In addition to the heat wave | Supported | |
Thermal Imaging System |
Detector | Cooled detector |
| Resolution | 640×512 pixels | |
| Pixel Pitch | 15μm | |
| Focal Length | 30~690mm(F4) | |
| FOV | 18.18°x14.58°~0.83°x0.66° | |
| Continuous Zoom | 20x | |
| Lens Transmittance | 90%, (guarantee sufficient energy for detector) | |
| Drive the motor | Magnetic encoding motor is used to ensure the focusing accuracy | |
| Auto-Focus Time | ≤1s | |
| Lens optical design | Secondary imaging design is adopted to meet the 100% cold diaphragm efficiency, high resolution, short zoom stroke, and compact lens structure. | |
| Lens to adjust | Adopt centering and adjusting process to ensure the lens eccentric of 0.03mm | |
| Refrigeration method | Coaxial sex Stirling refrigerator | |
| longevity life | For the next 30,000 hours | |
| Blind yuan rate | ≤0.5% | |
| NETD | ≤20mK | |
| Spectral Band | 3.7~4.8μm | |
| The focus mode | Automatic / manual | |
| polarity inversion | Black hot / white hot | |
| Image Transmission | With contrast adaptive histogram algorithm and guided filtering algorithm | |
| Image transmission mode | PAL,Cameralink,SDI | |
| Automatic focus time | ≤1s | |
| heterogeneity | ≤0.5% | |
| AI Module | Processor | Rockchip RK3588J (4×A76 + 4×A55 @2.4GHz) |
| AI function | 6 Tops | |
| NPU | Quad-core Mali G610 AI accelerator (6 TOPS) | |
| Memory | 8GB 12-bit LPDDR4X 51.2GB/S | |
| Storage | 32GB eMMC5.1 | |
| Expandable Compute | Up to 12TOPS | |
| Environmental Filtering | AI algorithms filter false alarms (e.g., wind, animals, waves). | |
| Embedded Algorithms | Target recognition, tracking, deep learning, perimeter detection. | |
| GPS | Support for GPS and Beidou positioning | |
| Electronic compass | Support electronic compass | |
| Gyro stability | Support for gyroscope stabilization | |
| Posture perception | Built-in attitude sensing sensor, device position change alarm | |
| General Specifications | shield | Integrated spherical full sealing design, anti-salt spray PH value of 6.5~7.2 |
| Electrostatic discharge immunity | Contact discharge 8KV, air discharge 15KV | |
| Electric fast transient pulse group immunity | Power port 4KV, repetition rate 5 KHz; | |
| Surge impact immunity | Power port line 2KV, line ground 4KV; | |
| RF field-induced immunity | Grade 3 in GB / T 17626.6-2008 | |
| Conducting harassment | Power supply port level A | |
| Protection Rating | IP66 | |
| network interface | 1 RJ4510M / 100M adaptive Ethernet port, 2 sets of RS-485 interfaces | |
| Operating Temperature | -45ºC~+70ºC | |
| Power Supply | AC220V/DC48V | |
| Dimensions (L×W×H) | 550mm × 550mm×995mm(L×W×H) | |
| Power Consumption | ≤200W | |
| Weight | 105KG | |
