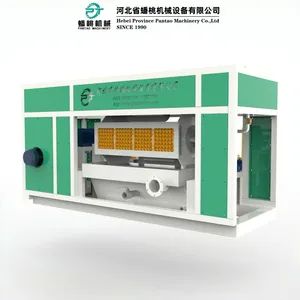

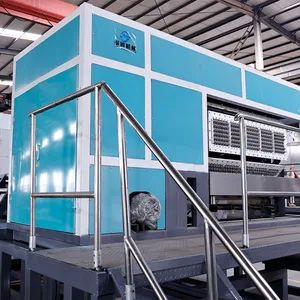

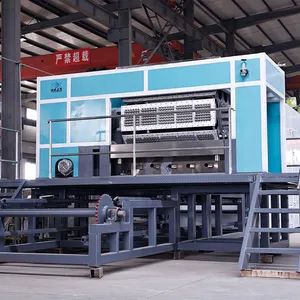

Pulp Egg Tray Making Machine
Set
Negotiable
Product information
High-quality Pulp Egg Tray Making Machine supplied by Hebei Province Pantao Machinery Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Template Size:
1.47m X 0.47m
Package Size:
10000.00cm * 10000.00cm * 10000.00cm
Production Capacity:
1000set
Operating Speed:
10times /Minute
Paper Consumption /Hr:
110kg~175kg
Drying:
19kw
Production:
2200~3000pieces
Voltage:
220V/380V
Specifications
Template Size:
1.47m X 0.47m
Package Size:
10000.00cm * 10000.00cm * 10000.00cm
Production Capacity:
1000set
Operating Speed:
10times /Minute
Paper Consumption /Hr:
110kg~175kg
Drying:
19kw
Production:
2200~3000pieces
Voltage:
220V/380V
Vacuum Pump:
22kw
Overall Dimension:
3.1m X 1.7m X 1.8m
Motor Power:
3kw
Specification:
4-4
Pulper:
7.5kw
HS Code:
8441400000
Automatic Grade:
Automatic
Certification:
CE
Origin:
China
Computer Control Panel:
Computer Control Panel
Trade Term:
FOB, CIF, CFR, EXW
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Size:
Medium
Condition:
New
Transport Package:
Nude Package or Export Standard Package
Trademark:
SH
Port Of Loading:
Tianjin Port
Model NO.:
paper egg tray making machine
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2011-08-30
Annual Revenue Amount:
Not specified
Numbers Of Employees:
155
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Tianjin Port
Certificates:
CE, ISO9001:2015
Product descriptions from the supplier
SONA2024 2.2.1
Product Description
INTRODUCTION TO PULP MOLDING EQUIPMENT
Pulp molding equipment uses specialized molds to process waste paper into desired shapes and finishes them to create functional products that protect and display their contents. The process involves processing the waste paper, raw pulp board, or biomass fiber as raw materials into a concentrated slurry through the pulping system, enter the mixing pool for stirring, is adjusted to the desired consistency and is pumped it into the molding system. The slurry is processed into various products using the different mold shapes of the molding machine. Finally, a drying system evaporates excess moisture from the product, shaping it into a finished product, and process it into the final product after cutting the edge and other processes
Specification
Four-sided rotary forming machine: Consisting of four forming surfaces and one transfer surface, this machine offers
low mold costs, efficient and energy-efficient multi-layer drying, and a high degree of automation. It is suitable for small
to medium-volume production of paper trays and a variety of standardized products, including egg trays, coffee cup trays,
egg cartons, and fruit trays. It is economical, efficient, and easy to operate, with an optional natural drying option.
Required raw materials include waste cartons, waste books, waste newspapers, book edges, recycled egg trays, and other
waste paper materials.
low mold costs, efficient and energy-efficient multi-layer drying, and a high degree of automation. It is suitable for small
to medium-volume production of paper trays and a variety of standardized products, including egg trays, coffee cup trays,
egg cartons, and fruit trays. It is economical, efficient, and easy to operate, with an optional natural drying option.
Required raw materials include waste cartons, waste books, waste newspapers, book edges, recycled egg trays, and other
waste paper materials.
Technical Specifications
(Custom configurations available upon request.)
Model | PT-4X2000(3-4) | PT-4X3000(4-4) | PT-4X4000(5-4) | PT-4X5000(6-4) | |
Production capacity/hour | 2000-3000pcs | 3000-4000pcs | 4000-5000pcs | 5000-5500pcs | |
Number of molds(chunk) | 12+3 | 16+4 | 20+5 | 24+6 | |
Operating mode of the molding machine | Four-sided rotary machine | ||||
Molding cycle(times/min) | 10-18 | ||||
Power(kw) | 57 | 60 | 100 | 150 | |
Worker/shifit | 3 | 3 | 3 | 4 | |
Paper(kg/hr) | 187 | 262 | 337 | 395 | |
Water(kg/hr) | 350 | 490 | 630 | 700 | |
Product height can be produced | 80mm | ||||
Template size | 1170MMX470MM | 1470MMX470MM | 1800MMX470MM | 2130MMX470MM | |
Drying method | Natural drying | Naturally drying, the product is dried using sunlight and natural breeze. | |||
Drying | A: Traditional brick drying B: For multi-layer metal drying, the heat source can be chosen from: coal, natural gas (LNG),diesel, liquefied petroleum gas (LPG), heat transfer oil, steam, etc. | ||||
FLOWCHART
Our engineering team can provide tailored designs to meet specific project requirements.
After Sales Service
Standard Warranty: 12 months
Training: On-site or remote operation/maintenance training.We can provide factory layout planning based on the customer's site conditions, and flexibly configure molding machines and drying systems based on differ?ent production capacities and budgets to maximize production efficiency.
Company Profile
Hebei Province Pantao Machinery Co., Ltd.
Hebei Province Pantao Machinery Co., Ltd. (Pantao Machinery) is a leading company in the pulp molding equipment
industry. Since its establishment in 1990, the company has consistently upheld a culture of dedication, civility, and prag?
matism, focusing on R&D and manufacturing. Leveraging over 30 years of experience, the company has grown into
China's largest manufacturer with the strongest technical capabilities and the highest service quality.
industry. Since its establishment in 1990, the company has consistently upheld a culture of dedication, civility, and prag?
matism, focusing on R&D and manufacturing. Leveraging over 30 years of experience, the company has grown into
China's largest manufacturer with the strongest technical capabilities and the highest service quality.
Why Choose Us?
Other Products
OEM/ODM capabilities
Competitive pricing & bulk discounts
Fast shipping & customs clearance support
Turnkey project solutions
Competitive pricing & bulk discounts
Fast shipping & customs clearance support
Turnkey project solutions
INDUSTRIAL PACKAGING MACHINE
FULLY AUTOMATIC EGG CARTON/
COFFEE CUP TRAY PRODUCTION EQUIPMENT
Single-Sided Flip Paper Tray Machine
FULLY AUTOMATIC EGG CARTON/
COFFEE CUP TRAY PRODUCTION EQUIPMENT
Single-Sided Flip Paper Tray Machine
FAQ
Q: What end products can be produced by the pulp molding line?
A: Pulp molding equipment can produce egg trays, egg cartons, coffee cup holders, shoe trees, industrial packaging, fruit
trays, wine trays, and other paper pulp molding products.
Q: What raw materials can be used to make pulp molding products?
A: Cartons, wrapping paper, books, notebooks, A4 paper, document paper, pulp and other raw materials can be used to
make pulp molded products.
Q: How long does it take to dry by sun and how much drying space is needed?
A: AIf the temperature is around 30 degrees, it takes 6-7 hours to dry; if the temperature is around 40 degrees, it takes about
4-5 hours. Taking egg trays as an example, if the output is 1,000 pieces, at least 500 square meters of space is needed for
natural drying.
Q: What voltage and power does the machine operate at?
A: The machine must use three-phase power, the voltage and power are customized according to the customer's local
standards.
Q: About molds:
A: We offer customized services. You just need to send us the egg tray drawings or local egg tray samples, and we will
customize for you.
A: Pulp molding equipment can produce egg trays, egg cartons, coffee cup holders, shoe trees, industrial packaging, fruit
trays, wine trays, and other paper pulp molding products.
Q: What raw materials can be used to make pulp molding products?
A: Cartons, wrapping paper, books, notebooks, A4 paper, document paper, pulp and other raw materials can be used to
make pulp molded products.
Q: How long does it take to dry by sun and how much drying space is needed?
A: AIf the temperature is around 30 degrees, it takes 6-7 hours to dry; if the temperature is around 40 degrees, it takes about
4-5 hours. Taking egg trays as an example, if the output is 1,000 pieces, at least 500 square meters of space is needed for
natural drying.
Q: What voltage and power does the machine operate at?
A: The machine must use three-phase power, the voltage and power are customized according to the customer's local
standards.
Q: About molds:
A: We offer customized services. You just need to send us the egg tray drawings or local egg tray samples, and we will
customize for you.
