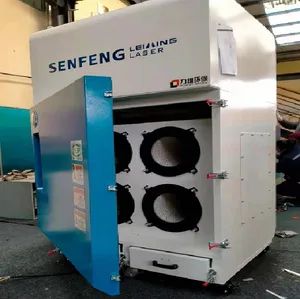

Pulse Jet Laser Cutting Dust Extraction System Laser Smoke Collector
set
Negotiable
Product information
High-quality Pulse Jet Laser Cutting Dust Extraction System Laser Smoke Collector supplied by Qingdao Power Space Environmental Protection Technology Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Filter Efficiency:
0.3um ; >99.9%
Production Capacity:
200PCS/Month
Process Capacity:
2500-4500m3/Hour
Filter Cartridge:
4PCS
Power:
5.5kw
Filter Area:
92 Square Meters
Filter Element:
Ahlstrom Nano Flame-Retardant
OperationType:
Automatic
Specifications
Filter Efficiency:
0.3um ; >99.9%
Production Capacity:
200PCS/Month
Process Capacity:
2500-4500m3/Hour
Filter Cartridge:
4PCS
Power:
5.5kw
Filter Area:
92 Square Meters
Filter Element:
Ahlstrom Nano Flame-Retardant
OperationType:
Automatic
Cleaning Method:
Automatic Pulse Jet Blowing-Back
Origin:
China
Dust Collecting Method:
Dry
Trade Term:
FOB, CIF, CFR
Type:
Filter Cartridge Dust Collector
Size:
L1100*W1100*H1970mm
Payment Term:
LC, T/T
Model NO.:
LW1204E-055
Specification:
LW1204E-055
Noise:
Less Than 78dB
Medium Material:
Nano
Trademark:
POWER SPACE
Port Of Loading:
Qingdao Port
Transport Package:
by Sea, by Air, by Truck
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2008-05-19
Annual Revenue Amount:
Not specified
Numbers Of Employees:
42
Preferred Payment Term:
LC, T/T
Preferred Trade Term:
FOB, CIF, CFR
Port Of Loading:
Qingdao Port
Certificates:
CE
Product descriptions from the supplier
| Item | Parameters | ||
| Model | LW1204E-055 | LW1206E-075 | LW1209E-110 |
| Processing capacity | 2500-4500m³/h | 4500-6500m³/h | 6500-9000m³/h |
| Voltage (customizable) | 380V50Hz | 380V50Hz | 380V50Hz |
| Power | 5.5kW | 7.5kW | 11kW |
| Filter area | 92m² | 138m² | 243m² |
| QTY of filter cartridges | 4 | 6 | 9 |
| Compressed air (Mpa) | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 |
| Filter element | Ahlstrom nano flame-retardant | Ahlstrom nano flame-retardant | Ahlstrom nano flame-retardant |
| Filter efficiency | 0.3μm; >99.9% | 0.3μm; >99.9% | 0.3μm; >99.9% |
| Noise | ≤78dB | ≤80dB | ≤85dB |
| Size(L*W*H) | 1100*1100*1970mm | 1100*1100*2610mm | 1520*1350*2730mm |
| Dust cleaning method | Automatic pulse blowing-back dust cleaning by compressed air |
Automatic pulse blowing-back dust cleaning by compressed air |
Automatic pulse blowing-back dust cleaning by compressed air |
01- Unique design of flow channel simulating analysis, compact structure, easy management and maintenance, safe operation;
02- Independent research and development of high-performance aluminium fan impeller, high negative pressure and large air volume, can effectively deal with fume and dust;
02- Independent research and development of high-performance aluminium fan impeller, high negative pressure and large air volume, can effectively deal with fume and dust;
03- Imported high-quality nano flame-retardant filter element, the filters are made by Ahlstrom, a world famous manufacturer of filter, high filtration efficiency and good performance;
04 - Horizontal filter cartridge, open-out structure, easy maintenance, the filter cartridge is designed for easy replacement and easy maintenance and cleaning;
05 - Efficient automatic pulse blowing-back dust cleaning device, effectively clean the filter cartridge and prolong the service life of the filter cartridge;
04 - Horizontal filter cartridge, open-out structure, easy maintenance, the filter cartridge is designed for easy replacement and easy maintenance and cleaning;
05 - Efficient automatic pulse blowing-back dust cleaning device, effectively clean the filter cartridge and prolong the service life of the filter cartridge;
06 - Oil-water separator, can separate oil and water contained in compressed gas;
07 - Fireproof box with primary spark intercept unit, inner equipped with air flow guide board, can avoid fire as much as possible;
08 - Dust drawer, which can clean the cumulative dust easily and quickly;
09 - Pressure gauge, it's so convenient for operator to judge the condition of filter, then replace the filter cartridge timely.
07 - Fireproof box with primary spark intercept unit, inner equipped with air flow guide board, can avoid fire as much as possible;
08 - Dust drawer, which can clean the cumulative dust easily and quickly;
09 - Pressure gauge, it's so convenient for operator to judge the condition of filter, then replace the filter cartridge timely.
Profile of our company:
Qingdao Power Space Environmental Protection Technology Co., Ltd. is a professional enterprise engaging in the research and development, manufacturing industrial environmental protection equipment such as fume extractor, dust collector, dust collector for laser or plasma cutting, downdraft work table...
We are national high-tech enterprise, and we are school-enterprise cooperation unit of Qingdao University and Qingdao University of Science and Technology. We have independent R&D and manufacturing bases.
We have passed the China Environmental Protection Product CCAEPI-EP certification, and we have certificates of ISO9001 , ISO14001, OHSAS18001, and CE certificate.
We absorb advanced foreign technology, introduces a number of well-known industry experts, and transforms a number of advanced fume and dust treatment technologies. We have 37 national patents and 7 patents are pending.
we are suppliers of Ferroli, Carraro, Koike, Saint-Gobain, Desmi, Esab, Ideagro...etc. And sure,many Chinese companies certainly, such as Senfeng Leiming, Bodor, Thunder, Gweike, He laser, Qiao Lian......
We fulfill the mission of 'making manufacturing more environmentally friendly and making life better', cooperates with domestic and foreign industry colleagues, scientific research institutions and other institutions, do our best to become a worldwide leader of environmental governance, and provide users with the more reasonable system solutions.
