Punching Machine Lead Die Cutting Punching Machine Manual Punching Machine
1 set
$5,0001 set
$20,000Product information
High-quality Punching Machine Lead Die Cutting Punching Machine Manual Punching Machine supplied by DONGYING AONA MACHINERY CO., LTD.. Bulk wholesale pricing ranges from $5,000 to $20,000 per set with a minimum order of 1 set. Inquiry for latest prices.
Production Capacity:
1500sets/Year
Nominal Force:
250, 400, 600kn or Customized
Package Gross Weight:
3000.000kg
Voltage:
380V or Customized
Capacity:
5--100 Ton
Package Size:
6200.00cm * 1500.00cm * 1200.00cm
Specification:
6m Length
Motor Power:
7.5kw
Specifications
Production Capacity:
1500sets/Year
Nominal Force:
250, 400, 600kn or Customized
Package Gross Weight:
3000.000kg
Voltage:
380V or Customized
Capacity:
5--100 Ton
Package Size:
6200.00cm * 1500.00cm * 1200.00cm
Specification:
6m Length
Motor Power:
7.5kw
Punching Speed:
70-120 Times/Min
HS Code:
8462411900
Automatic Grade:
Automatic
CNC Or Not:
CNC
Controlling Mode:
CNC
Origin:
China
Slider Movement:
Double Action
Trade Term:
EXW, CFR, CIF, DAT, FAS, DDP, DAP, CIP, CPT, Others, FCA
Certification:
GS, CE, RoHS, ISO 9001
Precision:
High Precision
Key Selling Points:
High Productivity
Type:
High-Speed Punching Machine
Power Source:
Hydraulic Pressure
Slider Drive Mechanism:
Hydraulic Pump
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram
Condition:
New
Punch Shape:
Open Punch
Transport Package:
Professional Wooden Box
Machine Type:
Punching Machine
Port Of Loading:
QINGDAO
Usage:
Tube Pipe Punching
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2012-03-01
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram
Preferred Trade Term:
EXW, CFR, CIF, DAT, FAS, DDP, DAP, CIP, CPT, Others, FCA
Port Of Loading:
QINGDAO
Product descriptions from the supplier

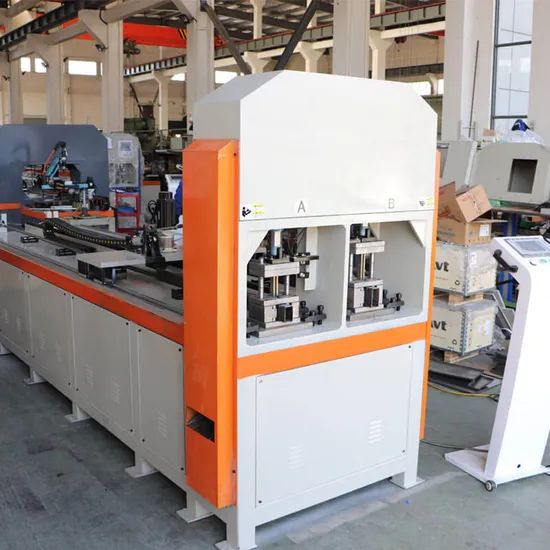

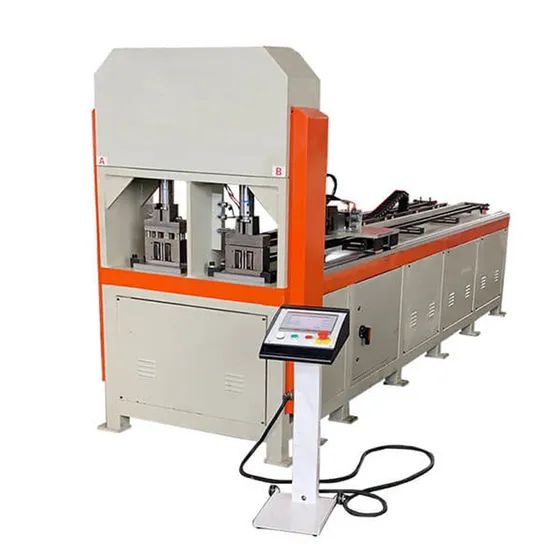

CNC Hydraulic Pipe Tube Hole Punching Machine CE ISO Certified
Advantages of the machine
a. The human-machine interface display, Touch Screen settings, NC control system, precise servo motor positioning, module storage memory function.
b. Structure:Steel plate welded structure

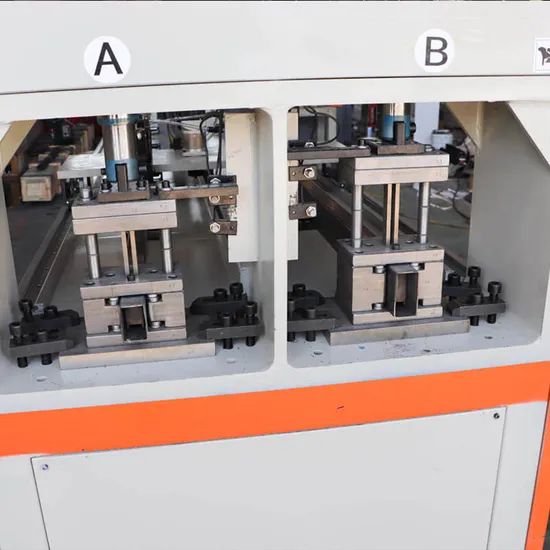

c. Mould replacement: change the die easily without adjusting the dies to reduce the mould damage rate and pipe fittings rejection rate due to the dies setting error. Skilled workers can change the mould within 10 minutes.

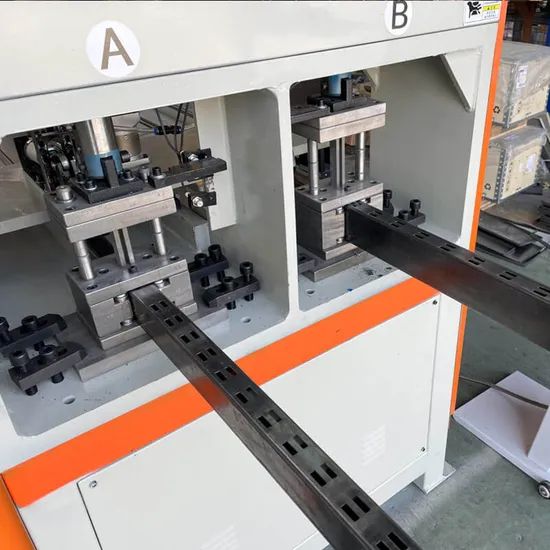

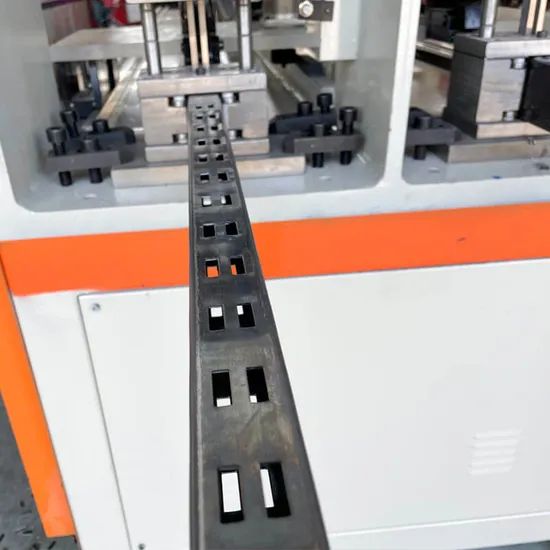

d. Punching Category: 1.single hole punching; 2.double hole punching; 3.Isometric hole punching; 4. none- Isometric hole punching; rotary punching.
e. Hydraulic and Servo System:
1. Step-less operation adjustment, hydraulic loops designed with zero load, combined with extremely low frequency oil pump motor, effectively reduced noise, increased motor efficiency and service duration.
2. When the oil cylinder is moving downward, the machine is designed with hydraulic difference driving loops rated at high or low RPM .it is also featured with high speed downward moving, low speed processing and hi-speed position resume .it is available to increase the formation stability of work pieces during puncturing .in addition to increasing the activation speed, it can effectively reduce HP load to save electrical energy.
3. The electrical control system is designed with the human machine interface, range adjustment use digital scale, setting low speed position, floor level position, and operation precise and easy.
4. Cylinder stroke 130mm (can be set), throat depth 300mm,available for forward and backward 150mm moving accessibility. Designed with the Italy-made digital scale with high precision.
| 1 | Model | 10--60 Ton | |
| 2 | Punching thickness | Τ0.5~τ11mm | |
| 3 | Hole | round pipe | Φ16~Φ120 mm |
| Square tube | 20×20~150×150 mm | ||
| rectangle pipe | 15×30~60×150 mm | ||
| Angle iron | 30×30~75×75mm | ||
| channel iron | 25×50~60×120mm | ||
| 4 | Hole distance | CNC control | |
| 5 | Punching speed | 70-120 Times/Min | |
| 6 | Longest distance between holes | CNC control | |
| 7 | Standard length | customized | |
| 8 | Main Motor Power | 7.5Kw | |
| 9 | Engineering Motion Classification | 1.Single puncturing operation | |
| 2.Irregular interval puncturing | |||
| 3.Regular interval puncturing | |||
| 4.360°rotating puncturing | |||
| 10 | TFT human machine interface | Human machine interface | |
| 11 | control system | touch controllable display setting ,Chinese and English exchange | |
| 12 | Memory Function | can be stored and memorized 0-99 groups processing mode | |
| 13 | Overall Dimension | 6300×1500×1700mm | |
| 14 | Weight | 3000Kg | |
1. Q: What is the power supply of the machine?
A: The standard power is 380V, 3P, 50Hz or customized by requirement.
2. Q: What information should the customer provide to get an accurate quotation from us?
A: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output, etc
3. Q: What is the payment term
A: The payment term is 30% down payment, and 70% before shipment(T/T mode), we also accept other payment term, like L/C, DA, D/P etc
4. Q: What is the delivery time?
A: Normally the delivery time of the machine is 20 days after receive down payment.
5. Q: What is the warrantee period of the machine?
A: The warrantee period is 2 years since the date of B/L.
