Q37 Hanger Hook Type Shot Blasting Machine Sand Blasting Abrator

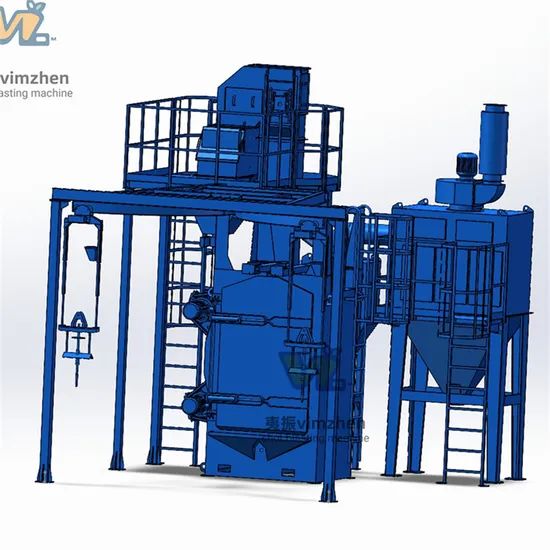

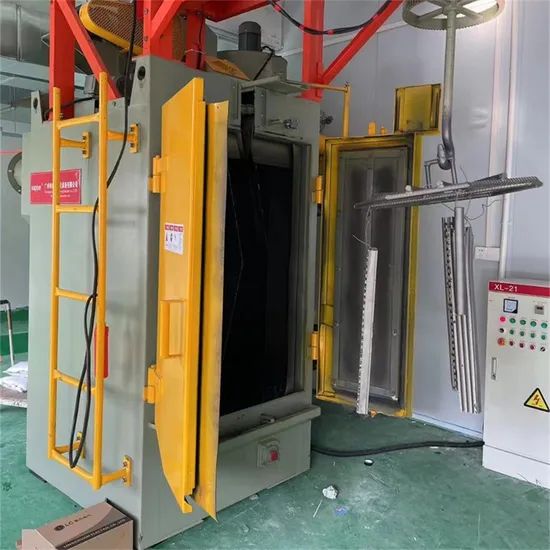

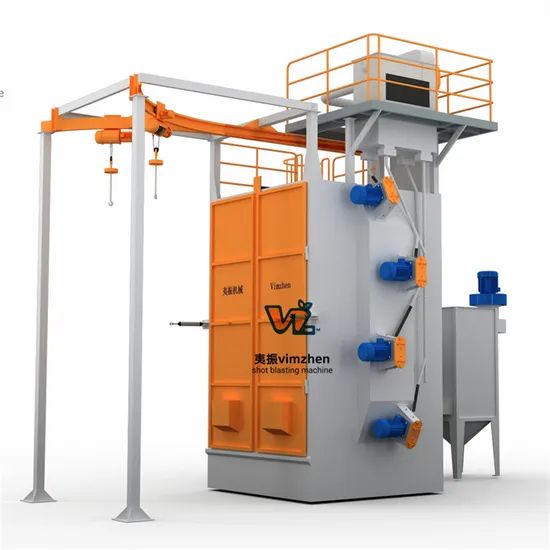

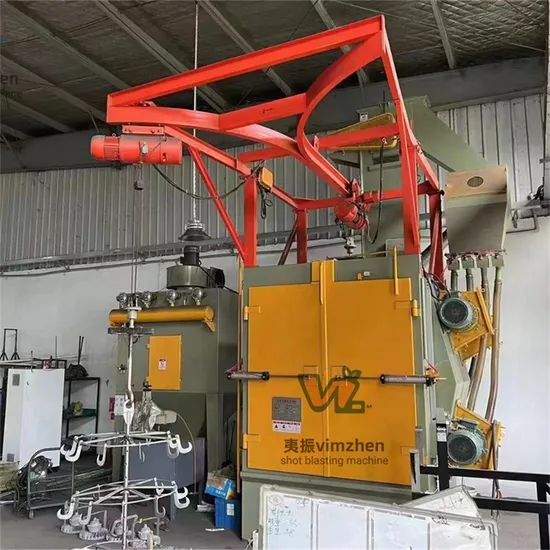

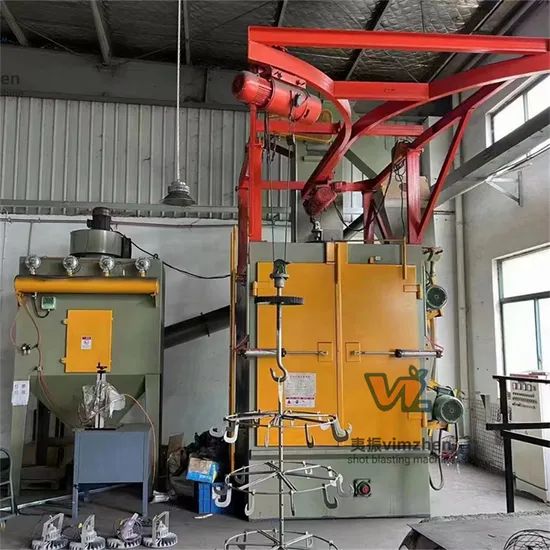

Q37 Series hook-type shot blasting machineis primarily available in two configurations: single-hook and double-hook models. It is suitable for surface cleaning or strengthening of small to medium-sized castings, forgings, welded components, and heat-treated parts across various industries. It is particularly well-suited for cleaning and strengthening parts that are prone to damage from collisions.
This machine adopts the popular pit-free structural design, offering a compact layout, convenient installation, and stable operation.
The chamber of the machine features a fully enclosed structure, eliminating the risk of shot blast spillage. The interior is protected with wear-resistant alloy cast iron guard plates.
An electric hoist is utilized for loading, unloading, lifting, and moving the workpieces. A self-rotating device is employed to enable both clockwise and counterclockwise rotation of the workpieces within the chamber.

Q32 Series Apron/Belt Type Shot Blasting Machine (commonly referred to as the crawler-type shot blast machine)
is suitable for surface rust removal or shot peening(shot blast strengthening) of workpieces in multi-variety, large- and medium-batch production. Thepieces to be cleaned must be castings and heat-treated parts that can withstand collisions.

Applications of the Apron/Belt Type Shot Blasting Machine:
Cleaning and finishing of die-cast parts, precision castings, and precision forgings.
Removal of surface oxide scale from heat-treated parts, castings, forgings.
Strengthening of springs.
Rust removal and pre-treatment of fasteners.
Notes:
This machine is not suitable for cleaning work at high temperatures or those with flash burrs, as doing so may damage the apron/belt. An automatic loading and unloading mechanism can be designed to reduce labor intensity for and improve production efficiency.

Q37 Series hook-type shot blasting machine
is primarily available in two configurations: single-hook and double-hook models. It is suitable for surface cleaning or strengthening of small to medium-sized castings, forgings, welded components, and heat-treated parts across various industries. It is particularly well-suited for cleaning and strengthening parts that are prone to damage from collisions.

This machine adopts the popular pit-free structural design, offering a compact layout, convenient installation, and stable operation.

The chamber of the machine features a fully enclosed structure, eliminating the risk of shot blast spillage. The interior is protected with wear-resistant alloy cast iron guard plates.

An electric hoist is utilized for loading, unloading, lifting, and moving the workpieces. A self-rotating device is employed to enable both clockwise and counterclockwise rotation of the workpieces within the chamber.

Q69 roller conveyor shot blasting machine
is capable of continuous and uninterrupted operation, performing descaling, cleaning, and pretreatment on various steel materials, such as steel plates, steel bars, steel beams, structural steel sections, steel pipes, and steel castings, through a continuous through-feed process.

During the cleaning process, steel structural components or steel materials are conveyed into the blasting chamber of the machine via an adjustable-speed conveyor roller table. All surfaces of the workpiece are subjected to intensive and powerful impacts and friction from high-velocity steel shots fired from different coordinate positions, causing the oxide scale, rust layers, and contaminants to rapidly detach. As a result, the steel surface acquires a clean finish with a certain degree of roughness. Workpieces are loaded and unloaded at the inlet and outlet roller tables on both sides of the cleaning chamber. The steel shots and rust dust that fall onto the steel materials are blown off by a blowing device, and the separated clean shots are recycled for continuous use in the shot blasting process.

The dust generated during the shot blasting operation is conveyed to a dust collection system through an exhaust duct, and the purified air is discharged into the atmosphere after treatment.

QWD Series Mesh Belt Shot Blasting Machineis primarily designed for surface shot blast cleaning of small components, including thin-walled castings, fragile iron or aluminum alloy castings, and ceramic parts. It is also suitable for shot peening of mechanical parts to enhance their strength. This machine offers advantages such as excellent continuity, high cleaning efficiency, minimal deformation of workpieces, and a pit-free structure.

By utilizing shot blasting, it effectively removes rust layers, welding slag, and contaminants from the workpiece surfaces, resulting in a uniform metallic luster that significantly improves the quality of subsequent coating applications and corrosion resistance. The workpieces are conveyed through the blasting zone in an automatic, continuous, and uninterrupted manner, undergoing shot blast cleaning from multiple directions. This ensures superior cleaning results while effectively preventing damage to the workpieces caused by mutual collisions.

The Tower Drum (Tower Shell) Internal and External Wall Shot Blasting Machineis designed to clean the internal and external walls of large pipelines. Through shot blasting, it can swiftly remove oxide scale, old paint, and other adhering contaminants from the surfaces of pipelines and steel tanks. After achieving a certain level of surface roughness, a protective coating can be applied to enhance the adhesion of the paint film, improve the fatigue resistance and corrosion resistance of the workpieces, enhance their internal quality, and extend their service life.

The External Wall Shot Blasting Machine for Tower Drums is a newly developed shot blast cleaning equipment by our company, specifically tailored for surface rust removal on the external walls of wind turbine tower drums. It employs a high-efficiency motor-driven shot blaster connected directly, which can perform angle swing compensation through a rotating shaft to ensure good contact and sealed shot blasting with the tower drum. This machine employs a combination of the tower drum's self-rotation and the movement of the shot blasting machine along the axial direction of the tower drum to achieve cleaning and rust removal, enabling rapid and thorough shot blasting and rust removal on the external walls of wind turbine tower drums (steel pipes).

The stone shot blasting machineis primarily designed for surface roughening treatment of natural and artificial stone materials, including marble, granite, ceramic tiles, floor tiles, and engineered stone. By enhancing the surface friction coefficient, it significantly improves slip resistance, flatness, and three-dimensional texture, thereby elevating the aesthetic appeal of stone surfaces. This equipment has garnered widespread acclaim from customers for its exceptional performance.

Based on specific roughness requirements, steel shots of varying grain sizes are propelled at high velocity onto the stone slab surface. The powerful impact force of these shots rapidly erodes the stone surface, creating a textured layer with pronounced three-dimensional effects.

Q35 Series Rotary Table Shot Blasting Machine

is suitable for use in casting, forging, and heat treatment workshops to clean attachments such as adhering sand and oxide scale from the surfaces of flat, thin-walled, and collision-sensitive parts.

Through shot blast cleaning, it can effectively remove rust, contaminants, and other impurities from various workpieces, thereby enhancing their surface quality.

Additionally, it can improve the internal stress distribution of the workpieces, achieving the goal of strengthening them and enhancing their fatigue resistance.

Shanghai Vimzhen Machinery Equipment Co., Ltd. as a leading manufacturer in surface treatment technology, Shanghai Yizhen Machinery Equipment Co., Ltd. specializes in producing:
Shot blasting machines: Q32/Q35/Q36/Q37/Q38/Q69/Q76 Series, QH Series Through-type,Large-scale sandblasting & painting rooms
S11 Series sand mixers,Special alloy wear-resistant castings and accessories.
Technical Excellence
Our products incorporate advanced international technologies refined by our engineering team, with technical advisory support from foundry association experts and university professors. Complying with ASTM A532 standards, our solutions have filled domestic gaps and replaced imported equipment.
Applications:
Removing oxide scale, burrs, contaminants, stress relief, desanding, derusting, and surface renewal.

Highlights technical credentials (ASTM standards, expert team)
Organizes product lines clearly
Emphasizes international experience
Includes industry applications
Maintains concise professionalism


1. Reply your inquiry in 24 working hours.
2. Experienced staffs answer all your questions in time.
3. Customized design is available.
4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
5. Professional factory: We are manufacturer, specializing in producing all kinds of Shot Blasting Machine & sand peening Machine competitive with good quality.

In order to give you the suitable machine , pls provide below message for us :
1. What is your workpiece and the material and the shape ?
2.The Max. Length/Width/Height of the workpiece and the MAX./MIN.weight of your workpiece ?
3.The productity you need to blasting the workpiece ( how many T or piece per day or per month?)
4. The power supply you need( Our China :380V, 3PH, 50HZ)
5. Better to send us the workpiece photo or drawing.

1.Q: What standards are you carrying out for your products?
A: We produce according to the ISO9001 and ISO14001 rules.

2.Q: How to install the machine?
A: We can arrange engineer to your factory to guide installation and assembly.

3.Q: Do you sell steel shot or steel grit which can be uses in shot blasting machine?
A: We have steel shot and steel grit production line, one work shop for steel cut wire shots, and one workshop for stainless steel shot and Aluminium shot and so on.

4.Q: Do you have the right to export?
A: Yes, we registered in the Customs and gained the right to export by ourselves.

We are looking forward to doing business and making friends with you
