QK1313 China Pipe Threading CNC Lathe Machine Metal-Cutting CNC Machine Tools
1 Piece
$3,0001 Piece
$52,550Product information
High-quality QK1313 China Pipe Threading CNC Lathe Machine Metal-Cutting CNC Machine Tools supplied by Shandong Shanshu Cnc Machine Tool Co., Ltd.. Bulk wholesale pricing ranges from $3,000 to $52,550 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Main Motor Power:
11kw
Spindle Speed Range:
30-720rpm
Machining Size Range:
3300*1800*1850mm
Package Size:
500.00cm * 250.00cm * 260.00cm
Specification:
5000*2350*2600
Package Gross Weight:
5000.000kg
Numerical Control:
CNC/MNC
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Specifications
Main Motor Power:
11kw
Spindle Speed Range:
30-720rpm
Machining Size Range:
3300*1800*1850mm
Package Size:
500.00cm * 250.00cm * 260.00cm
Specification:
5000*2350*2600
Package Gross Weight:
5000.000kg
Numerical Control:
CNC/MNC
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Trade Term:
FOB, CIF, CFR
Certification:
GS, CE, RoHS, ISO 9001
Payment Term:
LC, T/T
Application:
Metal
Process Usage:
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Condition:
New
Movement Method:
Point to Point Control
Model NO.:
QK1313
Port Of Loading:
Qingdao Port
Model:
Qk1313
Trademark:
SDCNC
Control Method:
Semi-Closed Loop Control
Origin:
Shandong China
Payment Methods:
Support payments in USD
Transport Package:
Wood Packing
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2017-09-11
Annual Revenue Amount:
Not specified
Numbers Of Employees:
10
Preferred Payment Term:
LC, T/T
Preferred Trade Term:
FOB, CIF, CFR
Port Of Loading:
Qingdao Port
Certificates:
Business license, CE Certificate, ISO Certificate, SGS Certificate, Trademarks Certificates, TUV Certificate
Product descriptions from the supplier

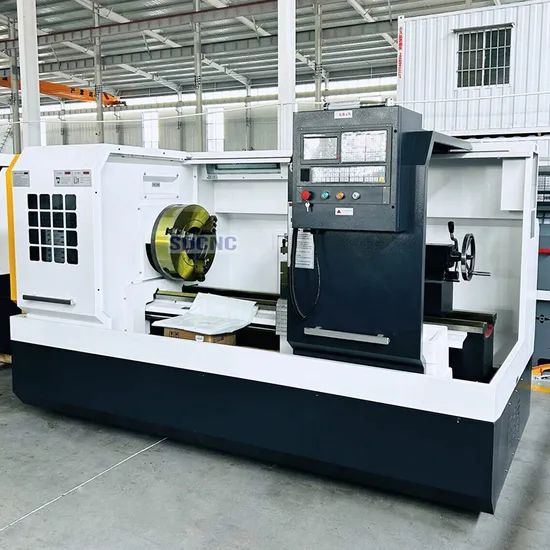

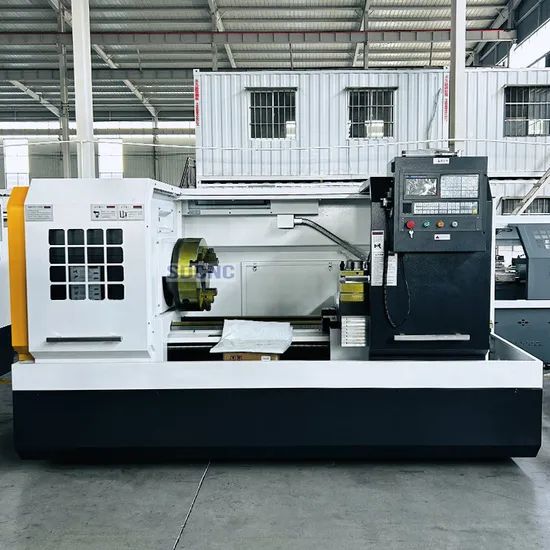

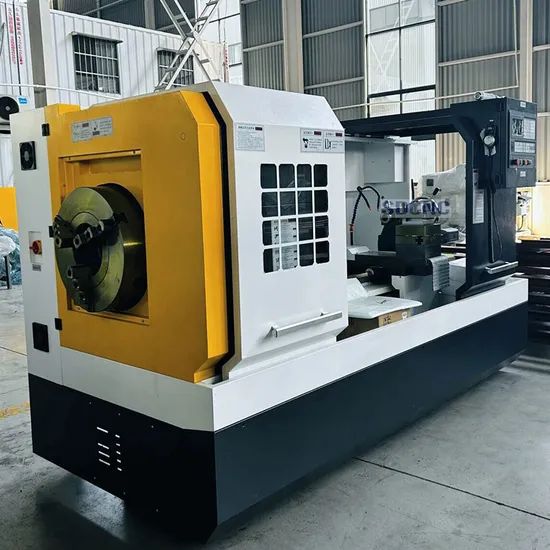

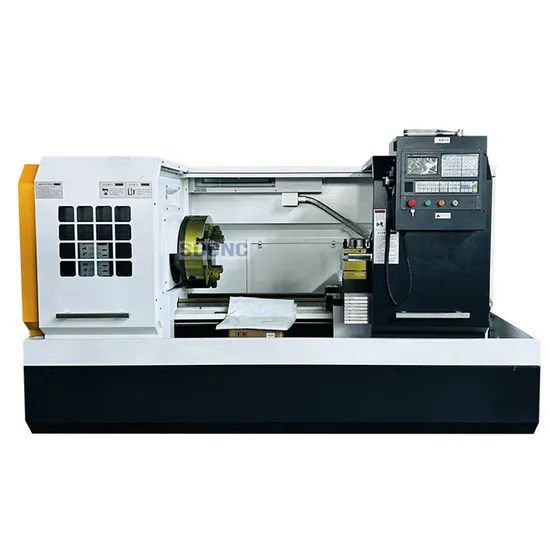

CNC PIPE THREADING LATHE INTRODUCTION
This series CNC pipe threading lathe is mainly designed for processing internal and external pipe threads including metric, inch, module DP and taper threads, as well as having all the common functions of normal CNC lathe such as processing the inner bore and end face of shafts and disks. This series lathe machine is widely used in industries including petroleum exploiting, minerals mining, chemical piping and geological prospecting, it is high-efficiency equipment in processing and repairing drilling pipe, drilling rod, thread coupling and so on.
FEATURES

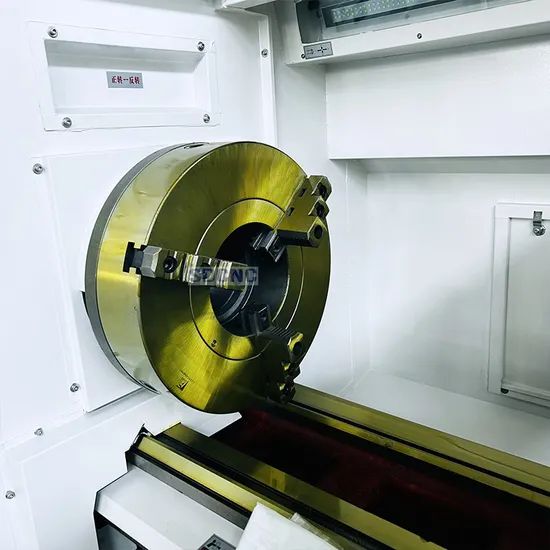

Big spindle bore and double chuck to ensure process big diameter pipe
One-piece bed adopts high strength iron to ensure rigidity and precision
Ultrasonic frequency quenched guide-ways ensure good wear-resistance
Carriage and guide way contact surface use Turcite B to maintain accuracy
FEATURES
Big spindle bore and double chuck to ensure process big diameter pipe
One-piece bed adopts high strength iron to ensure rigidity and precision
Ultrasonic frequency quenched guide-ways ensure good wear-resistance
Carriage and guide way contact surface use Turcite B to maintain accuracy
| STANDARD ACCESSORIES | OPTIONAL ACCESSORIES |
| CNC turret 4 position, 3-jaw manual,Tailstock manual, automatic lubrication, coolant pump, semi-shield | Fanuc or other brand CNC controller, quick change tool post, hydraulic turret or power turret, pneumatic chuck, hydraulic tailstock, pneumatic position limiter, tool setting arm, full-shield |
Specifications
| SPECIFICATION | Units | QK1313 |
| Swing over bed | mm | 630/800 |
| Swing over cross slide | mm | 340/520 |
| Distance between centers | mm | 1000/1500/3000 |
| Pipe threading range | mm | 30-126 |
| Guideway width | mm | 550 |
| Max. load capacity | T | 3 |
| Spindle bore | mm | 130 |
| Spindle speed steps | - | VF. 3 steps |
| Spindle speed range | rpm | 30-720 |
| Chuck | mm | φ400 3-jaw manual |

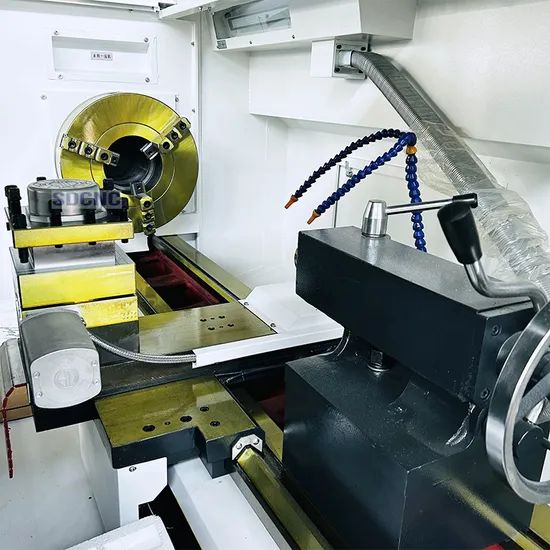

| Turret/tool post | - | CNC turret 4 position |
| Tool shank size | mm | 32 x 32 |
| X axis travel | mm | 320/420 |
| Z axis travel | mm | 850/1350/2850 |
| X axis rapid traverse | mm/min | 4000 |
| Z axis rapid traverse | mm/min | 6000 |
| Tailstock quill diameter | mm | φ100 |
| Tailstock quill taper | - | MT5 |
| Tailstock quill travel | mm | 250 |
| Main spindle motor | kW | 11 |
| Coolant pump motor | kW | 0.125 |
| Weight for 1000 | kg | 4500 |
| Weight for 1500 | kg | 5000 |
| Weight for 3000 | kg | 6000 |
| Dimension for 1000 | mm | 3300x1800x1850 |
| Dimension for 1500 | mm | 3800x1800x1850 |
| Dimension for 3000 | mm | 5300x1800x1850 |
