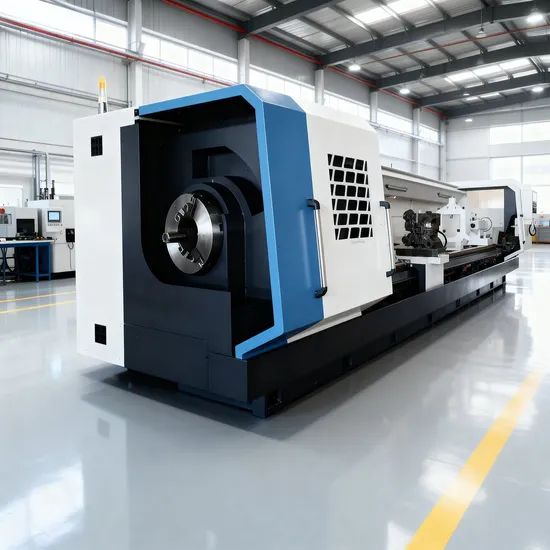

Qk1325 Large CNC Big Bore Lathe Machine for Metal Pipe Threading Pipe Thread Lathe


1 Piece

$29,000

1 Piece

$27,800


Processing Precision: 0.01~0.02(mm)

Pipe Threading Range: 120-250mm

Spindle Speed Range: 20-420rpm

Production Capacity: 2000

Spindle Bore: 255mm

Specifications

Processing Precision:

0.01~0.02(mm)

Pipe Threading Range:

120-250mm

Spindle Speed Range:

20-420rpm

Production Capacity:

2000

Spindle Bore:

255mm

Tool Shank Size:

32 X 32

Package Size:

360.00cm * 193.00cm * 190.00cm

Specification:

3600x1930x1900

Swing Over Cross Slide:

480mm

Max. Load Capacity:

4t

Package Gross Weight:

6000.000kg

Guideway Width:

600mm

Swing Over Bed:

800mm

HS Code:

8458110090

Numerical Control:

CNC/MNC

Origin:

China

Refund Policy:

Claim a refund if your order doesn't ship, is missing, or arrives with product issues.

Control Method:

Closed-Loop Control

Shipping Cost:

Contact the supplier about freight and estimated delivery time.

Movement Method:

Contour Control

Performance Classification:

Economical CNC Machine Tools

Trade Term:

FOB, CIF, CFR, EXW

Certification:

GS, CE, ISO 9001

Payment Term:

LC, T/T, D/P, PayPal, Western Union, Small-amount payment

Application:

Metal

Process Usage:

Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools

Condition:

New

Transport Package:

Plywood Case

Model NO.:

QK1325

Port Of Loading:

Qingdao Port

Payment Methods:

Support payments in USD

Spindle Speed Steps:

Vf. 4 Steps

Trademark:

yunding
