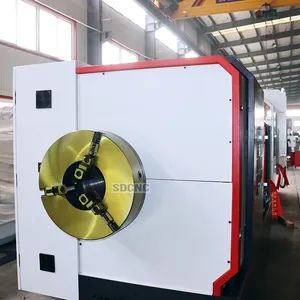

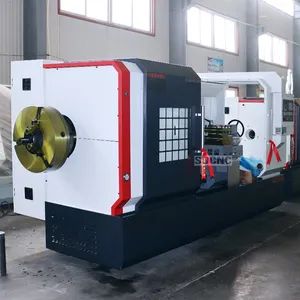

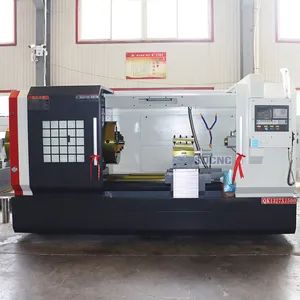

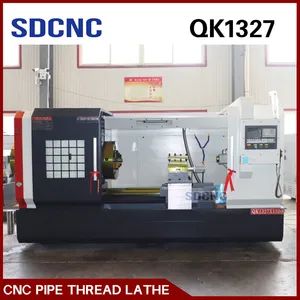

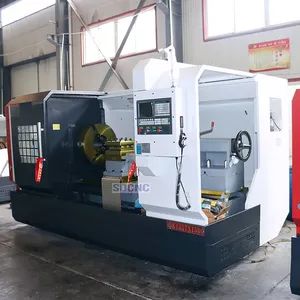

Qk1327 CNC Pipe Threading Machine with Tool Holder Fixture Control System
Piece
Negotiable
Product information
High-quality Qk1327 CNC Pipe Threading Machine with Tool Holder Fixture Control System supplied by Shandong Shanshu Cnc Machine Tool Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Swing Over Bed:
1000mm
Main Motor Power:
15kw
Spindle Speed Range:
20-420rpm
Package Size:
420.00cm * 210.00cm * 190.00cm
Specification:
4200x2100x1900
Package Gross Weight:
7000.000kg
Machining Size Range:
7000mm
Numerical Control:
CNC/MNC
Specifications
Swing Over Bed:
1000mm
Main Motor Power:
15kw
Spindle Speed Range:
20-420rpm
Package Size:
420.00cm * 210.00cm * 190.00cm
Specification:
4200x2100x1900
Package Gross Weight:
7000.000kg
Machining Size Range:
7000mm
Numerical Control:
CNC/MNC
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Trade Term:
FOB, CIF, CFR
Certification:
GS, CE, RoHS, ISO 9001
Payment Term:
LC, T/T
Application:
Metal
Process Usage:
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Condition:
New
Movement Method:
Point to Point Control
Model NO.:
QK1327
Port Of Loading:
Qingdao Port
Trademark:
SDCNC
Control Method:
Semi-Closed Loop Control
Origin:
Shandong China
Payment Methods:
Support payments in USD
Transport Package:
Wood Packing
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2017-09-11
Annual Revenue Amount:
Not specified
Numbers Of Employees:
10
Preferred Payment Term:
LC, T/T
Preferred Trade Term:
FOB, CIF, CFR
Port Of Loading:
Qingdao Port
Certificates:
Business license, CE Certificate, ISO Certificate, SGS Certificate, Trademarks Certificates, TUV Certificate
Product descriptions from the supplier
The main performance characteristics:
Big spindle bore and double chuck allows clamp and process big diameter pipes;
Integral machine bed adopts high strength iron to relize high rigidity and precision;
Ultrasonic frequency quenched guide-ways are hard enough for good wear-resistance;
Carriage and guide way contact surface pasted with Turcite B to maintain long-term accuracy.
Application:
QK1327 CNC Pipe threading lathe machine is mainly designed to process all kinds of internal and external pipe threads including metric,inch,module,DP and taper threads,as well as having all the common functions of normal CNC lathe such as processing the inner bore and end face of shafts and disks.
This series lathe machine is widely used in industries including petroleum exploiting,coal and minerals mining,chemical piping and geological prospecting,it is high-efficiency equipment in processing and repairing drilling pipe,drilling rod,thread coupling and so on.
Standard Accessories:
Fanuc CNCsystem,NC turret 4 position,Coolant system,Lubrication system,Lighting system,Mobile
hand-wheel,Semi-shield,Manual tailstock,Chuck,Rear support bracket, Pad iron etc.
Optional Accessories:
CNC system(Simens,Fagor,GSK,KND),Turret(Servo,hydraulic,power),Chip conveyor,Air conditioner,Full-shield,Hydraulic tailstock,Chuck,Center rest,Follower rest,Signal light,Grinding attachment etc.
Product main technical parameters:
| ITEMS | UNIT | QK1327 | |
| Capacity | Swing over bed | mm | 1000 |
| Swing over cross slide | mm | 610 | |
| Distance between centers | mm | 1500 | |
| Pipe threading range | mm | 130-270 | |
| Width of bed way | mm | 755 | |
| Max.load capacity | T | 5 | |
| Spindle | Spindle bore | mm | 280 |
| Spindle speed steps | - | Step-less | |
| Spindle speed range | rpm | 0-450 | |
| Chuck size | mm | 800 | |
| Chuck type | - | 4-jaw manual | |
| Turret | Turret type | - | NC turret 4 position |
| Tool shank size | mm | 40x40 | |
| Carriage | X axis travel | mm | 500 |
| Z axis travel | mm | 1250 | |
| X axis rapid traverse speed | mm/min | 4000 | |
| Z axis rapid traverse speed | mm/min | 4000 | |
| Tailstock | Tailstock quill diameter | mm | 140 |
| Tailstock quill taper | - | MT#6 | |
| Tailstock quill travel | mm | 300 | |
| Motors | Main spindle motor | kW | Servo 22 |
| Coolant pump motor | kW | 0.125 | |
| Accuracy | Positioning accuracy | mm | 0.020 |
| Repositioning accuracy | mm | 0.010 | |
| Dimensions | Width x Height | mm | 2200x2150 |
| Length | mm | 4800 | |
| Weight | Net weight | T | 10.0 |
