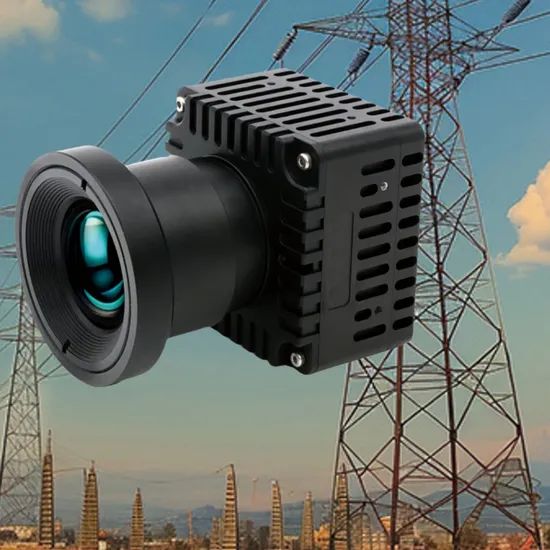

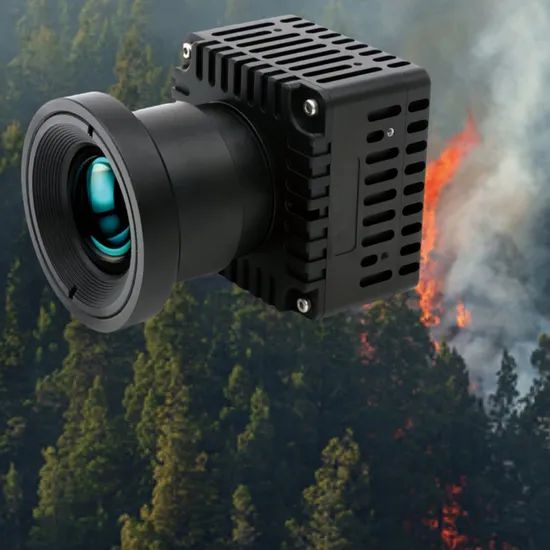

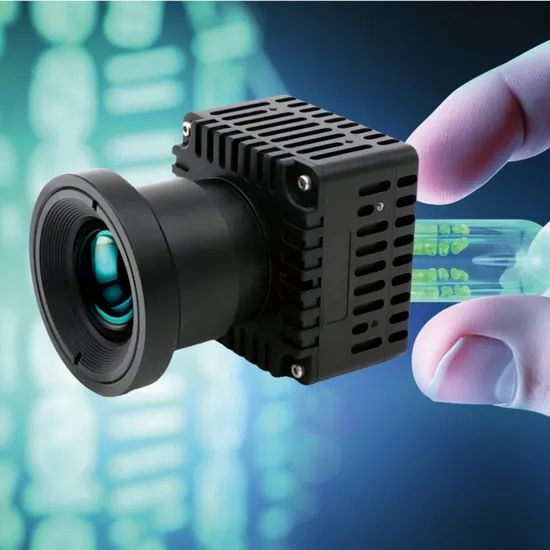

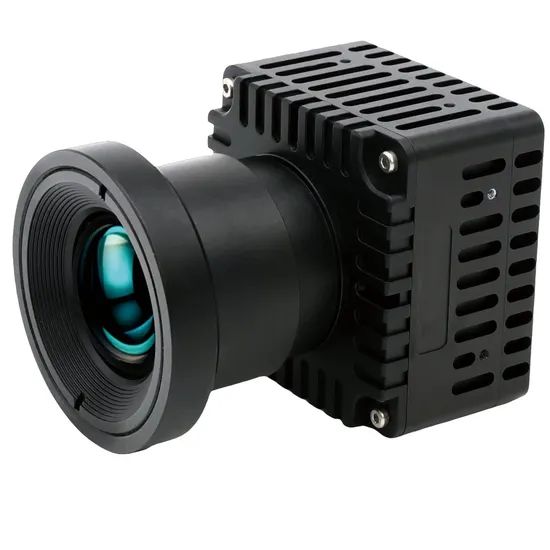

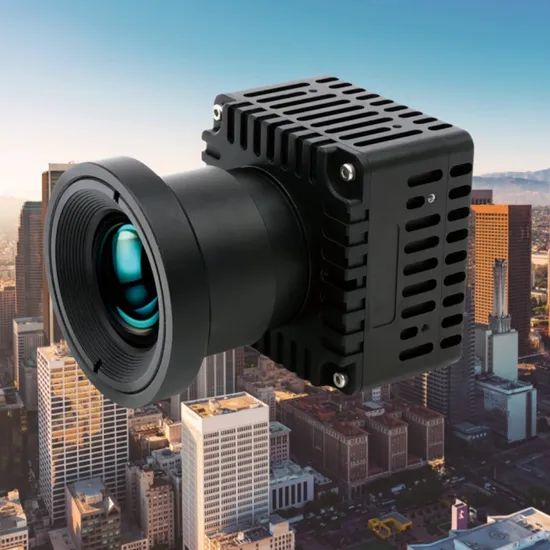

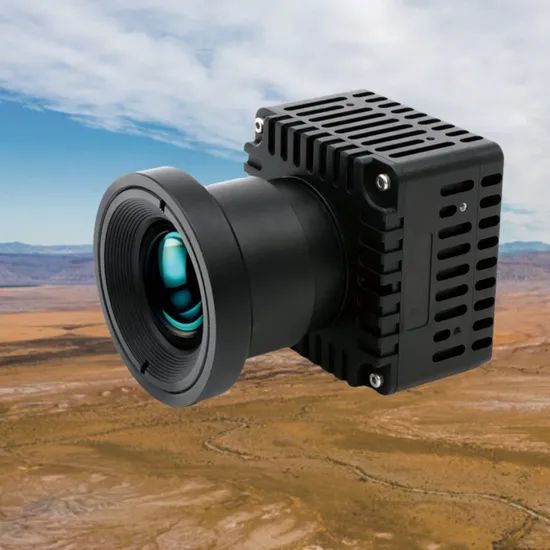

Quick Recognition Algorithm Within 50ms HD Uncooled Infrared Module
Piece
Negotiable
Product information
High-quality Quick Recognition Algorithm Within 50ms HD Uncooled Infrared Module supplied by Raythink Technology Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Resolution:
1920×1080
Frame Rate:
30Hz
Spectral Band:
8~14μm
Pixel Pitch:
8μm
Lens Type:
Athermalized/Prime Electric Focusing/Continuous Zo
Output Signal Type:
Digital Type
Certification:
RoHS
Product Certification:
RoHS2.0
Specifications
Resolution:
1920×1080
Frame Rate:
30Hz
Spectral Band:
8~14μm
Pixel Pitch:
8μm
Lens Type:
Athermalized/Prime Electric Focusing/Continuous Zo
Output Signal Type:
Digital Type
Certification:
RoHS
Product Certification:
RoHS2.0
Electric Zoom:
Support
High Light Protection:
Support
Intelligent Video Taking:
Support
Electronic Anti Shake:
Support
Electric Focus:
Support
Fire Alarm:
Support
Trade Term:
To be discussed
Payment Term:
To be discussed
Model NO.:
Turing F1920
Detector Type:
Uncooled Vox Infrared Detector
Production Process:
Vox
Netd:
≤30mk@25°c, F#1.0
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
Not specified
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
Not specified
Preferred Trade Term:
Not specified
Port Of Loading:
Not specified
Certificates:
ENVIRONMENTAL MANAGEMENT SYSTEM CERTIFICATE, Green Factory Evaluation Certificate, Green Packaging Certification Certificate, OCCUPATIONAL HEALTH AND SAFETY MANAGEMENT SYSTEM CERTIFICATE, QUALITY MANGEMENT SYSTEM CERTIFICATE
Product descriptions from the supplier
The brand-new Turing F1920 is equipped with the world's first 8μm 1920×1080 HD infrared detector, and the NETD as low as 30mK. Combined with our self-developed efficient large-array image algorithm, the device provides customers with more subtle, sharper, and clearer thermal images. It supports multiple lenses and applies the lens control technology, offering a comprehensive observation solution within a range of 1m~15000m in fields such as perimeter security, high-altitude observation, oil field monitoring, forest fire prevention and scientific research in universities.
•High-pixel, High-integration
2 megapixels, 1920×1080 HD resolution, large FOV, providing an immersive experience
Video output interface options including network interfaces, LVCMOS, BT.1120 and MIPI, with extensions for interfaces such as SDI, USB, Camera Link, and HDMI
Gigabit network interface, multiple SDKs, facilitating customers to launch simple, efficient integrated secondary development at a low cost
•Quick Focus, Quick Recognition
New lens control technology for ≤1s automatic focus, full focus in all temperature ranges
Quick recognition algorithm within 50ms
•Multi-lens Adaptability, Multi-scenario Application
Multiple athermalized prime lenses with a max FOV of 82°, prime electric focusing lenses, and continuous zoom lenses
8μm infrared detector for further recognition in fields of perimeter security, high-altitude observation, oil field monitoring
Rich image style options for ideal image effect in scenarios such as border & coastal surveillance and forest fire prevention
•Stable Output, Steady Images
Stable and reliable 30Hz data stream output to monitor targets in each frame
Standard electronic anti-shake technology to provide stable images even in strong wind or at high altitudes
| Product Model | Turing F1920 |
| Performance Characteristics | |
| Detector Type | Uncooled VOx infrared detector |
| Resolution | 1920×1080 |
| Pixel Pitch | 8μm |
| Frame Rate | 30Hz |
| Spectral Band | 8~14μm |
| NETD | ≤30mK@25°C, F#1.0 |
| Palette | Support (20) |
| Digital Zoom | 1.0~8.0× continuous zoom (step size: 0.1), supporting zooming in any area |
| Image Processing | Non-uniformity correction/Brightness and contrast adjustment/Temporal filtering noise reduction/Spatial filtering noise reduction/Digital detail enhancement/Image style switch |
| Mirroring | Horizontal/Vertical/Diagonal |
| Electronic Anti-shake | Support |
| Fire Alarm | Support |
| High Light Protection | Support |
| Network Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, IGMP, SMTP, NTP, QoS, and other network protocols |
| Platform Access | ONVIF, GB28181, SDK |
| Browser | Chrome, Edge, Firefox, etc. in various languages |
| Intelligent Video Taking | Support |
| Intelligent Alarm | Abnormality detection and linkage alarm for network cable disconnection, IP address conflict, full memory, memory error, illegal access |
| Intelligent Detection | Tripwire, regional intrusion, target tracking, and other intelligent video analysis functions |
| Alarm Linkage | Video taking/Image capture/Email/Linked PTZ/Alarm output |
| Lens Type | Athermalized/Prime electric focusing/Continuous zoom |
| Focus Mode | Manual/Automatic (focus time ≤ 1s near clear points) |
| Electric Focus | Support |
| Electric Zoom | Support |
| Digital | |
| Power Supply Range | 5-24V DC (12V DC recommended) |
| Power Consumption (Typical, @25°C) | ≤3.8W |
| Digital Video | LVCMOS/BT.1120/MIPI, with extensions for SDI, USB, Camera Link, HDMI |
| Communication Interface | RS-232/RS-485 |
| Weight | 165g±5g (without lens) |
| Dimensions | 55mm×55mm |
| Online | |
| Power Supply Range | 12V DC ± 10% |
| Power Consumption (Typical, @25°C) | ≤6.5W |
| Communication Interface | One 10M/100M/1000M adaptive Ethernet port, one RS-485 |
| Alarm Interface | 1-channel alarm input, 1-channel alarm output |
| Audio Interface | 1-channel audio input, 1-channel audio output |
| Weight | 240±10g (without lens) |
| Dimensions | 55mm×55mm×53mm |
| Physical Characteristics | |
| Operating Temperature | -40ºC~+70ºC |
| Storage Temperature | -45ºC~+85ºC |
| Humidity | 5-95%, non-condensing |
| Product Certification | RoHS2.0 |
Perimeter Security Urban High-Altitude Observation
Oil Field Monitoring Forest Fire Prevention Scientific Research in Universitie
Q1: How can we guarantee quality?
A: We have professional infrared detector chip manufacturing, rigid thermal camera manufacturing process, perfect quality management system, CNAS certification reliability test platform.
Q2:How long is your delivery time?
A: For smal order,it usually takes 7 working days. For OEM order, please check the shipping time with us
Q3: What's the MOQ?
A: MOQ is depend on the product.
Q4: What's your payment terms?
A: Our payment terms is L/C, T/T, D/P, Western Union, Paypal and Money Gram.
Q5: What's the product warranty policy?
A:OEM products purchased from our company come with a 1-year warranty. Refer to the instructions for more details.
Q6: How about aftersale support?
A: We provide lifetime Technical Support, our engineer will respond your technical support within 24 hours.
