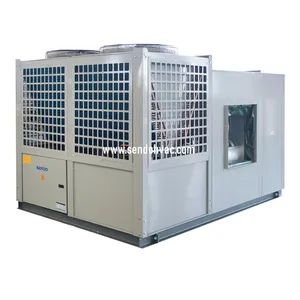

R410A Industrial Rooftop Packaged Air Conditioning System with Energy Heat Recovery
Package
Negotiable
Product information
High-quality R410A Industrial Rooftop Packaged Air Conditioning System with Energy Heat Recovery supplied by Jinan Sendo Air Conditioning Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Capacity:
12kw to 392kw
Package Size:
1498.00cm * 1100.00cm * 1095.00cm
Package Gross Weight:
245.000kg
Specification:
3Ton to 110Ton
Production Capacity:
5000 PCS
Operating Voltage:
50Hz or 60Hz
Power Supply:
50Hz or 60Hz
HS Code:
8418
Specifications
Capacity:
12kw to 392kw
Package Size:
1498.00cm * 1100.00cm * 1095.00cm
Package Gross Weight:
245.000kg
Specification:
3Ton to 110Ton
Production Capacity:
5000 PCS
Operating Voltage:
50Hz or 60Hz
Power Supply:
50Hz or 60Hz
HS Code:
8418
Lifetime:
>25 Years
ODM/OEM:
Available
Origin:
China
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Function:
Cooling Only & Heat Pump
Trade Term:
FOB, CFR, CIF, EXW
Panel Selection:
Galvanized Steel Coated or Double-Skin
Corrosion Durability:
Higher
Certification:
ISO, CE, CCC
Payment Term:
LC, T/T
Noise Level:
Low
Condition:
New
Additional Water Heating Coil & Eh:
Optional
Economizer/Free Cooling:
Optional
Supply / Return Air Configuration:
Optional (Side/Top/Bottom)
Special Anti Corrosion:
Optional Golden Condenser & Evaporator
Filter:
Optional High Level Filter
Transport Package:
Plastic Film or Plywood Case
Refrigerant:
R22/R407c/R410A
Application Fields:
Residential & Commercial Field
Trademark:
SENDO or OEM
Model NO.:
SRT-S(C)T1HA
Compressor Type:
Scroll
Mounting:
Suitable for Installation in Rooftop or Ground
Payment Methods:
Support payments in USD
Ambient Temp.:
T1 or T3 Tropical Climate
Port Of Loading:
Tianjin
Colour:
White or Grey
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2007-08-16
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T
Preferred Trade Term:
FOB, CFR, CIF, EXW
Port Of Loading:
Tianjin
Certificates:
CE Certificate of Air Cooled Water Chiller, CE Certificate of Rooftop Packaged Unit, CE for Split Air Conditioner, CE for Water Coolead Chiller/Heat Pump, MD/EMC Certificate
Product descriptions from the supplier
R410A Industrial Rooftop Packaged Air Conditioning System with Energy Heat Recovery
SENDO is a professional manufacturer of quality air conditioning products.
Sendo could supply most products in HVAC field, such as Rooftop Packaged Unit, Split Commercial Unit, Air Cooled Water Chiller, Water Cooled Water Chiller, Chilled Water Air Handling Unit and Fan Coil Unit etc. Sendo also supplies made-to-measure HVAC solutions. We engineer and manufacture Air Conditioner to suit the building design and application.
Rooftop Packaged Unit
Features
1. Convenient for unit selection
- Colour selection
The color can be ordered (OEM) in either white or grey.
- Wide cooling capacity range
There is a large production line of packaged units, with capacities ranging from 3Ton to 110Ton (12kW to 392kW) at nominal conditions.
- Panels selection
Panels can be constructed of galvanized steel coated (Standard) or Panels are double-skin with injection of high density polyurethane.
- Optional accessories
•Inverter Scroll compressors
•EC Plug-Fans
•Tropical climate T3 condition
• Economizer/Free cooling with return air, fresh air dampers and fresh air hood
•Heat recovery (Plate type heat recovery & Wheel type heat recovery optional)
•Additional water heating coil or electric heater for heating or dehumidification
•Optional supply / return air configuration (Side/Top/Bottom)
•Optional high level filter (G4 panel type filter, F8 bag type filer and H13 HEPA filter etc)
•Optional Golden condenser & evaporator for some area need special anti-corrosion
•Optional precision temperature & humidity control
•100% Full fresh air
• High external pressure, long air supply distance
2. Outstanding reliability
- Economy
Some models feature the flexibility and economy of 2~4 stages operation. Compressors are progressively switched on only as they are needed. This has the added advantage of lowering start-up current.
- Durable construction
• Standard cabinets are constructed from high grade galvanized steel with polyester powder coated, they are completely weatherized for outdoor installation.
• Coils are manufactured from seamless copper tubes mechanically expanded into hydrophilic aluminum fins, they are tested under 450 Psi at the factory to avoid leakage. They also undergo dry chemical cleaning after manufacturing for optimum system cleanness.
• External fasteners are stainless steel or galvanized type. Corrosion resistant drain trays are also included.
• All units are tested at the factory to make sure no leakage and provide reliable start up.
- Reliable scroll compressor
High efficiency scroll compressor for the whole range, with built-in thermal overload cut-out and crankcase heater.
- Multi-protection design
•Electric panel consists of breakers and contactors for compressors, condenser & evaporator fan motors, phase sequence relay and other necessary protection devices for the main components.
•Main power supply breaker is optional.
SENDO is a professional manufacturer of quality air conditioning products.
Sendo could supply most products in HVAC field, such as Rooftop Packaged Unit, Split Commercial Unit, Air Cooled Water Chiller, Water Cooled Water Chiller, Chilled Water Air Handling Unit and Fan Coil Unit etc. Sendo also supplies made-to-measure HVAC solutions. We engineer and manufacture Air Conditioner to suit the building design and application.
Rooftop Packaged Unit
Features
1. Convenient for unit selection
- Colour selection
The color can be ordered (OEM) in either white or grey.
- Wide cooling capacity range
There is a large production line of packaged units, with capacities ranging from 3Ton to 110Ton (12kW to 392kW) at nominal conditions.
- Panels selection
Panels can be constructed of galvanized steel coated (Standard) or Panels are double-skin with injection of high density polyurethane.
- Optional accessories
•Inverter Scroll compressors
•EC Plug-Fans
•Tropical climate T3 condition
• Economizer/Free cooling with return air, fresh air dampers and fresh air hood
•Heat recovery (Plate type heat recovery & Wheel type heat recovery optional)
•Additional water heating coil or electric heater for heating or dehumidification
•Optional supply / return air configuration (Side/Top/Bottom)
•Optional high level filter (G4 panel type filter, F8 bag type filer and H13 HEPA filter etc)
•Optional Golden condenser & evaporator for some area need special anti-corrosion
•Optional precision temperature & humidity control
•100% Full fresh air
• High external pressure, long air supply distance
2. Outstanding reliability
- Economy
Some models feature the flexibility and economy of 2~4 stages operation. Compressors are progressively switched on only as they are needed. This has the added advantage of lowering start-up current.
- Durable construction
• Standard cabinets are constructed from high grade galvanized steel with polyester powder coated, they are completely weatherized for outdoor installation.
• Coils are manufactured from seamless copper tubes mechanically expanded into hydrophilic aluminum fins, they are tested under 450 Psi at the factory to avoid leakage. They also undergo dry chemical cleaning after manufacturing for optimum system cleanness.
• External fasteners are stainless steel or galvanized type. Corrosion resistant drain trays are also included.
• All units are tested at the factory to make sure no leakage and provide reliable start up.
- Reliable scroll compressor
High efficiency scroll compressor for the whole range, with built-in thermal overload cut-out and crankcase heater.
- Multi-protection design
•Electric panel consists of breakers and contactors for compressors, condenser & evaporator fan motors, phase sequence relay and other necessary protection devices for the main components.
•Main power supply breaker is optional.
3. Quieter operation
•Compressors and low noise Supply fan are mounted on rubber vibration dampers.
•Wave type acoustic Insulation for compressor section, thermal insulation for coil and fan section.
4. Easy installation & maintenance
• All units are factory assembled, internally wired, fully charged refrigerant.
•The Rooftops has provisions for forklift and crane lifting. On arrival to the job site they are ready to be lifted to their operating position through the lifting supports available on the units. Only connect the wires of power supply, and no need to connect any signal wires.
•Quick release fasteners or removable the access doors on the compressor, fan motor, filter, and electric box sections, provide convenient access to system components for maintenance and service.
•The unit provides external pressure gauge for convenient and fast checking system pressure without removing the panel.
•If the unit is in running with abnormal operation, the controller will show the error code for easy troubleshooting.
• Standard washable filter, easy to clean.
5. Control system
•The unit is completely factory-wired with necessary controls and terminal block for power wiring.
• Syslab wired controller is supplied with unit controls as standard. The precision control makes all heating, cooling, or ventilating decisions in response to electronic signals from sensors measuring indoor and outdoor temperatures.
•Besides standard Syslab wired controller, Siemens & Carel PLC controller with BMS function and precision temperature & humidity control can be matched as optional solution.
Specifications(BD Series)
| Model | SRT-ST1H12A | SRT-ST1H15A | SRT-ST1H20A | SRT-ST1H25A | SRT-ST1H30A | SRT-ST1H35A | ||
| Cooling | Capacity | Ton | 3.4 | 4.3 | 5.0 | 6.9 | 8.7 | 10.2 |
| kW | 12.0 | 15.2 | 17.5 | 24.0 | 30.3 | 35.6 | ||
| Power Input | kW | 4.1 | 5.3 | 5.5 | 8.8 | 11.3 | 12.3 | |
| Running Current | A | 7.4 | 9.7 | 10.2 | 16.1 | 21.2 | 23.3 | |
| Heating | Capacity | kW | 13.2 | 16.6 | 18.4 | 26.5 | 33.3 | 37.7 |
| Power Input | kW | 3.8 | 4.8 | 5.1 | 8.2 | 10.4 | 11.3 | |
| Running Current | A | 6.9 | 9.2 | 9.7 | 15.1 | 20.1 | 22.2 | |
| Power Supply | 380~415V/3Ph/50Hz | |||||||
| Refrigerant & Charging Quantity | Type | R410a | ||||||
| Kg | 3.1 | 3.1 | 4.3 | 2x3.1 | 2x3.1 | 2x4.3 | ||
| Compressor | Type | / | Scroll | |||||
| Brand | / | Copeland | Copeland | Copeland | Copeland | Copeland | Copeland | |
| Compressor/Circuit | Nos. | 1 | 1 | 1 | 2 | 2 | 2 | |
| Energy Adjustment | % | 0,100% | 0,50%,100% | |||||
| Condenser Section |
Condenser | Type | Copper Pipe + Anticorrosion Aluminium Fin | |||||
| Condenser Fan | Type | Axial / Direct | ||||||
| Qty | 1 | 1 | 1 | 1 | 1 | 1 | ||
| Power Input | kW | 0.25 | 0.37 | 0.37 | 0.55 | 0.75 | 0.75 | |
| Airflow | m3/h | 4600 | 7800 | 7800 | 9000 | 12600 | 12600 | |
| Evaporator Section |
Evaporator | Type | Copper Pipe + Anticorrosion Aluminium Fin | |||||
| Evaporator Fan | Type | Direct | Direct | Direct | Belt-Driven | |||
| Power Input | kW | 0.32 | 0.37 | 0.45 | 1.1 | 1.5 | 2.2 | |
| Supply Airflow | m3/h | 2100 | 2600 | 3400 | 4100 | 5200 | 6300 | |
| CFM | 1235 | 1529 | 2000 | 2412 | 3059 | 3706 | ||
| ESP | Pa | 100 | 100 | 100 | 200 | 200 | 250 | |
| Filter | Standard | Type | G4 Panel Type Filter | |||||
| Sound Level | dB(A) | 67 | 67 | 68 | 71 | 72 | 72 | |
| Dimension | Length | mm | 1498 | 1498 | 1498 | 1978 | 1978 | 1978 |
| Width | mm | 1100 | 1100 | 1100 | 1175 | 1175 | 1175 | |
| Height | mm | 1095 | 1095 | 1095 | 1095 | 1095 | 1095 | |
| Net Weight | Kg | 245 | 260 | 290 | 420 | 485 | 500 | |
*** *** *** *** *** *** *** *** ***
| Model | SRT-ST1H45A | SRT-ST1H50A | SRT-ST1H60A | SRT-ST1H70A | SRT-ST1H90A | SRT-ST1H100A | ||
| Cooling | Capacity | Ton | 12.7 | 14.3 | 17.1 | 20.0 | 25.7 | 30.0 |
| kW | 44.5 | 50.0 | 60.0 | 70.0 | 90.0 | 105.0 | ||
| Power Input | kW | 17.0 | 19.5 | 22.8 | 26.7 | 32.9 | 39.7 | |
| Running Current | A | 31.7 | 35.6 | 39.9 | 48.3 | 61.0 | 70.6 | |
| Heating | Capacity | kW | 48.7 | 54.3 | 64.0 | 75.4 | 96.2 | 113.2 |
| Power Input | kW | 15.6 | 18.0 | 21.0 | 24.8 | 30.4 | 36.7 | |
| Running Current | A | 29.9 | 33.5 | 37.5 | 45.4 | 57.3 | 66.3 | |
| Power Supply | 380~415V/3Ph/50Hz | |||||||
| Refrigerant & Charging Quantity | Type | R410a | ||||||
| Kg | 4.3+8.5 | 4.3+8.5 | 2x7.5 | 2x8.5 | 3x7.5 | 3x8.5 | ||
| Compressor | Type | / | Scroll | |||||
| Brand | / | Copeland | Copeland | Copeland | Copeland | Copeland | Copeland | |
| Compressor/Circuit | Nos. | 2/2 | 2/2 | 2/2 | 2/2 | 3/3 | 3/3 | |
| Energy Adjustment | % | 0,50%,100% | 0,33%,66%,100% | |||||
| Condenser Section |
Condenser | Type | Copper Pipe + Anticorrosion Aluminium Fin | |||||
| Condenser Fan | Type | Axial / Direct | ||||||
| Qty | 1 | 1 | 1 | 1 | 2 | 2 | ||
| Power Input | kW | 1.1 | 1.5 | 1.5 | 2.2 | 2x1.1 | 2x1.5 | |
| Airflow | m3/h | 16500 | 21000 | 21000 | 27000 | 2x16500 | 2x21000 | |
| Evaporator Section |
Evaporator | Type | Copper Pipe + Anticorrosion Aluminium Fin | |||||
| Evaporator Fan | Type | Belt-Driven | ||||||
| Power Input | kW | 3 | 3 | 4 | 4 | 5.5 | 5.5 | |
| Supply Airflow | m3/h | 7600 | 8500 | 10900 | 12500 | 16000 | 19500 | |
| CFM | 4471 | 5000 | 6412 | 7353 | 9412 | 11471 | ||
| ESP | Pa | 250 | 250 | 300 | 300 | 300 | 300 | |
| Filter | Standard | Type | G4 Panel Type Filter | |||||
| Sound Level | dB(A) | 73 | 73 | 73 | 74 | 74 | 75 | |
| Dimension | Length | mm | 2268 | 2268 | 2298 | 2298 | 2878 | 2878 |
| Width | mm | 1470 | 1470 | 1650 | 1650 | 2140 | 2140 | |
| Height | mm | 1167 | 1167 | 1400 | 1400 | 1964 | 1964 | |
| Net Weight | Kg | 750 | 770 | 830 | 860 | 1150 | 1350 | |
Workshop
Project Reference
Sendo contribution to combat rising energy costs and global warming is to design innovative, efficient and dependable AC products, while providing best comfort and air quality. We are optimistic about the response that we expect to get from our potential customers because we strive to ensure that our customers get the quality products when they approach us and we are determined to ensure that our customers can obtain various benefits when they buy Sendo Air Conditioners.
Get in touch with us and book a Factory Tour! Sincerely welcome to visit our factory at your convenience.
User Reviews
Write a review
File a complaint
Supplier Review
Summary by Vivian
TRUST STARS
3.3/5
0 Reviews
Jinan Sendo Air Conditioning Co., Ltd., based in China, offers a comprehensive range of air conditioning solutions, including 18 Ton Industrial Free Cooling Rooftop Packaged Air Conditioning Systems, 200kw HVAC Cooling Systems, and various tonnage industrial rooftop package cooling and heating air conditioning systems. Their product portfolio encompasses chiller air conditioning systems, air-cooled rooftop packaged HVAC heating and cooling systems, and R410A Ducted Split Air Conditioning systems, utilizing brands such as Copeland and Hitachi. The company facilitates trade through FOB terms and holds certifications like CE and is ISO9001 certified, specializing in industrial and commercial air-cooled rooftop packaged air conditioning systems with free cooling capabilities, and screw chillers with anti-corrosion treatment.
Company Verification
0/4
Profile Completeness
56%
Avg. Product Score
0/5
Responsiveness
0%
Certification
CE Certificate of Air Cooled Water Chiller, CE Certificate of Rooftop Packaged Unit, CE for Split Air Conditioner, CE for Water Coolead Chiller/Heat Pump, MD/EMC Certificate
Related searches
Frequently Asked Questions (FAQs)
How can I buy & import Air Conditioning Systems from China?
You can contact verified China supplier Jinan Sendo Air Conditioning Co., Ltd. through platforms like Freshdi.com to purchase R410A Industrial Rooftop Packaged Air Conditioning System with Energy Heat Recovery. For direct inquiries, please contact Ms. Tracy, the company’s representative. The supplier has a 3.3-star rating on Freshdi and has verified. You’ll receive product details, pricing, and shipping terms directly from supplier.
What are the payments and trade terms for R410A Industrial Rooftop Packaged Air Conditioning System with Energy Heat Recovery?
For R410A Industrial Rooftop Packaged Air Conditioning System with Energy Heat Recovery, Jinan Sendo Air Conditioning Co., Ltd. accepts LC, T/T as the preferred payment method, the trade term is FOB, CFR, CIF, EXW, and shipments are typically arranged from port Tianjin, ensuring secure and timely international delivery.
What is the current price of R410A Industrial Rooftop Packaged Air Conditioning System with Energy Heat Recovery?
The supplier Jinan Sendo Air Conditioning Co., Ltd. offers R410A Industrial Rooftop Packaged Air Conditioning System with Energy Heat Recovery at negotiation.
What are the specifications of R410A Industrial Rooftop Packaged Air Conditioning System with Energy Heat Recovery from China?
R410A Industrial Rooftop Packaged Air Conditioning System with Energy Heat Recovery is sourced from China and meets international export standards. Key specifications include: Transport Package: Plastic Film or Plywood Case, Additional Water Heating Coil & Eh: Optional, Power Supply: 50Hz or 60Hz, Economizer/Free Cooling: Optional, Capacity: 12kw to 392kw, Filter: Optional High Level Filter, Trade Term: FOB, CFR, CIF, EXW, Payment Term: LC, T/T
You are viewing details for R410A Industrial Rooftop Packaged Air Conditioning System with Energy Heat Recovery. The information provided here is either posted directly by the supplier, who is responsible for its accuracy, or collected by Freshdi AI from publicly available sources. Freshdi strives to make product information as useful and reliable as possible, but we do not guarantee complete accuracy. If you notice any incorrect or misleading details, please use the Report Product option so our team can review and address it quickly.
Negotiable
Min. order: Negotiable
Ms. Tracy
Year Established: 2007-08-16
Visit Store
