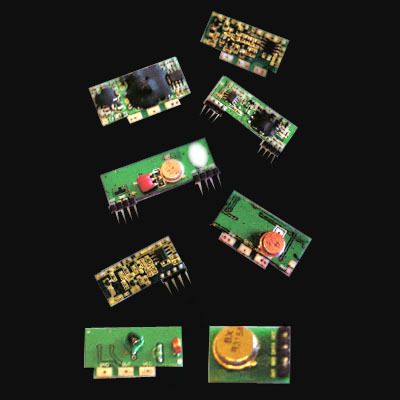

RF Modules Antenna Coil 700uh Operating Voltage 5v Dc Read Write Range Up To 20cm Internal Memory Eeprom Memory Read Page Time Less Than
Negotiable
Product information
High-quality RF Modules Antenna Coil 700uh Operating Voltage 5v Dc Read Write Range Up To 20cm Internal Memory Eeprom Memory Read Page Time Less Than supplied by Electrocon Group Of Companies. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Data Transfer Rate:
4k Bits/second
Operating Voltage:
5v Dc
Antenna Coil:
700uh
Adaptive Feature:
Ast (adaptive Sampling) Feature
Fault Detection:
Detects Broken Or Shorted Antenna And Badly Tuned Antennas
Internal Memory:
Eeprom Memory
Protocol Support:
Etel Protocols
Read Page Time:
Less Than 100ms
Specifications
Data Transfer Rate:
4k Bits/second
Operating Voltage:
5v Dc
Antenna Coil:
700uh
Adaptive Feature:
Ast (adaptive Sampling) Feature
Fault Detection:
Detects Broken Or Shorted Antenna And Badly Tuned Antennas
Internal Memory:
Eeprom Memory
Protocol Support:
Etel Protocols
Read Page Time:
Less Than 100ms
Led Indication:
Red And Green Leds For Power-up And Status
Manual Override:
Switch Facility
Trade Term:
To be discussed
Payment Term:
To be discussed
Communication Interface:
Ttl Level Rs232
Read Write Range:
Up To 20cm
Business Details
Country:
India
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Not specified
Year Established:
2008
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
Not specified
Preferred Trade Term:
Not specified
Port Of Loading:
Not specified
Product descriptions from the supplier
RF Modules :
- The Etel protocols are standards developed by Philips Semiconductor, the reader will support any RFID tags using this protocol including our CARD-H1S transponder card. The RFID receiver only needs a 700uH antenna coil connected and 5v DC supply to be a fully featured read/write system. The module provides internal EEPROM memory for holding lists of authorized identity codes, a manual override switch facility and has LED drives to give visual indication of acceptance. The RWD also has a TTL level RS232 interface that allows a host system to communicate with the RWD if necessary, so that system features can be customized, configurations changed and tag read/write data handled by the host system. The RWD module is essentially a proximity system and a Read/Write range of up to 20cm can be achieved with the same level of reliable communication and EMC resilience. The unique AST (Adaptive Sampling) feature allows the RWD to continually adjust and retune the sampling to allow for inductive changes in the RF field, an essential feature for real-world reliability and robust operation. The communication protocol with the tags can achieve 4k bits/second of data transfer and
- the total time to read a 32 bit page, including reading of the serial number, selecting the tag and the read operation takes less than 100ms. The RWD module can be easily integrated into almost any application; when power is first applied to the board the red and green LEDs flash once to indicate successful power-up. The device can also check for broken or shorted antenna and can even detect very badly tuned antennas, these problems are indicated by the red LED flashing continuously until the fault has been rectified. The module will normally have the red LED lit until a valid
- card or tag is brought into the RF field. In addition, a switch input is provided for overriding the tag reading operation and switching the output drives directly.
