Share on
RF Radio Technology Remote Control Type Button Voltage 12V Origin Sweden Certificate CE Brand Akerstroms Material
1 Piece
$8,0001 Piece
$15,000Product information
High-quality RF Radio Technology Remote Control Type Button Voltage 12V Origin Sweden Certificate CE Brand Akerstroms Material supplied by Nanjing Shunmei Science & Technology Co., Ltd.. Bulk wholesale pricing ranges from $8,000 to $15,000 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Voltage:
12V
Specification:
181*65*43
Production Capacity:
2000
HS Code:
8526920000
Transmission Distance:
>100m
Brand:
Akerstroms
Trademark:
Akerstroms
Color:
Black&Yellow
Specifications
Voltage:
12V
Specification:
181*65*43
Production Capacity:
2000
HS Code:
8526920000
Transmission Distance:
>100m
Brand:
Akerstroms
Trademark:
Akerstroms
Color:
Black&Yellow
Type:
Button
Certificate:
CE
Certification:
CE, ISO9001
Trade Term:
FOB, CIF, CFR
Payment Term:
LC, T/T
Material:
Plastic
Signal Transmission:
Radio Waves
Port Of Loading:
Shanghai Port
Transport Package:
Standard Package
Origin:
Sweden
Universal:
Universal
Delivery:
as The Quantity
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2005-04-25
Annual Revenue Amount:
Not specified
Numbers Of Employees:
36
Preferred Payment Term:
LC, T/T
Preferred Trade Term:
FOB, CIF, CFR
Port Of Loading:
Shanghai Port
Certificates:
Caldaro CA, Caldaro EDC, management system certificate, Scanreco China Partners, Smarteq confimation letter
Product descriptions from the supplier
Compact Transmitter high-performing RF radio technology Remote Controller For Industrial Machinery
REMOTUS JUPITER Era 4/6/8B, 10BD
Introduction
Remotus is Åkerströms product family for radio remote control of safety critical industrial and mobile ap- plications. Remotus Jupiter is Åkerströms' standardized industrial remote control product line.
The manual must be used when installing Åkerströms Remotus system to ensure a secure and safe operation. This manual only covers the installation of the Remotus radio remote control system. Remotus does not include a complete system for remote control: it has only a set of outputs that is controlled by the operator with the transmitter switches and joysticks. How the outputs are used to control the object (for example, a machine's movements and brakes) depend on the specific installation and is outside the scope of the Re- motus system.
It is the responsibility of the Systems Integrator or Machine builder to safely incorporate the Remotus radio remote control into the complete system or machine. The System Integration has to be made by qualified personnel applying the appropriate standards for the system or machine including making the necessary safety investigations and risk analysis.
It should be noted that the information obtained from the controlled object is not processed by the Remotus receiver, but is used for informational purposes.
For the reasons stated above, the safety of Remotus covers mainly the status of the relay outputs, regardless of the object that is controlled by the relays.
The interface between Remotus and the controlled object should be a special interface that is not included in Remotus system and therefore is not included in this installation manual.
The approvals for Remotus refer only to the Remotus system not the complete system.
The complete radio control system must be tested and approved in accordance with applicable standards. It is not part of Åkerströms Björbos responsibility.

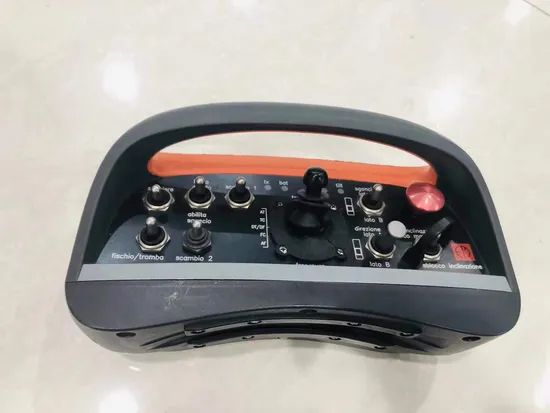

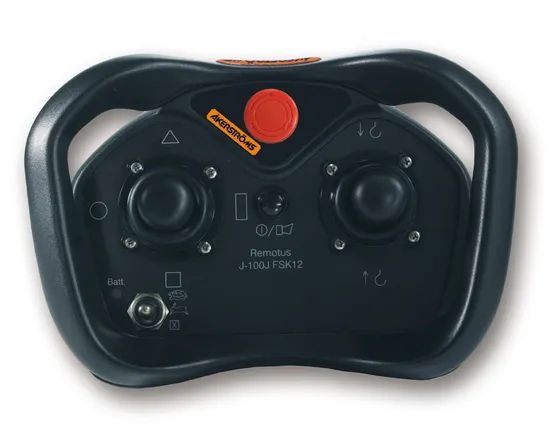

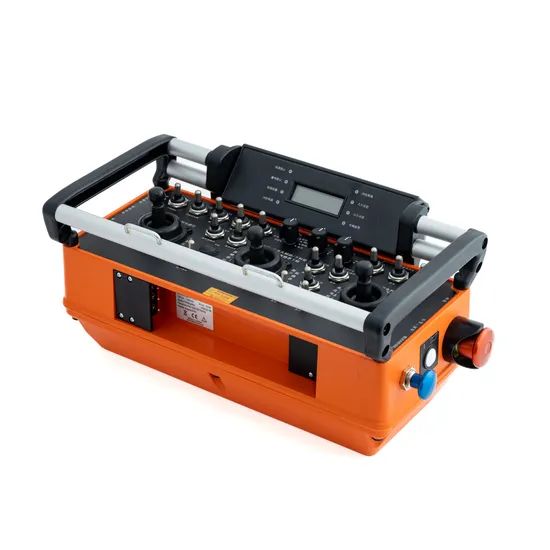

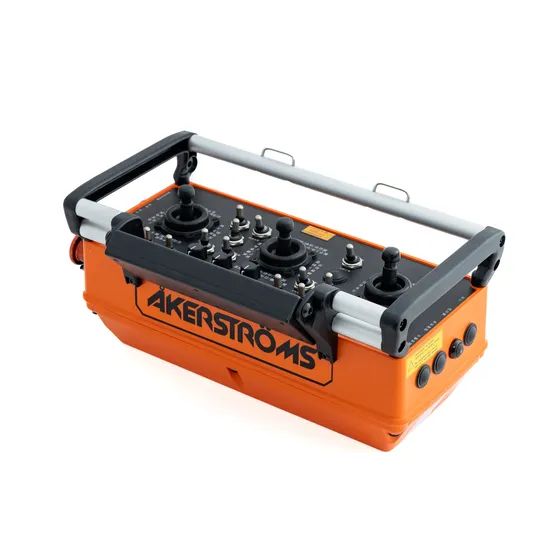

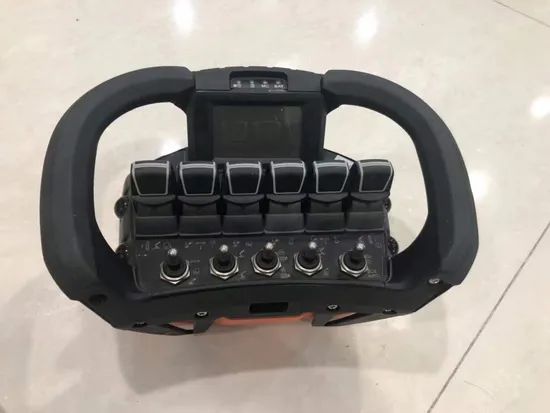

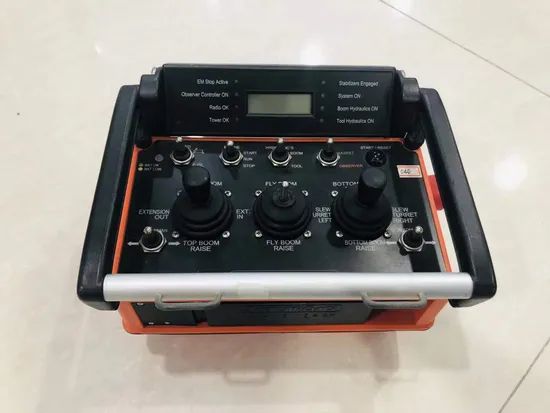

Remote Controller Pictures
16 Relay outputs:
Connections and switches on the main boardREMOTUS JUPITER Era 4/6/8B, 10BD
Introduction
Remotus is Åkerströms product family for radio remote control of safety critical industrial and mobile ap- plications. Remotus Jupiter is Åkerströms' standardized industrial remote control product line.
The manual must be used when installing Åkerströms Remotus system to ensure a secure and safe operation. This manual only covers the installation of the Remotus radio remote control system. Remotus does not include a complete system for remote control: it has only a set of outputs that is controlled by the operator with the transmitter switches and joysticks. How the outputs are used to control the object (for example, a machine's movements and brakes) depend on the specific installation and is outside the scope of the Re- motus system.
It is the responsibility of the Systems Integrator or Machine builder to safely incorporate the Remotus radio remote control into the complete system or machine. The System Integration has to be made by qualified personnel applying the appropriate standards for the system or machine including making the necessary safety investigations and risk analysis.
It should be noted that the information obtained from the controlled object is not processed by the Remotus receiver, but is used for informational purposes.
For the reasons stated above, the safety of Remotus covers mainly the status of the relay outputs, regardless of the object that is controlled by the relays.
The interface between Remotus and the controlled object should be a special interface that is not included in Remotus system and therefore is not included in this installation manual.
The approvals for Remotus refer only to the Remotus system not the complete system.
The complete radio control system must be tested and approved in accordance with applicable standards. It is not part of Åkerströms Björbos responsibility.
Remote Controller Pictures
 |
 |
 |
- Specifications
| General: | |
| Operating frequency: | 433-434 MHz |
| Power output: | < 10 mW |
| Baud rate: | 9600 b/s |
| Transmission principle: | GFSK, TDMA |
| Channel Separation: | 25 kHz |
| Functional sensitivity: | ≤-107 dBm BER 10-3 |
| The radio full-fills: | R&TTE Directive 99/5EC |
| Reaction time on STOP function: | Maximum 550 ms |
| Safety category for the Stop function | ISO 13849-1 Category 3 PL d |
| Receiver RX161: | |
-
- 6 safety relays (NO) for movements
- 4 change-over relays (NO/NC)
- 6 normally open relays (NO)
| 2 Separate main contactor change over safety relays | ||
| 1 Digital output for horn (siren) | 12V | |
| 1 Analogue input: | 0 (4) -20 mA or 0(2)-10 V | |
| 2 Digital inputs: | 24/48 V AC/DC (Opto-isolated) or 115/230 V AC (Opto-isolated) | |
| 1 Serial port: | RS422/RS485 | |
| Input voltage: | 24/48/115/230 V AC, power consumption less than 14 VA or 24 V DC 0.5 A. Shall be connected to SELV circuits. | |
| Dimensions: | 277x217x115 mm | |
| Weight: | Approximately 1.6 kg | |
| Degree of protection (plastic encolsure): | IP67 | |
| Operating temperature: | -25 °C - +55 °C | |
| Storage temperature: | -40 °C - +85 °C | |
| Transmitter | AQ80: | TX50: |
| Dimensions: | 181 x 65 x 43 mm | 243x77x41 (49 mm incl. quick stop) |
| Weight: | 265 g | 450 g |
| Degree of protection: | IP67 | IP65 |
| Display, Graphic LCD: | 128x64 pixels | 102*64 pixels |
| Operating Temperature for battery: | -20 °C - +55 °C | |
| Storage Temperature for battery: | -20 °C - +35 °C | |
| Charging Temperature for battery: | +10 °C - +45 °C NOTE! For charging see charger documentation |
|
Factory
