Raychem EHV Outdoor Terminations, 3 Core Color Grey Brand Raychem Core Type 3 Core Product Voltage 36 KV Sealing Type Leak
1 Piece
$1,045Product information
High-quality Raychem EHV Outdoor Terminations, 3 Core Color Grey Brand Raychem Core Type 3 Core Product Voltage 36 KV Sealing Type Leak supplied by URSSS. Bulk wholesale pricing is $1,045 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Diameter Over Sheath:
120mm
Core Type:
3 Core
Product Voltage:
36 KV
Installation Temperature:
40 Degree Celsius
Storage Temperature:
40 Degree Celsius
Insulator Type:
Composite Insulator
Fitting Material:
Corrosion-resistant Alloy
Material:
Cross Linked Polyolefin
Specifications
Diameter Over Sheath:
120mm
Core Type:
3 Core
Product Voltage:
36 KV
Installation Temperature:
40 Degree Celsius
Storage Temperature:
40 Degree Celsius
Insulator Type:
Composite Insulator
Fitting Material:
Corrosion-resistant Alloy
Material:
Cross Linked Polyolefin
Dry Termination Interface:
Dry Interface, No Oil-filling
Insulation Type:
Dry Type And Fluid Filled Type
Installation Method:
Fast And Simple Installation Combining Gis Plug-in Technology With Polymeric Insulators
Color:
Grey
Environmental Compliance:
Iec 60815 Standard
Dry Termination Testing Standard:
Iec 60840
Type Testing Standards:
Iec 60840 And Iec 62067
Base Plate Function:
Insulated Base Plate For Sheath Sectionalization
Base Plate Gland:
Insulated Base Plate Gland For Sheath Sectionalization
Oil Filling Method:
Insulating-oil Filling Without Preheating
Sealing Type:
Leak Proof
Housing Material:
Light Weight Composite Housing
Conductor Connection:
Mechanical
Installation Requirements:
No Special Tools Required
Stress Cone:
Prefabricated And Factory-tested Silicone-rubber Stress Cone
Brand:
Raychem
Support Type:
Self-supporting
Trade Term:
To be discussed
Payment Term:
To be discussed
Connector Type:
Torque-controlled Shear Head Mechanical Connector
Voltage Rating:
Up To 245 Kv
Creepage Length:
Up To 31 Mm/kv
Business Details
Country:
India
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Not specified
Year Established:
2024
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
Not specified
Preferred Trade Term:
Not specified
Port Of Loading:
Not specified
Product descriptions from the supplier

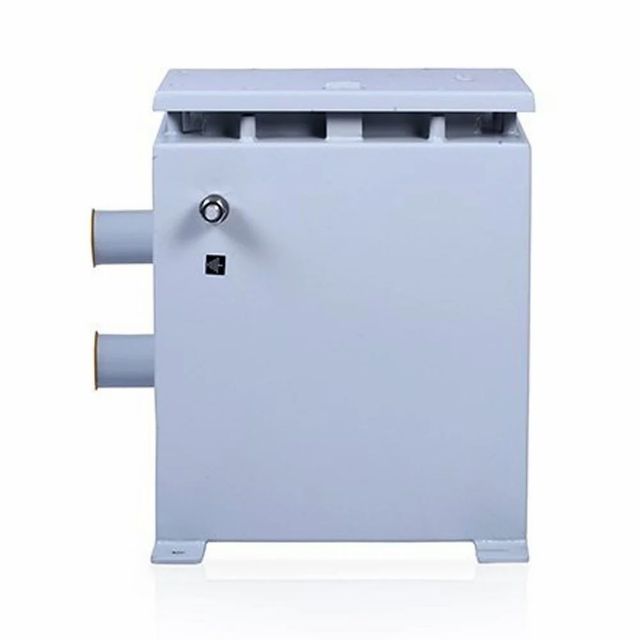

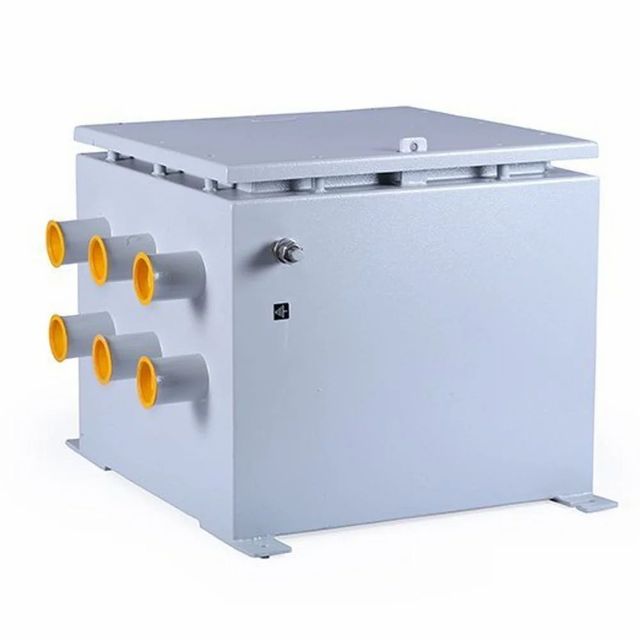

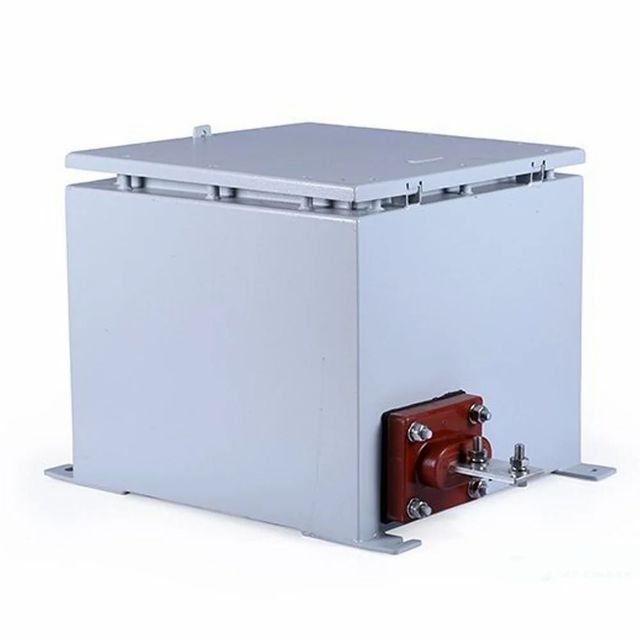

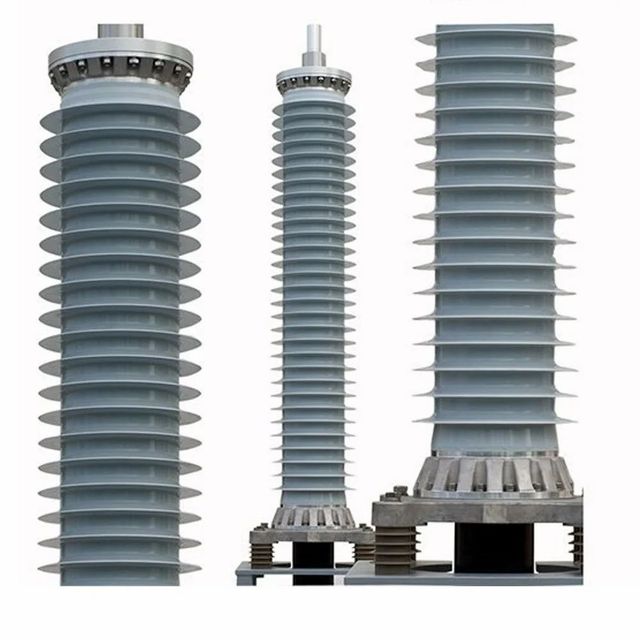

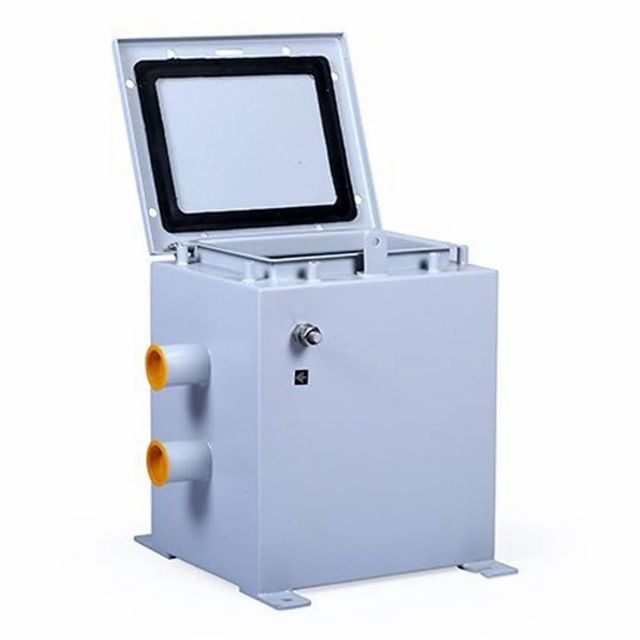

High Voltage Outdoor Terminations upto 245 kV - Dry type and Fluid filled type with Composite insulator including link boxes. Composite terminations for voltage classes up to 245 kV operate under severe environmental conditions. Composite housings with creepage lengths up to 31 mm/kV are available for the most common and extremely pollution levels, according to IEC 60815 standard.
-
Fluid filled Composite Insulator Termination - leak proof and light weight composite housing
- Fittings made of corrosion-resistant alloy
- Prefabricated and factory-tested silicone-rubber stress cone
- Torque-controlled shear head mechanical connector
- Insulating-oil filling without preheating
- No special tools required for installation
- Insulated base plate for sheath sectionalization
- Type tested according to IEC 60840 and IEC 62067 standards
-
Dry and Dry Flexible Self-Support Termination - Dry interface, no oil-filling
- Self-supporting
- Prefabricated and factory tested silicone-rubber stress cone
- Torque-controlled shear head mechanical connector/compression connector
- Fast and simple installation combining GIS plug-in technology with polymeric insulators
- No special tools required for installation
- Insulated base plate gland for sheath sectionalization
- Type tested according to IEC 60840
