Reclaimer Machine with Strong Loading and Discharging Capacity, Suitable for Coal Yard Operations
SET
Negotiable
Product information
High-quality Reclaimer Machine with Strong Loading and Discharging Capacity, Suitable for Coal Yard Operations supplied by Shandong Shante Heavy Industry Machinery Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Material Density:
(0.8-1.8) ×10³
Bucket Wheel Volume:
0.3
Rated Output:
1000
Production Capacity:
10000 Pieces/Year
Conveyor Specification:
1200
Package Size:
21000.00cm * 4000.00cm * 5900.00cm
Specification:
21100× 4000× 5900
Overall Dimensions (L×W×H):
21100×4000×5900
Specifications
Material Density:
(0.8-1.8) ×10³
Bucket Wheel Volume:
0.3
Rated Output:
1000
Production Capacity:
10000 Pieces/Year
Conveyor Specification:
1200
Package Size:
21000.00cm * 4000.00cm * 5900.00cm
Specification:
21100× 4000× 5900
Overall Dimensions (L×W×H):
21100×4000×5900
Package Gross Weight:
240000.000kg
Power:
295
Length Of Discharge Conveyor:
33375
Bucket Wheel Diameter:
3600
Maximum Stacking Height:
6500
Number Of Buckets:
8
Bucket Wheel Arm Length:
8280
HS Code:
8428909090
Length Of Discharge Arm:
8900+3400
Product Name:
Bucket Reclaimer
Keywords:
Bucket Reclaimer
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Transport Package:
Container or Wooden Packing
Trade Term:
FOB, CIF, CFR
Payment Term:
LC, T/T
Port Of Loading:
Qingdao Port
Origin:
Shandong, China
Project:
Stdl-1000
Payment Methods:
Support payments in USD
Trademark:
XINTE
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2009-02-17
Annual Revenue Amount:
Not specified
Numbers Of Employees:
100
Preferred Payment Term:
LC, T/T
Preferred Trade Term:
FOB, CIF, CFR
Port Of Loading:
Qingdao Port
Product descriptions from the supplier
Product Description
BUCKET RECLAIMER
A bucket reclaimer is a machine equipped with a bucket and a conveying system that can efficiently extract, load and transfer various bulk materials. It is designed to maximize material loading capacity and transportation efficiency, reduce labor costs and improve operational safety.
Working Principle
The working principle of a bucket reclaimer mainly includes the following steps:
The working principle of a bucket reclaimer mainly includes the following steps:
Bucket contacts material: When working, the bucket descends to the surface of the pile and cuts into the loose material with its special shape and power device.
Material loading: When the bucket is fully in the material, the bucket is closed by hydraulic or mechanical power to clamp the soil, coal, ore and other materials.
Lifting and transportation: After the bucket is filled with material, the bucket is lifted to a certain height by the lifting system, and then moved horizontally or tilted to transfer the material to a conveyor belt, carriage or other storage facilities.
Unloading: After reaching the designated location, the bucket unloads the material through a flipping or release mechanism to complete the material loading and unloading process.
Cyclic operation: This process is carried out in a continuous cycle to ensure efficient and stable material handling and improve operational efficiency.

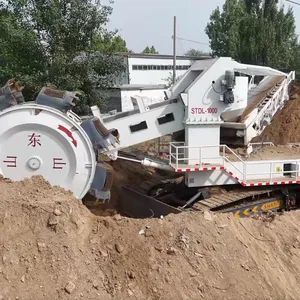

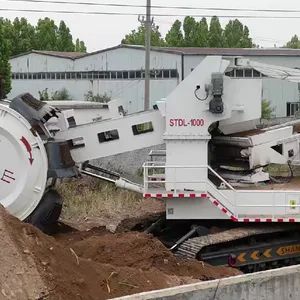

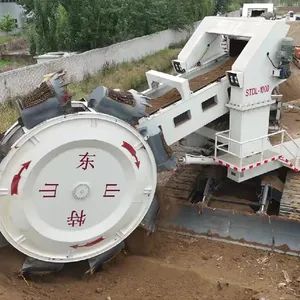

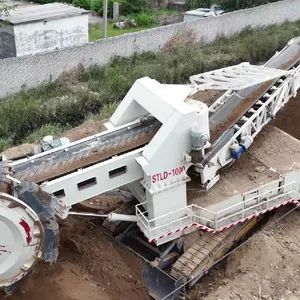

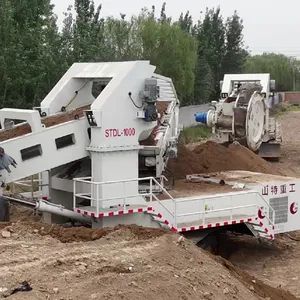

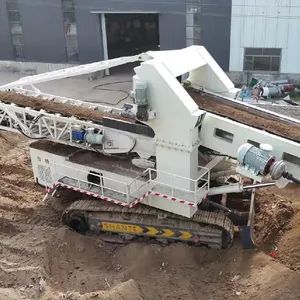

Detailed Photos
AUTOMATED COLLECTION
HIGH-CAPACITY LOADING AND UNLOADING CAPABILITIES
RELIABILITY
The bucket reclaimer efficiently addresses the challenge of handling bulk materials in stockyards by automating the collection and transportation process, significantly reducing labor costs and operational time.
Its unique design allows for high-capacity loading and unloading capabilities, enabling it to reclaim materials swiftly and precisely from large stockpiles.
With advanced technology and robust construction, the bucket reclaimer ensures exceptional reliability and performance, making it the ideal choice for industries requiring effective bulk material handling.
Product Parameters
BUCKET RECLAIMER | |
Product Name | Bucket Reclaimer |
Keywords | Bucket Reclaimer |
Project | STDL-1000 |
Overall Dimensions (L × W × H) | 21100×4000×5900 |
Bucket Wheel Diameter | 3600 |
Bucket Wheel Arm Length | 8280 |
Bucket Wheel Volume | 0.3 |
Number Of Buckets | 8 |
Rated Output | 1000 |
Material Density | (0.8-1.8) ×10³ |
Length Of Discharge Arm | 8900+3400 |
Length Of Discharge Conveyor | 33375 |
Maximum Stack Height Of Discharge Conveyor | 6500 |
Power | 295 |
Conveyor Specification | 1200 |
HIGH OPERATIONAL EFFICIENCY
ROBUST CONSTRUCTION
The bucket reclaimer is designed for rapid material recovery, significantly improving the speed and efficiency of bulk material handling in storage areas.
Built with durable materials and heavy-duty components, the bucket reclaimer offers exceptional reliability and resilience in demanding environments.
AUTOMATED OPERATION
HIGH-CAPACITY DESIGN
VERSATILE APPLICATION
Its automated system reduces the need for manual labor, minimizing human error and enhancing safety while optimizing workflow.
Equipped with multiple buckets and advanced reclaiming technology, the reclaimer can handle large volumes of materials, accommodating various stockpile sizes.
Suitable for a wide range of industries, including mining, cement, and agriculture, the bucket reclaimer efficiently manages different types of bulk materials for diverse operational needs.
FAQ
Q: What is the delivery time?
A: Normally, the lead time is 10 days after receipt of the deposit.
Q: What are the Payment terms?
A: TT Or L/C.
Q: What is the warranty of the products?
A: One year.
Q: Are you a manufacturer or a trading company?
A: We are a manufacturer, not a dealer.
Q: Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.
Q: Can you customize the products as per request?
A: Yes, we can customize your products.
Q: Where are the products used?
A: The products are used for mining in the tunnel of a coal mine, a metal mine, or a non-metal mine.
Q: What is the drive mode of your products?
A: The product's drive mode is electric drive.
Q: Can the products be installed with dual power -diesel engine and electric power?
A: Yes, we can make the products with a diesel engine and electric power.
Q: What is the usage of the products?
A: The products are multiple-function, integrating walking, digging, collecting, conveying, and discharging.
A: Normally, the lead time is 10 days after receipt of the deposit.
Q: What are the Payment terms?
A: TT Or L/C.
Q: What is the warranty of the products?
A: One year.
Q: Are you a manufacturer or a trading company?
A: We are a manufacturer, not a dealer.
Q: Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.
Q: Can you customize the products as per request?
A: Yes, we can customize your products.
Q: Where are the products used?
A: The products are used for mining in the tunnel of a coal mine, a metal mine, or a non-metal mine.
Q: What is the drive mode of your products?
A: The product's drive mode is electric drive.
Q: Can the products be installed with dual power -diesel engine and electric power?
A: Yes, we can make the products with a diesel engine and electric power.
Q: What is the usage of the products?
A: The products are multiple-function, integrating walking, digging, collecting, conveying, and discharging.
