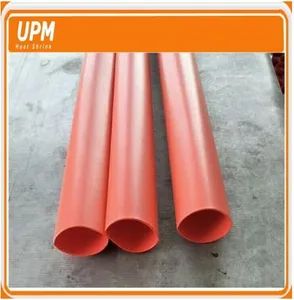

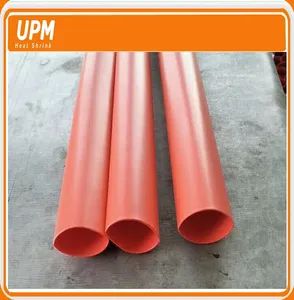

Red Thin Wall Heat Shrinkable Sleeve with Adhesive Liner Flame Retardant 6" 12" 48" 1000 FT 500 FT
Meters
Negotiable
Product information
High-quality Red Thin Wall Heat Shrinkable Sleeve with Adhesive Liner Flame Retardant 6" 12" 48" 1000 FT 500 FT supplied by Union Polymer Material Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Termal Endurance:
125 ℃
HS Code:
39173900
High Shrink Ratio:
3:1
Raychem:
Atum
Sealing Protection:
Cable Insulation
Semi Rigid Outer Layer:
Cross Linked Polyolefin
Origin:
Dalian China
Port Of Loading:
Dalian Port
Specifications
Termal Endurance:
125 ℃
HS Code:
39173900
High Shrink Ratio:
3:1
Raychem:
Atum
Sealing Protection:
Cable Insulation
Semi Rigid Outer Layer:
Cross Linked Polyolefin
Origin:
Dalian China
Port Of Loading:
Dalian Port
Gas Pipeline Protection:
Direct Buried
RoHS Compliant:
EVA Adhesive
Thermal Melt Adhesive:
Electrical Wiring
Trade Term:
FOB, CIF, CFR, EXW
Type:
Heat Shrinkable
Payment Term:
LC, T/T, D/P
Transport Package:
Neutral Packaging
Usage:
Optical Cable, Electric Wire, HDMI Cable
Material:
PE
Model NO.:
S3(t)
Trademark:
UPM
Cable Sealing:
Wire Protection
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Not specified
Year Established:
2002-12-05
Annual Revenue Amount:
Not specified
Numbers Of Employees:
200
Preferred Payment Term:
LC, T/T, D/P
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Dalian Port
Certificates:
Certificate, Certificates
Product descriptions from the supplier
S3(t) Flame Retardant Adhesive Lined Thin Wall Heat Shrink Tube
| S3(t) Flame Retardant Adhesive Lined Thin Wall Heat Shrink Tube | ||||
| Features | ||||
| Co-extruded dual wall tube | Operating temperature: -40~135 ºC | |||
| Cross-linked flexible polyolefin outer layer | Shrink temperature: 125 ºC | |||
| Thermal melt adhesive liner | High shrink ratio: 3:1& 4:1 | |||
| High flame retardant VW-1(outer layer) | RoHS compliant | |||
| Approvals | ||||
| UL approval | File No.: E341796 | |||
| Technical Data | ||||
| Property | Test method | Values | ||
| Physical | Tensile strength | When test at 500mm/min. | ≥12 MPa | |
| Breakdown elongation | When test at 500mm/min. | ≥300% | ||
| Aging (158ºC /168hrs) | Tensile strength | When test at 500mm/min. | ≥10MPa | |
| Breakdown elongation | When test at 500mm/min. | ≥200% | ||
| Density | -- | 1.15~1.25 | ||
| Thermal endurance | -- | 125 ºC | ||
| Hardness (Shore D) | -- | ≤ 40 HD | ||
| Water absorption (23ºC/24hrs) | -- | ≤0.5% | ||
| Low temperature flexibility(-30ºC/1hr) | -- | No cracking | ||
| Peel strength to steel | ASTM D2671 | 80N/25mm | ||
| Peel strength to XLPE | ASTM D2671 | 110N/25mm | ||
| Heat shock (250ºC/4hrs) | -- | No cracking,No drop, No flow(outer layer only) | ||
| Electrical | Volume resistivity | ASTM D2671 | ≥1014 Ω.cm | |
| Dielectric strength(2500V AC/60s) | ASTM D2671 | ≥ 12KV/mm | ||
| Dielectric breakdown voltage | -- | ≥ AC 2500V | ||
| Dielectric voltage Withstand | 1min.AC2500V | No breakdown | ||
| Aging(158 ºC/168hrs) | Dielectric breakdown voltage | -- | AC 2500V min. and more than 50% of the value obtained with unaged sample |
|
| Dielectric voltage withstand | 1min.AC2500V | No breakdown | ||
| Chemical | Flammability(outer layer only) | VW-1 | Pass | |
| Copper corrosion | (158ºC/168hrs) 500mm/min | Elongation≥100% | ||
| Fluid resistance 23ºC/24hrs | Diesel fuel(bs2869 class A1) | ISO 37 | Tensile strength | ≥7 MPa |
| Hydraulic fluid(H-515) | Breakdown elongation | ≥300% | ||
| Lubricating oil(O-149) | Peel strength to steel | 60N/25mm | ||
| Dimensions | 3:1 | |||
| Reference | As supplied(mm) | After recovered(mm) | Standard length | |
| UPM S3(t) | ID min. | ID max. | WT nom. | m |
| Shrink Ratio: 3:1 | ||||
| 3.2/1.0 | 3.2 | 1.0 | 1.0 | 200 |
| 4.8/1.6 | 4.8 | 1.6 | 1.0 | 100 |
| 6.4/2.1 | 6.4 | 2.1 | 1.0 | 100 |
| 7.9/2.6 | 7.9 | 2.6 | 1.4 | 50 |
| 9.5/3.2 | 9.5 | 3.2 | 1.4 | 50 |
| 12.7/4.2 | 12.7 | 4.2 | 1.7 | 1.22 |
| 15.0/5.0 | 15.0 | 5.0 | 1.8 | 1.22 |
| 19.1/6.0 | 19.1 | 6.0 | 2.2 | 1.22 |
| 25.4/8.0 | 25.4 | 8.0 | 2.5 | 1.22 |
| 30.0/10.0 | 30.0 | 10.0 | 2.5 | 1.22 |
| 39.0/13.0 | 39.0 | 13.0 | 2.5 | 1.22 |
| 51.0/17.0 | 51.0 | 17.0 | 2.6 | 1.22 |
| Shrink Ratio: 4:1 | ||||
| 4.0/1.0 | 4.0 | 1.0 | 1.0 | 1.22 |
| 6.0/1.5 | 6.0 | 1.5 | 1.0 | 1.22 |
| 8.0/2.0 | 8.0 | 2.0 | 1.0 | 1.22 |
| 12.0/3.0 | 12.0 | 3.0 | 1.4 | 1.22 |
| 16.0/4.0 | 16.0 | 4.0 | 1.7 | 1.22 |
| 20.0/5.0 | 20.0 | 5.0 | 1.8 | 1.22 |
| 24.0/6.0 | 24.0 | 6.0 | 2.2 | 1.22 |
| 32.0/8.0 | 32.0 | 8.0 | 2.5 | 1.22 |
| 52.0/13.0 | 52.0 | 13.0 | 2.5 | 1.22 |
| ID=Internal Diameter | WT=total wall thickness | |||
| Typical application | ||||
| Ideal for applications including connector-to-cable sealing, wire harness bundles and splices | ||||
| where insulation, corrosion resistance and mechanical stress relief are required. | ||||
| Ordering | ||||
| Standard color : Black | ||||
| Special colors(eg.White,Red,Yellow,Green,Clear) are available on request | ||||
| Standard packaging on spools and/or 1.22m/pc | ||||
| Please specify specification, color, quantity when ordering | ||||
| Cross reference | ||||
| Raychem/ Tyco :ATUM | ||||
