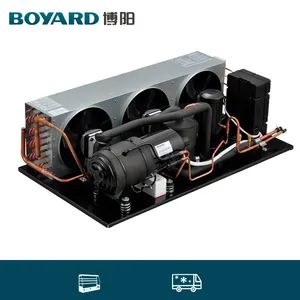

Refrigeration Unit with Compressor for Commercial Cold Room Equipment with R404A
1-29 Set
$26030 Set
$241Product information
High-quality Refrigeration Unit with Compressor for Commercial Cold Room Equipment with R404A supplied by Boyard Compressor Co., Ltd.. Bulk wholesale pricing ranges from $241 to $260 per Set with a minimum order of 1 Set. Inquiry for latest prices.
Evap Temp:
-40
Horsepower:
1-3HP
Power Supply:
220V 50Hz
Production Capacity:
50000 Sets
Specification:
580*385
HS Code:
841869
Power Source:
AC Power
Condenser Form:
Air Cooling
Specifications
Evap Temp:
-40
Horsepower:
1-3HP
Power Supply:
220V 50Hz
Production Capacity:
50000 Sets
Specification:
580*385
HS Code:
841869
Power Source:
AC Power
Condenser Form:
Air Cooling
Model NO.:
BYGF-010-QXL-SEDP
Application:
Back Pressure Type, Intermediate Back Pressure Type, High Back Pressure Type, Low Back Pressure Type
Trademark:
Boyard
Certifications:
CE RoHS Reach
Transport Package:
Carton/Pallet
Origin:
China Zhejiang
Material:
Copper
Drive Mode:
Electric
Unit Type:
External Unit
Trade Term:
FOB, CIF, CFR, EXW
Payment Term:
LC, T/T, D/P, PayPal, Western Union
Performance:
Low Noise, Variable Frequency
Lubrication Style:
Lubricated
Port Of Loading:
Ningbo Port; Shanghai Port
Mute:
Not Mute
Refrigerant:
R404A
Configuration:
Stationary
Master Control:
Yes
Compressor:
Yes
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2006-05-19
Annual Revenue Amount:
Not specified
Numbers Of Employees:
240
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Ningbo Port; Shanghai Port
Certificates:
CE, ISO14001, RoHS, TF16949, TUV, UL
Product descriptions from the supplier
Boyard expertise at manufacturing refrigeration compressor since 2006, condensing unit is an extension of our product line to offer the good quality and convenience.
We invest the best condensing unit production line in the new factory and have the mature technique to produce.
The condensing unit model varies from 1HP to 3HP( 3000-12000btu), you can choose based on below choice:
- DC power: 48V/96V/312V
- AC power: 115V /220V/380V, 50Hz/60 Hz
- Vertical/Horizontal
- Need water pan?
We have various condensing unit model for your choice.Please contact us to match the model for you.
| Technical Data of External Unit | |||||
| Model | BYGF-010-QXL-SEDP | BYGF-020-QXL-SEDP | BYGF-030-QXL-SEDP | BYGF-030-QXL-SMDP | |
| Power Supply | 1PH 220V/50Hz | 3PH 380V/50Hz | |||
| Horsepower | 1 | 2 | 3 | 3 | |
| Refrigerant | R404A | ||||
| Refrigerant Max.(Kg) | 1.5 | 3.0 | 3.5 | 3.5 | |
| Start-Up Current (A) | 22A | 38 | 66 | 53 | |
| Max Running Current (A) | 6 | 11 | 15 | 5 | |
| Evap.Temp(ºC) | -40~-5 | ||||
| Ambient Temp(ºC) | -20~48 | ||||
| Compressor(Model) | QXD-16K | QXD-36K | TXSD-456K | TXSD-456F | |
| Pressure Controller(Mpa) | 2.7 OFF 2.2 ON 0.015 OFF0.15ON | ||||
Fam Motor |
Style | 1*10 | 2*16 | ||
| Fan Diameter(mm) | φ400*1 | φ480*1 | φ480*1 | φ480*1 | |
Air Flow(m3/hr) |
2200 | 3400 | |||
| Gas Inlet Diam | φ12.7(1/2") | φ15.88(5/8") | φ15.88(5/8") | φ15.88(5/8") | |
| Liquid Outlet | φ6.35(1/4") | φ9.52(3/8") | φ9.52(3/8") | φ9.52(3/8") | |
| (mm) Length | 760 | 950 | |||
| (mm) Width | 320 | 420 | |||
| (mm) Height | 530 | 850 | |||
| (mm) Installation dimension |
535*290 | 580*385 | |||
| Evap Temp | Ambient Temp:32ºC | ||||
| -40 | 560 | 1110 | 1265 | 1265 | |
| -35 | 740 | 1420 | 1625 | 1625 | |
| -30 | 860 | 1725 | 2060 | 2060 | |
| -25 | 1095 | 2165 | 2485 | 2485 | |
| -20 | 1300 | 2530 | 3100 | 3100 | |
| -15 | 1660 | 3090 | 3550 | 3550 | |
| -10 | 1860 | 3710 | 4525 | 4525 | |
| -5 | 2120 | 4425 | 5440 | 5440 | |
| (GB/T 21363-2008)TEST CONDITION: | |||||
| TEST CONDITION |
AMBIENT TEMP. |
RETURN GAS TEMP. |
EVAP. TEMP. |
||
OVERLOAD RUNNING |
43ºC | 5ºC | -5ºC | ||
Q: Why choose Horizontal condensing unit?
A:Horizontal condensing unit is more compact, providing more effective volume in the showcase.
Q: What's type of compressor of the condensing unit? What's the advantage compared to reciprocating compressors?
A:The compressor is rotary compressor. In the rotary type, noise and vibration is largely reduced compared with the reciprocating compressor. Therefore noise generated by the unit can be reduced. Horizontal design makes the condensing unit more compact
Q: Can we use this condensing unit frozen room -22°ºC?
A:Yes. The evaporating temperature of condensing unit is from -5 degree to -40 degrees. t can use in frozen room also cold storage room.
Q: Are you manufacturer?
A:Yes. We are professional manufacturer of rotary compressor and condensing units for more than 12 years.
Q: Do you have the warranty?
A:we have one year warranty for manufacturers.
Q: Which customers do you cooperated with?
A:We have cooperated with many domestic and international manufacturers, Dometic, Panasonic, Haier-carrier and so on.
Q: What are your payment terms?
A:Prefer T/T
