Reliable Melt Pressure Transmitter for Precision Industrial Applications
Piece
Negotiable
Product information
High-quality Reliable Melt Pressure Transmitter for Precision Industrial Applications supplied by Cheemi Technology Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Pressure Range:
0...1MPa to 0...150MPa
Output:
0~10V; 4-20mA
Production Capacity:
10000PCS/Month
Max. Diaphragm Temp:
400℃
Certification:
CE RoHS ISO
Model NO.:
CMPT124B-116
Trademark:
Cheemi
Origin:
China
Specifications
Pressure Range:
0...1MPa to 0...150MPa
Output:
0~10V; 4-20mA
Production Capacity:
10000PCS/Month
Max. Diaphragm Temp:
400℃
Certification:
CE RoHS ISO
Model NO.:
CMPT124B-116
Trademark:
Cheemi
Origin:
China
Customized:
Customized
Trade Term:
FOB, CIF, CFR, EXW
IP Rating:
IP65
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Port Of Loading:
Shanghai Port
Accuracy Grade:
±0.5%Fs
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2018-02-28
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Shanghai Port
Certificates:
ISO14001, Others, ISO9001:2015
Product descriptions from the supplier

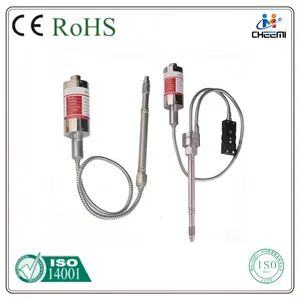

CMPT124B-116 Series Melt Pressure Transmitter(rigid stem & flange type)can measure the pressure and temperature in one point. It adopts special construction design and excellent alloy elastic membrane to reduce the thermal draft and improve measurement accuracy. Zero & full span can be adjustable; with amplified signal can be connected with PLC, which is the international standard.
* Stainless steel welding
* Easy to install
* Zero and span adjustable
* Various amplified signals optional
* Internal 80% shunt calibration
* Good stability and anti-jamming capability
* Zero & Full Span Calibration
* Excellent stability and repeatability
* Stainless steel welding
* Easy to install
* Zero and span adjustable
* Various amplified signals optional
* Internal 80% shunt calibration
* Good stability and anti-jamming capability
* Zero & Full Span Calibration
* Excellent stability and repeatability
Polyester manufacture equipment
Other melt pressure measure and control
| Dimensions(mm): |
 |
| Technical Characteristics | |
| Model | CMPT124B-116 |
| Range | 0….1MPa to 0….150MPa (0…150psi to 0…20000psi) |
| Output | 0~10V; 4-20mA |
| Accuracy | ±0.5%FS |
| Input voltage | 24VDC (12~36)VDC |
| Repeatability | ±0.2% |
| Construction: | Wheatstone bridge |
| Bridge resistance | 350 ohms±10% |
| Overload pressure | 2×FSO |
| Internal calibration | 80%FSO±1% |
| Insulation Resistancel | 1000Megohms @50Vdc |
| Max. Diaphragm Temp | 400ºC |
| Electric connector | 5PIN, 6PIN |
| Process connector | DN50 |
| Mounting hole |
 |
Package
All our sensors will be well packed with bubble & carton. (Bubble packing→4 small carton→1 big carton)
You can choose your own label(Screen Print or Laser Engraving).
Can be netural packing or OEM.
Shipping
Products are shipped via UPS / DHL/ FedEx / TNT, etc. (door to door), or air & sea shipment for larger qty.
L/T: 3-7 days upon receiving payment if the qty is lower than 1000PCS and it is not customized products.
Shipping via DHL. UPS. FedEx and TNT express usually takes 3~7days dependent on the destination country.
All our sensors will be well packed with bubble & carton. (Bubble packing→4 small carton→1 big carton)
You can choose your own label(Screen Print or Laser Engraving).
Can be netural packing or OEM.
Shipping
Products are shipped via UPS / DHL/ FedEx / TNT, etc. (door to door), or air & sea shipment for larger qty.
L/T: 3-7 days upon receiving payment if the qty is lower than 1000PCS and it is not customized products.
Shipping via DHL. UPS. FedEx and TNT express usually takes 3~7days dependent on the destination country.
Q1:Can I get sample from you?
A:Yes,we can provide the free samples for your testing,please contact us for free and tell us which product you need.
Q2:Do you accept customization?
A:Yes,customization is acceptable,please contact our sales staffs for consult.
Q3:Can you provide help for technical issues?
A:Yes,we have more than 10 years of research and development in the electronic industry. If you need technical help in the purchase process, please feel free to contact us.
Q4 : Can I get a lower price if I order large quantities?
A : Yes,it's negotiable.
Q5: How about the quality guarantee period ?
A : Our warranty period is one year since from shipping date.
Q6: Can I add or delete items from my order if I change mind?
A : Yes, but you need to tell us asap, if your order has been done in our production line, we cannot change it.
