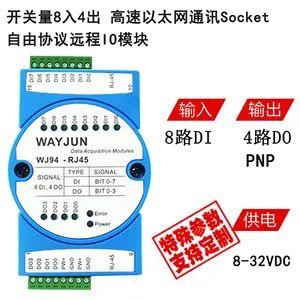

Remote I/O Module with Eight Switch Signals and Four Switch Outputs High Speed Ethernet Communication Socket Free Protocol
Pieces
Negotiable
Product information
High-quality Remote I/O Module with Eight Switch Signals and Four Switch Outputs High Speed Ethernet Communication Socket Free Protocol supplied by Shenzhen Weijunrui Technology Co.,Ltd. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Package Gross Weight:
0.200kg
Specification:
120 x 70 x 43mm
Number Of Pole:
2
Package Size:
20.00cm * 20.00cm * 20.00cm
Phase:
3
Product Features:
8 Switch Inputs, 4 Switch Outputs
Wide Power Supply Range:
8~32VDC
Production Capacity:
999999
Specifications
Package Gross Weight:
0.200kg
Specification:
120 x 70 x 43mm
Number Of Pole:
2
Package Size:
20.00cm * 20.00cm * 20.00cm
Phase:
3
Product Features:
8 Switch Inputs, 4 Switch Outputs
Wide Power Supply Range:
8~32VDC
Production Capacity:
999999
Electricity Type:
Ac
Product Features4:
Built in Web Page Function, Which Can Be Queried a
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Product Features1:
Di Status Changes Automatically Send Status Data,
Typical Applications:
Directly Control The Electric Roller Drive Card
Product Features2:
Do Adopts PNP Output, Which Can Directly Drive Int
Product Features5:
Dual Network Ports Support Daisy Chain Connection
Type:
Electric Parameter Relay
Trade Term:
FOB, EXW
Load:
High Power Relay
Product Features6:
High Reliability, Easy Programming, and Easy Appli
Product Features7:
Low Cost, Small Size, Modular Design
Size:
Miniature
Protective Characteristics:
Open Relay
Action Principle:
Rectifier Type
Typical Applications1:
Replace PLC Control to Achieve Remote Control and
Port Of Loading:
Shenzhen Port
Product Features3:
Simultaneously Supports Modbus TCP Communication P
Payment Methods:
Support payments in USD
Payment Term:
T/T, PayPal
Trademark:
WAYJUNR
Model NO.:
WJ94
Transport Package:
Wayjunr
Origin:
Wayjunr
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2011-06-13
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
T/T, PayPal
Preferred Trade Term:
FOB, EXW
Port Of Loading:
Shenzhen Port
Certificates:
CE
Product descriptions from the supplier
SONA2024 2.2.1
The WJ94 remote I/O module can be used to measure eight switch signals and has four switch outputs. 1, Switching signal input and output
8-channel switch signal input, capable of connecting dry and wet contacts. Please refer to the wiring diagramfordetails; 4-channel switch signal PNP output, with an output voltage equal to the power supply voltage andamaximum output current of 100mA. Be careful not to overload the output, otherwise it will burn out the output
channel. 2, Communication Protocol
Communication interface: 2 RJ-45 network interfaces. Each network port has two indicator lights. After thenetwork cable is plugged in, the Link light (green light) will flash continuously, and the Data light (yellowlight)will flash irregularly. The data between two network ports can be freely exchanged. Communication protocol: Adopt Socket free protocol or MODBUS TCP protocol to achieve industrial Ethernet dataexchange. You can also access the control module directly through the webpage. Network cache: 2K bytes (for both sending and receiving)
Communication response time: less than 5mS. 3, anti-interference
There is a transient suppression diode inside the module, which can effectively suppress various surge pulsesandprotect the module.
(Typical @+25 ℃, Vs is 24VDC)
Input type: switch input, 8 channels (DI0~DI7). Low level: Input<1V
High level: Input 3.5~30V
Input resistance: 30K Ω
Output type: switch output, 4-channel (DO0~DO3). PNP output, with an output voltage equal to the power supplyvoltage and a maximum load current of 100mA, can directly drive intermediate relays. Communication: MODBUS TCP communication protocol
Web page: Supports web access module and web page setting module parameters. Interface: 2 RJ-45 network interfaces. The data between two network ports can be freely exchanged. Working power supply:+8~32VDC wide power supply range, with internal anti reverse and overvoltage protectioncircuits
Power consumption: less than 2W
Switch quantity 8 in 4 out, high-speed Ethernet communication Socket free protocol remoteIOmodule WJ94
Product features:
8 switch inputs, 4 switch outputs
DI status changes automatically send status data, which can capture pulses
DO adopts PNP output, which can directly drive intermediate relays
Simultaneously supports Modbus TCP communication protocol
Built in web page function, which can be queried and controlled through web pages
Dual network ports support daisy chain connection for easy wiring
Wide power supply range: 8~32VDC
High reliability, easy programming, and easy application
Standard DIN35 rail installation, convenient for centralized wiring
Users can set module IP addresses and other parameters on the webpage
Web login can set a password for greater security
Low cost, small size, modular design
Dimensions: 120 x 70 x 43mm
Typical applications:
Directly control the electric roller drive card
Replace PLC control to achieve remote control and reduce costs
Intelligent logistics warehouse automatic sorting system
Ethernet industrial automation control system
Intelligent lighting control system
Equipment operation monitoring and control
Measurement of sensor signals
Industrial camera status monitoring and control
IoT switch signal acquisition
8 switch inputs, 4 switch outputs
DI status changes automatically send status data, which can capture pulses
DO adopts PNP output, which can directly drive intermediate relays
Simultaneously supports Modbus TCP communication protocol
Built in web page function, which can be queried and controlled through web pages
Dual network ports support daisy chain connection for easy wiring
Wide power supply range: 8~32VDC
High reliability, easy programming, and easy application
Standard DIN35 rail installation, convenient for centralized wiring
Users can set module IP addresses and other parameters on the webpage
Web login can set a password for greater security
Low cost, small size, modular design
Dimensions: 120 x 70 x 43mm
Typical applications:
Directly control the electric roller drive card
Replace PLC control to achieve remote control and reduce costs
Intelligent logistics warehouse automatic sorting system
Ethernet industrial automation control system
Intelligent lighting control system
Equipment operation monitoring and control
Measurement of sensor signals
Industrial camera status monitoring and control
IoT switch signal acquisition
Product model: WJ94 - RJ45 | ||
Communication interface RJ45: Output as RJ-45 network interface | ||
Company Profile
Shenzhen Weijunrui Technology Co., Ltd
Since: 2011
Specialty: The company's main products include analog acquisition modules, signal isolators/conversion modules, and signal transmitters
Capacity: Produce 10000 per month
Advanced Features:
Switching to TCP/network/remote IO module, Modbus RTU to TCP, RS232/485 to Ethernet, analog signal (current/voltage/thermistor/frequency/displacement/speed/pulse) isolation transmitter, mV differential signal amplifier, isolation amplifier, micro power DC-DC module power supply, etc
Specialty: The company's main products include analog acquisition modules, signal isolators/conversion modules, and signal transmitters
Capacity: Produce 10000 per month
Advanced Features:
Switching to TCP/network/remote IO module, Modbus RTU to TCP, RS232/485 to Ethernet, analog signal (current/voltage/thermistor/frequency/displacement/speed/pulse) isolation transmitter, mV differential signal amplifier, isolation amplifier, micro power DC-DC module power supply, etc
Function Introduction:
WJ94 General Parameters:
The WJ94 remote I/O module can be used to measure eight switch signals and has four switch outputs. 1, Switching signal input and output
8-channel switch signal input, capable of connecting dry and wet contacts. Please refer to the wiring diagramfordetails; 4-channel switch signal PNP output, with an output voltage equal to the power supply voltage andamaximum output current of 100mA. Be careful not to overload the output, otherwise it will burn out the output
channel. 2, Communication Protocol
Communication interface: 2 RJ-45 network interfaces. Each network port has two indicator lights. After thenetwork cable is plugged in, the Link light (green light) will flash continuously, and the Data light (yellowlight)will flash irregularly. The data between two network ports can be freely exchanged. Communication protocol: Adopt Socket free protocol or MODBUS TCP protocol to achieve industrial Ethernet dataexchange. You can also access the control module directly through the webpage. Network cache: 2K bytes (for both sending and receiving)
Communication response time: less than 5mS. 3, anti-interference
There is a transient suppression diode inside the module, which can effectively suppress various surge pulsesandprotect the module.
(Typical @+25 ℃, Vs is 24VDC)
Input type: switch input, 8 channels (DI0~DI7). Low level: Input<1V
High level: Input 3.5~30V
Input resistance: 30K Ω
Output type: switch output, 4-channel (DO0~DO3). PNP output, with an output voltage equal to the power supplyvoltage and a maximum load current of 100mA, can directly drive intermediate relays. Communication: MODBUS TCP communication protocol
Web page: Supports web access module and web page setting module parameters. Interface: 2 RJ-45 network interfaces. The data between two network ports can be freely exchanged. Working power supply:+8~32VDC wide power supply range, with internal anti reverse and overvoltage protectioncircuits
Power consumption: less than 2W
Working temperature: -10~+60 ℃
Working humidity: 10~90% (no condensation)
Storage temperature: -45~+80 ℃
Storage humidity: 10~95% (no condensation)
Isolation voltage resistance: non isolated
Dimensions: 120mm x 70mm x 43mm
Working humidity: 10~90% (no condensation)
Storage temperature: -45~+80 ℃
Storage humidity: 10~95% (no condensation)
Isolation voltage resistance: non isolated
Dimensions: 120mm x 70mm x 43mm
