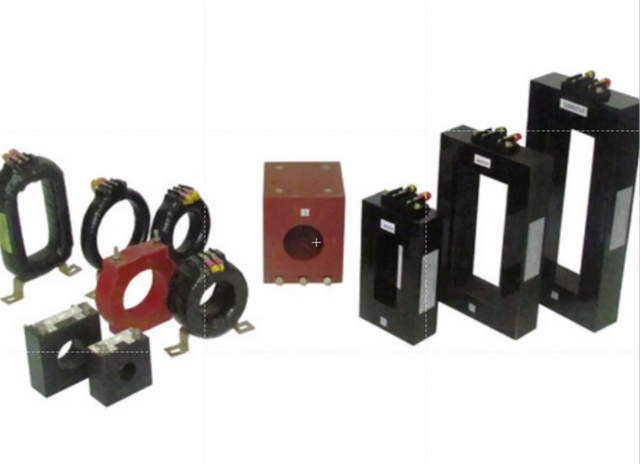

Resin Cast Current Transformers Condition New Type Resin Cast Insulation Class A Brand Naveen Udyog Mass 15 Kg (approx) Input 5 A to 4000
1 Unit
$21.99Product information
High-quality Resin Cast Current Transformers Condition New Type Resin Cast Insulation Class A Brand Naveen Udyog Mass 15 Kg (approx) Input 5 A to 4000 supplied by Naveen Udyog hyd. Bulk wholesale pricing is $21.99 per Unit with a minimum order of 1 Unit. Inquiry for latest prices.
Accuracy Class:
0.2, 0.2/0.5/5 P 10/ Ps
Rated Secondary Current:
1 A/5a
Rated Continuous Thermal Current:
1.2 Of Rated Current
Basic Insulation Level:
12/28/70 Kvp
Mass:
15 Kg (approx)
One Minute Power Frequency Withstand Voltage:
28 Kv
Rated Primary Current:
3000 A
Input:
5 A to 4000 A
Specifications
Accuracy Class:
0.2, 0.2/0.5/5 P 10/ Ps
Rated Secondary Current:
1 A/5a
Rated Continuous Thermal Current:
1.2 Of Rated Current
Basic Insulation Level:
12/28/70 Kvp
Mass:
15 Kg (approx)
One Minute Power Frequency Withstand Voltage:
28 Kv
Rated Primary Current:
3000 A
Input:
5 A to 4000 A
Insulation Class:
A
Burden:
As Per Requirement
Applicable Standard:
Is 2705 & Iec
Brand:
Naveen Udyog
Condition:
New
Insulation Material:
Non Ageing Epoxy
Hygroscopic Property:
Non Hygroscopic
Type:
Resin Cast
Number Of Phases:
Single
Trade Term:
To be discussed
Payment Term:
To be discussed
Rated Voltage:
Up To 11 Kv, Up to 11 KV
Manufacturing Process:
Vacuum Cast Under Controlled Conditions
Business Details
Country:
India
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Not specified
Year Established:
2009
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
Not specified
Preferred Trade Term:
Not specified
Port Of Loading:
Not specified
Product descriptions from the supplier
We are among the leading suppliers of Cast Resin Current Transformers. Manufactured as per the industry standard, Resin cast Current Transformers can be equipped with one or more independent magnetic cores with equal or different characteristics for measuring, metering and/or protective purposes. Being a quality conscious name, we assure that the excellent quality of the offered transformers is never compromised at our end.
Features:
· Non ageing Epoxy with Class B insulation
· Non Hygroscopic
· Vacuum cast under controlled conditions
Specifications:
Technical Data | RC RIC06 |
Type | Resin Cast |
No. of phases | Single |
Insulation class | A |
Rated Voltage | Up to 11 KV |
Rated primary current (A) | 3000 A |
Rated secondary current (A) | 1 A/5A |
Basic insulation level (KV) | 12/28/70 KVp |
One minute power frequency withstand voltage (KVrms) | 28 KV |
Rated continuous thermal current | 1.2 of rated current |
Burden (VA) | As per requirement |
Accuracy class | 0.2/0.5/5 P 10/ PS |
Applicable standard | IS 2705 & IEC |
Mass approx | 15 Kg (Approx) |
