Retro-Reflective Safety Beam Sensor for High Speed Automatic Metal Doors
4-99 Pieces
$16100-299 Pieces
$15300-499 Pieces
$13500 Pieces
$11Product information
High-quality Retro-Reflective Safety Beam Sensor for High Speed Automatic Metal Doors supplied by TIANJIN G-TEK SENSOR TECHNOLOGY CO., LTD. Bulk wholesale pricing ranges from $11 to $16 per Pieces with a minimum order of 4 Pieces. Inquiry for latest prices.
Package Gross Weight:
0.500kg
Supply Voltage:
10-30V DC
Package Size:
16.00cm * 11.50cm * 6.00cm
Warranty:
18 Months
Specification:
18mmx61mm
Detection Distance:
20m
Production Capacity:
5000 Sets/Month
Cable:
5X0.2mm
Specifications
Package Gross Weight:
0.500kg
Supply Voltage:
10-30V DC
Package Size:
16.00cm * 11.50cm * 6.00cm
Warranty:
18 Months
Specification:
18mmx61mm
Detection Distance:
20m
Production Capacity:
5000 Sets/Month
Cable:
5X0.2mm
HS Code:
9032900090
Certification:
CE
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Customized:
Customized
Trade Term:
FOB, EXW, CFR, CIF
Trademark:
G-TEK
IP Rating:
IP67
Protection Rate:
IP67
Light Source:
IR LEDs
Model NO.:
PMF80R
Protection Function:
Reverse Polarity, Short Circuit Protection
Feature:
SemiConductor
Material:
Stainless Steel
Transport Package:
Standard Carton
Payment Methods:
Support payments in USD
Payment Term:
T/T, LC, D/P, PayPal, Western Union, Small-amount payment
Origin:
Tianjin China
Port Of Loading:
Tianjin Port
Control Output:
Transistor Output, NPN
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2014-06-04
Annual Revenue Amount:
Not specified
Numbers Of Employees:
77
Preferred Payment Term:
T/T, LC, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, EXW, CFR, CIF
Port Of Loading:
Tianjin Port
Certificates:
CE, ISO14001, ISO45001:2018, Others, ISO9001:2015
Product descriptions from the supplier

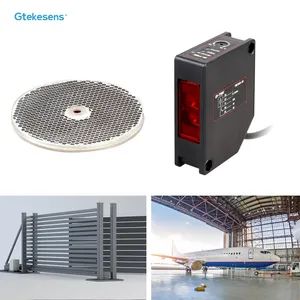

PMF80 series photoelectric sensor with laser light source, visible red class2 laser beams with good directivity, easier for alignment and debugging. It includes the reflective type and Through-beam type.
PMF80R reflective type with excellent optical performance, sensing range as far as 16m; Non-sphere optical lens totally eliminates stray light and overcomes interference from such light sources as sunlight; With high stability and performance, this product is widely used at industry doors, especially in a harsh outdoor environment.
The product has three major features:
Detection range 16m
aspherical optical lensensures the anti-light performance
Laser light source for easy calibration and debugging
| Photoelectric sensor | PMF80R-RF |
| Detection Type | Retro-reflective |
| Detection Object | MinΦ60mm opaque object |
| Detection Range | 16m |
| Light Source | Laser tube (wavelength: 650nm) |
| Supply Voltage | 10~30V DC |
| Un-load current | Max.60mA |
| Response Time | Max.20ms |
| Action Mode | Selecting Light On or Dark On by potentiometer |
| Control Output | Relay output,(contact rating: 30VDC 1A resistance load, 120VAC,1A resistance load,contact component: 1C) |
| Indicator | Power indicator: green;action indicator: red |
| Protection Circuit | Over-voltage,over-current protection and reverse polarity protection |
| Ambient lightness | Sunlight: Max.60000Lux fluorescent: Max.3000Lux |
| Ambient Temperature | -30~+65ºC(Non-freezing) |
| Ambient Humidity | 0~90%RH |
| Material | Housing:ABS,Lens:PMMA |
| Cable | Emitter: Φ 5, 5×0.2mm² |
| Protection Rate | IP67 |
| Accessory | Screw: M4x30, Bracket: IB08 |
Product Installation & Maintenance
Product installation:
The installation of the photoelectric sensor is relatively simple, as long as the sensor is installed on the fixing frame, does not be blocked by other things, and ensures the working state is good.
Product maintenance:
Carry out regular inspections to check its sensitivity and some relatively safe measures. The use of these measures is also the most primitive function of our equipment for protection. For the maintenance of the application switch, we still have to do that we need to regularly Scrub or remove some dirt because only in this way our switch will not have some problems with sensitivity. Although the product has IP67-level protection facilities, the product cannot be immersed in water for too long. Therefore, when the product is used outdoors, be sure to check the product after encountering heavy rain.
Application of products in the door industry
There are 6 main products used in the industrial segmented door, namely microwave radar sensor, 3D person-car separator, economical light curtain, photoelectric sensor, reflector photoelectric sensor, and loop coil detector.
G-TEK's single-beam photoelectric sensors and light curtains are the first choices for protecting and monitoring all types of automatic industrial doors, high-speed doors, sectional doors, garage doors, gate, and loading/docking applications. G-TEK's durable, high-performance and sophisticated sensor systems are designed to perform continuously in the most demanding door applications and environments, making them suitable for exteriors that are directly or indirectly exposed to harsh outdoor environments including sunlight, rain, dust, snow installation, and fluctuating temperatures. Additionally, the wear-resistant design of the G-TEK sensor makes it the first choice for the most challenging door installations, including refrigerated doors.
Specific product model:
1. Microwave radar sensor - GMR series
2. 3D man-car separator - GDC1102
3. Economical light curtain - LSE series
4. Photoelectric sensor - PMF 50T
5. Reflector photoelectric sensor - PMF50R
6. Toroidal coil detector - GVD series
Tianjin G-TEK sensor technology co..ltd is indicated in providing intelligent sensor products and customized solutions for logistics automation, factory automation and process automation. The predecessor of the company is Tianjin G-TEK automation technology Co.,ltd, a professional sensor manufacturer and sensor solution provider, which was established in 2003 with business ranges from Proximity switches, photoelectric sensors, measurement, and safety light curtains to Laser rangefinder sensors, laser radar., etc and serves for Intelligent buildings, intelligent transportation, logistics automation, factory automation and industry robot fields.
Tianjin G-TEK sensor technology co.,ltd was established in 2014 in Xiqing District, Tianjin City and it will fully inherit and expand the original G-TEK automation business with the construction and operation of the new R&D and manufacturing base.
| G-TEK Sensor Product List | ||
| 1 | Photoelectric Sensor | PF21/PF50/PMF55/PMF80/PM18/PS18/PT12series |
| 2 | Proximity Sensor | IM12/IM18/IM30/IF17series |
| 3 | Infrared light curtain | LSM/LSMC/LSE/LSEC series |
| 4 | Safety light curtain | LSAseries |
| 5 | Infrared vehicle separator | LHA/LHAC/LHN/LHNC series |
| 6 | Loop detector | GVD3/GVD1series |
| 7 | Laser radar | LSD/LNDseries |
| 8 | 3D TOF product | GDC1100/GDC1101/GDC1102 |
| 9 | Other sensor product | Microwave radar, Revolving door Anti-pinching sensor |
Q:Is the product shipped and arrived fast?
A:The production cycle for large quantities of products takes 15-30 days, depending on the product.
Q:Can you provide professional advice in a timely manner?
A:We have a professional technical team that can patiently help you answer all professional questions.
Q:Can you provide customized products/services?
A:Yes, we can provide customized products, but the customization needs to meet a certain quantity.
Q:How is the quality of the product? Is the quality stable?
A: G-TEK Sensors has been focusing on the sensor field for 23 years. The quality of the sensor has the double affirmation of the CE certificate and customer reputation.
Q:What is your MOQ?
A:We offer MOQ per piece; it depends on your specific order.
Q:Is there any relevant terms of service and warranty information?
A:We offer a warranty on all items. The sensor products are guaranteed for 15 months, and the light curtain and lidar products are guaranteed for 18 months. For after-sales questions, you can directly contact the product salesperson.
Q:Is there any relevant information available for download on the website?
A:Yes, if you want to download the relevant product manual, you can go to our official website to download it.
Q:Can I be your reseller?
A:Yes, we are looking for distributors in overseas markets.
