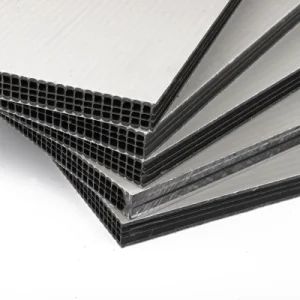

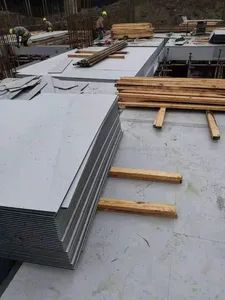

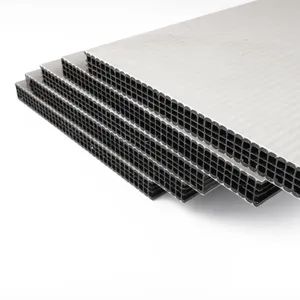

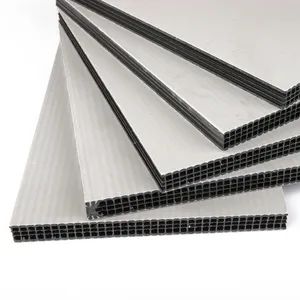

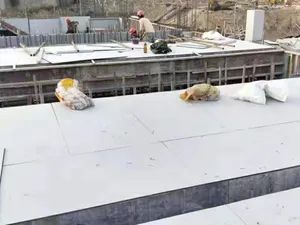

Reusable Waterproof PP Plastic Formwork Corrugated Plastic Sheets
Pieces
Negotiable
Product information
High-quality Reusable Waterproof PP Plastic Formwork Corrugated Plastic Sheets supplied by Zhanjiang Kingstar Building Material Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Specification:
1220*2440mm, 915*1830mm or customized
Package Gross Weight:
2000.000kg
Package Size:
244.00cm * 122.00cm * 100.00cm
HS Code:
39219090
Production Capacity:
50000PCS/Month
Origin:
China
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Specifications
Specification:
1220*2440mm, 915*1830mm or customized
Package Gross Weight:
2000.000kg
Package Size:
244.00cm * 122.00cm * 100.00cm
HS Code:
39219090
Production Capacity:
50000PCS/Month
Origin:
China
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Trade Term:
FOB, CFR, CIF, FCA, EXW, Others
Applications:
Formwork, Partition, Underboarding
Surface:
Glossy
Color:
Grey, Black
Port Of Loading:
Guangzhou, Ningbo
Core:
Hollow
Model NO.:
KSP-001
Payment Term:
LC, T/T, PayPal, Western Union
Payment Methods:
Support payments in USD
Type:
Wall Formwork
Transport Package:
Wooden Pallet
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2007-03-01
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, PayPal, Western Union
Preferred Trade Term:
FOB, CFR, CIF, FCA, EXW, Others
Port Of Loading:
Guangzhou, Ningbo
Certificates:
CE Certificate of Asphalt Shingle, ISO-9001:2000 For Waterproof Material, REACH Test Report, SGS Test Report, SGS Test Report For PVC Foam Sheet
Product descriptions from the supplier
PP Hollow Construction Sheet also called Polypropylene Plastic Construction Formwork, which is lightweight, high strength and can be reused at least 40-50 times, is a good replacement for Plywood formwork.
Specifications:
Character:
•Simple and efficient, speedy assembly
•Lightweight and good hardness and toughness
•Anti-worm, waterproof, anti-corrosion
•Easy to cut, nail and screw on it
•Cost saving, can be reused 50 times
•Smooth off shutter finish
•No plastering
•No beam filling
•Easy to carry and can relieve workers from heavy labor
Applications:
Installation and Usage Instructions
The upper surface of the plastic construction formwork is set at 15mm in depth. The vertical mold for the shear wall may be designed at 15mm depending on the wall’s thickness and height.
2, the distance between the woods:
Roof plastic formwork system: The spacing of wooden supports is based on the concrete slab's thickness. Under typical building practices, the wooden spacing (measured center-to-center) is set below 0.15m, typically ranging from 200mm to 250mm.
Support for plastic shear wall forms: Wood stud spacing is determined based on wall height and wall depth. For instance, if the wall is 2800mm tall and 300mm thick, using a 15mm form results in a vertical sub-rib spacing of 150mm. When the shear wall or column width exceeds 1 meter, a fixed frame is required.
3. The shear wall and column formwork must align perfectly with no joint gap; the inner corner base (wall's lower edge) should feature a wooden edge to facilitate beam, wall, and formwork attachment. The shear wall formwork must be fully assembled as a single unit after being lifted, followed by laying a flat surface board to minimize worker effort and ensure superior finish.
The plastic guide's border stays 15 to 30mm away from the template's edge. Nail durability is average, with a typical length between 40 and 50mm, meaning it should neither be excessively long nor excessively short.
The beam’s wooden edge should extend 1.5 cm beyond the floor, with the wall resting atop the wooden block to prevent pulp from escaping and to conserve wall components.
Specifications:
| Size | 1220*2440mm, 915*1830mm or customized |
| Thickness | 14mm, 15mm, 16mm, 18mm |
| Color | grey surface + black core, white surface + white core |
Character:
•Simple and efficient, speedy assembly
•Lightweight and good hardness and toughness
•Anti-worm, waterproof, anti-corrosion
•Easy to cut, nail and screw on it
•Cost saving, can be reused 50 times
•Smooth off shutter finish
•No plastering
•No beam filling
•Easy to carry and can relieve workers from heavy labor
Applications:
Installation and Usage Instructions
The upper surface of the plastic construction formwork is set at 15mm in depth. The vertical mold for the shear wall may be designed at 15mm depending on the wall’s thickness and height.
2, the distance between the woods:
Roof plastic formwork system: The spacing of wooden supports is based on the concrete slab's thickness. Under typical building practices, the wooden spacing (measured center-to-center) is set below 0.15m, typically ranging from 200mm to 250mm.
Support for plastic shear wall forms: Wood stud spacing is determined based on wall height and wall depth. For instance, if the wall is 2800mm tall and 300mm thick, using a 15mm form results in a vertical sub-rib spacing of 150mm. When the shear wall or column width exceeds 1 meter, a fixed frame is required.
3. The shear wall and column formwork must align perfectly with no joint gap; the inner corner base (wall's lower edge) should feature a wooden edge to facilitate beam, wall, and formwork attachment. The shear wall formwork must be fully assembled as a single unit after being lifted, followed by laying a flat surface board to minimize worker effort and ensure superior finish.
The plastic guide's border stays 15 to 30mm away from the template's edge. Nail durability is average, with a typical length between 40 and 50mm, meaning it should neither be excessively long nor excessively short.
The beam’s wooden edge should extend 1.5 cm beyond the floor, with the wall resting atop the wooden block to prevent pulp from escaping and to conserve wall components.
