Rika Rk210-03 Smart Dust Monitoring System for Solar Energy Solutions
1 Piece
$1,9091 Piece
$1,725Product information
High-quality Rika Rk210-03 Smart Dust Monitoring System for Solar Energy Solutions supplied by Hunan Rika Electronic Tech Co., Ltd.. Bulk wholesale pricing ranges from $1,725 to $1,909 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Operating Temperature:
-40℃-+70℃
Soiling Ratio (Sr) Range:
100% - 50%
Storage Condition:
10℃-60℃@20%-90%Rh
Supply:
12-24V
Production Capacity:
5000 Pieces/Year
Certification:
CE
Origin:
China
Trade Term:
FOB, CIF, CFR, EXW
1 Inquiries
Specifications
Operating Temperature:
-40℃-+70℃
Soiling Ratio (Sr) Range:
100% - 50%
Storage Condition:
10℃-60℃@20%-90%Rh
Supply:
12-24V
Production Capacity:
5000 Pieces/Year
Certification:
CE
Origin:
China
Trade Term:
FOB, CIF, CFR, EXW
Ingress Protection:
IP65
Application:
Industrial
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Communication:
Modbus-RTU
Condition:
New
Specification:
Normal
PV Module Temperature:
Principle:PT100 Measurement Range : - 50~150°C
Trademark:
RIKA
Model NO.:
RK210-03
Output:
RS485
Port Of Loading:
Shenzhen Port,Guangzhou Port
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2016-04-26
Annual Revenue Amount:
Not specified
Numbers Of Employees:
69
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Shenzhen Port,Guangzhou Port
Certificates:
RoHS, CE
Product descriptions from the supplier

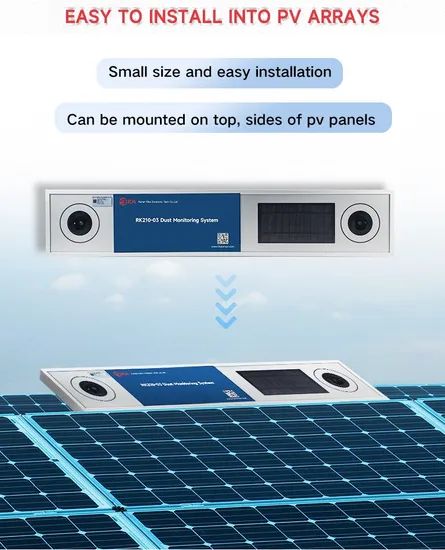

The accumulation of dirt and grime on the glass of solar modules is a significant factor impacting the power generation efficiency of photovoltaic (PV) power plants. Our soiling monitoring device employs advanced blue light pollutant measurement technology, allowing for seamless installation within the PV array. This innovative device integrates effortlessly into the power plant management system. It is strategically mounted on the PV panel frame to precisely measure the reduction in sunlight reaching the solar modules by evaluating the proportion of pollutants (SR).
This intelligent technology informs operation and maintenance personnel when pollutant levels reach a critical threshold, enabling them to make an informed decision about whether to initiate the cleaning process. Remarkably, this product is maintenance-free, requiring only the cleaning of surrounding components concurrently with the PV panels. Due to the diverse pollution rates across expansive photovoltaic parks, the IEC 61724-1 standard necessitates multi-point measurement. This state-of-the-art solution boasts significantly reduced procurement, installation, and maintenance costs compared to traditional products, making it a more economical choice.
FEATURES
Engineered with no moving parts, ensuring maintenance-free operation
Effortless installation process
Simultaneous cleaning with photovoltaic panels for maximum efficiency
Round-the-clock, 24-hour monitoring for optimal performance
RS485 output simplifies seamless integration
Sleek and compact structure for a space-saving solution
APPLICATIONS
Ideal for solar energy and photovoltaic power generation
Perfect for agriculture and forestry monitoring
Effective in crop growth monitoring
Suitable for eco-tourism applications
Essential for weather stations
SPECIFICATIONS
| Item | Specification | Remark |

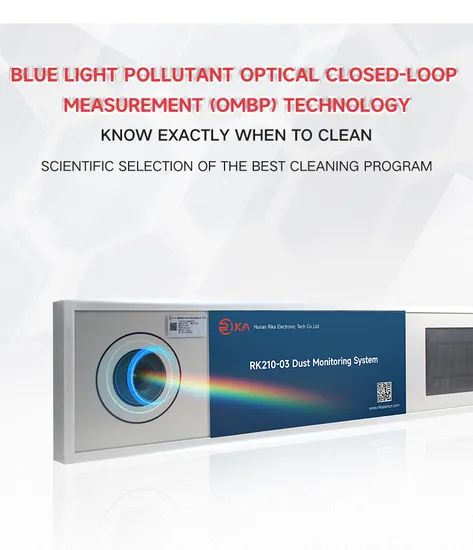

| Technical principles | Continuous multi frequency blue diffuse scattering closed-loop technology | |
| Execution standard | IEC61724-1:2017 | |
| Soiling ratio (SR) range | 100%- 50% | SR = 100-TL(Transmission Loss) |
| Accuracy | 90-100% | ± 1% |
| 80-90% | ± 3% | |
| 50~80% | ± 5% | |
| PV moduletemperature | Principle:PT100 Measurement range : - 50~150°C Accuracy: ± 0.5° C Resolution: 0.1 ºC |
Optional |
| GPS | Positioning accuracy: 10m | Optional |
| Output | RS485 | |
| Relay(Linkage output, passive normally open contact) | ||
| Communication | Modbus-RTU | |
| Supply | 12~24VDC | |
| Maximum power consumption | <2.5W @DC12V | Low-power design |
| Alarm threshold | Can set upper and lower threshold values | |
| Stability | ±1%/year | |
| Operating environment | -40ºC-+60ºC@0-90%RH | |
| Weight | 3.5kg | Net weight |
| Size | 900 * 170 * 42mm | |
| Cablelength | 20m | |
| Ingress protection | IP65 | |
| Storage condition | 10ºC-60ºC@20%-90%RH |
Testimonial
FAQ
Q: Are you the final manufacturer?
A: Yes, we are a dedicated SENSOR manufacturer and exporter from China with over a decade of experience, and our factory is SGS-certified.Q: Do you offer the OEM service?
A: Yes, we provide OEM services and can design custom logo markings for you. Note that the minimum order quantity is 10 pieces for the first order.
Q: Do you offer free samples?
A: Regrettably, we do not provide free samples. However, you can procure samples by covering the sample and shipping costs.
Q: What payment ways do you accept?
A: We accept payments through T/T, PayPal, and Western Union.
Q: What is your delivery time?
A: Delivery takes approximately 6-8 working days from payment confirmation. For orders exceeding 100 pieces, please allow an additional 3-5 working days.
Q: What is your normal delivery way?
A: We dispatch goods via DHL, FEDEX, UPS, EMS, TNT, or other suggested carriers.
Q: How is your quality assurance service?
A: Our quality assurance offers free exchanges within one month and a 12-month warranty for non-manmade damages.
Q: Could we make a visit to your factory?
A: Certainly, you are welcome to visit. However, prior arrangement for visiting investigation is required.
