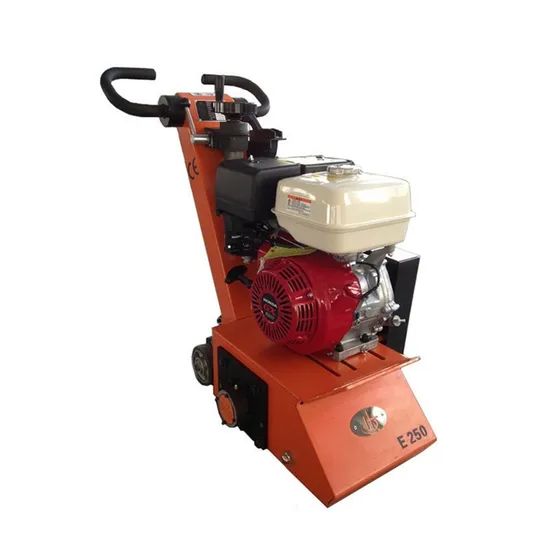

Road Mark Stripper Machine for Sale Mini Electric Planer

Jieheconcrete and milling mThese machines suit compact and mid-sized spaces. Their low center of gravity enables smooth, quiet operation and delivers fast, consistent milling outcomes. Tripled drum bearings combined with reinforced cutter shafts enhance overall durability..

Applications
Our products are widely used in
* municipal conservation,
* roauction,
* building construction,
* flooring treatment(epoxy floor, wear-resistant floor)
* other fields.

Specifications
* Honda engine with six bearings;
* Drum is heat treated specially;
* Good quality cutter;
* Drum can be replaced easily;

Pic1: 12PK belt has long life time
Pic2: Double bearing has high efficence
Pic3: Change the drum assembly only in 5 minutes
Sharp TCT cutter is aggressive to remove coatings
Pic4: Cutting depth adjustment
Pic5: Dust control brushes
Pic6: Anti-vibration mounts makes comfortable operation
The angular of strong handle can be transformed
Others: Front mounting lifting handle makes easy transportation

Standard Specification, If you have other requirements, We also can custom made it for you.



Model	JHE-250	JHE-250E	JHE-250K	JHE-250D
Power Source	GX390 Honda/ GX270	Siemens Electrical motor	Kohler CH440/ CH395	186F Diesel Gasoline engine
Horse Power	13HP/9HP	7.5KW	14HP/9.5HP	10 HP
Working width	250mm	250mm	250mm	250mm
Working depth	0-10mm	0-10mm	0-10mm	0-10mm
No. of shaft	6pieces	6pieces	6pieces	6pieces
No. of cutter	90pieces	90pieces	90pieces	90pieces
Power Drive	Manual	Manual	Manual	Manual
Working area	25-50 m2 / H	25-50m2 / H	25-50m2 / H	25-50m2 / H
Net Weight	178KG	201KG	132KG	199KG
L× W× H	910×470×880mm	910×470×880mm	910×470×880mm	910×470×880mm
Drum Rotation	Down cut (clock wise)
Milling mode	downward cut
Depth Control	Adjustable



Our Advantages

DASO carbide scarifier blades feature exceptional strength and are built to eliminate surfaces like road paint, epoxy layers, and waterproofing sheets. Each unit delivers a service duration of 5,000 to 6,000 square meters.



We have differentstyles

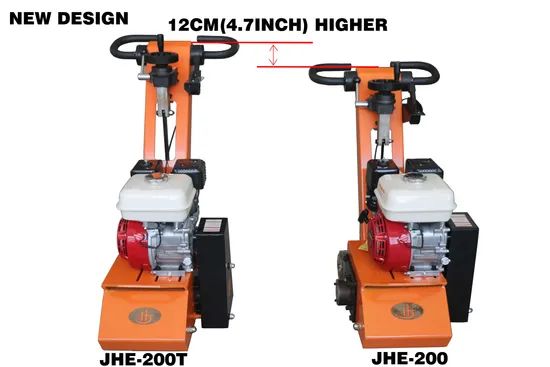

          970mm(38") and 850mm(33.5")Height are Built for Your Choice



Applications& Training

JIEHE offers concrete scarifying solutions featuring equipment and blades designed to smooth, strip, and roughen surfaces. Both handheld and self-driving Crete-Planers® are available in multiple configurations. These tools effectively handle typical concrete issues such as irregularities, surface blemishes, mark elimination, and fixing trip hazards on walkways.

You may like



Workshop



Our packaging is Polywood wooden case , Carton If you have other requirements, We will also can help you custom made it

JHE-200 dimensions(mm) is: 940*950*1080; 45 sets 20" container

WHY CHOOSE US?

1.We are factory,direct factory price. Send Inquiry

2.Picture and videos can be provide to you to show how to use the machine.

3.7*24 hoursServe:we treat our clients as friends.

4.High quality:we have strict quality control system and enjoy a good reputation in the world.

5. With more than 19 years manufacturing experiences.
