Road Safety Barrier System Guardrail Accessories Origin China Material Steel Trademark DACHU HS Code 7308900000 Position Road
1 Meter
$301 Meter
$15Product information
High-quality Road Safety Barrier System Guardrail Accessories Origin China Material Steel Trademark DACHU HS Code 7308900000 Position Road supplied by Wuhan Dachu Traffic Facilities Co., Ltd.. Bulk wholesale pricing ranges from $15 to $30 per Meter with a minimum order of 1 Meter. Inquiry for latest prices.
Beam Thickness:
2.5/2.6/2.67/2.7/2.8/2.82/3/4/4.5/10/20mm
Production Capacity:
240000 Tons/Year
Post Thickness:
3/4/4.3/4.5/5/5.5/6/7/9/10/20mm
Zinc Coating Weight:
300/550/610/900/1100/1220 G/M2
Specification:
4128*312*83*2.67/4128*506*83*3mm
HS Code:
7308900000
Raw Material:
A572/Q345b/Ha350/Q235B/A36/S355jr/S275jr
Applied Standards:
Aashto M-180, En-1317, AS/NZS 3845-1999, etc.
Specifications
Beam Thickness:
2.5/2.6/2.67/2.7/2.8/2.82/3/4/4.5/10/20mm
Production Capacity:
240000 Tons/Year
Post Thickness:
3/4/4.3/4.5/5/5.5/6/7/9/10/20mm
Zinc Coating Weight:
300/550/610/900/1100/1220 G/M2
Specification:
4128*312*83*2.67/4128*506*83*3mm
HS Code:
7308900000
Raw Material:
A572/Q345b/Ha350/Q235B/A36/S355jr/S275jr
Applied Standards:
Aashto M-180, En-1317, AS/NZS 3845-1999, etc.
Origin:
China
Trademark:
DACHU
Model NO.:
DC-GR-190213
Trade Term:
FOB, EXW, CFR, CIF, DDP, Others, FCA
Spacer Styles:
I/U/C/H/Upn/Unp/Ipe/Z/Round Section/Metallic Type
Post Styles:
I/U/C/H/Upn/Unp/Ipe/Z/Round/Sigma Section
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram, DA, Escrow
Yield Point:
Minimum 355MPa
Tensile Strength:
Minimum 495MPa
Port Of Loading:
Qingdao Port, Tianjin Port
Position:
Road Side
Transport Package:
Standard Export Packing
Material:
Steel
Elongation:
in 50mm (2 in), Minimum, 15 Percent
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2016-06-01
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram, DA, Escrow
Preferred Trade Term:
FOB, EXW, CFR, CIF, DDP, Others, FCA
Port Of Loading:
Qingdao Port, Tianjin Port
Certificates:
CE, Certificate of Qualification for Mass Production of Traffic Engineering Products 3, Certificate of Quality Management System Certification ISO9001:2008, Dachu Certificate, Guardrail Test Report, ISO14001, ISO45001, ISO9001, SGS certificate
Product descriptions from the supplier
Guardrail Introduction
Roadside Barriers have been developed over the years to safely redirect vehicles that leave the roadway. Many different rigid, semi-rigid and flexible designs for roadside barriers have been evolved. The most common system consist of a steel w-beam rail supported on steel posts with end treatments and transitions of various designs using similar materials, that's our guardrail, it can be hot dip galvanized or sprayed.
Our guardrails are designed in pursuance to the principle of keeping the vehicle inside the road in a secure way and at the same time minimizing the loss of life and property in case of an accident.
Road safety barrier system-a roadside device that provides a physical restriction to penetration of a vehicle in a way that reduces the risk to vehicle occupants and other traffic. Its purpose is to contain or redirect an errant vehicle. It is used to shield roadside obstacles or non-traversable terrain features. Occasionally, it may be used to protect people from vehicular traffic.
Guardrail Beam Introduction
W beam is the world's most widely specified safety barrier system. Highly effective and inexpensive, the most popular means of eliminating the threat from roadside hazards.Being a semi rigid barrier, W beam guardrail provides a desirable outcome for both designer and vehicle occupants. The ability of the barrier to absorb some of the crash energy reduces occupant risk and the deformation of the impacting vehicles.
An important attribute of Thrie-beam guardrail is its high level of performance especially for large vehicles. Due to the greater height of the rail face, Thrie-beam guardrail provides reduced deflection and improved resistance to vehicle vaulting or under running. The reduced dynamic deflection and maintenance demand makes Thri-ebeam guardrail ideally suited for major facilities carrying a high volume of high-speed traffic. Thri-ebeam guardrail should also be used in transition from Flex-beam guardrail to more rigid barriers. This significantly reduces the deflection of the barrier system at transition to the rigid barrier.
Guardrail Technical Data
- Minimum tensile strength: 483MPa(70,000psi); and
- Minimum elongation: in 50mm(2 in), 12%.
- Minimum tensile strength: 310MPa(45,000psi); and
Guardrail Specification

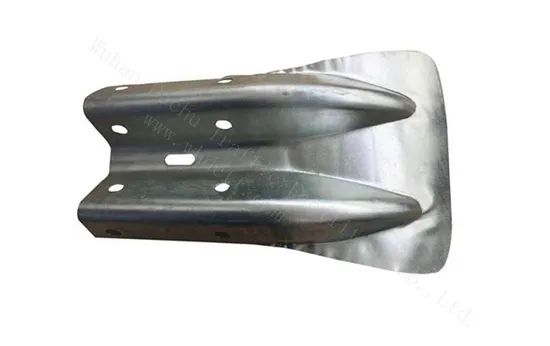

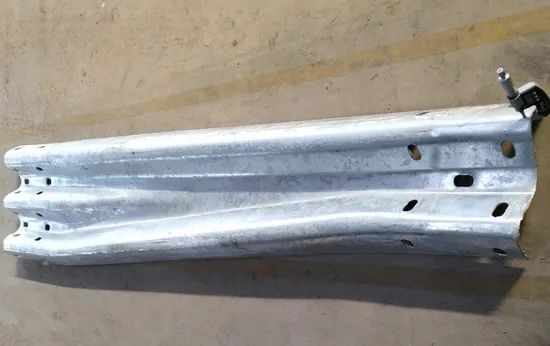

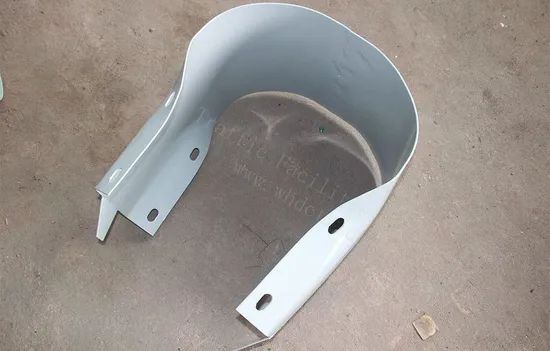

Guardrail Product Images
Requirements for the Guardrail Surface Finish
A road safety barrier system shall have a surface finish that minimizes the friction between the system and an impacting vehicle. The surface finish shall be uniform, resistant to incidental damage and shall not be affected by detergents and similar agents that may be used to clean the external surfaces. Protrusions from the surface, which are likely to be struck by an impacting vehicle, shall not exceed 20 mm. Any protrusions shall be rounded or similarly treated, to reduce the possibility of snagging the body work of a vehicle or catching at the person or clothing of an individual. After construction, components shall not be left with splits, burrs or sharp edges after construction. Lapping of elements shall be in the direction of the potential path of an errant vehicle.
Road safety barrier system information
Where a road safety barrier system is proposed, the following shall be obtained, recorded and made available:
(a) The points where the need for a road safety barrier system begins and ends (length of need).
(b) Minimum transverse offset required from the edge of the adjacent traffic lane.
(c) Allowable dynamic deflection and working width restrictions.
(d) Interfaces with existing systems.
(e) The nature of the ground or structural support that is required.
(f) Provisions that have to be made for expansion or contraction of the foundation.
(g) Whether gating devices can be used as terminals.
(h) The nature of any road furniture or systems that have to be incorporated, such as acoustic devices, delineators, sign support systems, lighting columns and the like.
(i) Spacing and nature of provisions for access through the road safety barrier system in an emergency or for planned work that requires different traffic arrangements for short periods.
(j) Whether traffic can impact the road safety barrier system in the reverse direction.
Guardrail Installation
Prior to installing a non-rigid road safety barrier system, the site shall be inspected to determine whether-
(a) the proposed type of road safety barrier system and its layout are still appropriate;
(b) the planned type of road safety barrier system or its layout, or both, requires modification; or
(c) the installation of the road safety barrier system is to be aborted.
Guardrail Features & Applications:
-To provide railing protection to motor vehicles at dangerous road areas such as steep slop,obscure curve,high embankment and sharp corner,Expressway, etc.
-To absorb sudden impact during collision to minimize injury to vehicles and passengers.
-To act as directional railing for vehicles moving in the right direction.
-To act as a median barrier for avoiding head on collision.
-To act as a protective barrier for pedestrian along the high way.
Roadside Barriers have been developed over the years to safely redirect vehicles that leave the roadway. Many different rigid, semi-rigid and flexible designs for roadside barriers have been evolved. The most common system consist of a steel w-beam rail supported on steel posts with end treatments and transitions of various designs using similar materials, that's our guardrail, it can be hot dip galvanized or sprayed.
Our guardrails are designed in pursuance to the principle of keeping the vehicle inside the road in a secure way and at the same time minimizing the loss of life and property in case of an accident.
Road safety barrier system-a roadside device that provides a physical restriction to penetration of a vehicle in a way that reduces the risk to vehicle occupants and other traffic. Its purpose is to contain or redirect an errant vehicle. It is used to shield roadside obstacles or non-traversable terrain features. Occasionally, it may be used to protect people from vehicular traffic.
Guardrail Beam Introduction
W beam is the world's most widely specified safety barrier system. Highly effective and inexpensive, the most popular means of eliminating the threat from roadside hazards.Being a semi rigid barrier, W beam guardrail provides a desirable outcome for both designer and vehicle occupants. The ability of the barrier to absorb some of the crash energy reduces occupant risk and the deformation of the impacting vehicles.
An important attribute of Thrie-beam guardrail is its high level of performance especially for large vehicles. Due to the greater height of the rail face, Thrie-beam guardrail provides reduced deflection and improved resistance to vehicle vaulting or under running. The reduced dynamic deflection and maintenance demand makes Thri-ebeam guardrail ideally suited for major facilities carrying a high volume of high-speed traffic. Thri-ebeam guardrail should also be used in transition from Flex-beam guardrail to more rigid barriers. This significantly reduces the deflection of the barrier system at transition to the rigid barrier.
Guardrail Technical Data
1. Beam and transition sections specification comply to AASHTO M180-2012
- Minimum yield strength: 345MPa(50,000psi)- Minimum tensile strength: 483MPa(70,000psi); and
- Minimum elongation: in 50mm(2 in), 12%.
2. End and buffer sections comply to AASHTO M180-2012
- Minimum yield strength: 227MPa(33,000psi)- Minimum tensile strength: 310MPa(45,000psi); and
3. Galvanizing specification complies to
- AASHTO Designation: M111M/M111
4. Bolts and Nuts conform to or exceed the requirements of ASTM A 307
Guardrail Specification
Guardrail Product Images
Requirements for the Guardrail Surface Finish
A road safety barrier system shall have a surface finish that minimizes the friction between the system and an impacting vehicle. The surface finish shall be uniform, resistant to incidental damage and shall not be affected by detergents and similar agents that may be used to clean the external surfaces. Protrusions from the surface, which are likely to be struck by an impacting vehicle, shall not exceed 20 mm. Any protrusions shall be rounded or similarly treated, to reduce the possibility of snagging the body work of a vehicle or catching at the person or clothing of an individual. After construction, components shall not be left with splits, burrs or sharp edges after construction. Lapping of elements shall be in the direction of the potential path of an errant vehicle.
Road safety barrier system information
Where a road safety barrier system is proposed, the following shall be obtained, recorded and made available:
(a) The points where the need for a road safety barrier system begins and ends (length of need).
(b) Minimum transverse offset required from the edge of the adjacent traffic lane.
(c) Allowable dynamic deflection and working width restrictions.
(d) Interfaces with existing systems.
(e) The nature of the ground or structural support that is required.
(f) Provisions that have to be made for expansion or contraction of the foundation.
(g) Whether gating devices can be used as terminals.
(h) The nature of any road furniture or systems that have to be incorporated, such as acoustic devices, delineators, sign support systems, lighting columns and the like.
(i) Spacing and nature of provisions for access through the road safety barrier system in an emergency or for planned work that requires different traffic arrangements for short periods.
(j) Whether traffic can impact the road safety barrier system in the reverse direction.
Guardrail Installation
Prior to installing a non-rigid road safety barrier system, the site shall be inspected to determine whether-
(a) the proposed type of road safety barrier system and its layout are still appropriate;
(b) the planned type of road safety barrier system or its layout, or both, requires modification; or
(c) the installation of the road safety barrier system is to be aborted.
Guardrail Features & Applications:
-To provide railing protection to motor vehicles at dangerous road areas such as steep slop,obscure curve,high embankment and sharp corner,Expressway, etc.
-To absorb sudden impact during collision to minimize injury to vehicles and passengers.
-To act as directional railing for vehicles moving in the right direction.
-To act as a median barrier for avoiding head on collision.
-To act as a protective barrier for pedestrian along the high way.
We manufacture highway guardrails according to the Standards as below:
A. AASHTO-M180 (Corrugated Sheet Steel Beams For Highway Guardrail - USA)
B. AS/NZS 3845:1999(Road Safety Barrier Systems - Australia/New Zealand)
C. BS EN-1317(Road Restraint Systems - Europe)
D. JT/T 281-1995(Corrugated Sheet Steel Beams For Expressway Guardrail - China)
E. Or tailor-make according to client's requirements
Guardrail Production Lines:
Company Qualifications:
Our Production Process for Galvanized Guardrail:
Our Production Process for Sprayed Guardrail:
Our guardrails:
Guardrail Posts:
Dachu Guardrail FAQ
1. Q: What's your MOQ (minimum order quantity) for guardrails?
A: 4 km or Two full containers of guardrails.
2. Q: Are you trade company or guardrail factory?
A: We are guardrail factory, self making and self marketing.
3. Q:What's your payment terms for guardrail order?
A: We supply our guardrail by below payment terms:
1) 30% in advance by T/T ,70% by L/C; or
2) 100% by L/C; or
3) Negotiate according to the order status.
4. Q: Which delivery terms do you do for guardrails?
A: FOB China port is recommended for guardrails,but CNF/CIF destination port is also acceptable.
5. Q: What is the delivery time for guardrails?
A: Normal production time for guardrail sets will be about 35 days, and the final delivery time will be confirmed according to the guardrail order items and quantities.
6. Q: Can you do the official test for the guardrail order, which authoritative organization is recommend?
A: Yes, the test for guardrail order can be arranged as per requirement, SGS test is recommended, and we could even do the test in the name of costomers' company.
7. Q: Can you send us samples before we place the guardrail order, and how to charge it ?
A: Yes, we could send you guardrail samples for free, you just need to pay the postage fee.
How to inquire and place guardrail order to us ?
Step 1: Send us inquiry at made-in-china, or send us email or call us at 0086-13517190016
Step 2: Provide your specification and quantity to us, or we could offer our guardrail product list for your reference to choose
Step 3: We will made detailed quotation as soon as we received your specification and quantity
Step 4: Samples can be arranged if needed, the sample is free to you, you just need to bear the postage fee
Step 5: Factory visit if possible, you will be warmly welcomed
Step 6: Confirm the order, we will arrange the production as soon as the advance payment is received
Step 7: Confirm the delivery time, balance payment need to be arranged before the goods is dispatched
Step 8: You could contact us for any questions even after sales.
Why Us :
A. We are manufacturer, with competitive price and reliable quality to enable clients to take the projects;
B. We are certificated plant, with various certificates to secure clients' official requirements;
C. We possess our own export qualification and are rich in trade operation to simplify clients' operation.
Contact us today for more information about us, and you are the most welcome to visit our production premises anytime.
Wuhan Dachu Traffic Facilities Co.,Ltd.
(Company Code: 91420114303720312K; Trade Licence Code: 03027006; Customs Code: 420196619D )
