Robust and High-Precision Textile Fabrics Tensile Strength Testing Machine
Piece
Negotiable
Product information
High-quality Robust and High-Precision Textile Fabrics Tensile Strength Testing Machine supplied by UBY Industrial Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Accuracy Grade:
0.5
Resolution:
1/150000
Weight:
100-500Kg
Production Capacity:
200/Year
Test Range:
320mm Max
Test Speed:
50~500mm/Min(Control by Keyboard Inputing)
HS Code:
9024800000
Maxcapacity:
<1000KN
Specifications
Accuracy Grade:
0.5
Resolution:
1/150000
Weight:
100-500Kg
Production Capacity:
200/Year
Test Range:
320mm Max
Test Speed:
50~500mm/Min(Control by Keyboard Inputing)
HS Code:
9024800000
Maxcapacity:
<1000KN
Power Source:
AC220V
Origin:
China
Control:
Computer or Manual Control
Display:
Computer or PLC
Max Diameter Of Workpiece:
Customized
Load Way:
Electronic Load
Trade Term:
FOB, EXW, CFR, CIF, DDP, FCA
Transport Package:
Professional Export Packaging
Port Of Loading:
Shenzhen, Shanghai, Guangzhou
Loading Method:
Static Load
Payment Term:
T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram
Use:
Tensile, Compression, Bend, Shear, Peel, Tear Test
Model NO.:
UP-2003
Type:
Universal Testing Machine
Trademark:
own
Accuracy:
±0.5%or Better
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2017-08-21
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram
Preferred Trade Term:
FOB, EXW, CFR, CIF, DDP, FCA
Port Of Loading:
Shenzhen, Shanghai, Guangzhou
Certificates:
Appearance patent certificate, CE, ISO24001, ISO45001, ISO9001, SGS
Product descriptions from the supplier
Robust and High-precise Textile Fabrics Tensile Strength Testing Machine
Product Description:
This series of Tensile Tester is widely used in wires & cables, hardware, metal, rubber, footwear, leather, apparel, fabric, tape paper products, pharmacy and so on, for tensile strength, tear resistance, peel strength, bend strength, shear force , ect with different fixtures according to national and international standards customer required.

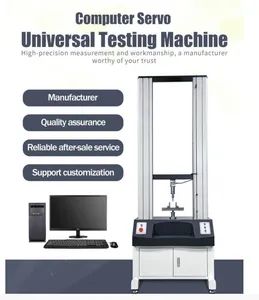

This machine is a kind of electric tensile tester which uses the motor to drive ball screw to move fixture. Place the fixture with sample between the upper and lower fixture, use a given speed to pull sample upward by upper fixture. Load cell above upper fixture will sense tensile strength, and convert the strength into voltage sign and output to the display screen. And the strength value will be displayed automatically.
Standards:
ASTM D903, GB/T2790/2791/2792, CNS11888, JIS K6854, PSTC7,GB/T 453,ASTM E4,ASTM D1876,ASTM D638,ASTM D412,ASTM F2256,EN1719,EN 1939,ISO 11339,ISO 36,EN 1465,ISO 13007,ISO 4587,ASTM C663,ASTM D1335,ASTM F2458,EN 1465,ISO 2411,ISO 4587,ISO/TS 11405,ASTM D3330,FINAT and etc.
Applications:
1. Deformation under defined load: Test deformation under defined load of tested sample
2. Load under defined deformation: Test load under defined deformation of tested sample
3. Software can issue report with results for max. force, elongation, tensile strength, peel strength, tear strength, compression strength, etc.
4. This machine can do different test as per customer requirement such as peel test, tear test, compression test, bend test with different clamps.
Specification:
| Item | Description |
| Max. Force | 2000 kg (20KN) |
| Load cell | Germany brand load cell for high accuracy |
| Control system | PC with windows 7 system |
| Motor | Panasonic servo motor w/ DC variable speed drive system, high-precision mechanical ball screw rod |
| Force reading | kgf, Ibf, N, KN, T etc |
| Stoke | 1100mm including fixture |
| Load cell Resolution | 1/250,000 |
| Load Precision | within ±0.5% |
| Test speed | 0.01~500mm/min (adjustable) |
| Curves display | Load- elongation, Elongation-time, Time-elongation, Stress-strain |
| Data display | Max. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc… |
| Safety features |
E-Stop Over-load protection Upper and lower limit switches Load sensor with automatic retreat |
Product Features:

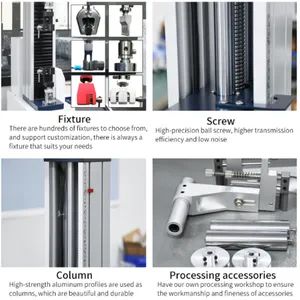

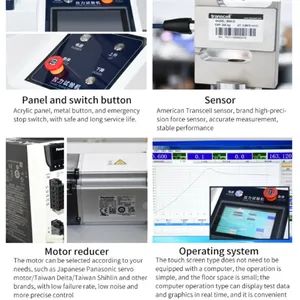

1. Motor system: Panasonic servo motor +Servo driver +High precise ball screw
2. Control system: a, computer control ; b, Back to origin automatically after the test, c, store data automatically or by manual operation
3. Data transmission: RS232
4. Displacement resolution: 0.001mm
5. Graph scale automatic optimization can make graph to display with best measurement and can implement graphics dynamic switching in the test and has force-elongation, force- time, elongation -time, stress - strain.
6. It can save results automatically after test finished, and it is manual filing. It can display maximum force, yield strength, compressive strength, tensile strength, elongation, peel interval maximum, minimum and average, etc.
7. User can set parameters of product material such as length, width, thickness, radius, area and so on.
8. Languages: English,Chinese
Our service:
During the whole business process, we offer Consultative Selling service.
1)Customer inquiry process:
Discussing testing requirements and technical details, suggested suitable products to customer to confirm.
Then quote the most suitable price according to customer requirements.
2)Specifications customize process:
Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the appearance of the product. Then, confirm the final solution and confirm the final price with the customer.
3)Production and delivery process:
We will produce the machines according to confirmed PO requirements. Offering photos to show the production process.
After finishing production, offer photos to the customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.
Deliver the products is confirmed shipping time and inform the customer.
4)Installation and after-sale service:
Defines installing those products in the field and providing after-sales support.
FAQ:
1. Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are the one of professional Manufacturers like Environmental Chambers, Leather shoe testing equipment, Plastic Rubber testing Equipment... in China. Every machine purchased from our factory has 12 months warranty after shipment. Generally, we offer 12 months for FREE maintenance. while considering sea transportation, we can extend 2 months for our customers.
Moreover, If your machine doesn't work, you can send us an e-mail or call us we will try our best to find the problem through our conversation or by video chat if necessary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.
2. What about the delivery term?
For our standard machine which means normal machines, If we have stock in the warehouse, is 3-7 working days;
If there is no stock, normally, the delivery time is 15-20 working days after payment received;
If you are in urgent need, we will make a special arrangement for you.
3. Do you accept customization services? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.
4. How can I install and use the machine?
Once you have ordered the testing machines from us, we will send you the operation manual or video in English version through Email.
Most of our machine is shipped with a whole part, which means it is already installed, you just need to connect the power cable and start to use it. And if it's necessary, we can also assist you to install your machine on site.
