Roll Forming Machine Auto Parts Wheel Rim Car Rim CNC Machine Truck Wheel
1 Piece
$200,0001 Piece
$100,000Product information
High-quality Roll Forming Machine Auto Parts Wheel Rim Car Rim CNC Machine Truck Wheel supplied by Shandong Xiaoya Precise Machinery Co., Ltd.. Bulk wholesale pricing ranges from $100,000 to $200,000 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Warranty:
12 Months
Feature:
Automation
Customized:
Customized
Power Source:
Electric
Transport Package:
Export Package
Trade Term:
FOB, CIF, CFR, EXW
Model NO.:
GX-48/800
Certification:
ISO9001, CE
Specifications
Warranty:
12 Months
Feature:
Automation
Customized:
Customized
Power Source:
Electric
Transport Package:
Export Package
Trade Term:
FOB, CIF, CFR, EXW
Model NO.:
GX-48/800
Certification:
ISO9001, CE
Origin:
Jinan, Shandong, China
Payment Term:
LC, T/T, D/P
Forging Forming Method:
Mold Forging
Condition:
New
Port Of Loading:
Qingdao Port
Advantage:
Use Widely
Trademark:
Xiaoya
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2005-08-16
Annual Revenue Amount:
Not specified
Numbers Of Employees:
291
Preferred Payment Term:
LC, T/T, D/P
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Qingdao Port
Certificates:
CE
Product descriptions from the supplier

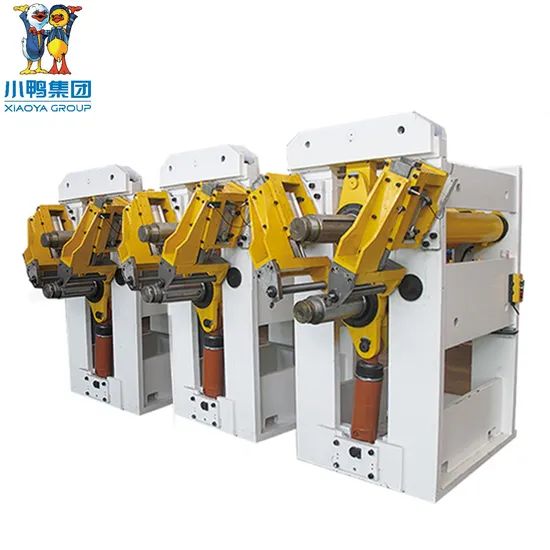

Roll Forming Machine
The roll forming machine is also known as a wheel rim forming machine, and is used for symmetrical or asymmetrical roll forming of steel wheel rims. Theroll forming equipment consists of the main machine, hydraulic transmission system, pneumatic system, PC control system and lubrication system.

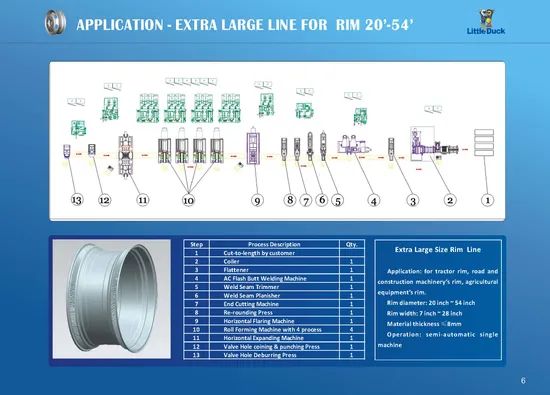

Generally, small rim lines and large rim lines carry out 3 processes to complete the rim profiling. Each process uses one set of roll forming machines. However, the ultra-large line completes the rim roll forming operation through 4 processes. The 4thpresses the roll press into a non-skid pattern.
| No. | Items | parameters | |||
| 1 | Model | GX-23/300 | GX-45/600 | GX-48/800 | |
| 2 | Roll forming force | 230KN | 400KN | 500KN | |
| 3 | Motor power of hydraulic system | 62.5Kw | 82.5Kw | 165Kw | |
| 4 | Length of mould on spindle | 350mm | 670mm | 900mm | |
| 5 | Upper and lower spindle speed | 220r/min | 200r/min | 200r/min | |
| 6 | Spindle material and diameter | 40Cr, 140mm | 40Cr, 200mm | 40Cr, 220mm | |
| 7 | Space between upper and lower spindle | 240~380mm | 340~480mm | 380~520mm | |
| 8 | Lower spindle stroke | 140mm | 140mm | 140mm | |
| 9 | Adjustable range of lower spindle feeding speed | 2~10mm/s | 2~10mm/s | 2~10mm/s | |
| 10 | Adjustable dip angle of lower spindle | -0.35 ° ~0.17 ° | ±0.35° | ±0.35° | |
| 11 | Side guide roller (Linear) | Stroke | 100mm | 140mm | 160mm |
| Adjustable stroke | 50mm | 50mm | 50mm | ||
| 12 | Max. diameter of guide roller | 200mm | 220mm | 240mm | |
| 13 | Rated input voltage | 380V | 380V | 380V | |
| 14 | Rate input current | 62.5Kw | 82.5Kw | 165Kw | |
| 15 | Power cord section (copper) | Single core 70mm 2(3+2) | Single core 90mm 2(3+2) | Single core 180mm 2(3+2) | |
| 16 | Consumption of hydraulic cooling water | 2000L /h | 3000L /h | 4000L /h | |
Main Features
1.The forming dies on this wheel rim roll former comes with an easy to dismount design which ensures a quick change of the die, controlling the changing process to take only about 30 minutes.

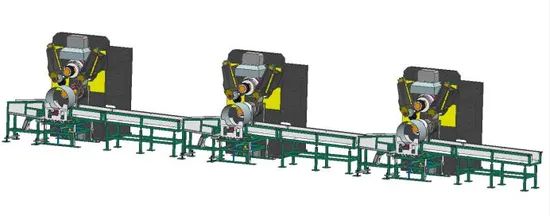

2.Both the small and large wheel rim lines often use 3 roll forming machines that share one set of automatic load and unload mechanisms. These systems use a 3 process and 4 location design, which saves time and improves production efficiency.
3.The split design between the load/unload unit and the main machine allows for both manual and automatic operations.
4.The roll forming dies can be designed to be symmetric or asymmetric according to processing demands.
5.The upper and lower shafts are hydraulic driven. During the rim profiling, the rotating speed of the upper and lower rollers can be automatically adjusted.
6.The shafts can be adjusted at both dip angles and axial directions. This makes each part of the roller surface uniformity stressed, ensuring the precision.
7.The space between the upper and lower spindle is adjustable, as is the feeding speed.
8.The stroke of a side guide rail is also adjustable.
