Rotary Angle Encoder and Remote Display, with a 6mm Diameter Shaft. Angle Tilt Inclinometer.
1-19 Piece
$32.8520-99 Piece
$31.86100 Piece
$28.7Product information
High-quality Rotary Angle Encoder and Remote Display, with a 6mm Diameter Shaft. Angle Tilt Inclinometer. supplied by Hangzhou Allendale Limited. Bulk wholesale pricing ranges from $28.7 to $32.85 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Resolution:
+/-0.1 Degrees
Precision:
+/-0.1 Degrees
Range:
0-360 Degrees
Production Capacity:
500000
Accuracy:
A
Measure Method:
Automatic
Transport Package:
Box
Certification:
CE, RoHS
Specifications
Resolution:
+/-0.1 Degrees
Precision:
+/-0.1 Degrees
Range:
0-360 Degrees
Production Capacity:
500000
Accuracy:
A
Measure Method:
Automatic
Transport Package:
Box
Certification:
CE, RoHS
Origin:
China
Trade Term:
FOB, CIF, EXW
Payment Term:
LC, T/T
Model NO.:
ME-AN-REM-ROT
Trademark:
Machine-DRO
Customized:
Non-Customized
Precision Measuring Device:
Precision Measuring Device
Measurement Object:
Tilt
Specification:
Weight (grams): 220.0000
Port Of Loading:
shanghai, ningbo
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2013-09-25
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T
Preferred Trade Term:
FOB, CIF, EXW
Port Of Loading:
shanghai, ningbo
Product descriptions from the supplier
Details

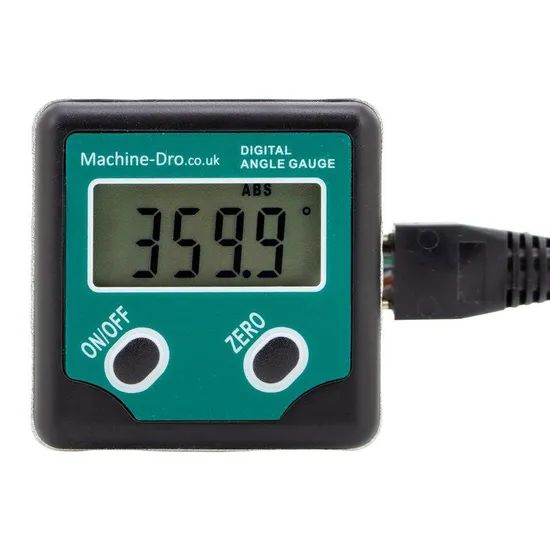

- The remote display has the on/off button and a zero function button allowing the display to be set to zero degrees in any position.

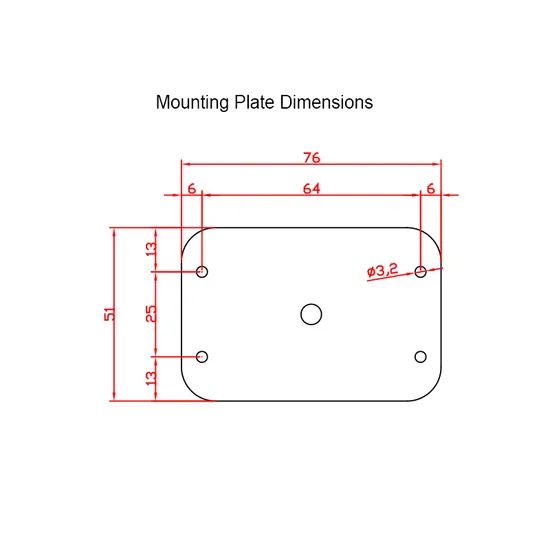

- The rotary encoder has a flat steel flange with four mounting holes and 6mm diameter shaft.

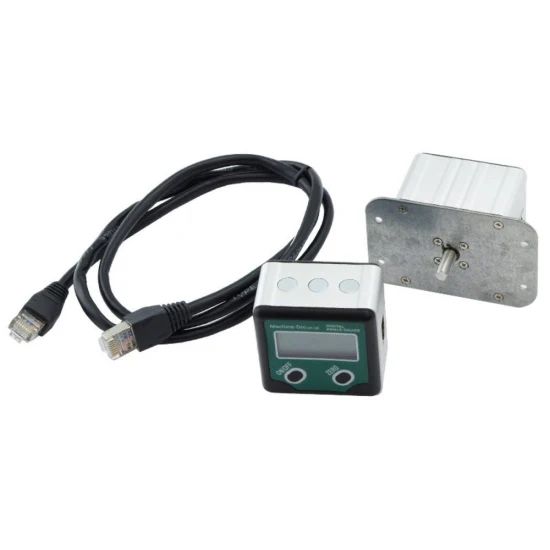

- The Display is linked to the rotary encoder by a standard RJ45 cable. This allows the display and encoder to be disconnected. A 900mm cable is included
- The gauge is powered by a standard CR2032 battery located behind a twist lock compartment on the rear of the display
- We would recommend that 5 metres is the maximum cable length when using the Angle Tilt Sensor/Inclinometer.
- Cables can be extended to 5 metres but please note that this must be a RJ45 Cat 5 lead that is screened. If not not there may be interference issues
- Please Note: The rotary encoder must not be used at high speed/rpm. Protect encoder from coolant and moisture ingress
- Applications Include: Rotary tables, Dividing heads, Angle table, Telescopes, Tilting angle plates, Milling machine head angle etc
- Range: 0-360 degrees (360 degrees displays as 0.0 degrees and will continue to count up)
- Accuracy - +/-0.1 degrees
| Weight(g) | 220.000000 |
|---|---|
| Type | Digital Angle Finder |
| Brand | Machine DRO |
| MPN | ME-AN-REM-ROT |
| GTIN | 5055396108583 |
| Condition | new |
| Display Type | Digital |
