Rotary Compressor with PWM Control for Refrigeration and Mobile Power Solution
Pieces
Negotiable
Product information
High-quality Rotary Compressor with PWM Control for Refrigeration and Mobile Power Solution supplied by Kepler(Putian)Import&Export Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Speed:
1000-6500rpm
Input Voltage For Control:
12VDC
Cop:
2.1-2.3
Working Voltage Range:
200-450VDC
Production Capacity:
200000PCS/Year
Specification:
27cc
Input Voltage:
320VDC
Cooling Capacity:
4.8kw
Specifications
Speed:
1000-6500rpm
Input Voltage For Control:
12VDC
Cop:
2.1-2.3
Working Voltage Range:
200-450VDC
Production Capacity:
200000PCS/Year
Specification:
27cc
Input Voltage:
320VDC
Cooling Capacity:
4.8kw
Rated Working Current:
7AMP
HS Code:
8414301300
Speed Regulation:
Can Bus
Transport Package:
Carton
Origin:
China
Trade Term:
FOB, CIF, EXW
IP Grade:
IP67
Payment Term:
LC, T/T, PayPal, Western Union
Refrigerant:
R134A
Oil:
Rl68h
Port Of Loading:
SHANGHAI, NINGBO
Trademark:
kepler
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2019-06-01
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, PayPal, Western Union
Preferred Trade Term:
FOB, CIF, EXW
Port Of Loading:
SHANGHAI, NINGBO
Certificates:
CE, IATF16949, RoHS
Product descriptions from the supplier

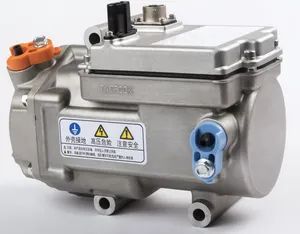

KEPLER INTEGRATED TYPE 27CC DC COMPRESSOR with 320VDC input voltage
GB/T22068-2008 Electric compressor assembly used for vehicle air conditioner
GB/T21360-2008 Cooling compressor for vehicle air conditioner
GB/T 5773-2004 Positive displacement refrigerant compressor performance test method.
QC/T 660-2000 Vehicle air conditioner (HFC-134a) use compressor testing method.
JB/T 4330-1999 Refrigeration and air conditioner device noise determination.
GB/T 2423.5-1995 Electric and electronic product environment test (the second part) test Ea and guidance: Impact
GB/T 2423.10-2008 Electric and electronic product environment test (the second part) test Fc: Vibration (Sine)
GB/T 2423.17-2008 Electric and electronic product environment test (the second part) test Ka: salt mist
GB/T 4942.1-2006 Rotating motor extensional organization protection level (IP code) rate.
JB/T 9058-1999 Cooling device cleanliness determination method.
GB/T 18488.1-2015 EV use drive motor system first part: Technical specifications.
GB/T 18488.2-2015EV use drive motor system second part: test method
QC/T 413-2002 car electrical devices basic technical specifications
GB/T 17619-1998 Vehicle electronic component's electromagnetic radiation immunity limit and test method
GB/T 4208-2008 Protection level (IP code)
ISO 7637-2-2004 Rode vehicles-comes from electric effect of transmission and coupling-The second part
ISO7637-3:2007Rode vehicles-comes from electric effect of transmission and coupling-The third part: wires except for power line, emission by capacitive and sensibility coupling.
Basic Technical Parameters
Compressor Drawing
Performance Curve for 27cc Compressor
Wire Diagrammed for compressor with PWM Speed regulation
Application for 144vdc electric compressor
Electric Car
Electric Truck
Electric Van
Style No.: KP-DC273206000-12/C
Standard:
Standard:
GB/T22068-2008 Electric compressor assembly used for vehicle air conditioner
GB/T21360-2008 Cooling compressor for vehicle air conditioner
GB/T 5773-2004 Positive displacement refrigerant compressor performance test method.
QC/T 660-2000 Vehicle air conditioner (HFC-134a) use compressor testing method.
JB/T 4330-1999 Refrigeration and air conditioner device noise determination.
GB/T 2423.5-1995 Electric and electronic product environment test (the second part) test Ea and guidance: Impact
GB/T 2423.10-2008 Electric and electronic product environment test (the second part) test Fc: Vibration (Sine)
GB/T 2423.17-2008 Electric and electronic product environment test (the second part) test Ka: salt mist
GB/T 4942.1-2006 Rotating motor extensional organization protection level (IP code) rate.
JB/T 9058-1999 Cooling device cleanliness determination method.
GB/T 18488.1-2015 EV use drive motor system first part: Technical specifications.
GB/T 18488.2-2015EV use drive motor system second part: test method
QC/T 413-2002 car electrical devices basic technical specifications
GB/T 17619-1998 Vehicle electronic component's electromagnetic radiation immunity limit and test method
GB/T 4208-2008 Protection level (IP code)
ISO 7637-2-2004 Rode vehicles-comes from electric effect of transmission and coupling-The second part
ISO7637-3:2007Rode vehicles-comes from electric effect of transmission and coupling-The third part: wires except for power line, emission by capacitive and sensibility coupling.
Basic Technical Parameters
| No. | Item | Data |
| 1 | Displacement | 27cc/rev |
| 2 | Max cooling capacity | 4.8kw |
| 3 | Max power consumption | 2KW |
| 4 | Speed | 1000-6500rpm |
| 5 | Refrigerant | R134a |
| 6 | Oil | RL68H(POE) |
| 7 | Rated input voltage | 320VDC |
| 8 | Speed Regulation | PWM(400HZ) |
| 9 | Net Weight | 6kg |
| 10 | Suction Pressure | 0.20-0.45Mpa |
| 11 | Discharge Pressure | ≤2.5Mpa |
| 12 | Protection Classic | IP67 |
| 13 | Soft Start | 15 second |
| 14 | Control Logic | Sine Wave |
| 15 | Noise | ≤ 70dB |
| 16 | Precharge Resistor | Built -in |
| 17 | Protection Function | Over Voltage Protection Over Current Protection Over Heat Protection Low Voltage Protection |
Compressor Drawing
Performance Curve for 27cc Compressor
Wire Diagrammed for compressor with PWM Speed regulation
| Item | No. | Definition | |
| Main Power End | A | 320VDC+ | Main power positive |
| B | 320VDC- | Main power negative | |
SIGNAL End |
1 | 12VDC + | Input voltage for control |
| 2 | ON/OFF | GND to start | |
| 3 | Null | ||
| 4 | GND | ||
| 5 | CAN-H | ||
| 6 | CAN-L |

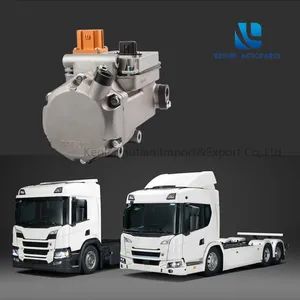

Application for 144vdc electric compressor
Electric Car
Electric Truck
Electric Van
