Rubber Products Molding Press Machine / Rubber Vulcanizing Press Machine
Piece
Negotiable
Product information
High-quality Rubber Products Molding Press Machine / Rubber Vulcanizing Press Machine supplied by Ouli Prime Co., Ltd. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Piston Qty:
1
Working Layers:
1,2,3,4 Customized
Total Pressure:
100tons
Specification:
20 CBM
Max.Temperature:
200
Piston Diameter:
200mm
Package Size:
220.00cm * 255.00cm * 175.00cm
Production Capacity:
300 Sets Per Year
Specifications
Piston Qty:
1
Working Layers:
1,2,3,4 Customized
Total Pressure:
100tons
Specification:
20 CBM
Max.Temperature:
200
Piston Diameter:
200mm
Package Size:
220.00cm * 255.00cm * 175.00cm
Production Capacity:
300 Sets Per Year
Heaing Plates Material:
45# Steel
Hot Plate Size:
500*500mm
Package Gross Weight:
7500.000kg
HS Code:
8477800000
Automatic Grade:
Automatic
Certification:
CE, ISO
Cylinder Material:
Cast Steel
Piston Material:
Chilled Cast Iron
Hydraulic Valves:
China, Japan, Taiwan, Germany Brand
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Nip Of Two Hot Plate:
Customized
Customized:
Customized
Motor Power:
Dpends on The Machine Model
Trade Term:
FOB, CIF, CFR, EXW
Structure:
Horizontal
Payment Term:
LC, T/T
Condition:
New
Trademark:
OULI
Heating System:
Oil, Steam, Electrical
Control:
PLC
Port Of Loading:
Qingdao Port
Name:
Rubber Tiles Press Making Machine
Origin:
Shandong, China
Transport Package:
Standard Marine Shipping Packaging
Payment Methods:
Support payments in USD
Model NO.:
XLB series
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2025-09-19
Annual Revenue Amount:
Not specified
Numbers Of Employees:
18
Preferred Payment Term:
LC, T/T
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Qingdao Port
Certificates:
CE
Product descriptions from the supplier

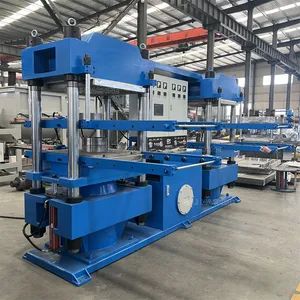

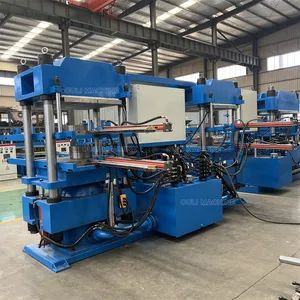

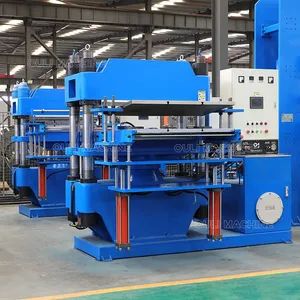

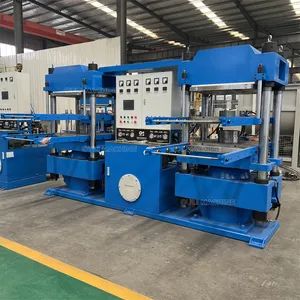

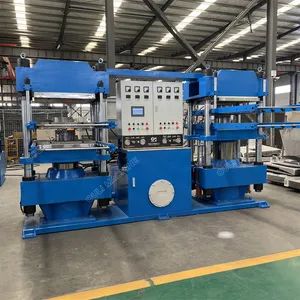

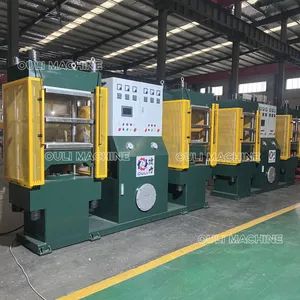

Rubber Products Molding Press Machine / Rubber Vulcanizing Press Machine
1. Products Description of Vulcanizer Press Machine / Rubber Compression Molding Vulcanizing Press
Rubber Vulcanizing Press Machine is special-purpose takes shape the equipment for the rubber profession.Heats up the way to uses the electric heating(steam or oil heats up),the power uses the height combination to pump for the oil way, reduces the equipment the power loss.
The electrical control uses the advanced PLC control technology,may realize automatic controls when, automatically operates the mold,is automatic warm controls and so on the craft.And may realize automatically deflates. Thus guarantee product quality and high efficiency.
May have custom-made each kind of four columns,the frame type, the work table emigration-ton type,the work table emigration type in addition according to the customer product technological requirement and so on the many kinds of plates vulcanizing machine.
2. Product Parameters of Vulcanizer Press Machine / Rubber Compression Molding Vulcanizing Press
| Parameter/model | XLB-300 | XLB-400 | XLB-500 | XLB-800 | XLB-1000 | XLB-1500 | XLB-2500 | XLB-4000 |
| Clamping Force(T) | 300 | 400 | 500 | 800 | 1000 | 1500 | 2500 | 4000 |
| Plate Size(mm) | 650*650 | 850*850 | 1000*1000 | 1200*1200 | 1300*1300 | 1500*2000 | 1800*3500 | 2500*4500 |
| Pistion Stroke(mm) | 450 | 500 | 550 | 600 | 700 | 800 | 950 | 1200 |
| Cylinder Diameter(mm) | 450 | 500 | 560 | 750 | 850 | 900 | 1000 | 1200 |
| Main Motor Power(KW) | 5.5 | 7.5 | 11 | 13.5 | 17.5 | 22 | 22 | 37 |
| Mold sliding | Automatic mold sliding system with hydraulic or motorized | |||||||
| Customized | Machine heating plate and pressure can be made according to your requirements. | |||||||
| Control | By PLC | |||||||
| Machine structure | Column or frame structure | |||||||
3. Product Advantage of Vulcanizer Press Machine / Rubber Compression Molding Vulcanizing Press
4. Manufacturing Technique of Vulcanizer Press Machine / Rubber Compression Molding Vulcanizing Press
5. Company Profile
Established in 1997, Qingdao Ouli Machine Co., Ltd. was located in Huangdao District, the west coast of Qingdao city, Shandong province, China.
We are specialized in rubber machinery designing,manufacturing and maintenance work.
OULI main products:
1. Rubber mixing equipment: kneader, bucket,mixing mill, bale cutter
2. Rubber vulcanizing machine: Four-column press, Frame press, E-type press, tire and tube press, Belt vulcanizing press.
3. Automatic and semi-automatic waste tire recycling equipment
4. Rubber calendaring machine: 2 roll, 3 roll, 4 roll calender, calendaring line
5. Rubber extruding equipment: Hot feed extruder,cold feed extruder, belt extrudingand calendering line .
6. Reclaimed rubber production line: XKJ-450 , XKJ-480 Rubber reining mill.
7. Paper roll cutting machine.
Ouli machines have been exported to more than 20 countries such as America, Canada, Australia, Southeast Asia, Middle East,Brazil.
We warmly welcome customers visit our factory and technology discussion is highly appreciated.
6. Customer Visiting
7. Product Package
8. FAQ
Q1: Where is your factory located?
A1: Qingdao OULI machine CO.,LTD is located at Wangjialou industrial zone ,Huangdao district ,Qingdao city, China.
Q2: Are you an integrated supplier for rubber&plastic machine ?
A2: Yes, we can provide the complete solution line to customer according to customer's requirement.
Q3: How about the quality control in your factory?
A3: OULI has the SOP (Standard Operation Procedure) and all the production step must follow up this SOP. Every machine needs at least automatic running over 72 hours and must be inspected carefully before shipment.
Q4: Will you offer the pre-sales service?
A4: Yes, we have an experienced pre-sales team to support customers not only including machine, technology also water .electrical, machine layout in factory, etc.
Q5: What about the after-service? Will you send your engineer to my country to help commission and install the machine?
A5: Surely, we have many experience technical engineers for oversea service, they would help you install machine and support training to workers also.
A2: Yes, we can provide the complete solution line to customer according to customer's requirement.
Q3: How about the quality control in your factory?
A3: OULI has the SOP (Standard Operation Procedure) and all the production step must follow up this SOP. Every machine needs at least automatic running over 72 hours and must be inspected carefully before shipment.
Q4: Will you offer the pre-sales service?
A4: Yes, we have an experienced pre-sales team to support customers not only including machine, technology also water .electrical, machine layout in factory, etc.
Q5: What about the after-service? Will you send your engineer to my country to help commission and install the machine?
A5: Surely, we have many experience technical engineers for oversea service, they would help you install machine and support training to workers also.
Q6: What is the delivery time of the machine?
A6: Actually, the delivery time of the machines is depended on the machine options. Normally, the delivery time of standard machine could be within 10-30 days.
Q7 : What is the warranty of the machine ?
A7: The whole machine's warranty period is 12 months and key parts will be depended.
Q8 : Do you provide any spare parts with machine?
A8: Yes, OULI will provide one set standard spare parts to customer according to different machines.
A6: Actually, the delivery time of the machines is depended on the machine options. Normally, the delivery time of standard machine could be within 10-30 days.
Q7 : What is the warranty of the machine ?
A7: The whole machine's warranty period is 12 months and key parts will be depended.
Q8 : Do you provide any spare parts with machine?
A8: Yes, OULI will provide one set standard spare parts to customer according to different machines.
