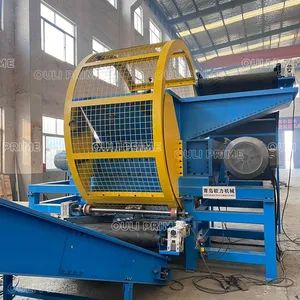

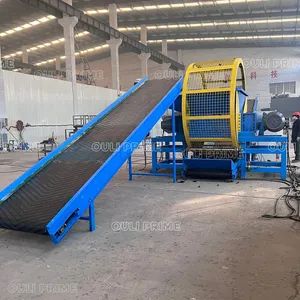

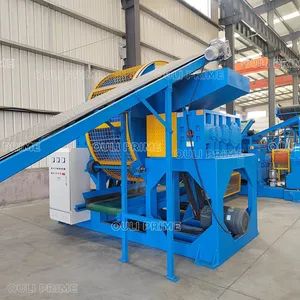

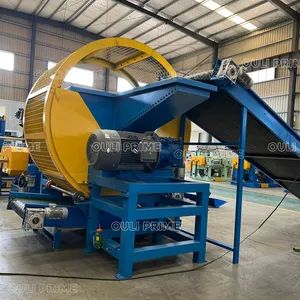

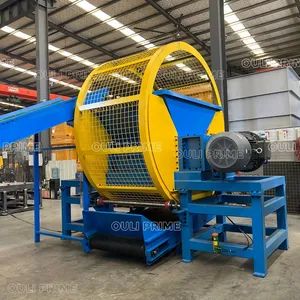

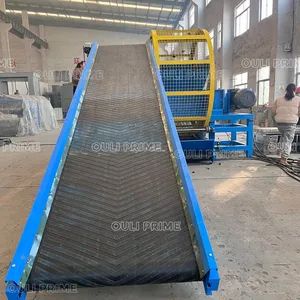

Rubber Tire Shredding / Tyre Recycling Machine Size 20cbm Voltage 380V Motor 22kw*2 Weight 4500kg Trademark OULI VFD Custom-Made
Piece
Negotiable
Product information
High-quality Rubber Tire Shredding / Tyre Recycling Machine Size 20cbm Voltage 380V Motor 22kw*2 Weight 4500kg Trademark OULI VFD Custom-Made supplied by Ouli Prime Co., Ltd. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Qty Of Blade:
18 Piece
Specification:
20 CBM
Size:
20cbm
Motor:
22kw*2
Package Size:
320.00cm * 180.00cm * 220.00cm
Voltage:
380V
Package Gross Weight:
4500.000kg
Weight:
4500kg
Specifications
Qty Of Blade:
18 Piece
Specification:
20 CBM
Size:
20cbm
Motor:
22kw*2
Package Size:
320.00cm * 180.00cm * 220.00cm
Voltage:
380V
Package Gross Weight:
4500.000kg
Weight:
4500kg
Discharge Size:
50*50mm
HS Code:
8477800000
Material Of Blade:
9cr2mo
Service Life:
<15 Years
Final Product:
Block ,Crumb ,Power
Certification:
CE, ISO
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
VFD:
Custom-Made
Trade Term:
FOB, CIF, CFR, EXW
Structure:
Horizontal
Payment Term:
LC, T/T
Lubrication:
Manual Lubrication
Trademark:
OULI
Control:
PLC with Touch Screen
Model NO.:
PSJ-900/PSJ-1200
Port Of Loading:
Qingdao Port
Origin:
Shandong, China
Transport Package:
Standard Sea Package
Payment Methods:
Support payments in USD
Application:
Tire Recycling Machine
Name:
Tire Shredder
Keyword:
Tire Shredder Machine
Gear Box:
Top Bran in China
Input Size:
≤1200mm,≤900mm
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2025-09-19
Annual Revenue Amount:
Not specified
Numbers Of Employees:
18
Preferred Payment Term:
LC, T/T
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Qingdao Port
Certificates:
CE
Product descriptions from the supplier
Tire Shredder Machine / Tyre Shredding Recycling Machine
1. Products Description of Tire Shredder Machine / Tyre Shredding Recycling Machine
Tire Shredder Machine / Tyre Shredding Recycling Machine composed by the decomposition of waste tire powder crushing, screening unit composed of magnetic carrier. Through the decomposition of waste tire facilities, tire processing into small pieces, and then crushing mill of the rubber block, rubber powder to be mixed wire; then powder magnetic separator, the steel and rubber powder separated completely. Through the feeding device through two sieve beds filter out the fine material and then by magnetic roller, magnetic separation of a steel wire, Preparation of 10 mesh fineness of the purity of-40me
sh powder(fineness optional).This processing technology,there is no air pollu-tion,no waste water,low operation cost.
lt is the best equipment to produce waste tire rubber powder.
Tire Shredder Machine / Tyre Shredding Recycling Machine composed by the decomposition of waste tire powder crushing, screening unit composed of magnetic carrier. Through the decomposition of waste tire facilities, tire processing into small pieces, and then crushing mill of the rubber block, rubber powder to be mixed wire; then powder magnetic separator, the steel and rubber powder separated completely. Through the feeding device through two sieve beds filter out the fine material and then by magnetic roller, magnetic separation of a steel wire, Preparation of 10 mesh fineness of the purity of-40me
sh powder(fineness optional).This processing technology,there is no air pollu-tion,no waste water,low operation cost.
lt is the best equipment to produce waste tire rubber powder.
2. Product Parameters of Frame Type Rubber Press Machine / Frame Type Vulcanizing Machine
Parameters of Waste Tire Recycling Plant Tyre Powder Making Machinery to Grinding Rubber Crumb
| Model number | ZPS-900 | ZPS-1200 |
| Input size | Less than 900 | Less than 1200 |
| Discharge size | 50-300mm(adjustable) | 50-300mm(adjustable) |
| Motor power | 22*2 kw | 55*2 kw |
| Dimension | 3450*2100*2400mm | 4100*2730*3300mm |
| Amount of waste tire | 800-1500T/h | 2000-3800kg/h |
| Screen power | 1.5kw | 5.5kw |
| Main shaft speed | 19rpm | 22rpm |
| Screen speed | 4rpm | 25rpm |
| Number of blades | 18pcs, made of alloy steel, welded | 25pcs, made of alloy steel, welded |
| Gearbox | Harden gears, large torque | Harden gears, large torque |
| Weight | 5.8T | 15.6T |
| Rubber crushing machine | |||
| Parameter/model | XKP-400 | XKP-450 | XKP-560 |
| Front Roll diameter(mm) | 400 | 450 | 560 |
| Back Roll diameter (mm) | 400 | 450 | 510 |
| Roll working length(mm) | 600 | 800 | 800 |
| Roll ratio | 1:1.237 | 1:1.38 | 1:1.3 |
| Front roll speed (m/min) | 17.32 | 23.2 | 25.6 |
| Adjusting nip range(mm) | 0-10 | 0-10 | 0-15 |
| Motor power (kw) | 37 | 55 | 110 |
| Overall dimensions (mm) | 3950×1800×1780 | 4770×1846×1835 | 4750×2300×2000 |
| Weight (t) | 8 | 12 | 20 |
The List of Truck tire Double hook drawing machine ,Car tire shredder machine ,waste tires recycling shredding machine
| Double hook drawing machine | The first step in tire recycling procession |
| Heavy duty body | |
| Hooks and cross pulling die made of 45# steel, tempered and quenched | |
| Equipped with protection frame avoiding the dangers during working | |
| Two series: hydraulic one and mechanic one | |
| Easy to operate and change spare parts (hooks and cross pulling die) | |
| Tire cutter | Cutting tires into pieces before shredding |
| Small tire pieces are easier to process in shredder | |
| Knives made of high quality YG-20 steel, long using time | |
| Hydraulic control | |
| One clamping cylinder and one cutting cylinder | |
| Equipped with a roller platform to process big tires | |
| ZPS-900/1200 Tire shredder |
The high-capacity shredder was specially developed for direct size reduction of tires into cleanly cut tire chips, size 50x50 mm. cutting shafts for the production of larger tire chips are available high torque at low speed cut even the strongest tires into pieces. |
| All construction characteristics are designed for continuous operation in order to achieve highest throughput rates at lowest costs. | |
| Extremely precise tolerances between the cutting knives produce cleanly cut tire chips at low energy consumption. | |
| The cutting knives made of high quality alloy steel can be re-sharpened and reused which increases the service life and reduces the operating costs. | |
| The complete cutting chamber is lined with hard wear plates. | |
| Large doors allow for easy access into the cutting chamber. | |
| The shear between the two rollers will make tire chips into powders as well loosen rubbers, steels and textiles | |
| XKP-400/450/560/610 Rubber Crusher |
Roller body made of cast steel |
| Surface of roller made of alloy steel, welded when worn out | |
| One flat surface roller and one teethed roller, high throughput of powders | |
| Bottom made of cast iron | |
| Emergency stop when overload | |
| Distance between the two rollers can be adjusted. | |
| Hard gear gearbox | |
| Equipped with screening machine, magnetic separator and fiber separator, 99% purified rubbers will be got. | |
| Magnetic separator | Muti-stage belt style magnetic separator can reach more purified rubbers |
| Separated steels will be in one place, easy to collect | |
| Permanent magnet, no more power consumption | |
| Fiber separator | After the grinder, the nylon wires will be grinded into fluff; According to centrifugal force, density difference, the fluff will be separated. The spin fans inside the cyclone barrel driven by the motor throw the compounds to the wall, at this time, light fluff will be upwards and fall down into the inside barrel; heavy rubbers wi |
A.WIRE REMOVING MACHINE(single hood drawing machine +double hook drawing machine )
B.TIRE CITTER for waste tire recycling machine
C.TIRE SHREDDER for waste tire recycling production line
D.XKP-400/450/560 RUBBER CRUSHER
E.FIBER SEPATATOR
F.RUBBER TILES MACHINE
3. Product Advantage of Frame Type Rubber Press Machine / Frame Type Vulcanizing Machine
4. Manufacturing Technique of Frame Type Rubber Press Machine / Frame Type Vulcanizing Machine
5. Company Profile
Established in 1997, Qingdao Ouli Machine Co., Ltd. was located in Huangdao District, the west coast of Qingdao city, Shandong province, China.
We are specialized in rubber machinery designing,manufacturing and maintenance work.
OULI main products:
1. Rubber mixing equipment: kneader, bucket,mixing mill, bale cutter
2. Rubber vulcanizing machine: Four-column press, Frame press, E-type press, tire and tube press, Belt vulcanizing press.
3. Automatic and semi-automatic waste tire recycling equipment
4. Rubber calendaring machine: 2 roll, 3 roll, 4 roll calender, calendaring line
5. Rubber extruding equipment: Hot feed extruder,cold feed extruder, belt extrudingand calendering line .
6. Reclaimed rubber production line: XKJ-450 , XKJ-480 Rubber reining mill.
7. Paper roll cutting machine.
Ouli machines have been exported to more than 20 countries such as America, Canada, Australia, Southeast Asia, Middle East,Brazil.
We warmly welcome customers visit our factory and technology discussion is highly appreciated.
6. Customer Visiting
7. Product Package
8. FAQ
Q1: Where is your factory located?
A1: Qingdao OULI machine CO.,LTD is located at Wangjialou industrial zone ,Huangdao district ,Qingdao city, China.
Q2: Are you an integrated supplier for rubber&plastic machine ?
A2: Yes, we can provide the complete solution line to customer according to customer's requirement.
Q3: How about the quality control in your factory?
A3: OULI has the SOP (Standard Operation Procedure) and all the production step must follow up this SOP. Every machine needs at least automatic running over 72 hours and must be inspected carefully before shipment.
Q4: Will you offer the pre-sales service?
A4: Yes, we have an experienced pre-sales team to support customers not only including machine, technology also water .electrical, machine layout in factory, etc.
Q5: What about the after-service? Will you send your engineer to my country to help commission and install the machine?
A5: Surely, we have many experience technical engineers for oversea service, they would help you install machine and support training to workers also.
Q6: What is the delivery time of the machine?
A6: Actually, the delivery time of the machines is depended on the machine options. Normally, the delivery time of standard machine could be within 10-30 days.
Q7 : What is the warranty of the machine ?
A7: The whole machine's warranty period is 12 months and key parts will be depended.
Q8 : Do you provide any spare parts with machine?
A8: Yes, OULI will provide one set standard spare parts to customer according to different machines.
A6: Actually, the delivery time of the machines is depended on the machine options. Normally, the delivery time of standard machine could be within 10-30 days.
Q7 : What is the warranty of the machine ?
A7: The whole machine's warranty period is 12 months and key parts will be depended.
Q8 : Do you provide any spare parts with machine?
A8: Yes, OULI will provide one set standard spare parts to customer according to different machines.
