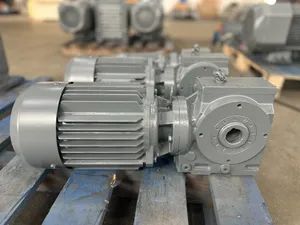

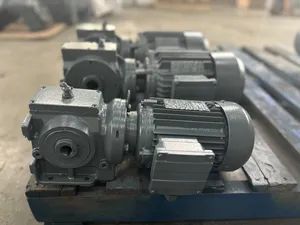

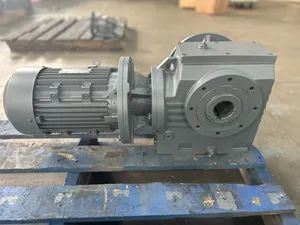

S Series Helical Worm Gear Unit Gear Reduction Boxes for Lifting Machine
Piece
Negotiable
Product information
High-quality S Series Helical Worm Gear Unit Gear Reduction Boxes for Lifting Machine supplied by Zhejiang Shuanglian Machinery Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Motor Power:
0.12kw up to 18.5kw
Output Speed:
0.1rpm up to 1400rpm
Production Capacity:
3000 PCS Per Month
HS Code:
8483409000
Certificate:
CE, UL
Origin:
China
Layout:
Coaxial
Specification:
Different size packing
Specifications
Motor Power:
0.12kw up to 18.5kw
Output Speed:
0.1rpm up to 1400rpm
Production Capacity:
3000 PCS Per Month
HS Code:
8483409000
Certificate:
CE, UL
Origin:
China
Layout:
Coaxial
Specification:
Different size packing
Trade Term:
FOB, CIF, CFR, EXW
Input Form:
Flange/Solid Shaft
Type:
Gear Reducer
Hardness:
Hardened Tooth Surface
Installation:
Horizontal Type
Mounting Position:
Horizontal/Vertical/Torque Arm Mounted
Material:
Ht250 Cast Iron
Quality Control System:
ISO9001/ISO14000
Payment Term:
LC, T/T
Input Speed:
Max. 2000rpm
Ratio:
Min. 24
Port Of Loading:
Ningbo Port, Shanghai Port
OEM/ODM:
Offered
Color:
Ral5010 Blue/Ral7031 Grey/Others
Model NO.:
S37-S97
Trademark:
SLM
Output Form:
Solid Shaft/Hollow Shaft/Spline Shaft/Shrink Disk
Transport Package:
Standard Export Packing -Carton and Plywood Pallet
Step:
Three-Step
Output Torque:
up to 3500nm
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2000-07-13
Annual Revenue Amount:
Not specified
Numbers Of Employees:
82
Preferred Payment Term:
LC, T/T
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Ningbo Port, Shanghai Port
Certificates:
CE, ISO 9000 Certificate, ISO14000 Certificate
Product descriptions from the supplier
S Series Helical Worm Gear Unit Gear Reduction Boxes for Lifting Machine
We are one of the leading manufacturers of geared motors in China,specialized in transmission industry for more than 30 years.
It is senior member of China Speed Reducer Industry Association and China Committee of Gear. Our products have been reputed by our customers for long.
Our company was located coastal economic area Wenzhou, Zhejiang province. Since established in1988,we have insisted on science and technology innovation, researching and introducingadvanced technology, as well as continuously developing new products to meet the marketequirements.We have ability to develop special gearboxes for our customers' application, OEM and ODM service offered.
Product features
Why choose us?
FAQ:
Q1: How can you guarantee the quality?
A:14 monthswarrantyafter shipment. If there is a quality problem, please send us pictures or video to check, we promise to send spare parts or new products to replace. Our guarantee not include inappropriate operation or wrong specification selection.Please send us usage details to check the parameters before ordering and operating.
Q2: How we select models and specifications?
A: You can send us the required series code (for example: RC series or in line shaft layout) as well as requirement details, such as motor power, output speed or ratio, service factor or your application,output mounting form...as much data as possible. If you can supply some pictures with nameplate or drawings, it is helpful to select perfectly matched goods to you.
Q3: If we don't find what we want on your website, what should we do?
A: We offer three options:
1, You can send us the pictures, drawings or descriptions details. We will try to design the products basised on our standard models.
2, Our R&D department is professional for OEM/ODM products, please send us drawing/samples, we can do customized design for your bulk purchasing.
3, We can develop new products if they have good market. We have already developed many items for special using successful, such as special gearbox for agitator, cement conveyor, wood pellet machine, power trowel,shoes machines and so on.
Q4: Can we buy 1 pc of each item for quality testing?
A: Yes, we are glad to accept trial order for quality testing.
Q5: How about your product delivery time?
A: Normally for 20'container, it takes 25-30 workdays for worm and cycloid gearbox, 35-40 workdays for helical gearbox.
For morequestions, please contact with us. Welcome to send us inquiry!
We are one of the leading manufacturers of geared motors in China,specialized in transmission industry for more than 30 years.It is senior member of China Speed Reducer Industry Association and China Committee of Gear. Our products have been reputed by our customers for long.
Our company was located coastal economic area Wenzhou, Zhejiang province. Since established in1988,we have insisted on science and technology innovation, researching and introducingadvanced technology, as well as continuously developing new products to meet the marketequirements.We have ability to develop special gearboxes for our customers' application, OEM and ODM service offered.
Product features
1.SC series helical-worm geared motor is the combination transmission structure of helical gears and worm wheels,right angleshaft output and steady running.
2.Little vibration and low noise, with large transmission ratio,the transmission efficiency is lower than helical geared motor.
3.The material of gears is 20CrMnTi alloy steel and the hardness can reach to HRC58°~ 62 after tempering , cementiting ,quenching etc. heat treatment. All the gears are processed by accurate grinding and the precision can reach to grade 6~5°.
4.The products have been mainly used in petrochemical machinery, mine and construction machinery, metallurgy, printing and packaging machinery, etc.
2.Little vibration and low noise, with large transmission ratio,the transmission efficiency is lower than helical geared motor.
3.The material of gears is 20CrMnTi alloy steel and the hardness can reach to HRC58°~ 62 after tempering , cementiting ,quenching etc. heat treatment. All the gears are processed by accurate grinding and the precision can reach to grade 6~5°.
4.The products have been mainly used in petrochemical machinery, mine and construction machinery, metallurgy, printing and packaging machinery, etc.
| Housing material | HT250high-strength cast iron |
| Housing hardness | HBS190-240 |
| Gear material | 20CrMnTialloy steel |
| Surface hardness of gears | HRC58°~62 ° |
| Gear core hardness | HRC33~40 |
| Worm wheel material | ZCuSn10Pb1 |
| Input / Output shaft material | 42CrMoalloy steel |
| Input / Output shaft hardness | HRC25~30 |
| Machining precision of gears | accurate grinding, 6~5Grade |
| Lubricating oil | GB L-CKC220-460, Shell Omala220-460 |
| Heat treatment | tempering, cementiting, quenching, etc. |
| Efficiency | 55%~75%(depends on the transmission stage) |
| Noise (MAX) | 60~68dB |
| Temp. rise (MAX) | 40ºC |
| Temp. rise (Oil)(MAX) | 50ºC |
| Vibration | ≤20µm |
| Backlash | ≤20Arcmin |
| Brand of bearings | China Top brandHRB,LYC,ZWZor other brands requested, NSK….. |
| Brand of oil seal | NAK,Taiwan or other brands requested |
| Model | Shaft Dia.(mm) | Center Height | Output Flange Dia. | Power | Ratio | Permitted Torque | Weight | |
| Solid | Hollow(H7) | (mm) | (mm) | (kw) | (Nm) | (KGS) | ||
| SC37 | 20k6 | 20 | 88h13 | 160/120 | 0.12~0.55 | 24~204 | 100 | 7.5 |
| SC47 | 25k6 | 25/30 | 100h13 | 160 | 0.18~0.75 | 24~204 | 150 | 10 |
| SC57 | 30k6 | 30/35 | 112h13 | 200 | 0.75~1.5 | 24~204 | 250 | 13.5 |
| SC67 | 35k6 | 40/45 | 140h13 | 250/200 | 0.75~3 | 24~285 | 460 | 27 |
| SC77 | 45k6 | 50/60 | 180h13 | 300/250 | 0.75~7.5 | 24~385 | 1200 | 45 |
| SC87 | 60m6 | 60/70 | 225h13 | 350 | 1.1~11 | 24~389 | 2000 | 86 |
| SC97 | 70m6 | 70/90 | 280h13 | 450 | 1.5~18.5 | 24~389 | 3500 | 150 |
| Remark: the weight without oil and motor, shaft and flange input add 10%. | ||||||||
Why choose us?
1.With more than 30 years of experience andadvancetechnology in producing geared motor, the quality has been recognized by our customers.
2.Short delivery time,large spare parts storage.
3.Strong research and development capabilities.We have ability to develop gearboxes for our customers' special application.
4.Great service!Fast and convenient pre-sales and after-sales service.
5.Good cost performance,providing the most attractive price while ensuring the same quality.
FAQ:
Q1: How can you guarantee the quality?
A:14 monthswarrantyafter shipment. If there is a quality problem, please send us pictures or video to check, we promise to send spare parts or new products to replace. Our guarantee not include inappropriate operation or wrong specification selection.Please send us usage details to check the parameters before ordering and operating.
Q2: How we select models and specifications?
A: You can send us the required series code (for example: RC series or in line shaft layout) as well as requirement details, such as motor power, output speed or ratio, service factor or your application,output mounting form...as much data as possible. If you can supply some pictures with nameplate or drawings, it is helpful to select perfectly matched goods to you.
Q3: If we don't find what we want on your website, what should we do?
A: We offer three options:
1, You can send us the pictures, drawings or descriptions details. We will try to design the products basised on our standard models.
2, Our R&D department is professional for OEM/ODM products, please send us drawing/samples, we can do customized design for your bulk purchasing.
3, We can develop new products if they have good market. We have already developed many items for special using successful, such as special gearbox for agitator, cement conveyor, wood pellet machine, power trowel,shoes machines and so on.
Q4: Can we buy 1 pc of each item for quality testing?
A: Yes, we are glad to accept trial order for quality testing.
Q5: How about your product delivery time?
A: Normally for 20'container, it takes 25-30 workdays for worm and cycloid gearbox, 35-40 workdays for helical gearbox.
For morequestions, please contact with us. Welcome to send us inquiry!
