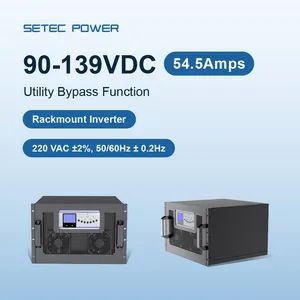

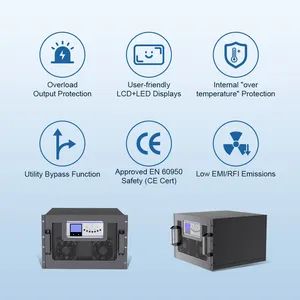

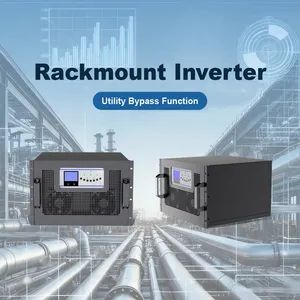

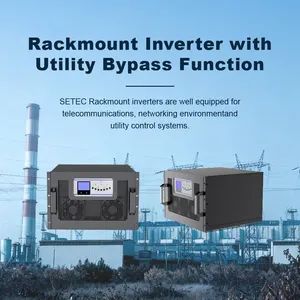

SETEC POWER SET-IVS9000 Series Rackmount Inverter with Utility Bypass Function
Piece
Negotiable
Product information
High-quality SETEC POWER SET-IVS9000 Series Rackmount Inverter with Utility Bypass Function supplied by Shenzhen SETEC Power Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Operation Temperature:
0℃ to 50℃
Voltage(Nominal):
220 VAC
Voltage/Current:
220 VAC/19A
Net Weight:
30kg
Dimensions:
482 x 450 x 266mm
Specification:
482x450x266mm
Frequency:
50/60Hz ± 0.2Hz
Rated Current:
54.5 Amps
Specifications
Operation Temperature:
0℃ to 50℃
Voltage(Nominal):
220 VAC
Voltage/Current:
220 VAC/19A
Net Weight:
30kg
Dimensions:
482 x 450 x 266mm
Specification:
482x450x266mm
Frequency:
50/60Hz ± 0.2Hz
Rated Current:
54.5 Amps
Capacity:
6KVA/4200W
HS Code:
85044090
Voltage:
90-139 VDC
Output Power:
>1000W
Efficiency:
>85%(Full Linear Load)
Origin:
China
Type:
DC/AC Inverters
Safety:
EN-60950, CE
Trade Term:
FOB, CIF, CFR, EXW
Circuit Topologies:
Full-Bridge Type
Protection On:
Fuse and DC Breaker
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Model NO.:
SET110/220-6KLC
Trademark:
SETEC POWER
Port Of Loading:
Shenzhen Port
Nature Of Wave String:
Sine Wave Inverter
Output Type:
Single
Transport Package:
Wooden
Grid Type:
off-Grid Inverter
Voltage Regulation On:
±2%
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2004-10-13
Annual Revenue Amount:
Not specified
Numbers Of Employees:
79
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Shenzhen Port
Certificates:
ISO14001, ISO9001:2015
Product descriptions from the supplier
SETEC POWER SET-IVS9000 Series Rackmount Inverter with Utility Bypass Function
| DC Input | |
| Voltage | 90-139 VDC |
| Rated Current | 54.5 Amps |
| Protection on | Fuse and DC Breaker |
| Efficiency | >85% (Full Linear Load) |
| AC Output | |
| Capacity | 6KVA/4200W |
| Voltage/Current | 220 VAC/19A |
| Voltage Regulation on | ±2% |
| Frequency | 50/60Hz ± 0.2Hz |
| Utility Power (Bypass) | |
| Voltage (Nominal) | 220 VAC |
| Frequency | 50/60 ± 5Hz |
| Protection on | AC Circuit Breaker |
| Mechanical | |
| Dimensions | 482x 450 x 266 mm 6U Rack mount |
| NetWeight | 30kg |
| Safety | EN-60950, CE |
| Environmental | |

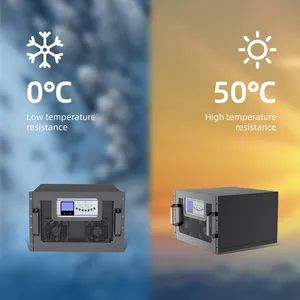

| Operation Temperature | 0ºCto 50ºC |
| Storage Temperature | -20ºC to 70ºC |
| Humidity | 0-95% Humidity (Non-Condensing) |
| Power Management | |
| Communication on | Dry-Contacts,RS232 in default, RS485 available,SNMP (option) |
| LED Display | AC power input;Inverter output;Battery fault;Load fault |
| LCD Display | AC voltage,frequency;Load Percentage;Output power,frequency,current;Language; Main supply;Utility fault;DC Voltage; |
As an industry leader equipped with cutting-edge technology, with 80,000+square meters of production and R&D facilities, SETEC POWER focuses on the entire process of research, development, design, and production of electric vehicle charging equipment, enabling it to obtain numerous system certifications such as UL, CNAS, ISO14001, ISO9001, etc. Currently, its products have been exported to Europe, North America, the Middle East, Asia, Africa, and other 120+ countries and regions of the world, committing to providing reliable charging services for electric vehicle owners globally.
