SMT Soldering Reflow Oven PCB Soldering Machine Origin China Trademark jaguar HS Code 8501101000 Max PCB Size 420mm Warranty 12
1 Piece
$20,000Product information
High-quality SMT Soldering Reflow Oven PCB Soldering Machine Origin China Trademark jaguar HS Code 8501101000 Max PCB Size 420mm Warranty 12 supplied by Shenzhen Jaguar Automation Equipment Co., Ltd.. Bulk wholesale pricing is $20,000 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Production Capacity:
100 Sets/Month
Warranty:
12 Months
Weight:
1850kg/1950kg
Package Gross Weight:
1950.000kg
Length Of Heating:
2955mm
Max PCB Size:
420mm
Power Supply:
5 Line 3 Phase 380V 50/60Hz(3phase 220V 50/60Hz)
Specification:
5300*1320*1490mm
Specifications
Production Capacity:
100 Sets/Month
Warranty:
12 Months
Weight:
1850kg/1950kg
Package Gross Weight:
1950.000kg
Length Of Heating:
2955mm
Max PCB Size:
420mm
Power Supply:
5 Line 3 Phase 380V 50/60Hz(3phase 220V 50/60Hz)
Specification:
5300*1320*1490mm
Package Size:
535.00cm * 145.00cm * 155.00cm
HS Code:
8501101000
Certification:
CCC, ISO, CE
Origin:
China
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Trade Term:
FOB, EXW
Heating Style:
Hot Air
Model NO.:
JAGUAR F8
Convey Type:
Meah+Chain
Control Method:
PC+PLC
Temp. Control Method:
Pid Close Loop Control & SSR Driving
Tem Control:
Pid+SSR
Automatic Grade:
Semiautomatic
Port Of Loading:
Shenzhen
Payment Methods:
Support payments in USD
Payment Term:
T/T
Transport Package:
Vacuum Packing and Wooden Packing
Installation:
Vertical
Trademark:
jaguar
Number Of Heating Zone:
up 8/Bottom 8
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2015-04-02
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
T/T
Preferred Trade Term:
FOB, EXW
Port Of Loading:
Shenzhen
Certificates:
Automatic Loader CE Certificates, Business license, Copyright certificate of welding temperature control information system, reflow oven machine CE Certificates, Screen Printing CE Certificates, SGS Audited Supplier, Shenzhen Intelligent Equipment Industry Association Vice President units, SMT PCB Conveyor CE Certificates, Tax Registration Certificate, The copyright certificate of the intelligent adjustment system of welding parameters, Utility model patent certificate-Double chain, Utility model patent certificate-Mesh belt and chain, Wave soldering CE Certificates
Product descriptions from the supplier

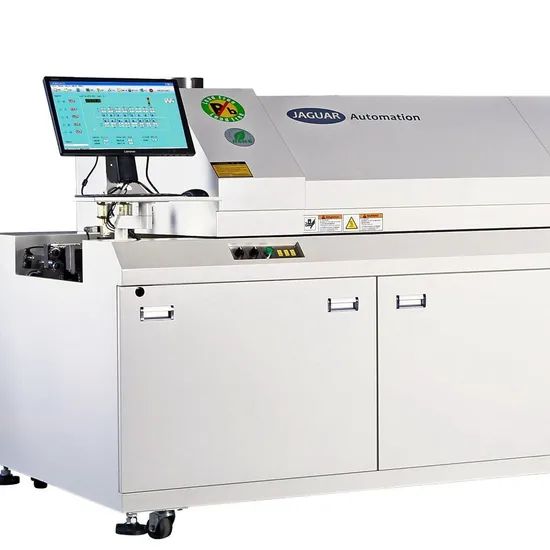

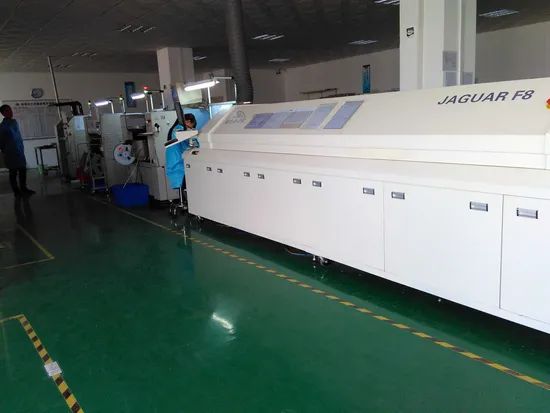

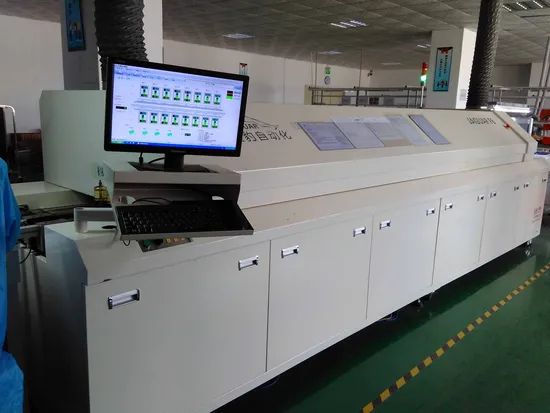

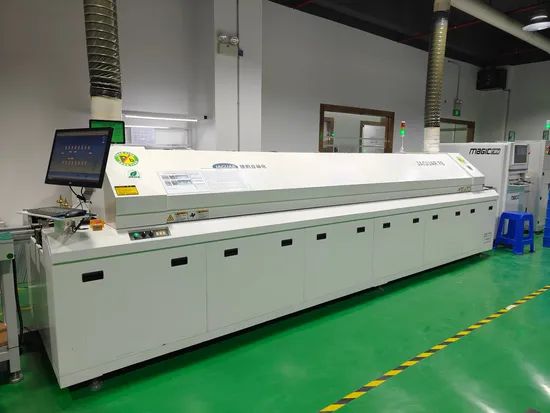

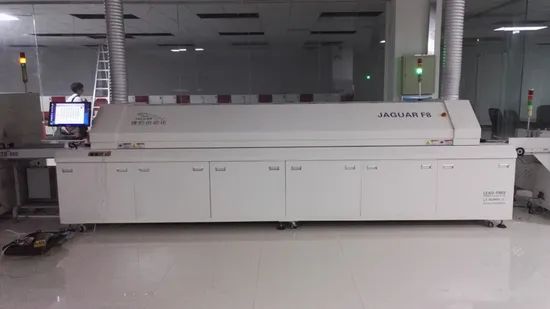

Jaguar SMT Soldering Reflow Oven PCB Soldering Machine
Introduction:
1. Heating zone
1.1: New energy saving furnace design, 4 sides return air, the best temperature uniformity
1.2: Plug-in type imported high temperature motor, quick replacement in 5 minutes
1.3: 8 heating zones, 16 heating elements( up 8/ bottom 8 ) , independent temperature control and switch
1.4: The latest design of nozzle plate, the best insulation performance
1.2: Plug-in type imported high temperature motor, quick replacement in 5 minutes
1.3: 8 heating zones, 16 heating elements( up 8/ bottom 8 ) , independent temperature control and switch
1.4: The latest design of nozzle plate, the best insulation performance
2. Control system
2.1: Siemens PLC, table machine performance
2.2: Professional IPC, Windows 7 operation interface, English/Chinese language free switch
2.2: Professional IPC, Windows 7 operation interface, English/Chinese language free switch
3. Convyeor system
3.1: Conveyor speed: The speed of the stepless frequency converter is 0.35m-1.5m /Min, and the accuracy is ±2mm/ Min
4.Cooling zone
4.1: Axial fan forced air cooling ( Up and bottom dual cooling)
5.Protection system
5.1: Temperature out of tolerance alarm, transmission speed out of tolerance alarm
5.2: IPC+UPS
5.3: Super positioning flexible and convenient screw width adjusting system
5.4: IPC delay shutdown function
6.Machine parameters
4.Cooling zone
4.1: Axial fan forced air cooling ( Up and bottom dual cooling)
5.Protection system
5.1: Temperature out of tolerance alarm, transmission speed out of tolerance alarm
5.2: IPC+UPS
5.3: Super positioning flexible and convenient screw width adjusting system
5.4: IPC delay shutdown function
6.Machine parameters
| Machine dimension | 5300 x 1320x 1490mm |
| Color | Ivory |
| Net weight | Approx. 1850kgs |
| Exhaust volume | 10m3/min X 2pipe |
| Power supply | 5 wire, 3 phase, 380V 50/60HZ |
| Startup power consumption | 52/30KW |
| Steady power consumption | 6-9KW |
| Warming time | About 25mins |
| Temperature range | Room temperature-300ºC |
| Mesh width | 500mm |
| Max PCB width | 420mm |
| Component height | Up 30mm/Bottom 25mm |
| Conveyor direction | Left-right ( option: Right-left) |
| Conveyor speed | 300-2000mm/min |
| Data storage | Process data and status storage(80GB) |
| Abnormal alarm | Over temp or low temp alarm, sound and light 2 modes |
7.Machine configuration
| Heating zone | Up 8, Bottom 8 |
| Cooling zone | Up 2, Bottom 2 |
| Control mode | WINDOWS 7+IPC+PLC |
| Temperature control mode | PID closed loop+SSR driver |
| Thermal couple wire | 3pcs |
| Conveyor system | Mesh+Chain |
| Conveyor control mode | 3 inverters+Panasonic motor |
| Hood lift | Electric hood lift |
| UPS | Standard, power off standby to protect PCB production completed |
Shenzhen Jaguar Automation Equipment Co., Ltd. is a professional Reflow Oven and Wave Soldering Manufacturer in Shenzhen, China. We focus on SMT and THT Soldering technology for more than 10 years, and our engineers have more than 20 years experience.
We are certified National High-tech Enterprise since 2017, integrated R&D, manufacture, service, trade, all our products have CE certification, our products are widely recognized at our domestic market as well as oversea market.
Our goal is to provide customers with the best service possible and to produce excellent quality products that will meet or exceed your expectations.
Our goal is to provide customers with the best service possible and to produce excellent quality products that will meet or exceed your expectations.

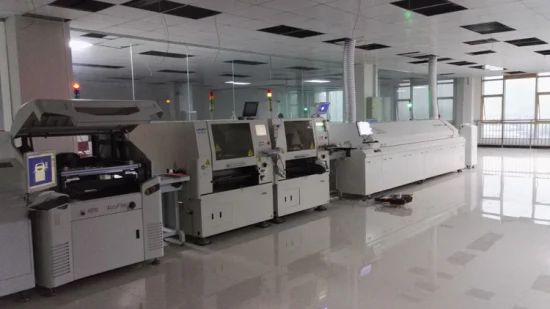

Our Factory:
More than 6000 square meters production plant.
More than 20 years experience in SMT automation equipment manufacturing. More than 50 peoples production team, among them
36 mechanical assembly technicians
12 electrical engineers
4 professional QC
Successful Experience:
JAGUAR's customer in 35 countries around the world
1. We have been helping customers to build a lot of new factories around the world.
2. Training more than 600 experts and technician for customers.
3. Became the most reliable Chinese partner for you.
Customer and Feedback:
Exhibitions:
Keep attending more than 10 exhibitions and forums each year.
The annual NEPCON and Electronica exhibitions are our regular event.
Participate in 3-5 overseas famous exhibitions regularly every year, like:
IPC Expo in San Diego, US
Electronica in Delhi, India
Electron Tech Expo in Mosco, Russia
WIN Exhibition in Istanbul, Turkey
Our Certificates:
We passed ISO certifications
We are IPC member company
We are National High-tech Enterprise
All the machines have CE and ROHS certifications
Packing and shipping:
What we can do for you?
1. We provide full SMT and THT solution for you
2. We provide core technology with our equipments
3. We provide the most professional tech service
4. We have wealthy experience on SMT and THT factory setup
5. We can solve any question about SMT and THT
Shenzhen Jaguar Automation Equipment Co., Ltd
Website:jaguarsmt.en.made-in-china.com
Add:14 Building, West of Furong industrial park, Shajing town, Baoan District, Shenzhen, Guangdong,China
