SS304 316 Wire Mesh Screen Filter False Bottom Mash Screen Style Filter Origin China Model NO. Wedge Hole Shape Square Thickness
1-4 Piece
$30.565 Piece
$25.23Product information
High-quality SS304 316 Wire Mesh Screen Filter False Bottom Mash Screen Style Filter Origin China Model NO. Wedge Hole Shape Square Thickness supplied by Anping Singokin Wire Mesh Co., Ltd.. Bulk wholesale pricing ranges from $25.23 to $30.56 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Production Capacity:
10pieces/Week
Profile Wire Size:
1X2mm, 2X3mm
Package Gross Weight:
20.000kg
Package Size:
20.00cm * 20.00cm * 20.00cm
Slot Width/Gap:
200-5000 Mircon
Supprt Rod Size:
2X3mm, 3X4mm
Thickness:
3mm-15mm
Filter Rating:
60%-96%
Specifications
Production Capacity:
10pieces/Week
Profile Wire Size:
1X2mm, 2X3mm
Package Gross Weight:
20.000kg
Package Size:
20.00cm * 20.00cm * 20.00cm
Slot Width/Gap:
200-5000 Mircon
Supprt Rod Size:
2X3mm, 3X4mm
Thickness:
3mm-15mm
Filter Rating:
60%-96%
HS Code:
7314490000
Origin:
China
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Trade Term:
FOB, CIF, CFR, EXW
Style:
Filter
Feature:
High Strength, Long Use Life
Payment Term:
LC, T/T, D/P, PayPal, Western Union
Application:
Liquid Filtration, Screening, Solid-Liquid Separation, Gas-Liquid Separation, Dry Filtration, Dustproof, Gas Filtration
Surface Treatment:
Polishing
Type:
Primary Filter
Trademark:
Singokin
Hole Shape:
Square
Material:
Stainless Steel Wire
Payment Methods:
Support payments in USD
Port Of Loading:
Tianjin Port
Model NO.:
Wedge
Product Name:
Wedge Wire Screen
Transport Package:
by Crate
Packaging:
by Crate
Specification:
customized
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2013-05-29
Annual Revenue Amount:
Not specified
Numbers Of Employees:
12
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Tianjin Port
Certificates:
CE, Certificate, ISO9001, Singokin
Product descriptions from the supplier

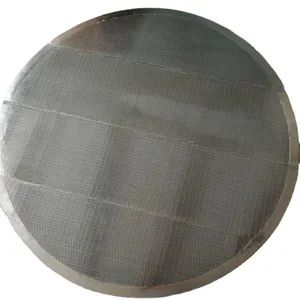

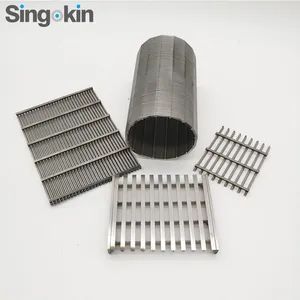

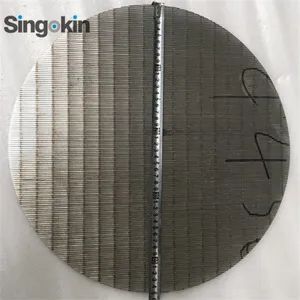

V wedge wire screen
Wedge wire is a welded steel structure, mainly used for filtration, separation and retention media.
It consists of surface profiles, usually V-shaped, that are resistance welded onto support profiles. The distance between the surface profiles is controlled very accurately, as it forms the slot through which the filtrate flows.
It consists of surface profiles, usually V-shaped, that are resistance welded onto support profiles. The distance between the surface profiles is controlled very accurately, as it forms the slot through which the filtrate flows.
Wedge wire is known as profile wire screen, V- wire screen, and wedge wire screen. It is created by wrapping a V- shaped profile wire cylindrical around longitudinal placed support rods. Each intersection of the profiles wire and support rod is well welded. It has a smooth surface, resistant to clogging and a greater structural strength. Welded wedge wire screen is the most advanced product of modern technology used in many industries for screening, filtration, dewatering, drying and cleaning. The numerous combinations of profile wires and support rods, and the wide range of apertures between the wires and rods allows us to design some screen as your request.
The support grid is a flat screen panel that provides uniform flow collection which is essential in many applications. This is particularly important when screens are used to reserve expensive ion exchange resins. Support grids provide superior media retention characteristics in vessels of all types.
|
wedge wire filter screen sieve plate
|
|
|
material
|
SS304,SS316,SS316L
|
|
profile wire
|
1x2mm,2x3mm
|
|
support rod
|
2x3mm,3x4mm
|
|
slot opening
|
200micron,250micron,400micron,500micron,700micron,750micron,etc.
|
|
shape
|
plate,pipe,round screen
|
1)In piece panel, packed by crate
2)In tube/pipe, packed by crate
Wedge wire screen (Waste Water Screening )is our range of bespoke vibrating screening machines for de-watering, designed and constructed by Gap Technology for use in the following industries to name a few:
1.Chemicals & Fertilizers Industry
2.Recycling Industry
3.Animal Feed Industry
4.Foodstuff & Handling
5.Smelting & Foundry Industry
6.Mining & Quarrying Industry
1.Smooth surface, low hydraulic resistance, high filtration accuracy, never clogging;
2.High mechanical strength, high corrosion resistance, acid-resistant, heat-resistant;
3.Guaranteed size of the slot tight tolerance to ±0.015mm;
4.Filtration direction can be outside to inside or inside to outside;
5.High capacity filter surface, effective backwashing, and long trouble-free life.
