SWC-Dh Short Telescopic Welding Type Small Joint Cross-Axis Universal Coupling

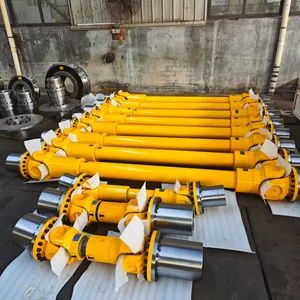

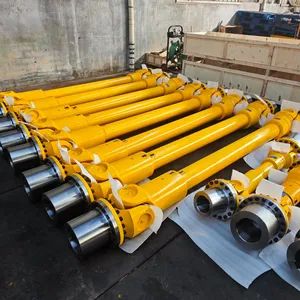

SWC-Dh Short Telescopic Welding Type Small Joint Cross-Axis Universal Coupling - Image 1

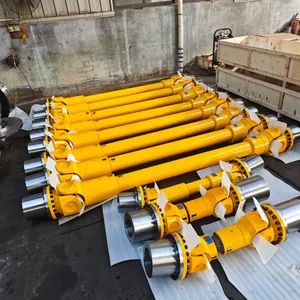

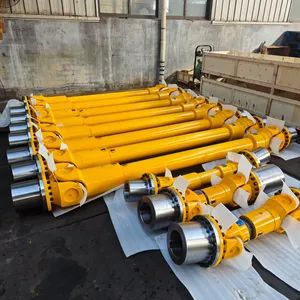

SWC-Dh Short Telescopic Welding Type Small Joint Cross-Axis Universal Coupling - Image 2

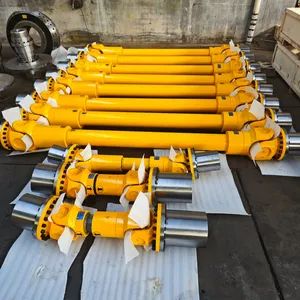

SWC-Dh Short Telescopic Welding Type Small Joint Cross-Axis Universal Coupling - Image 3

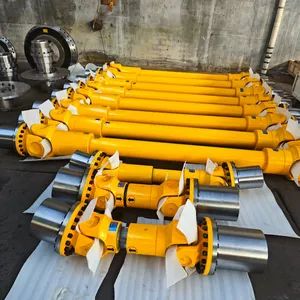

SWC-Dh Short Telescopic Welding Type Small Joint Cross-Axis Universal Coupling - Image 4
SWC-Dh Short Telescopic Welding Type Small Joint Cross-Axis Universal Coupling - Image 5
SWC-Dh Short Telescopic Welding Type Small Joint Cross-Axis Universal Coupling - Image 6
SWC-Dh Short Telescopic Welding Type Small Joint Cross-Axis Universal Coupling - Image 1
SWC-Dh Short Telescopic Welding Type Small Joint Cross-Axis Universal Coupling - Image 2
SWC-Dh Short Telescopic Welding Type Small Joint Cross-Axis Universal Coupling - Image 3
SWC-Dh Short Telescopic Welding Type Small Joint Cross-Axis Universal Coupling - Image 4
SWC-Dh Short Telescopic Welding Type Small Joint Cross-Axis Universal Coupling - Image 5
SWC-Dh Short Telescopic Welding Type Small Joint Cross-Axis Universal Coupling - Image 6

1-9 Piece

$150

10 Piece

$135

Product information

High-quality SWC-Dh Short Telescopic Welding Type Small Joint Cross-Axis Universal Coupling supplied by Haichuang Heavy Industry (Henan) Co., Ltd. Bulk wholesale pricing ranges from $135 to $150 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.

Package Size:

100.00cm * 100.00cm * 100.00cm

Bore Diameter:

19mm

Speed:

4000r/M

Package Gross Weight:

50.000kg

Production Capacity:

500000 Pieces/Year

Torque:

>80N.M

Vibration Dampening:

Advanced Shock Absorption

Refund Policy:

Claim a refund if your order doesn't ship, is missing, or arrives with product issues.

Specifications

Package Size:

100.00cm * 100.00cm * 100.00cm

Bore Diameter:

19mm

Speed:

4000r/M

Package Gross Weight:

50.000kg

Production Capacity:

500000 Pieces/Year

Torque:

>80N.M

Vibration Dampening:

Advanced Shock Absorption

Refund Policy:

Claim a refund if your order doesn't ship, is missing, or arrives with product issues.

Shipping Cost:

Contact the supplier about freight and estimated delivery time.

Service Life:

Extended Operational Duration

Trade Term:

FOB, CIF, CFR, EXW

Structure:

Flexible

Trademark:

HAICHUANG HEAVY INDUSTRY

Model NO.:

HC series

Load Capacity:

Heavy-Duty Weight Rating

Origin:

Henan, China

Material Construction:

High-Strength Alloy Steel

Material:

High-Strength Forged Steel (Hubs and Sleeves)

Quality Standard:

Industrial Grade Certification

Payment Term:

LC, T/T, PayPal, Western Union, D/P

Lubrication Requirement:

Maintenance-Free Design

Misalignment Tolerance:

Multi-Directional Flexibility

Primary Function:

Rotational Motion Transmission

Port Of Loading:

Shanghai Port, Qingdao Port

Installation Type:

Standard Mounting Configuration

Transport Package:

Standard Packaging or Customized

Specification:

Standard Specifications or Customized

Payment Methods:

Support payments in USD

Keywords:

Universal Coupling

Product Name:

Universal Coupling

Type:

Universal Coupling

Operating Temperature:

Wide Temperature Range

Business Details

Country:

China

Business Types:

Not specified

Main Markets:

Not specified

Main Products:

Year Established:

2011-12-14

Annual Revenue Amount:

Not specified

Numbers Of Employees:

106

Preferred Payment Term:

LC, T/T, PayPal, Western Union, D/P

Preferred Trade Term:

FOB, CIF, CFR, EXW

Port Of Loading:

Shanghai Port, Qingdao Port

Certificates:

ISO14001, ISO45001:2018, ISO9001:2015

Product descriptions from the supplier

SWC-Dh Short Telescopic Welding Type Small Joint Cross-Axis Universal Coupling
Product Description
Cross Shaft Universal Coupling
I. Product Overview
 The cross shaft universal coupling is a core mechanical transmission component with high adaptability. Its core function is to realize constant-velocity continuous rotation between two shafts that are not on the same straight line, have a large axis angle, or have axial movement, and reliably transmit torque and motion. With the characteristics of large deviation angle, high torque transmission, and compact structure, it is widely applicable to various general machinery and heavy industrial scenarios. It is a key equipment for solving non-coaxial transmission problems, which can effectively compensate for the angle deviation and axial displacement between two shafts and ensure the stable and efficient operation of the transmission system.
SWC-Dh Short Telescopic Welding Type Small Joint Cross-Axis Universal Coupling
II. Structural Composition and Working Principle
1. Core Structure
 The product is mainly composed of four core components: cross shaft, universal joint fork, needle roller bearing and sealing assembly. Some telescopic models are additionally equipped with spline shaft and spline sleeve structures. Among them: the cross shaft is the core force transmission component, which connects two universal joint forks through a spatial hinge structure; the needle roller bearing is assembled in the bearing hole of the universal joint fork to reduce the rotational friction of the cross shaft journal; the sealing assembly adopts J-shaped oil seal or double-lip skeleton oil seal design to effectively prevent the leakage of lubricating grease and the intrusion of external dust and water vapor.
2. Working Principle
 Based on the geometric transmission principle, when the driving shaft rotates, the power is transmitted to the cross shaft through the driving end universal joint fork, and then the cross shaft transmits the power to the driven end universal joint fork to drive the driven shaft to rotate. Through the flexible articulation of the cross shaft and the two universal joint forks, constant-velocity transmission of the two shafts within a certain angle deviation range can be realized; the telescopic models with spline structure can compensate for the axial displacement between the two shafts through the relative sliding of the spline shaft and the spline sleeve, further improving the transmission adaptability.
SWC-Dh Short Telescopic Welding Type Small Joint Cross-Axis Universal Coupling
III. Core Advantages
• Excellent Angle Compensation Capacity: It can adapt to the angle requirement of the two shafts. The maximum axis angle of conventional models is ≤45° (WS/WSD series), and the maximum angle of heavy industrial models (such as SWC series) can reach 5°~15°, which can flexibly cope with the axis deviation problem in complex installation environments.
• High Torque Transmission Efficiency: Adopting high-strength transmission structure design, it has high transmission efficiency and stable torque transmission. The nominal torque coverage is wide, ranging from 11.2N·m (small series) to 1150kN·m (heavy series), which can meet the diverse needs of light precision transmission to heavy industrial heavy-load transmission.
• Reliable Structure and Long Service Life: Key components are made of carburized and quenched alloy steel (such as 20CrMnTi), with surface hardness reaching HRC58-62, excellent wear resistance and fatigue resistance; combined with scientific lubrication system and sealing design, it effectively reduces component wear and prolongs service life.
• Wide Application Scenarios: Various models such as general type, high-speed type, micro type, telescopic type and large torque type are derived through different structural designs, which can be selected according to working conditions and are suitable for complex industrial environments such as high temperature, heavy load, high speed and high dust.
• Convenient Installation and Maintenance: The structure design is simple. During installation, only phase alignment and bolt fastening are required. Subsequent maintenance is mainly periodic lubrication and inspection. The operation process is simple, which can reduce operation and maintenance costs and downtime risks.
SWC-Dh Short Telescopic Welding Type Small Joint Cross-Axis Universal Coupling
SWC-Dh Short Telescopic Welding Type Small Joint Cross-Axis Universal Coupling
SWC-Dh Short Telescopic Welding Type Small Joint Cross-Axis Universal Coupling
SWC-Dh Short Telescopic Welding Type Small Joint Cross-Axis Universal Coupling
V. Application Scenarios
 With its strong adaptability and high reliability, the cross shaft universal coupling has been widely used in many industrial fields. The core application scenarios include:
• Metallurgical industry: Main transmission systems such as cold/hot rolling mills, straightening machines and continuous casting machines;
• Construction machinery: Drive shaft connection of excavators, cranes, loaders and road rollers;
• Mining and coal industry: Power transmission of mining crushers, conveyors and coal mining equipment;
• Marine and offshore engineering: Marine propulsion systems, deck machinery and offshore platform auxiliary equipment;
• General machinery: Transmission systems such as oil drilling rigs, rubber machinery, papermaking machinery, fans and water pumps;
• Other fields: Automobile drive shafts (rear-wheel drive/four-wheel drive vehicles), railway locomotive drive systems, yaw transmission of new energy equipment, etc.
SWC-Dh Short Telescopic Welding Type Small Joint Cross-Axis Universal Coupling
SWC-Dh Short Telescopic Welding Type Small Joint Cross-Axis Universal Coupling
SWC-Dh Short Telescopic Welding Type Small Joint Cross-Axis Universal Coupling
VI. Installation and Maintenance Specifications
1. Installation Points
 • Phase Alignment: For telescopic models, it is necessary to ensure that the arrow marks of the spline shaft and the spline sleeve are aligned. The phase difference of the axis of the bearing holes of the yokes at both ends is ≤1° to avoid periodic impact during high-speed operation;
 • Cleaning and Fastening: The flange surface must be thoroughly cleaned, degreased and dried. Use 10.9 grade bolts to fasten by staggered fastening method. The pre-tightening torque meets the design requirements. Adhesive can be applied to the thread to enhance stability. Low-hardness washers are prohibited;
 • Dynamic Verification: Check the bolt looseness after 8 hours of load operation, and re-tighten until stable. It is recommended to conduct continuous verification for 3 shifts to ensure reliable installation.
2. Lubrication Management
 • Grease Selection: Use No. 2 industrial lithium-based grease for conventional working conditions, No. 3-4 calcium-based grease or synthetic lithium-based grease for high-temperature environments. A small amount of molybdenum disulfide can be added to the spline pair to enhance wear resistance;
 • Greasing Specifications: New equipment is pre-greased at the factory and needs to be refilled if stored for more than 6 months; lubricate once a week in the initial operation period. After stabilization, lubricate the bearings quarterly and the spline pairs every six months. When greasing, ensure that the new grease squeezes out the old grease until fresh grease overflows from the oil seal;
 • Special Working Conditions: For high-temperature or dusty environments, the lubrication cycle should be shortened. It is recommended to lubricate once a week and check the lubrication status daily.
SWC-Dh Short Telescopic Welding Type Small Joint Cross-Axis Universal Coupling
SWC-Dh Short Telescopic Welding Type Small Joint Cross-Axis Universal Coupling
SWC-Dh Short Telescopic Welding Type Small Joint Cross-Axis Universal Coupling
3. Regular Maintenance
 • Daily Inspection: Monitor vibration, abnormal noise, temperature anomalies and bolt looseness during operation, and shut down for maintenance immediately if problems are found;
 • Semi-annual Full Inspection: Disassemble and check the wear of the cross shaft journal and needle roller bearing (allowable value ≤0.25mm), the wear of the gasket (allowable value ≤0.35mm) and the fit clearance of the spline pair, and replace components if necessary;
 • Component Replacement: Bearings and cross shafts must be cleaned separately, and mixed use of cleaning fluids is prohibited; when disassembling, rotate the cross shaft 180° for installation, which can balance journal wear and prolong service life.
VII. Customization Services and Quality Assurance
 We support customizing products according to the user's equipment parameters and working condition requirements. The customizable scope includes: overall dimension, nominal torque, telescopic amount, flange type (DIN/SAE and other standards), material upgrade (stainless steel, special alloy steel) and sealing structure optimization. The product production strictly follows relevant standards such as JB/T 5513-91 and GB. Key components undergo flaw detection and dynamic balance correction to ensure that the delivered products meet the reliability requirements of industrial transmission systems. We provide comprehensive pre-sales selection consultation and after-sales technical support to help users achieve precise adaptation and efficient operation and maintenance.
SWC-Dh Short Telescopic Welding Type Small Joint Cross-Axis Universal Coupling
SWC-Dh Short Telescopic Welding Type Small Joint Cross-Axis Universal Coupling
SWC-Dh Short Telescopic Welding Type Small Joint Cross-Axis Universal Coupling
SWC-Dh Short Telescopic Welding Type Small Joint Cross-Axis Universal Coupling
SWC-Dh Short Telescopic Welding Type Small Joint Cross-Axis Universal Coupling
SWC-Dh Short Telescopic Welding Type Small Joint Cross-Axis Universal Coupling
