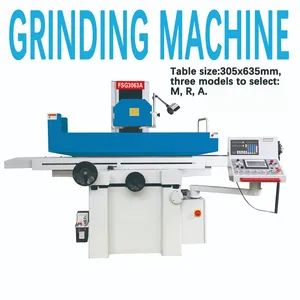

Saddle Moving Auto Surface Grinding Machine 3063
Piece
Negotiable
Product information
High-quality Saddle Moving Auto Surface Grinding Machine 3063 supplied by Qingdao Tide Machine Tool Supply Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Production Capacity:
10000sets/Year
Model NO.:
3063
Controlling Mode:
Artificial
Origin:
China
Processing Object:
Curve
Trade Term:
FOB, CIF, CFR
Abrasives:
Grinding Wheel
Precision:
High Precision
Specifications
Production Capacity:
10000sets/Year
Model NO.:
3063
Controlling Mode:
Artificial
Origin:
China
Processing Object:
Curve
Trade Term:
FOB, CIF, CFR
Abrasives:
Grinding Wheel
Precision:
High Precision
Payment Term:
LC, T/T, D/P, PayPal, Western Union
Automatic Grade:
Manual
Condition:
New
Trademark:
OEM
Port Of Loading:
Qingdao Port
Type:
Surface Grinding Machine
Cylindrical Grinder Type:
Universal Cylindrical Grinder
Transport Package:
Wooden Case
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Year Established:
2004-03-03
Annual Revenue Amount:
Not specified
Numbers Of Employees:
13
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union
Preferred Trade Term:
FOB, CIF, CFR
Port Of Loading:
Qingdao Port
Certificates:
Others
Product descriptions from the supplier
•Precision grinding Built-in Electro spindle runs in maintenane-free, suport by preload high precision angular ball bearing.
•The machine bed, table and column are high grade casting piece, which supply strong base for grinding. The slideway is coat with TF wearable material and manual precision scrapped.
•Hardened steel guide way and rolling ball (made in Taiwan) structure is adopt on X axis, with smoothly motion, high accuracy and long life.
•High precision cross and vertical lead screws are made in Taiwan.
| SPECIFICATION | Model | |||
| FSG-3063M | FSG-3063R | FSG-3063A | ||
| Table Size | mm | 305x635 | ||
| Magnetic Chuck Size | mm | 300x600 | ||
| Max. Distance From Spindle Center To Table | mm | 580 | ||
| Table Cross Travel | mm | 340 | ||
| Table Longitudinal Travel | mm | 765 | ||
| Max. Loading Capacity (Include Chuck) | kg | 270 | ||
| Speed of Table Longitudinal Move | m/min | 5~25 | ||
| Cross Motion | ||||
| Intermittent Feed Rate | mm/t | 0.1~8 | ||
| Rapid Speed | mm/min | 990 | ||
| Feed of Handwheel | mm/div | 0.02 | ||
| Vertical Motion | ||||
| Auto Down Feed Rate | mm/t | 0.005-0.05 | ||
| Rapid Down Speed | mm/min | 650 | 480 | |
| Feed of Handwheel | mm/div | 0.005 | ||
| Spindle Rotating Speed | r/min | 1450(50hz) 1750(60hz) | ||
| Grind Wheel Size | mm | 350x40x127 | ||
| Spindle Motor Power | kw | 4 | ||
| Floor Space | mm | 2900x2200x1900 | ||
| Gross Weight | kg | 2800 | ||
| Package Size | kg | 2350x2220x2210 | ||

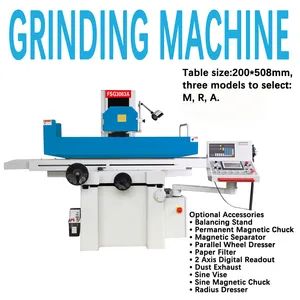

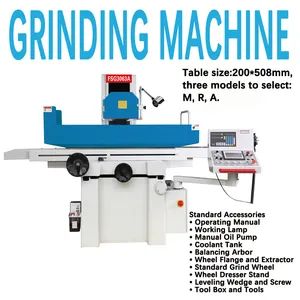

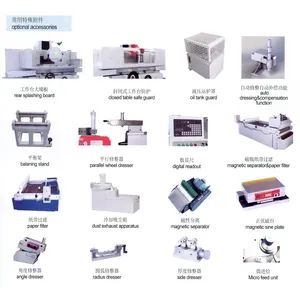

| Standard Accessories | Optional Accessories | ||
| Operating Manual | Working Lamp | Balancing Stand | Permanent Magnetic Chuck |
| Manual Oil Pump | Coolant Tank | Magnetic Separator | Parallel Wheel Dresser |
| Balancing Arbor | Wheel Flange and Extractor | Paper Filter | 2 Axis Digital Readout |
| Standard Grind Wheel | Wheel Dresser Stand | Dust Exhaust | Sine Vise |
| Leveling Wedge and Screw | Tool Box and Tools | Sine Magnetic Chuck | Radius Dresser |
